Voda STORM VST61R User manual
Voda Plumbingware (NZ) Ltd | Freephone: 0508 367 366 | 5 Hewlett Street, Port Whangarei 0110 | vodaplumbingware.co.nz
STORM
Slide Shower
VST61R
Congratulations on your purchase of this high quality product from Voda Plumbingware.
Please read the following before installation and retain (along with your receipt) for future reference.
TECHNICAL SPECIFICATIONS
Suitable for All Pressures
Minimum Pressure = 35kPa
Maximum operating Pressure = 500kPa* (As per NZ Building Code AS/NZ 3500.1)
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.
CONFIGURATION
Mains Pressure systems Install the flow regulator as shown below.
This will comply with the Mains Pressure WELS rating.
Unequal Low Systems Install as supplied.
Equal Low systems Install as supplied.
INSTALLATION
*FOR PRESSURES EXCEEDING 500kPa INSTALL A
PRESSURE REDUCING VALVE. THOROUGHLY FLUSH
ALL PIPES TO ELIMINATE ANY REMAINING DIRT AND
RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO
DO SO MAY VOID THE WARRANTY.
• Refer diagram overleaf steps 1-4, see fittings pack for
rubber O-rings, upper mounting trim plate, wall anchors,
and screws.
• Lower mount can slide up and down rail depending on requirements. Internal grub screw on lower mount can
be tightened once wall fittings are in place.

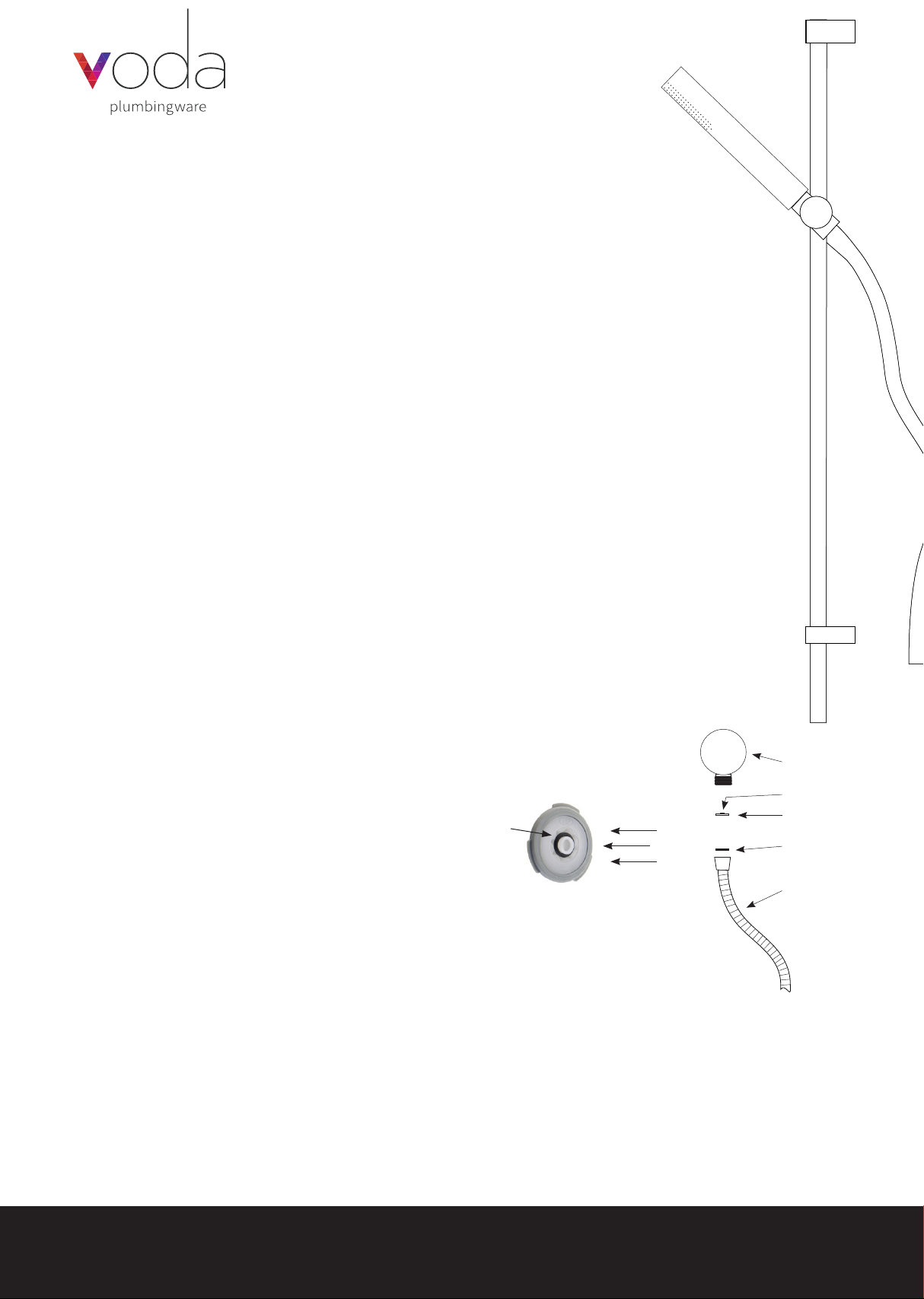

8L/min Flow Regulator
Black O-ring Water Flow
Shower Elbow
(O-ring side)
Flow Regulator
Washer
Shower Hose
**Ensure the flow regulator is fitted with
the O-ring facing away from the hose (as
shown), between Shower Elbow and Hose.
This will comply with the WELS rating.
Do NOT fit between handpiece and hose as
this can overpressurise the hose and cause
premature failure of the shower hose.
Voda Plumbingware (NZ) Ltd | Freephone: 0508 367 366 | 5 Hewlett Street, Port Whangarei 0110 | vodaplumbingware.co.nz
ATTACH PROOF OF PURCHASE HERE
• Attach conical end of hose to handpiece and insert into slider mount.
• Attach the supply elbow to the supply connection on the wall, attach hose to supply elbow with flow
regulator fitted if on mains pressure.
• Turn on water supply. Check for leaks.
CAUTION: If using your own screws to install the wall brackets, DO NOT use counter sunk type screws
as this will void the warranty.
WARRANTY
PLEASE CALL US BEFORE REMOVING TAPWARE OR UNDERTAKING ANY REPAIR WORK.
Please refer to our website for warranty information: www.vodaplumbingware.co.nz/warranty
In the unlikely event that this product fails during its warranty period, phone our Customer Service team
immediately on 0508 367 366 – as unauthorised removal of the product may void the warranty.
CARE AND MAINTENANCE
SHOULD NOT BE CLEANED WITH ACIDIC, CAUSTIC/ALKALINE, ABRASIVE OR CITRIC CLEANERS.
A so, damp cloth is recommended for cleaning (Not a Micro fibre cloth). Mild soap solutions can also be used
on occasion.

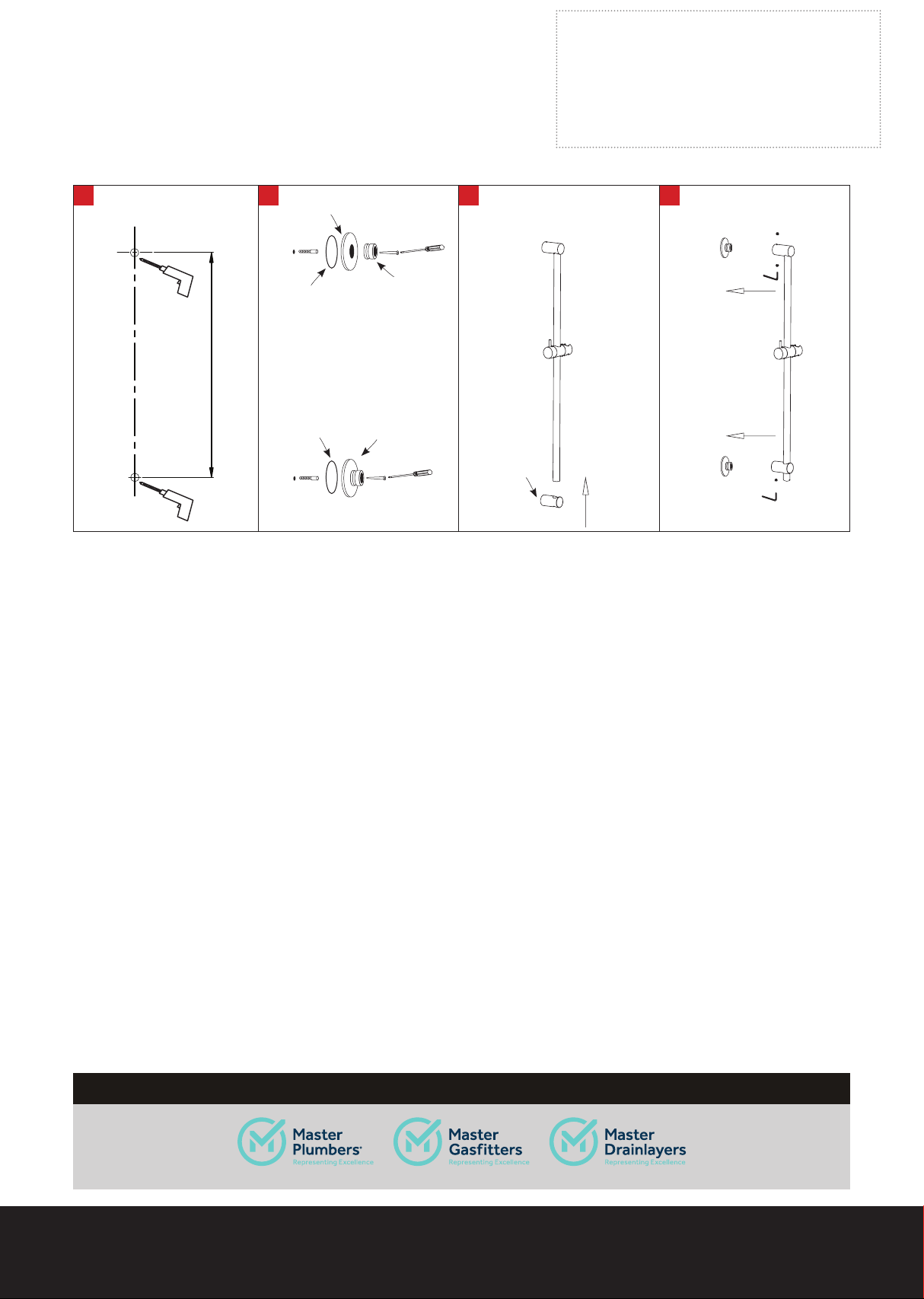

2 3 41
max. 960mm centers
Trim Plate
(in fittings pack)
Wall Fitting.
Remove from slide
rail before screwing
to wall.
Wall Fitting.
Remove from slide
rail before screwing
to wall.
Push slide rail
mounts onto wall
fittings, and tighten
grub screws to hold
rail in place.
Adjust lower mount
to suit wall fittings.
Rubber O-Ring
(in fittings pack)
Rubber O-Ring
(in fittings pack)
=
