VIVID STORM CineVision Pro User manual

PHANTOM Recessed In-Ceiling Motorized

Tension UST ALR Projector Screen

USER MANUAL

CineVision Pro Fixed Frame Projector Screen

Installation Guide

USER MANUAL

VIVIDSTORM

Content

To Users

------------------------------------------------------------------------------------------------------------------------------2

Safety Instructions-----------------------------------------------------------------------------------------------------------------2

Packing Contact -------------------------------------------------------------------------------------------------------------------4

Manufacturer's Warranty -------------------------------------------------------------------------------------------------------22

Screen Maintenance

-------------------------------------------------------------------------------------------------------------21

Certiﬁcate -------------------------------------------------------------------------------------------------------------------------24

Product Warranty Card ----------------------------------------------------------------------------------------------------------24

Matters Needing Attention ----------------------------------------------------------------------------------------------------6

-----------------------------------------------------------------------------------------7

Screen and projector compatibility

Operation Guide ----------------------------------------------------------------------------------------------------------------10

Installation Steps ------------------------------------------------------------------------------------------------------------------11

VIVIDSTORM

To Users

Thank you for choosing the VIVIDSTORM projection screen.

Please read this manual carefully before using the product and keep it properly.

The manual of products, accessories, user interface, etc. in this description are schematic diagrams and are for reference only. Due to

product updates, the actual product may be slightly different from the schematic diagram, please refer to the actual product.

Safety Instructions

For your security and interest, to ensure safe and correct use of this product, always comply with the following precautions to avoid

dangerous situations and damage to your unit:

This symbol reminds users do not touch the screen with

hands directly.

Do not place the equipment near ﬁreplaces or high

temperature objects such as gas stoves, barbecue or heaters;

Shipping Instructions

Please use this product's original packaging or same materials to

transport this product.

This symbol reminds the user to some important information

related to operation and maintenance.

Please read this information carefully to avoid incorrect operation.

2

Keep children and pet away from the product.

VIVIDSTORM

3

- Do not place ﬂammable objects near this product to avoid ﬁre.

Instructions for safe operation

- Never place the screen in an unstable location, bracket,wall, to prevent the product from falling, causing serious equipment

damage and personal injury.

- Do not place this product upright as it may tip over and cause damage.

-Make sure the product protected from rain and moisture.

- Do not immerse or expose this product to water or other liquids.

- Do not place this product in the following environments:

●Poor ventilation or narrow spaces. ●Extremely hot, cold or humid environment.

VIVIDSTORM

4

When opening the box, check the contents of the box the list below. If there is any omission, please contact the dealer in time.

Notice:

- Parking contact will be different for different countries (regions), Please refer to the actual item.

- Please keep the original packaging for future shipments.

- In special cases, the be taken out before transported. (Please contact the seller to inquire about the situation)

Packing Contact

Steel wire rod × 4 (short left

and right, long up and down)

Support rod × 1 (non-standard

conﬁguration)

L-shaped corner × 4

(outer frame)

Wall mount × 2

Screen material Outer frame × 4 (short

left and right, long up and down) Corner protection × 4

L-shaped corner × 4

(inner frame)

Fixed self-adhesive iron

sheet at the lower end × 2

Spring hook × 2 /

extension spring (several)

Allen wrench × 2

Expansion screws (several) White gloves × 1

Screws/washers (several)

VIVIDSTORM

The projector is below the screen

and place on the table or ﬂoor;

The projector is installed ceiling

mounted (suspened installed);

Rotate the screen material,Because

the screen material itself has a

sawtooth structure, it is divided

into two structures; the upper slope

is to resist and absorb the light, and

the lower slope fully reﬂects the

projector light; so we need to rotate

the screen material so that the wiper

can perfectly match the light of the

projector, (the screen surface is

resistant to light in the area below

the screen, not against the ceiling light);

Because the installation method of ultra-short throw laser projector (laser TV) is divided into hoisting or placing on the desktop,

the special anti-light direction structure of the screen material surface will be changed due to the installation method of the projector;

5

VIVIDSTORM

Matters Needing Attention

Warning! If you do not strictly follow the prescribed precautions during use, this may lead to equipment damage and other

unnecessary damage.

Please observe the family ﬁre safety regulations; do not place the equipment near the ﬁreplace or high temperature

objects such as gas stove, barbecue or heater to avoid equipment damage.

Please keep this product out of the reach of children.

Keep children away from the

product

Do not place the equipment near the

ﬁreplace or high temperature objects

such as gas stove, barbecue or heater

6

VIVIDSTORM

In view of the particularity of the screen

structure of the product, projectors other than

ultra short focus laser projectors are not

compatible with this Screen fabric. If other

projectors are used, the projection light may be

absorbed or blocked by the Screen fabric.

Screen and projector compatibility

Please note that the screen of this product is only suitable for use with Ultra short throw laser projector. If it is used

with other projector ，the effect of picture will be greatly reduced.

It is suggested that the ultra short focus laser projector throw ratio should be ≤ 0.4. (please consult the projection manufacturer

for speciﬁc parameters)

If a part of the projected

light is absorbed, the

brightness of the image

will be dimmed, Low contrast

Ambient light can be absorbed

The projection content

of the product can be well

reﬂected to the viewer

Ambient light can be absorbed

The projection content

of the product can be well

reﬂected to the viewer

7

VIVIDSTORM

8

3.When there are a few black spots, white spots, stains and other impurities on the screen surface, but if they are

qualiﬁed according to the detection method, then such situation is not a product quality problem, and it is within the

scope of product qualiﬁcation.

The detection method is as follows:

(1).Please open the screen of this product and close to the wall, and the observer can observe the ﬁlm at a distance of 3 meters

away from the screen;

(2).The observer needs to observe the shadow in the normal light environment (illumination 500-600lx);

(3).The distance between the observer and the front of the screen should be kept at a distance of 3 meters , and the center point

of the screen should be close to or higher than the horizontal line of sight (as shown in Figure 1), and the observation should be

made at the center point, 1 m to the left and 1 m to the right (as shown in Fig. 2).

Summary the test results of the product are within the allowable range, the product is qualiﬁed.

Figure 2 top view

screen

3m

Figure 1 side view

The ambient illumination of the

central point is 500-600lx

The center of the screen

45°

Horizontal line of sight

3m

1m

screen

VIVIDSTORM

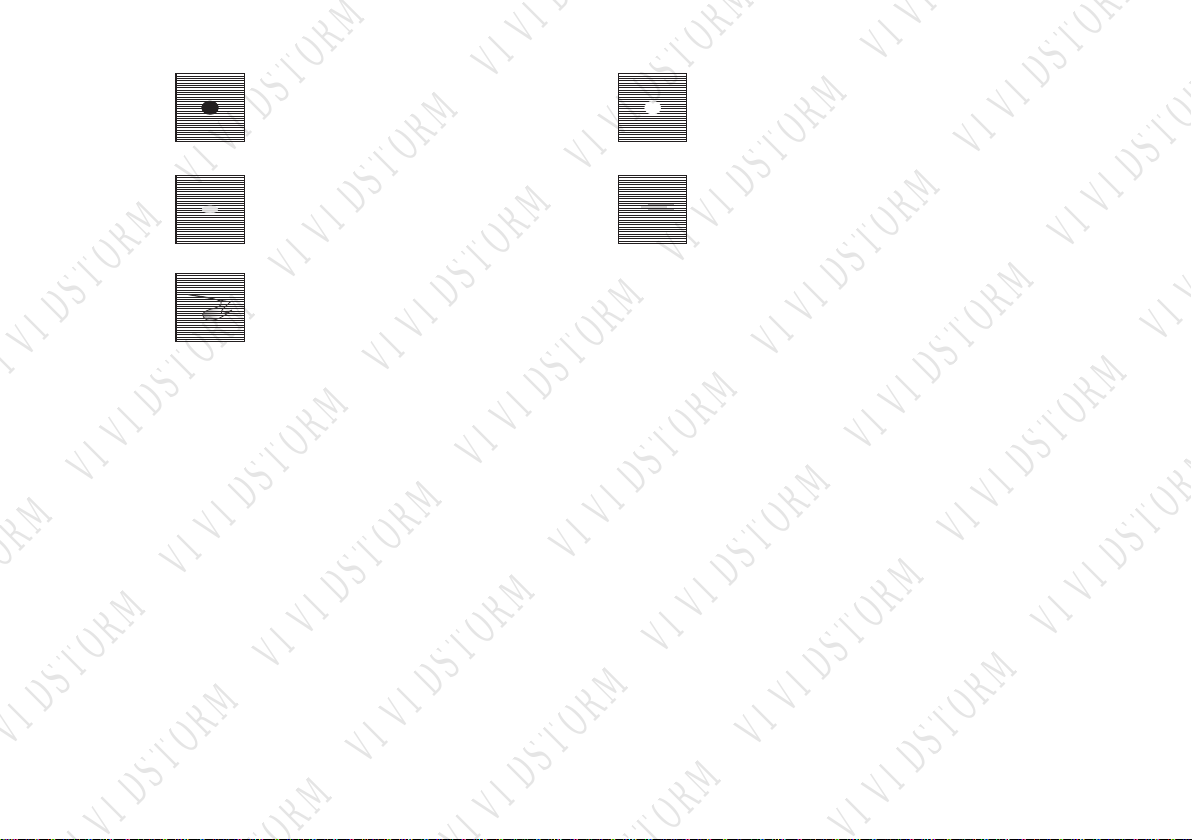

For the black spot defect which can be

measured in appearance, if it can not be

found by visual inspection, the product is

normal.

For the appearance of speciﬁc

measurable white spot defects, if visual

inspection can not be found, then the

product is normal.

If the visible dirt is within the allowable

range of defects, the product is normal.

For the faint linear printing trace, if within

the allowable range of defects, the

product is normal.

For the inks caused by uneven printing

traces, if within the allowable range of

defects, the product is normal.

4. (1).The white screen is listed as the quality standard because it is not only the reﬂection surface of the projector image (the

blacksurface is observed from the upper and lower direction, and the white surface is observed from the bottom direction),

but also the main function surface of the viewing image, so the white screen is listed as the quality standard. It should be noted

that if the white screen surface does not exceed the quality speciﬁcation, it will be regarded as meeting the factory

qualiﬁcation standard.

(2).Different from the white screen, the black screen is used as a functional surface to absorb indoor ambient light. In view of

the fact that there is no direct correlation between the black screen surface and the image viewing quality, its quality

speciﬁcations are quite different from that of the white surface. It should be noted that the slight black marks on the black

screen surface are inevitable appearance phenomena in the production process of industrial products, which meet the factory

qualiﬁcation standard.

Conclusion: it should be noted that the slight black marks and white spots on the black screen surface of the anti light

projection screen products are normal product appearance phenomena, which will never affect the image viewing quality.

Please use it at ease.

9

VIVIDSTORM
