Vive Comfort TP-RIS-251S User manual

Installation Manual

Table of Contents

Mounting Locations

Sensor Mounting & Setup

Wiring

Resistance Chart

Specications & Warranty

Page

A trained, experienced

technician must install this

product.

Carefully read these

instructions. You could damage

this product or cause a

hazardous condition if you fail

to follow these instructions.

Una version en espanol de este

manual se puede descargar en

la pagina web de la compania.

Rev. 2107

Wall Mount

Mounting Locations

3-4

5-6

Sensor Mounting & Setup Sensor Mounting & Setup

Connecting to a Wired Sensor Capable Thermostat

The remote sensor should be mounted or placed approximately 4 to

5 feet above the oor. Select an area with average temperature and

good air circulation.

• Close to hot or cold air ducts

• That are in direct sunlight

• With an outside wall behind the thermostat

• In areas that do not require conditioning

• Where there are dead spots or drafts (in

corners or behind doors)

• Where appliances could radiate heat.

• Near or on hot appliances.

Remote Sensor Locations

Do not mount or place remote

sensors in these locations:

Do not operate the cooling

system if the outdoor

temperature is below 50˚F

(10˚ C) to prevent possible

compressor damage.

Caution: Equipment

Damage Hazard

kl kl vbp

The range between the remote sensor and the wired sensing master

thermostat is up to 300 feet. The remote sensor should be installed

using 18 AWG thermostat wire.

Wired Range

Remove the cover of the remote sensor

Mount subbase to the wall

Inside view of

subbase or the

remote sensor

Loosen the terminal block screws. Insert wires, then retighten

terminal block screws.

Non-Flammable

Insulation

Terminal Blocks

Connect the remote sensor to the S terminal blocks on the Wired

Sensor Capable Thermostat.

Place non-ammable insulation into wall opening to prevent

drafts.

Note: Refer to your Wired Sensor Capable

Thermostat manual for setup.

TP-RIS-251S

U.S. Registered Trademark. Patents pending

Vive Comfort

Toll Free : 888-776-1427

Web: www.vivecomfort.com

Hours of Operation: M-F 9AM - 6PM Eastern

P.O. Box 3377

Springeld, MO 65804

Wiring

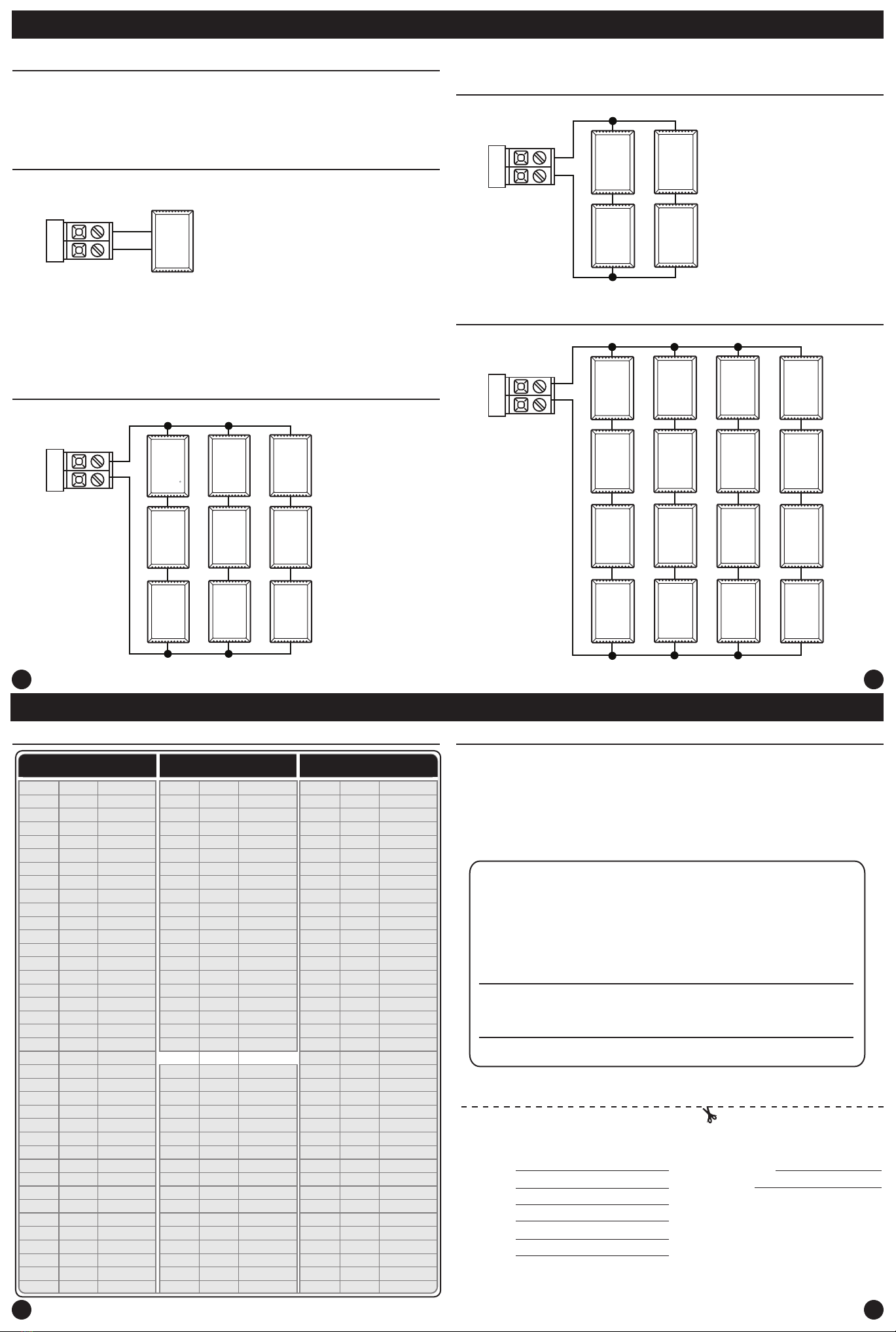

You can connect 1, 4, 9, or 16 remote sensors to a Wired Sensor Capable

Thermostat to achieve a more accurate temperature average throughout

a space. The following diagrams illustrate the proper ways to wire the

remote sensor. Use 18 AWG thermostat wire when installing.

Wiring

Resistence Chart Technician Setup

1 Remote Sensor

4 Remote Sensors

9 Remote Sensors

16 Remote Sensors

S1S1

S2S2

S1S1

S2S2

S1S1

S2S2

S1S1

S2S2

41303113 45.00

115 46.11 39434

117 47.22 37660

119 48.33 35976

121 49.44 34376

123 50.56 32843

125 51.67 31399

127 52.78 30027

129 53.89 28722

131 55.00 27481

133 56.11 26300

135 57.22 25177

137 58.33 24107

139 59.44 23089

141 60.56 22111

143 61.67 21188

145 62.78 20308

147 63.89 19469

149 65.00 18670

151 66.11 17907

153 67.22 17180

155 68.33 16486

157 69.44 15824

159 70.56 15187

161 71.67 14584

163 72.78 14008

165 73.89 13458

167 75.00 12932

169 76.11 12430

171 77.22 11949

173 78.33 11490

175 79.44 11051

177 80.56 10627

179 81.67 10225

181 82.78 9841

183 83.89 9473

185 85.00 9121

187 86.11 8783

-39- 39.44 3916295

-37- 38.33 3627711

-35- 37.22 3362274

-33- 36.11 3117987

-31- 35.00 2893035

-29- 33.89 2685770

-27- 32.78 2494694

-25- 31.67 2318444

-23- 30.56 2155781

-21- 29.44 2004274

-19- 28.33 1865595

-17- 27.22 1737397

-15- 26.11 1618827

-13- 25.00 1509102

-11- 23.89 1407512

-9 -22.78 1313405

-7 -21.67 1226184

-5 -20.56 1145306

-3 -19.44 1069620

-1 -18.33 1000019

1- 17.22 935383

3- 16.11 875329

5- 15.00 819505

7- 13.89 767589

9- 12.78 719284

11 -11.67 674319

13 -10.56 632442

15 -9.44 593086

17 -8.33 556739

19 -7.22 522842

21 -6.11 491217

23 -5.00 461699

25 -3.89 434134

27 -2.78 408383

29 -1.67 384316

31 -0.56 361813

33 0.56 340581

35 1.67 320895

°F C Ohms

°F C Ohms °F C Ohms

37 2.78 302466

39 3.89 285206

41 5.00 269035

43 6.11 253877

45 7.22 239664

47 8.33 226331

49 9.44 213819

51 10.56 201971

53 11.67 190946

55 12.78 180588

57 13.89 170853

59 15.00 161700

61 16.11 153092

63 17.22 144992

65 18.33 137367

67 19.44 130189

69 20.56 123368

71 21.67 117000

73 22.78 110998

75 23.89 105338

77 25.00 100000

79 26.11 94963

81 27.22 90208

83 28.33 85719

85 29.44 81479

87 30.56 77438

89 31.67 73654

91 32.78 70076

93 33.89 66692

95 35.00 63491

97 36.11 60461

99 37.22 57594

101 38.33 54878

103 39.44 52306

105 40.56 49847

107 41.67 47538

109 42.78 45349

111 43.89 43273

100K Thermistor Output Table Specications

Operating Temperature ...................... 32˚F to 105˚F (0˚C to +41C)

Operating humidity............................... 90% non-condensing maximum

Dimensions of sensor .......................... 1.5”W x 2.75”H x 0.75”D

Resistance range ...................................Up to 300 feet

Warranty Registration

Your new thermostat has a 5 year limited warranty. You must register

your thermostat within 60 days of installation. Without this

registration the warranty period will begin on date of manufacture.

For warranty issues please contact the HVAC professional that

installed this product. You can register your new thermostat in 2 ways:

Go to the company website, select warranty registration and

ll out a short registration form.

Complete the form below and mail it to the address shown.

Warranty Registration

Name:

Address:

City:

State:

Zip:

Thermostat Model:

Date Installed:

Complete form and mail to:

Thermostat Warranty Registration

Online

Mail

Vive Comfort

P.O. Box 3377

Springeld, MO 65804
