Vitek Transcendent Series User manual
VITEK
VITEK
VTD-TNMD4RFA3-2
Transcendent Series 4 MegaPixel
Gen. III Advanced A.I. Fixed IP
Vandal Dome Camera
QUICK START GUIDE
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
*Shown with optional wall
mount VT-TWMT-3
FEATURES:
• 1/3” 4.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8mm Fixed Iris Lens
•Matrix IR with up to 65’ IR Range
•120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Gen. III Advanced Analytics including Object Removal/Museum
Search, Line Crossing, and Area Intrusion Detection
• Smart H.265/H.265+/H.265/H.264/MJPEG Triple Streaming
• Remote Viewing via VMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• MicroSD memory card slot for Local recording supporting up to
256GB
• IP66 Weather Resistance
• Built-In Microphone*
• 12VDC & PoE (Power over Ethernet) Operation
2 3

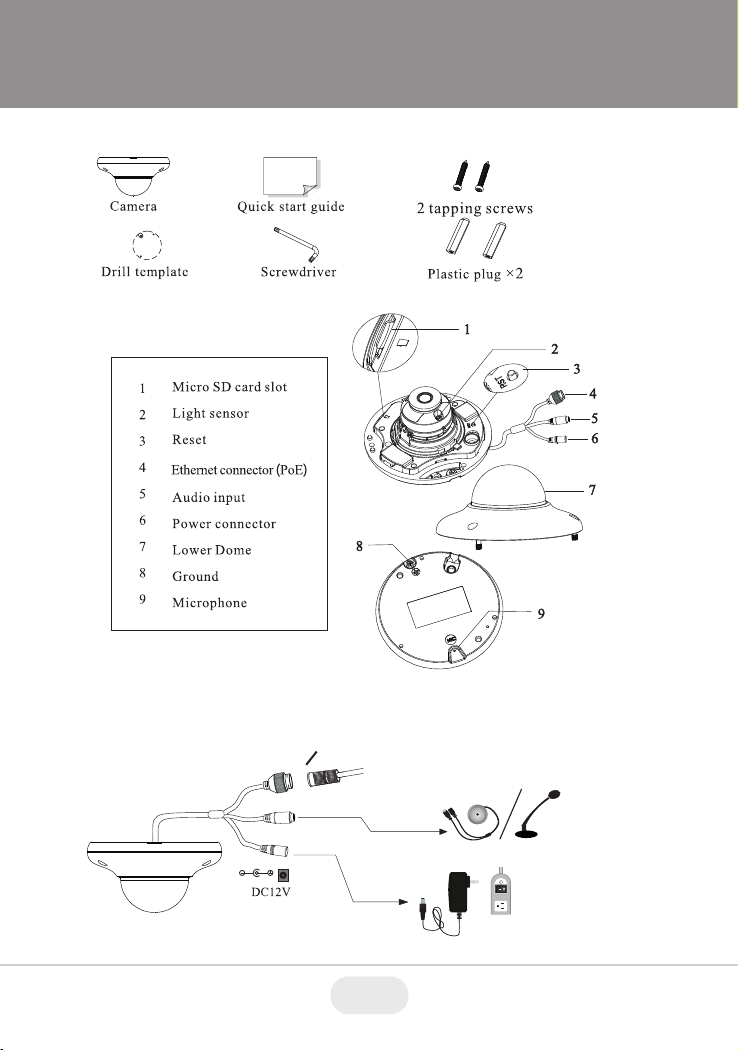

Components and Accessories
Cable Connections
Overview
First connect the Weather Resistant Cap to an Ethernet patch cable,
then connect the cameras ethernet adaptor. If not powering the
camera with PoE, also connect the power Cable to an approved
12VDC Power Supply.
Weather Resistant Security Cap
3
Installation
Weather Resistant Network Coupler
1. Loosen the nut from the Weather Resistant Network Coupler.
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
Before beginning installation, make sure that the wall or ceiling is
strong enough to withstand 3 times the weight of the camera. The
mounting steps are as follows:
2. Loosen the screws to open
the lower dome and then
loosen the lock screw to
remove the mounting base.
1. Attach the drill template to
the place where you want to
install the camera, then drill
the screw holes and 1 cable
hole according to the drill
template.
1.55”
1.57”
4.33”
3.60”
.18”
4 5
5. Replace the lower dome of the camera and make sure the light sensor can
be seen from the outside. If the light sensor is hidden, please re-adjust the lens.
Following this, secure the lower dome with the included screws.
4. Before adjusting the three-axis camera mount, preview the
camera on a monitor, then adjust as necessary achieve the
optimum viewing angle.
3. Route the cables and
connect the power & video
cables, use the rubber plug
to fill the gap of the mounting
base. then secure the
mounting base to the ceiling
or wall with screws.
5
LAN Configuration
The camera can be accessed on the local network either using the
IP-Tool or directly in a web browser.
Accessing the Camera Using the IP-Tool
1. Make sure the camera and PC are connected to the LAN.
2. Locate the IP-Tool installer at www.
vitekcctv.com/Downloads/Soft-
ware/Transcendent-IPTool_v2.0.2.zip
, then install on the PC. Open
the installed application.
3. Modify the IP address. The default IP address is 192.168.226.201.
Click the information of the camera listed in the above table to show
the network information on the right side. Modify the IP address and
gateway of the camera and make sure its network address is in the
same local network segment as the computer’s. Please modify the
IP address of your device according to the practical situation.
For example, the IP address of your computer
is 192.168.13.4. So the IP address of the
camera shall be changed to 192.168.13.X.
After modification, please input the password
of the administrator and click “Modify” button
to modify the setting.
** Default admin password: “123456".
MENU
IP Camera
Network Cable Network Cable
Switch
Router Computer
6 7
4. Double-click the IP address and then the system will pop up the web
browser to connect IP-CAM . IE browser will download the Active X
control. After downloading, a login window will pop up as shown
below:
Input the user name and password to log in.
Default user name: admin / Default password: 123456.
Directly Access Through a Web Browser
The default network settings are as shown below:
IP address: 192.168.226.201 HTTP: 80
Subnet Mask: 255.255.255.0 Data Port: 9008
Gateway: 192.168.226.1
You may use the above default settings when you log in the camera for
the first time.
1. Manually set the IP address of the PC. The network segment should
be the same as the default settings of IP-CAM. Open the network
and share center. Click “Local Area Connection” to pop up the
following window.
Select “Properties” and then select Internet protocol according to the
actual situation (for example: IPV4). Next, click “Properties” button to
set the network of the PC.
7
2. Open the IE Browser and input the default address of IP-CAM and
confirm. The IE browser will download Active X control.
3. After downloading Active X control, the login dialog box will pop up.
4. Input the default username and password and then enter to view.
WAN Configuration
Access the camera by the router or virtual server for example.
1. Make sure the camera is connected to the LAN; Then log into the
camera via LAN and go to System Congfig→Network Config→Port
menu to set up the port number.
2. Enter System Config→Network Config→IP Address menu to modify
the IP address.
4. Open the web browser and input its WAN IP and HTTP port to
access the IP-CAM.
3. Go to the router’s management interface through IE browser to
forward the IP address and port of IP-CAM in the “Virtual Server”.
5. For additional setup, features and functions, please scan
the QR code on the front page of this quick guide and
download the complete manual.
8 9
Image Sensor 1/3” 4.0 Megapixel Progressive Scan CMOS
Image Size 4 MegaPixel (2592 × 1520)
Resolution 4MP (2592 × 1520) / 3MP (2304 × 1296) / 1080P (1920 ×
1080) / 720P (1280 × 720) / D1/CIF (480 × 240)
Min. Illumination .005 [email protected], AGC on, 0 lux w/IR .0028 [email protected], AGC on; 0 lux w/IR
Lens 2.8mm Fixed Iris
Day/Night True Day/Night by ICR
IR LEDs 1 Matrix Style IR LED
IR Distance Up to 65’
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 /
H.264+ / H.264 / MJPEG
Audio Compression G.711A / G.711U
Main Stream 4MP, 3MP, 1080P, 720P (60Hz: 1 ~ 30fps),
HFR mode: 1080P / 720P (60Hz: 1~60fps)
Sub, Third Stream 720P/D1/CIF/480×240(60Hz: ≤30fps), D1/CIF/480×240(60Hz: ≤30fps
Bit Rate 64 Kbps ~ 8 Mbps
Wide Dynamic Range 120dB Super WDR
Digital Noise Reduction 3D-DNR
Quality VBR (Five Levels of Adjustment) / CBR (Adjustable)
Other Features Defog, Backlight Control, Highlight Control, M12 Lens Mount
Image Setting ROI, Saturation, Brightness, Chroma, Contrast,
Sharpen, NR; adjustable through client
software or web browser
Gen. III Advanced Analytics Abnormal Video, Face Detection, Regional Intrusion, Regional
Entrance / Exiting, Line Crossing, Target Counting
Smart Alarm Motion detection, SD card error, SD card full
Region of Interest (ROI) Each ROI to be configured separately
Audio 1 Ch. Audio In + Built in Mic*
Local Storage Built-in micro SD card slot up to 256GB
PoE Yes , IEEE802.3af
Remote Viewing VMS / Web Browser / Mobile (iOS/Android)
Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab
Connection Protocol ONVIF
Resistance IP66
Power Input 12VDC / PoE
Power Consumpt. (12VDC) 120mA (LEDs Off) / 480mA (LEDs On)
Power Consumpt. (PoE) < 6W
Working Environment -22° ~140° / < 95% Humidity
Weight .84lbs. / 380g
Dimensions 4.33” × 2.35” (110mm × 59.8mm) Dia × H
DETAILED
SPECIFICATIONS:
VTD-TNMD4RFA3-2
*Please research local, state
and federal laws regarding the
implementation of audio
surveillance.
9
OPTIONAL ACCESSORIES
AND RELATED PRODUCTS
FOR VTD-TNMD4RFA3-2
VT-TWMT3
Optional Wall
Mount
5.10”
6.10”
2.93”
10 11
OPTIONAL ACCESSORIES
AND RELATED PRODUCTS FOR
TRANSCENDENT IP CAMERAS
VT-TNR3216PF
VT-TNR818PF
VT-TNR1646PF
• 8MP (4K) HDMI Output
• H.265 / H.264 Compression
• Full Analytic Support Including
Face Detection and License Plate
Recognition
• 360 Degree / Fish Eye De-Warping
• Available in 8, 16, and 32 Channels
• Up to 80TB Depending on Model
• PoE Support on ALL Models
PAIR WITH OUR
ADVANCED LEARNING NVRs
A Standalone
Solution with FULL
Analytic Support
