(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355

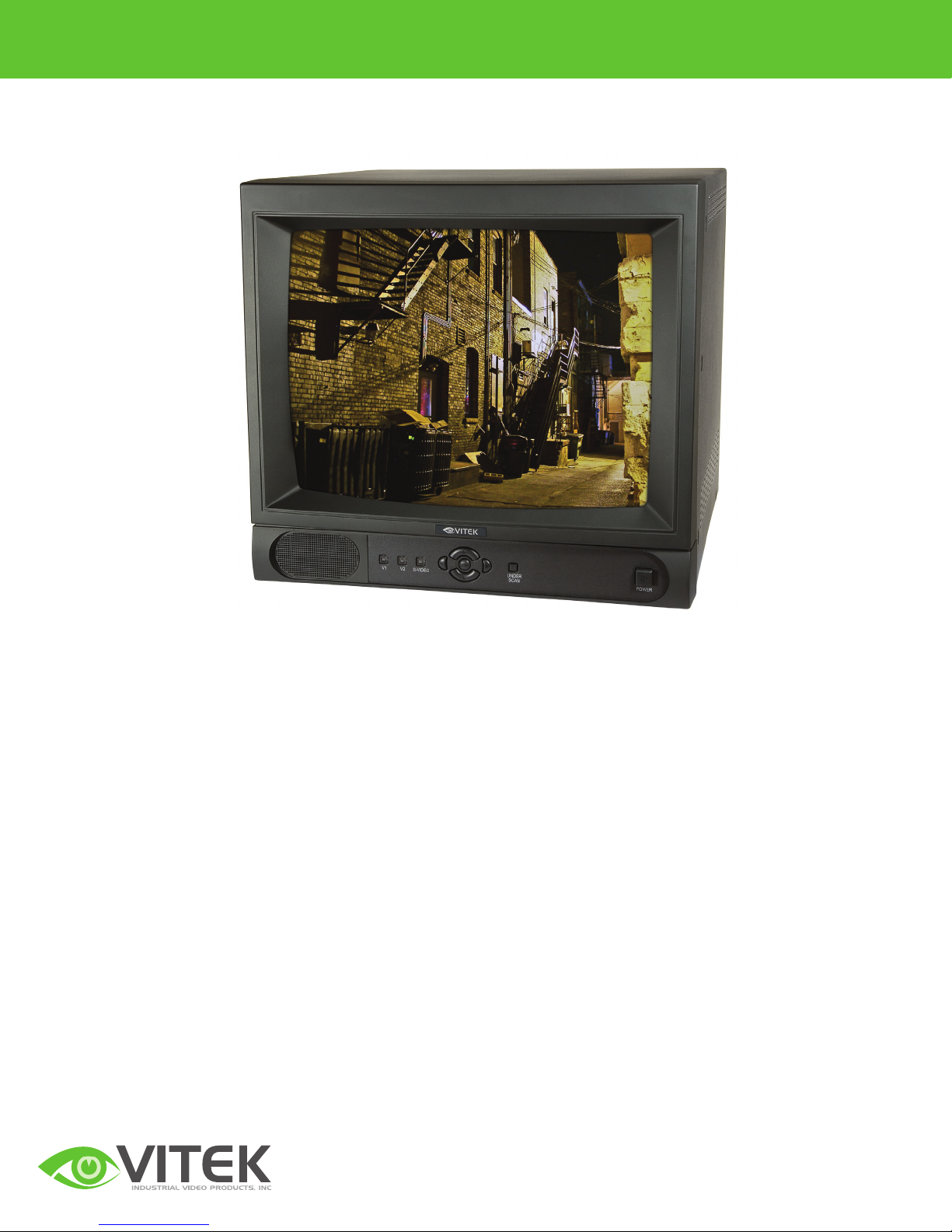

VTM-143C 14" Color Monitor w/450
TVL & Audio
•450 TV Lines At Center on a 14" Diagonal
Screen
•Attractive Black Metal Cabinet
•Digital Front Panel Controls For: Sharp / Bright /
Tint / Color / Contrast & Volume
•Front Panel Video Source Buttons for: Video1 /
Video2 / S-Video
•2 Looping Video Inputs & Dual Audio In / Out
•Rack Kit Available: VI-141CRM
FEATURES
The VTM-143C Offers high resolution and high contrast pictures
with solid state circuitry for a long service life. The cabinet is built
with a rugged, attractively styled steel. A regulated power supply
maintains excellent performance during fluctuations in line
voltage. On Screen Display (OSD) controls for Tint, Color,
Brightness, Contrast, Overscan, Volume, Power On/Off, and
Video1/Video2/S-Video Switch are located at the front of the unit.
BLACKYELLOWMAGENTACYAN
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
VTM-143C 14" Color Monitor w/450
TVL & Audio
Detailed Specifications
Picture Tube
Resolution
Video System
A/V Terminals
Input Signal
Sound output
Speaker
Power Source
Power Consumption
Operating Temperature
Dimensions(W x H x D)
Weight
14" diagonal with 90° deflection angle
450 TV Lines
NTSC / PAL
Looping BNC Video In/Out, S-Video Input, Audio In/Out
Video Composite: 1Vp-p
1.0 W
3W
AC 100-240V~, 50/60 Hz
45 Watts
32°-106° F (0°-40° C)
13.8" x 12.9" 14.6" (350 x 328 x 371 mm)
30.9 lb (14Kg)
Rear Connections:
