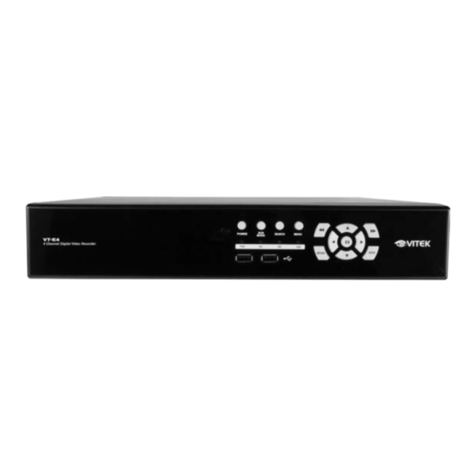

Vitek VT-E16 User manual

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VT-E Series 4, 8, and 16 Channel Digital Video Recorders

•4, 8, or 16 Video Inputs

•Remote Viewing over the Internet or LAN

•Supports both Dynamic and Static IP Addresses

•Up to 120 IPS Recording

•MPEG-4 Compression

•4 Audio Inputs / 1 Audio Output

•4, 8, or 16 Channel Alarm Inputs

•Control locally via Front Panel, USB Mouse or with the Included IR

Remote Control

•PTZ Control over RS-485

•Built-In Bandwidth Throttling

FEATURES

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VT-E Series 4, 8, and 16 Channel Digital Video Recorders

Video Standard

Video Inputs

Looping Outputs

Monitor Output

Main Monitor Output

Spot Output (Analog)

Split Screen

Audio

Alarm

Recording Speed

Compression

Average File Size

Internal Storage

Backup Options

Backup File Format

Ethernet

Badwidth Throttling

Dynamic IP support

PTZ Control

USB

Pre / Post Event Buffer

Motion Area Setup

Operation Device

IR Remote Control

Power

Operation Temp.

Humidity

Dimensions (W x H x D)

Weight

NTSC & PAL

4816

4 N/A N/A

Composite / S-VHS 704 x 480 / 704 x 576

VGA

124

1 / 4 1 / 4 / 5 / 6 / 9 1 / 4 / 5 / 6 / 8 / 9 / 16

4 In / 1 Out

4 In / 1 Out (1 Relay) 8 In / 8 Out (TTL) 16 In / 16 Out (TTL)

CIF (360 X 240), Half-D1 (720 X 240), D1 (720 X 480)

MPEG-4 (Modified)

CIF: 2~4k / Half D1: 4~6k / D1: 8~12k

2 x HDD (Max)

External USB Devices (Flash Memory, HDD, CD/DVD+/-R, Etc.)

AVI

RJ45 @ 10/100Mbps

8 Levels

Yes

RS-485

USB 2.0

Up to: 5 Seconds Pre-Event / 5 Minutes Post-Event

Adjustable 12 x 12 Grid Adjustable 16 x 16 Grid Adjustable 16 x 16 Grid

Front Panel / IR Remote Control / USB Mouse (Mouse Not Included)

Included

100~240VAC, 1.0/1.5A, 60/50Hz

32° ~ 113° Fahrenheit

0% ~ 80%

14.2” x 15.5” x 2.5”

7.2lbs. (w/o HDD)

Detailed Specifications VT-E4 VT-E8 VT-E16
