VIRTUFIT IConsole HTR 2.1 User manual

Hometrainer iConsole HTR 2.1

Owners manual

ENG

T +31 (0)74-7600219

E service@tnessbenelux.nl

Wwww.tnessbenelux.nl

Twekkelerweg 263

7553 LZ Hengelo

The Netherlands

Fitness

Benelux

Uw partner in fitness

For questions or missing parts, please contact Fitness Benelux:

2Hometrainer iConsole HTR 2.1

ENG

CONTENTS

Safety Instruction 3

Check List 4-5

Assembly Instruction 6-12

Exploded Drawing 13

Parts List 14-16

Computer Instruction 17-23

iConsole+ App 24

Training Instruction 25

Hometrainer iConsole HTR 2.1

ENG

SAFETY INSTRUCTION

Before you start training on your hometrainer, please read the instructions carefully.

Be sure to keep the instructions for information, in case of repair and for spare part

delivery.

This hometrainer is made for home use only and tested up to a maximum body weight of 150 kg.

Follow the steps of the assembly instructions carefully.

For assembly use only suitable tools and ask for assistance with assembly if necessary.

Check before the rst training and every 1-2 months that all connecting elements are tight tting and are

in the correct condition. Replace broken components immediately and/ or keep the equipment out of use

until repair. For repairs, use only original parts.

In case of repair, please ask your dealer for advice.

Avoid the use of aggressive detergents when cleaning the home exerciser.

Ensure that training starts only after correct assembly and inspection of the item.

For all adjustable parts be aware of the maximum positions to which they can be adjusted/tightened to.

The hometrainer is designed for adults. Please ensure that children use it only under the supervision of an

adult.

Ensure that those present are aware of possible hazards, e.g. movable parts during training.

Consult your physician before staring with any exercise program. He or she can advise on the kind of

training and which impact is suitable.

Hometrainer iConsole HTR 2.1

ENG

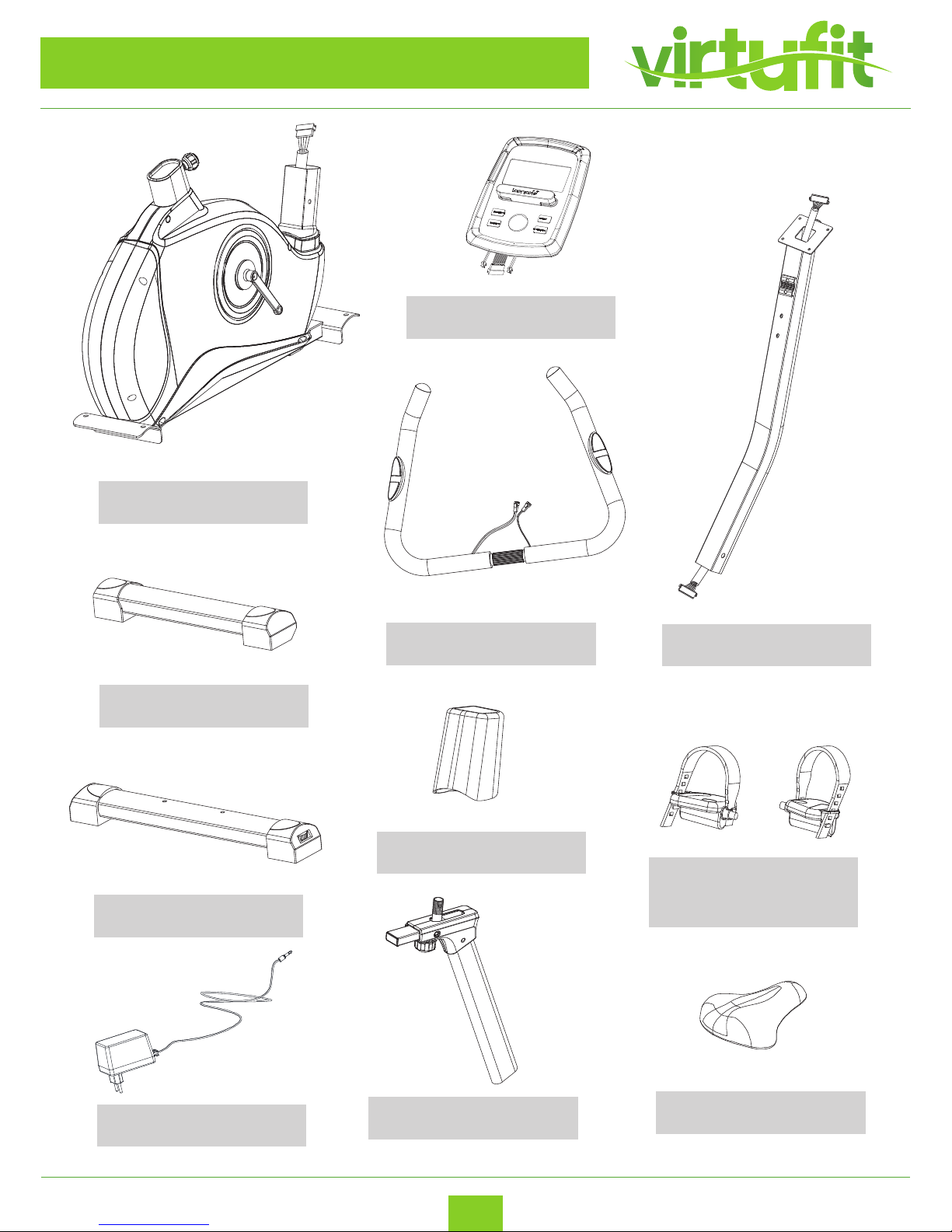

CHECK LIST (contents of packaging)

Computer

Plastic cover

Saddle

Seat post

Pedal (Left)

Pedal (Right)

Rear stabilizer

Front Stabilizer

Handlebar Post

Handlebar

Main frame

Adapter

Hometrainer iConsole HTR 2.1

ENG

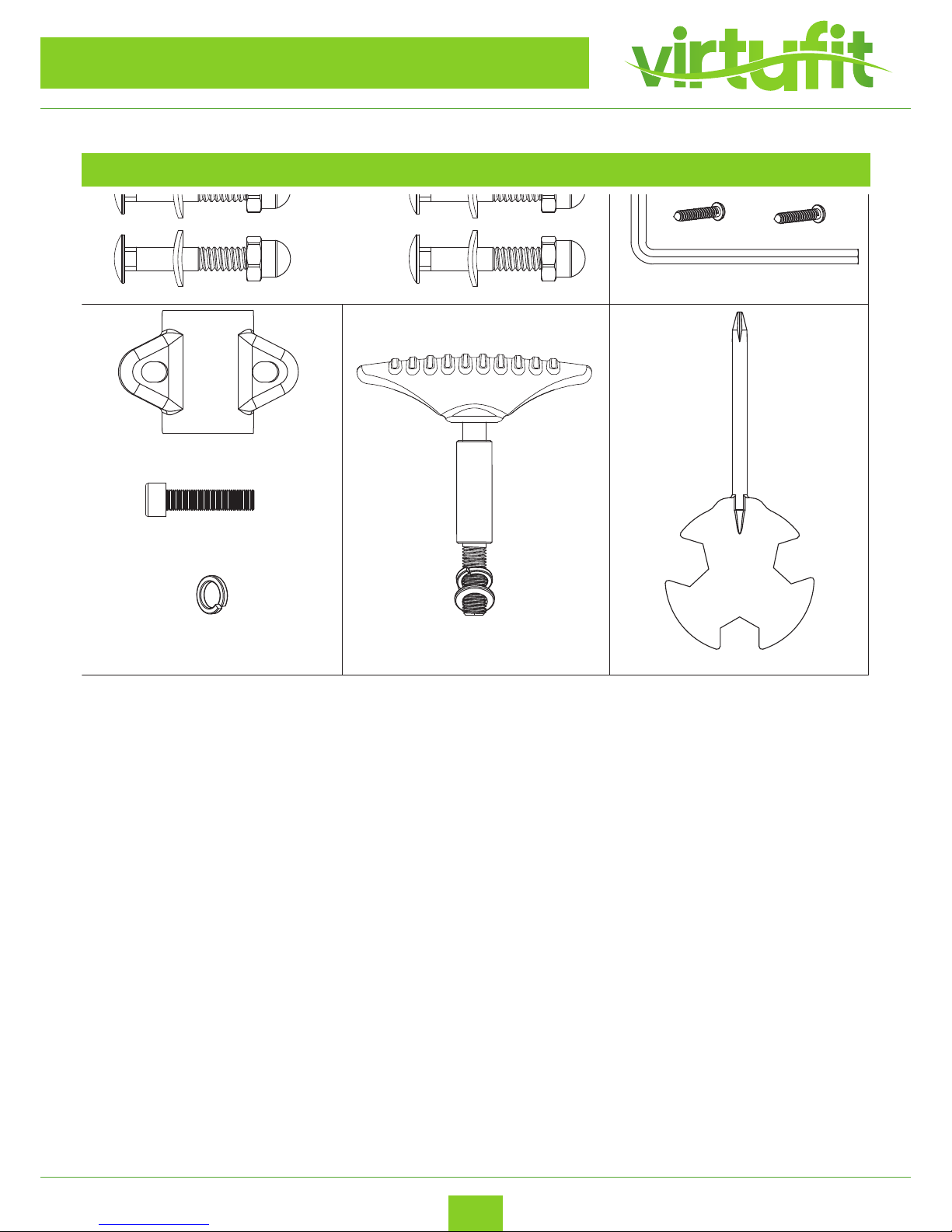

CHECK LIST (contents of packaging)

TOOL KIT

NO 63x4

NO 64*4

NO 61*4

NO 11*1

NO 12*1

NO 14*1

NO 15x1

NO 14x1

NO 13*1 NO 93*1

NO 10

NO 94

NO 95

IS-810

Hometrainer iConsole HTR 2.1

ENG

ASSEMBLY INSTRUCTION

UITLEG BIJ MONTAGE

I. Bevestig de voorste stabilisator (89) op het frame (56) met 2×M8 schroeven (61), gebogen ring (63)

en dopmoer (64) . Draai strak aan.

II. Bevestig de achterste stabilisator (60) op het frame (56) met 2×M8 schroeven (61), gebogen ring

(63) en dopmoer (64) . Draai strak aan.

STAP 1

Opmerking：Ukunt de dop aan de achterkant verstellen om de hometrainer stabiel te houden.

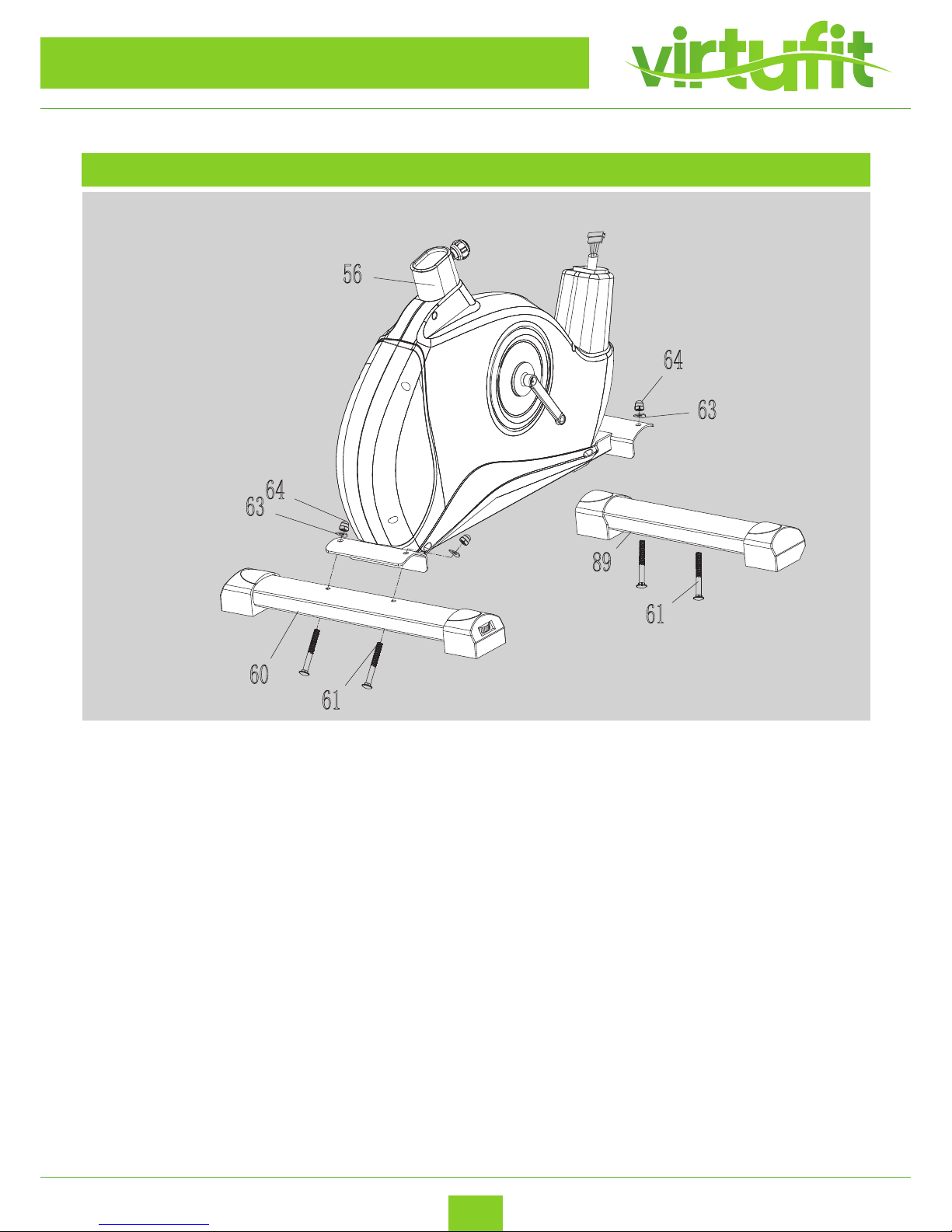

STEP 1

I. Attach the Front Stabilizer (89) onto the Main Frame (56) with 2×M8 Screws (61), Curved washer (63) and

Cap nut (64) .Tighten fully.

II. Attach the Rear Stabilizer (60) onto the Main frame (56) with 2×M8 Screws (61). Curved washer (63) and

Cap nut (64) Tighten fully.

Note: You can adjust the Rear End Cap to keep the hometrainer stable.

Hometrainer iConsole HTR 2.1

ENG

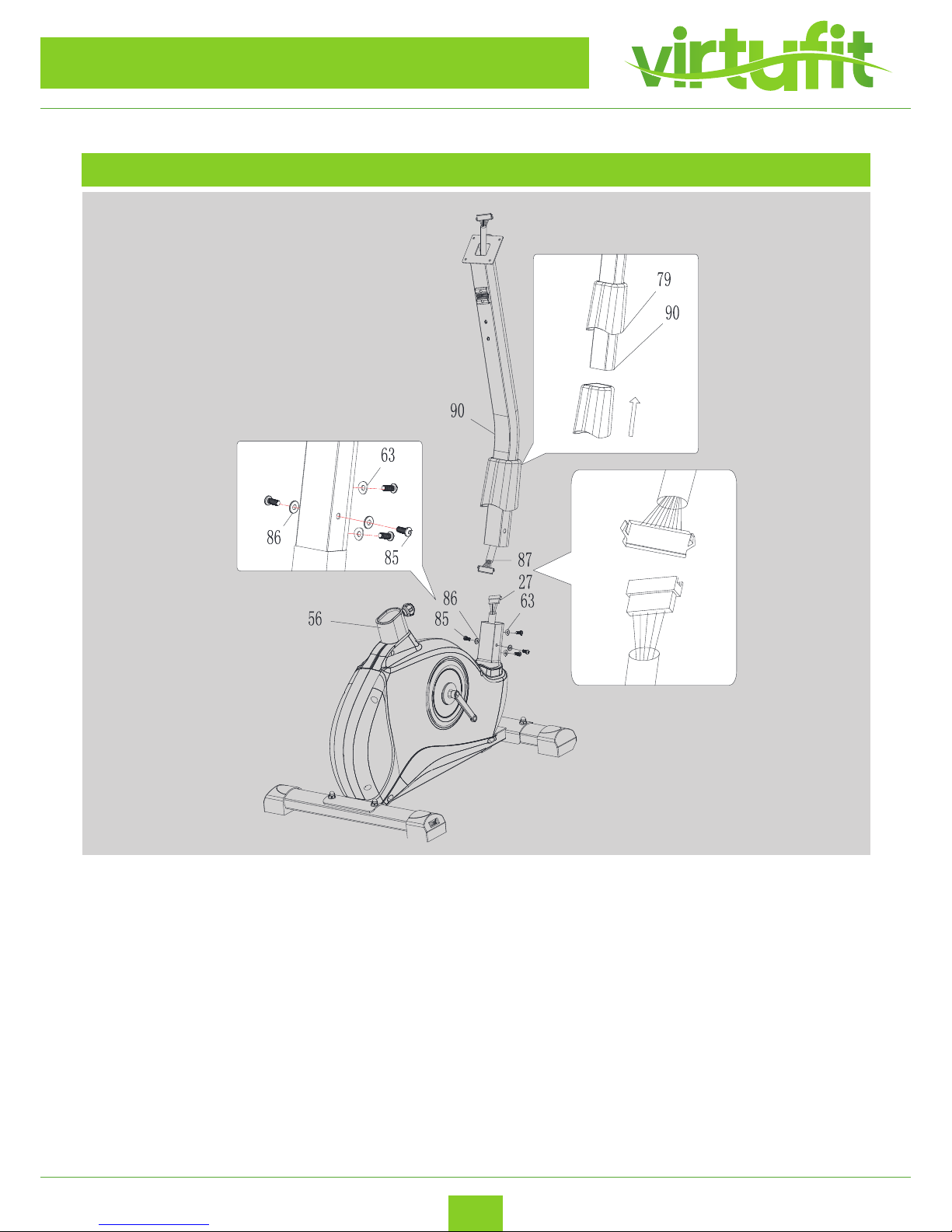

STEP 2

STAP 2

I. Til de stuurstang voorzichtig op (90) tot deze verticaal is en laat deze door de plastic cover glijden

(79). Zet de weerstand op de stuurstang op stand 1.Verbind de bovenste spanningkabel (87) ende

onderste spanningskabel (27)

II. Bevestig de stuurstang (90) op het frame (56) met 4×M8×20mm anti-losse bouten

(85), 2×M8 bochtringen (86) en2×M8 platringen (63). Draai de bouten niet aan tot STAP 3.

I. Carefully lift the Handlebar Post (90) until it is vertical. And slide onto the plastic cover (79).

Connect the upper Tension Cable (87) and Lower Tension Cable (27)

II. Attach the Handlebar Post (90) onto the Main Frame (56) with 4×M8×20mm Anti-loose Allen Bolt (85),

2×M8 curved Washers (86) and 2×M8 at Washers (63).

ASSEMBLY INSTRUCTION

Hometrainer iConsole HTR 2.1

ENG

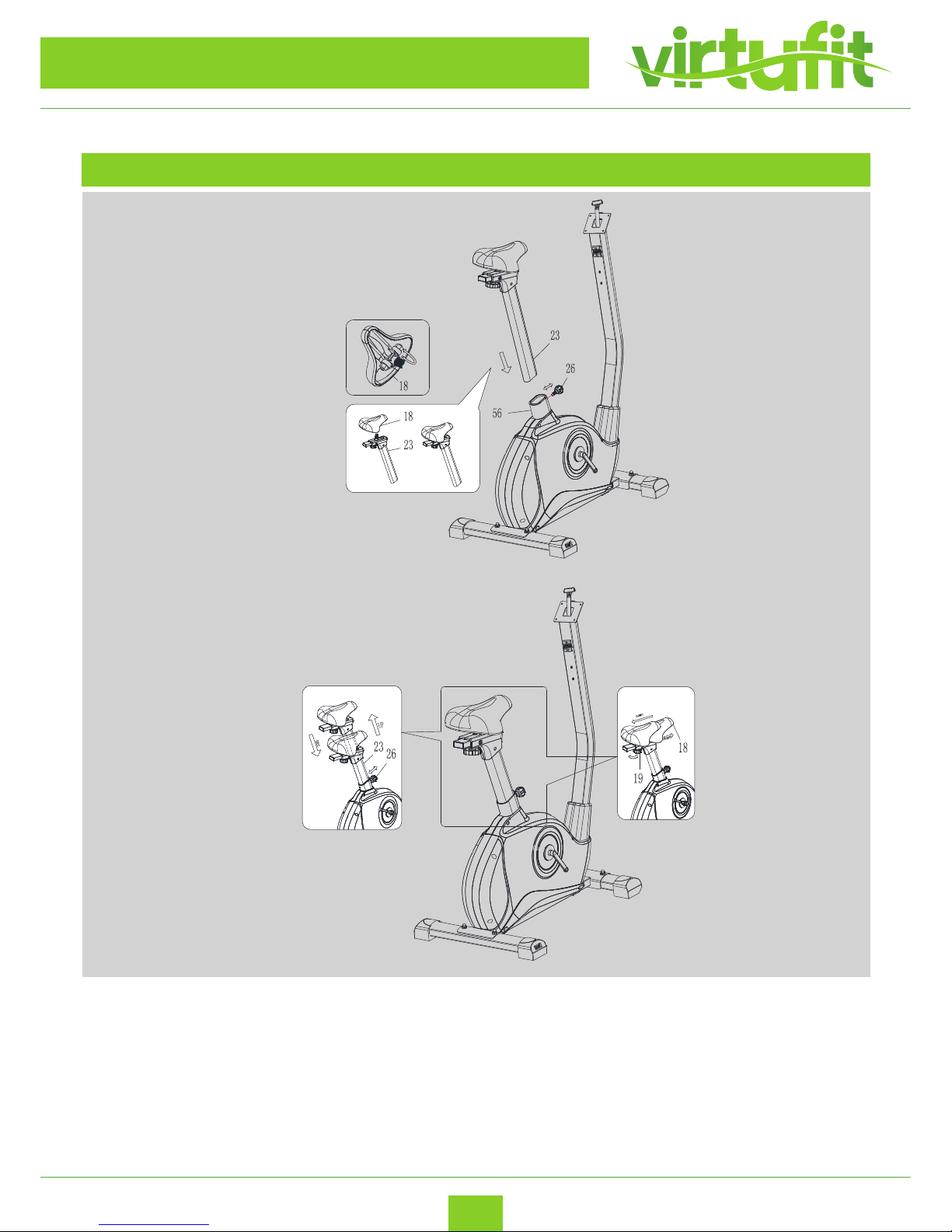

STEP 3

STAP 3

Monteer het zadel (18) op de verstelbare zadelstang (23). Plaats de zadelstang (23) op het

frame (56), verstel hem naar wens en zet hem vast met de Quick Release bout (26) en draai het

geheel stevig aan.

Het zadel kan naar voor en achter worden versteld door aan de knop te draaien (19)

De zadelstang kan gemakkelijk worden versteld door de Quick Release knop uit te trekken(26).

Verder moet u er op letten dat de zadelstang niet boven zijn maximale positie is uitgetrokken.

Deze maximale positie is gemarkeerd.

Assemble the saddle (18) to the adjustable seat post (23). Place the Seat Post (23) into the Main Frame (56),

set it at the desired position and lock it by inserting the bolt with the Quick Release (26) in place and tighten

fully. The saddle can be adjusted frontward and backward by turning the knob (19)

The setting of the seat post can be adjusted easily as desired later through turning and pulling the quick

release (26).

Furthermore, you must ensure when setting this desired position that the seat pillar is not pulled out of the

main frame further than the highest setting position, which is marked.

ASSEMBLY INSTRUCTION

Hometrainer iConsole HTR 2.1

ENG

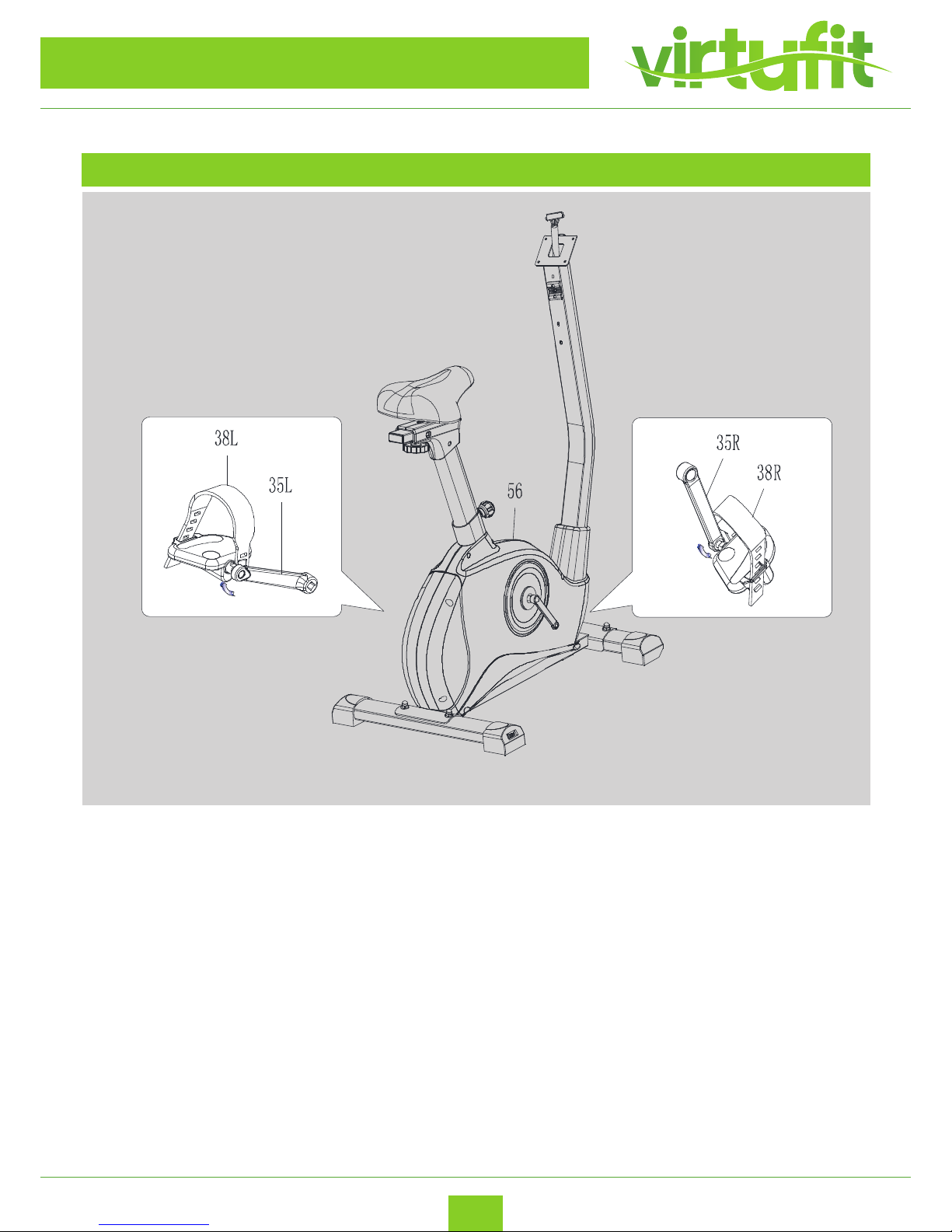

STEP 4

Bevestig de pedalen (38L+R) aan de zwengel (35L+R).

STAP 4

ASSEMBLY INSTRUCTION

Assemble the pedals (38L+R) to the crank (35L+R).

Hometrainer iConsole HTR 2.1

ENG

ASSEMBLY INSTRUCTION

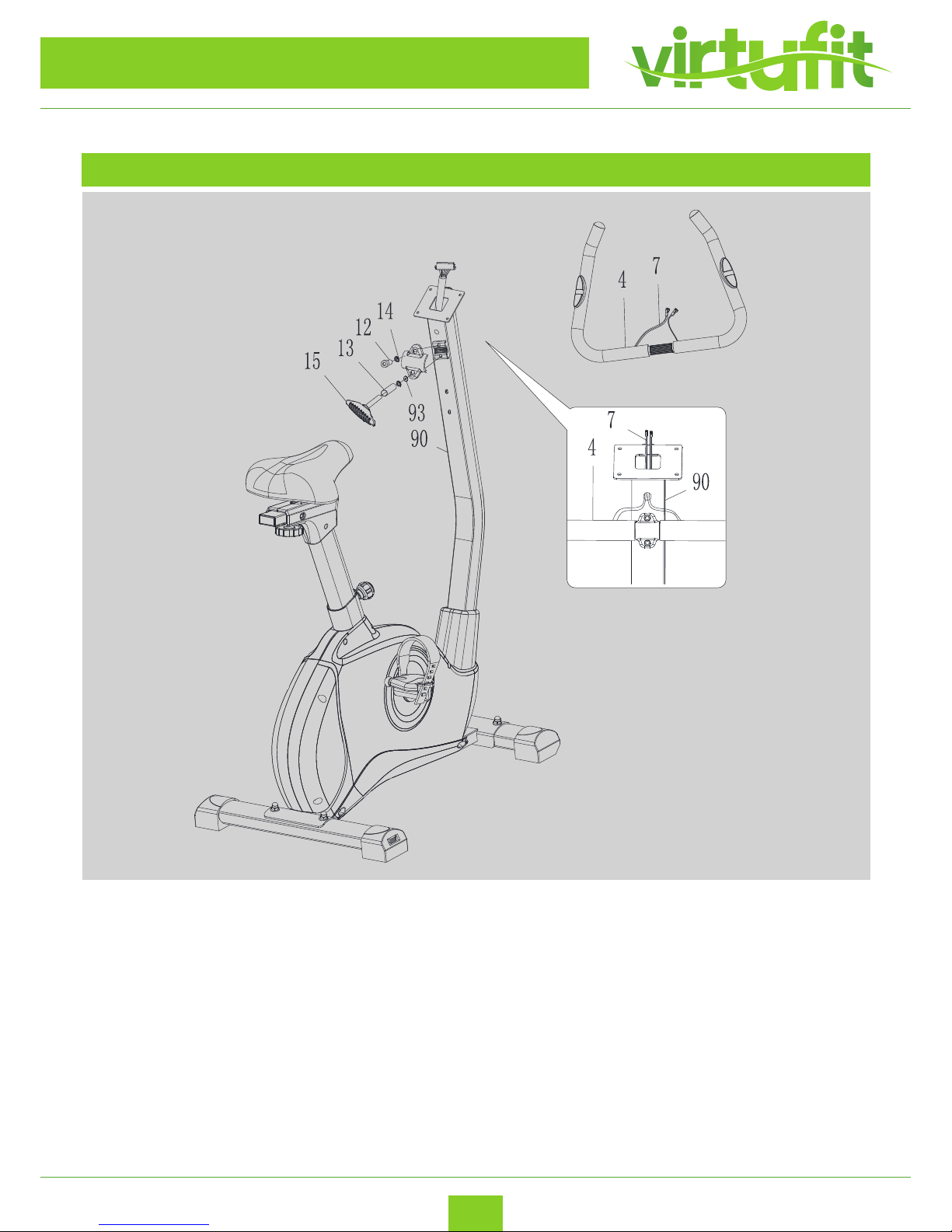

STEP 5

Bevestig het stuur (4) op de stuurstang (90) met ring (96), veerring (93), buisvormige afstandhouder

(13), plastic kap (12) en knop (15). Bevestig de veerring (14) en ronde zeskantschroef (12) Haal de

sensorkabel over de console heen. Bevestig alles volledig.

STAP 5

Attach the Handlebar (4) onto the Handlebar Post (90) with Washer (96), Spring washer (93), Tube Spacer

(14), Plastic Cover (12) and Knob (15). Also tighten the Spring Washer (14) and Round head hex screw (12)

Hand Pulse Cable over the Computer Bracket. Tighten fully.
