VIPowER VPM-62289 User manual
VPM-62289
Ture Metal USB 2.0 and
FireWire1394 Combo
External Enclosure
for 5.25-inch CD/DVD ROM, CD/DVD-RW,
DVD+RW and 3.5-inch HDD
User’s Manual
We are your DataBridgeTM
http://www.vipower.com
TRADEMARKS
MS-DOS, Windows, Windows 98SE/NT/2000/Me/XP are
trademarks of Microsoft Corporation.
PC is a trademark of International Business Machines
Corporation.
Macintosh and Mac are trademarks of Apple Computer, Inc.
All of the third-party brands and names are the property of their
respectiveowners.
VPM-62289 -Ture Metal USB 2.0 and FireWire1394 Combo
External Enclosure for 5.25-inch CD/DVD ROM, CD/DVD-RW,
DVD+RW and 3.5-inch HDD User’s Manual
Rev. 1.0 Date: October 27, 2004
© Copyright 2004 ViPowER, Inc. All rights reserved.
PROPRIETARY NOTICE
We make no warranty of any kind with regards to this material,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. We shall not be liable for errors
contained herein or for incidental or consequential damages in connec-
tion with the furnishing, performance, or use of this material.
This document contains proprietary information which is
protected by copyright. All rights are reserved. No part of this document
may be photocopied, reproduced, or translated to another language
without our written consent. The information contained in this document
is subject to change without notice.
Contents
1.Introduction ................................................................4
1-1 Features and Specifications ................................................. 5
VPM-62289 External Enclosure ............................................ 5
Operating Systems............................................................... 5
1-2 Package Checklist................................................................ 6
2. Hardware.......................................................................... 7
2-1 Components......................................................................... 7
2-2 Back panel and Connectors ................................................. 8
2-3 PCB...................................................................................... 8
2-4 LED Indicators ...................................................................... 8
2-5 Installation............................................................................. 9
Assembly with one 5.25-inch IDE device ............................. 9
Assembly with one 3.5-inch HDD ...................................... 12
2-6 Connecting the VPM-62289 to a Computer ........................ 16
3.Driver Installation......................................................19
3-1 Windows 98SE.................................................................. 19
3-2 Windows Me/2000/XP ....................................................... 21
3-3 Mac OS.............................................................................. 22
3-4 Linux 2.4 ........................................................................... 22
4. Using the VPM-62289 External Enclosure................23
4-1 Connecting the VPM-62289 to Computer ........................... 23
4-2 Disconnecting the VPM-62289 from Computer .................. 26
Windows 98........................................................................ 26
Windows Me/2000/XP ........................................................ 26
Mac OS............................................................................... 27
5. Partitioning the External USB 2.0 Hard Disk ...........28
5-1 Partitioning Under Windows 98/ME .................................... 28
5-2 Partitioning under Windows 2000/XP ................................. 31
VPM-62289 USER MANUAL4
1. Introduction
Congratulations on your purchase of the VPM-62289/
Ture Metal USB 2.0 and FireWire1394 Combo External Enclo-
sure for 5.25-inch CD/DVD ROM, CD/DVD-RW, DVD+RW and
3.5-inch HDD. It is the perfect solution for data backup, transport-
ing data, and adding more storage space to USB and/or
FireWire-equipped computers. The VPM-62289 enables hot-
swappingandPlug-n-Playcompatibility withany5.25-inchdevice.
The hot-swapping and Plug-n-Play features give you a great
convenience on the road, where it can be connected and
disconnected without powering down your system.
The VPM-62289 is also a high-quality combo external enclosure
forconnectingUSB2.0and/orFireWire1394to 5.25-inchdevices.
Its auto-detect feature automatically determines which type of
interface (USB or FireWire) you are using when you connect the
device to your computer. When both of USB 2.0 and FireWire
1394 are detected, the VPM-62289 will select USB 2.0 as a Main
Active Device. It is USB 2.0/1.1 compatible and works with any
USB-equippedPC, notebookor Maccomputer. And Itis FireWire
1394 compatible and works with any FireWire-equipped PC,
notebook or Mac computer.
Available in both USB and FireWire interface models, the
VPM-62289 is designed specifically to handle the high
heatgenerated by the lastest high-speed hard disk drives. Since
excessive heat can be a major cause of hard disk drive failure, the
case is made of true metal to aide in heat dissipation.
Note:
1). In order to reach USB 2.0 480 Mbps speed, your computer
must have a host adapter card with USB 2.0 support. The
VPM-62289 will auto detect the speed of your USB port
and adjust between USB 1.0 and USB 2.0 speed.
2). In order to reach FireWire 1394 100/200/400 Mbps speed,
your computer must have a FireWire 1394 connector.
The VPM-62289 will auto detect the speed of your FireWire
1394 port and adjust between Firewire IEEE 1394-1995
and IEEE P1394a speed.
VPM-62289 USER MANUAL 5
1-1 Features and Specifications
VPM-62289 External Enclosure
•Fully compatible with both USB 2.0 and FireWire 1394 stan-
dard specifications. Built-in one USB port and two FireWire
ports. Works with USB-equipped and/or FireWire 1394-
equipped PC, Notebook and Mac computers.
•Supports high-speed USB 2.0 interface transfer rates up to 480
Mbps on Windows 98SE/ME/2000/XP, and Mac OS X. (Your
system must have USB 2.0 host port(s) and USB 2.0 driver
installed for the VPM-62289 to perform at USB high speed)
•USB 2.0/IDE compliant
• Integrated USB transceiver
• High-speed (480 Mbps) and full speed (12 Mbps) support
• USB suspend/resume, remote wake up support
•Supports ATA PIO modes 0-4: ATA interface operation mode is
automatically selected during device initialization or manually
programmed with configuration data
•Supports Ultra DMA modes 0-4
•Supports 48-bit LBA (large HDD), when the VPM-62289
connects with one 3.5-inch HDD
• Supports FireWire IEEE 1394-1995 and IEEE P1394a transfer
rates up to 100,200 and 400 Mbps. (Your system must have
FireWire 1394 host port(s) installed for the VPM-62289 to
perform at FireWire 1394 high speed)
•Enabling native hardware Hot-Swap & Plug-n-Play supports to
your IDE devices
•Fully compatible with 5.25-inch devices (CD-ROM, CD-RW,
DVD-ROM, DVD+RW, DVD-RW).
•Power and drive activity LEDs
•Drive enclosure made of full true metal to aid in heat dissipation
(Superb heat dissipation)
Operating Systems
•Windows Me/2000/XP – no drivers required
(software drivers for Windows 98SE included)
•Mac OS 9.0 or later – no drivers required
•Linux 2.4 – no drivers required
VPM-62289 USER MANUAL6
1-2 Package Checklist
The VPM-62289 / True Metal USB 2.0+FireWire 1394 5.25-inch
CD/DVD ROM combo External Enclosure package contains
the following items:
1. VPM-62289 external enclosure
2. One USB 2.0 cable
3. One FireWire 1394 6-pins to 6-pins cable
4. One FireWire 1394 6-pins to 4-pins converter cable
5. One +5V/+12V power adapter
6. One power adapter power cord
7. Package of screws
8. One “Drivers and Utility Installation” CD
9. VPM-62289 User’s Manual
If any of these items are missing or damaged, please contact
your dealer or sales representative for assistance.
Package Contents
VPM-62289 enclosure
USB 2.0 Cable
FireWire 1394 6-pins
to 6-pins Cable
Driver CD
FireWire 1394 6-pins
to 4-pins converter
Cable
+5V/+12V
Power Adapter
Power adapter
Power Cord
VPM-62289 USER MANUAL 7
2. Hardware

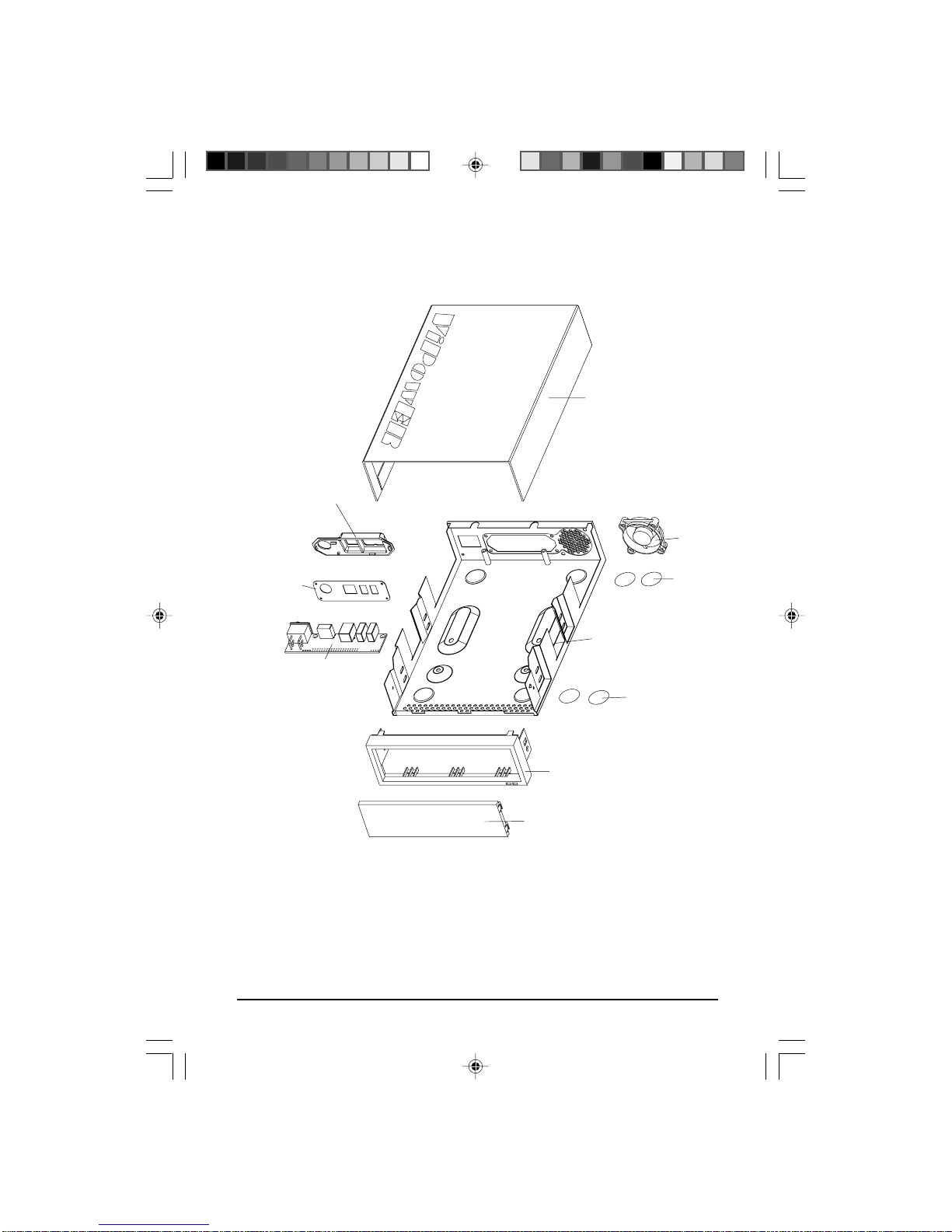

2-1 Components
TopCover
BottomCover
Fan
Pads
Front Cover
PCB
Back
panel
Pads
Front cover Rack
Back panel
Cover Rack
VPM-62289 USER MANUAL8
OFF ON
1394
USB2.0
+5V
+12V
GND
2-3 PCB
2-2 Back panel and Connectors
2-4 LED Indicators
Redand greenindicatorsare locatedonthe frontpanelof theVPM-
62289 External Enclosure. The green LED is lit when the power is
ON. The red activity LED will flash when a 5.25-inch device or a 3.
5-inch HDD assembled with the VPM-62289 enclosure is being
accessed.
Power
Switch
Power
Jack
USB
Port
FireWire
Port Back panel
Cover Rack
Retaining Screws(x3)
Fan
1
Power
Switch Power
Connector
USB
Connector FireWire
Connectors(x2)
40-pinsIDE
Data Connector LED4-pins Power
Connector
Pin 1
VPM-62289
LEDIndicators
Green LED (Power)
Red LED (Device Access)
VPM-62289 Front Panel
VPM-62289 USER MANUAL 9
Assembly with one 5.25-inch IDE device
Step1.
Remove the three retaining screws on the back of the external
enclosure. Separate the top and bottom enclosure covers.
1394
USB2.0
+5V
+12V GND
Top cover
Remove
Screws(x3)
Bottom cover
Separate
2-5 Installation
The following sections will guide you trough the installation of one
5.25” device or one 3.5” HDD assembled with the VPM-62289
enclosure. There are two parts to the installation:
1. Assembly with one 5.25-inch IDE device.
2. Assembly with one 3.5-inch HDD.
A small screwdriver is the only tool required.
VPM-62289 USER MANUAL10

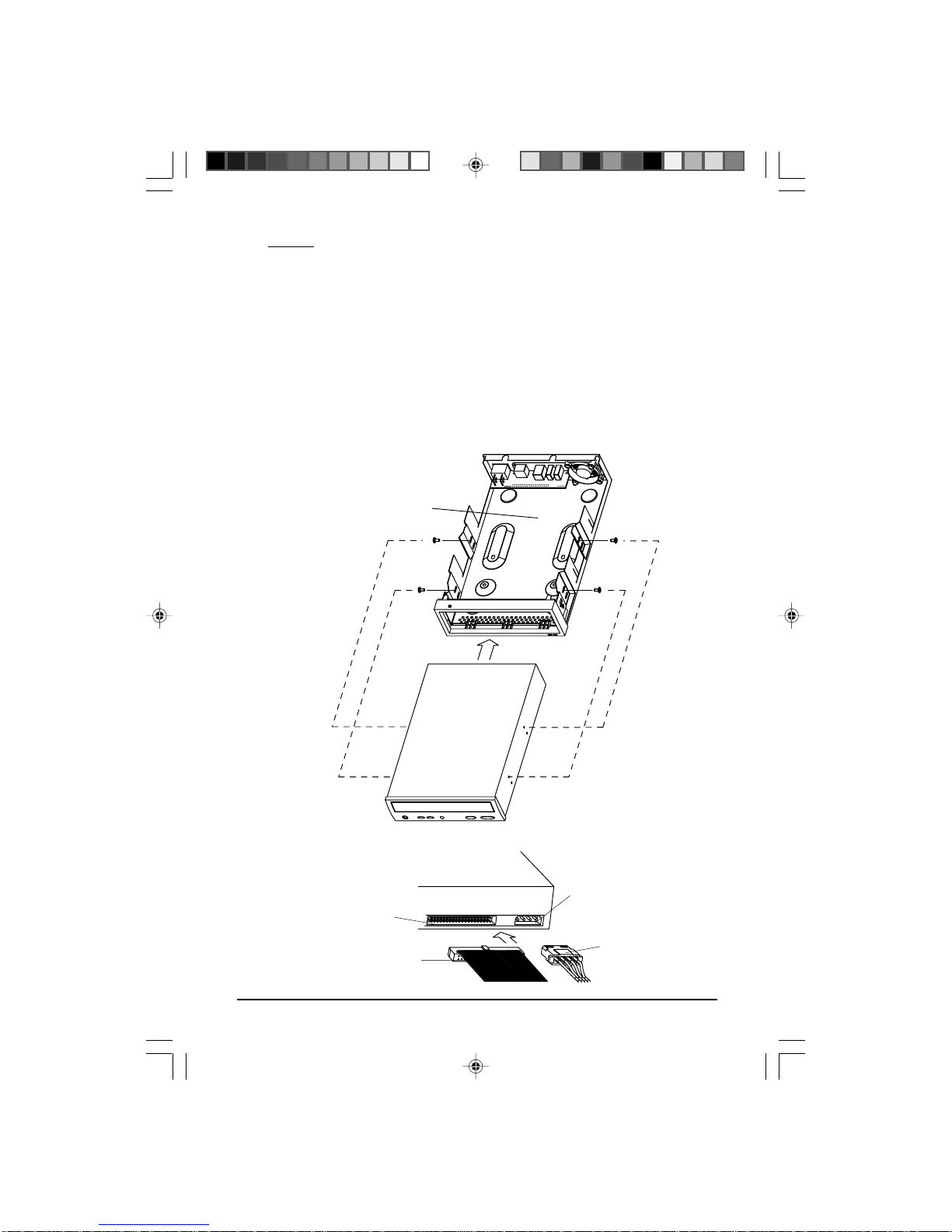

Step2.
a) Place the 5.25” IDE device in the bottom enclosure cover. Align
the 5.25” IDE device mounting holes with the mounting holes on
the bottom cover and secure with four screws (two on each side).
c) Attach the 4-pin power cable from the rear panel of the bottom
cover to the 4-pin connector on the back of the 5.25” device.
b) Attach the IDE 40-pin data cable from the rear panel of the
bottom cover to the 40-pin connector on the back of the 5.25”
device.To ensurepin-1topin-1 connection,orientthe cablesothe
colored stripe edge is closest to the power connector.
One 5.25” Device
40-pin IDE Data
Connectors
4-pin Power
Connectors
4-pin Power Cable
on the rear panel
of the bottom cover
IDE 40-pin Data Cable
on the rear panel
of the bottom cover
Bottom
Cover
5.25-inch
IDE Device
Mounting
Screws
Mounting
Screws
