Vintec V190SG2E-BK User manual
User Manual
V190SG2E-BK
vintec.com
V190SG2E-BK2
User Manual
Important information that may impact
your Manufacturer’s Warranty
Adherence to the directions for use in this manual is extremely important for health
and safety. Failure to strictly adhere to the requirements in this manual may result
in personal injury, property damage and affect your ability to make a claim under the
Vintec manufacturer’s warranty provided with your product. Products must be used,
installed and operated in accordance with this manual. You may not be able to claim
on the Vintec manufacturer’s warranty in the event that your product fault is due to
failure to adhere this manual.
!
V190SG2E-BK 3
User Manual
In case this appliance contains hydrocar-
bon refrigerant please refer to guidelines
listed below.
As the appliance contains a ammable
refrigerant, it is essential to ensure that the
refrigerant pipes are not damaged.
Standard EN378 species that the room in
which you install your appliance must have
a volume of 1m³ per 8 g of hydrocarbon
refrigerant used in the appliances. This is
to avoid the formation of ammable gas/
air mixtures in the room where the appli-
ance is located in the event of a leak in the
refrigerant circuit. The quantity of the refrig-
erant used in your appliance is indicated on
the rating plate.
WARNING: Keep ventilation openings in
the appliance’s cabinet or in
the built-in structure clear of
obstruction
WARNING: Do not use other mechanical
devices or other means to ac-
celerate the defrosting process
than those recommended by
the manufacturer
WARNING: Do not damage the refrigerant
system
WARNING: Do not use electrical appli-
ances inside the refrigerated
storage compartment, unless
they are of a type recommend-
ed by the manufacturer
WARNING: Do not expose the appliance
to rain
WARNING: This appliance is not intended
for use by young children or
inrm persons unless they
have been adequately super-
vised by a responsible person
to ensure that they can use
the appliance safely. Young
children should be supervised
to ensure that they do not play
with the appliance
● Always keep the keys in a separate place
and out of reach of children
● Before servicing or cleaning the appli-
ance, unplug the appliance from the
mains or disconnect the electrical power
supply
● If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard
●Relevant for Australia: Supply cord
tted with a plug complies with AS/NZS
3112.
● Frost formation on the interior evaporator
wall and upper parts is a natural phenom-
enon. Therefore, the appliance should
be defrosted during normal cleaning or
maintenance
●Please note that changes to the appli-
ance construction will cancel all warranty
and product liability
●This appliance is intended to be used
exclusively for the storage of wine
CLASS 1 LED PRODUCT
Warning.
V190SG2E-BK4
User Manual

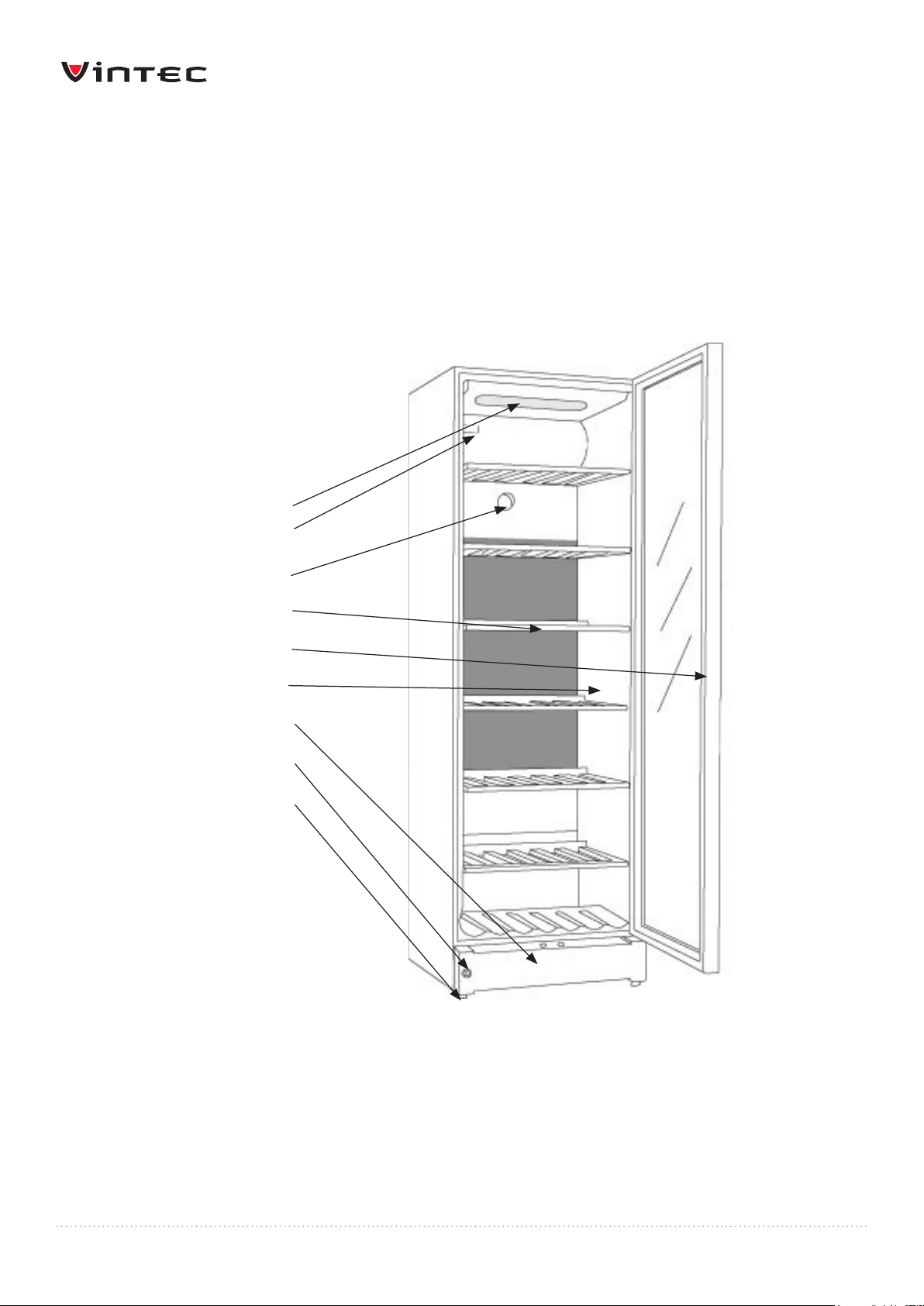

Get to know your wine cooler
g.1
Lighting
Control panel
Charcoal lter
Wooden shelf
Sealing strip
Nameplate
Kick plate
Lock
Adjustable feet
V190SG2E-BK 5
User Manual
Placement.
For safety and operational reasons, the ap-
pliance must not be installed outdoors.
The appliance should be placed on a level
surface in a dry, well ventilated room (max.
75% relative air humidity). Never place the
appliance close to sources of heat such as
cookers or radiators, and avoid placing it in
direct sunlight.
Ambient temperature.
The climate class is stated on the name-
plate (see page 7 and page 13). This
species the optimum ambient temperature.
Wine coolers with winter position, however,
function at ambient temperatures as low as
5ºC.
Climate class Optimum room tem-
perature
SN +10 ºC to +32 ºC
N +16 ºC to +32 ºC
ST +18 ºC to +38 ºC
T +18 ºC to +43 ºC
Installation
The surface on which the appliance is to be
placed must be level. Do not use a frame or
similar.
The appliance can be installed as a free-
standing unit against a wall, built into a
kitchen element, or lined up with other ap-
pliances (gs 2-3).
Installation and start-up.
On receipt, check to ensure that the ap-
pliance has not been damaged during
transport. Transport damage should be
reported to the local distributor before the
wine cooler is put to use.
Remove the packaging. Clean the inside of
the cabinet using warm water with a mild
detergent. Rinse with clean water and dry
thoroughly (see cleaning instructions). Use
a soft cloth.
If during transport the appliance has been
laid down, or if it has been stored in cold
surroundings (colder than + 5°C), it must be
allowed to stabilise in an upright position for
at least an hour before being switched on.
Before use.
V190SG2E-BK6
User Manual
Ventilation and dimensions
FRONT VIEW SIDE VIEW
TOP VIEW
615*
595
630
Tx
Tx
Vx
1860 + Tx (see note)
1860
600
10*
10*
10*
10*
30
30
Spacer
Spacer
Dimension and Installation Guide
vintec.com.au
1800 771 776
© 2018 Electrolux Home Products Pty Ltd ABN 51 004 762 341 VDIM_V190SG2E-BK_DimSheet
170 Bottle Wine Cabinet
V190SG2E-BK
For complete installation instructions, please
refer to the user manual for this product.
NOTE: Illustrations not to scale.
All dimensions in millimetres.
* Minimum 10mm required whether proud-t
or ush-t, however 30mm is recommended
on the opening edge for easy nger grip access
when installed ush-t.
NOTE: If a vertical vent
space (Vx) of 100mm is
provided, then a minimum
top ventilation gap (Tx)
of 50mm is sufcient, but
otherwise minimum Tx
of 100mm is required.

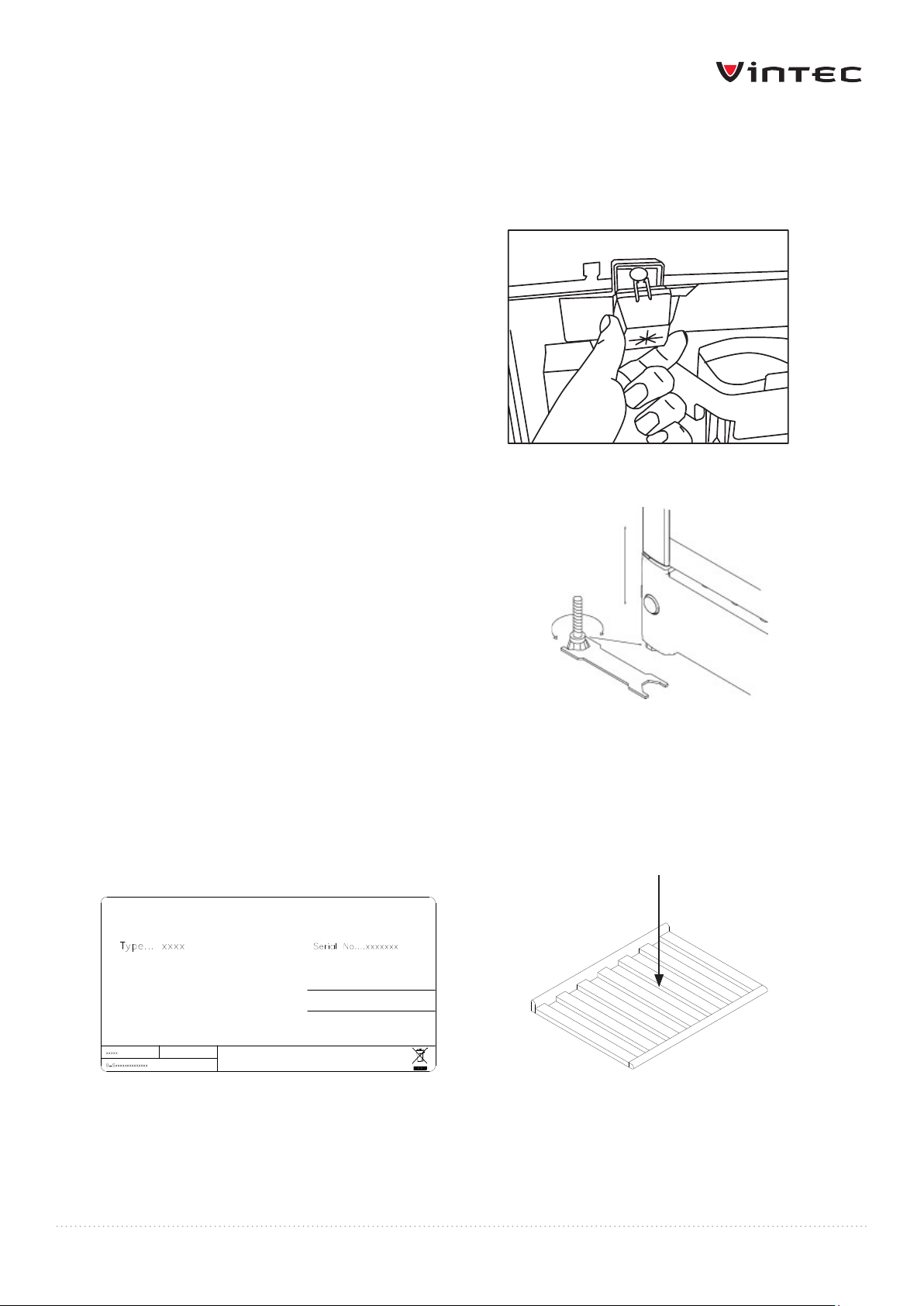

V190SG2E-BK 7
User Manual
g. 8
Setting up.
It is important that the appliance be abso-
lutely level. It can be levelled by screwing
the adjustable feet at the front of the appli-
ance up or down (fig 8).
Use a spirit level to check that the appliance
is absolutely level sideways.
Technical data.
This device complies with relevant EU
directives including Low Voltage Directive
2006/95 EEC. and Electromagnetic Compa-
tibility Directive 2004/108/EC
The rating/name plate provides various
technical information as well as type and
serial number. Max. 85 kg.
The distance pieces on the rear of the ap-
pliance ensure sufcient air circulation. Fit
the two caps supplied with the appliance as
shown in g. 7.
g. 7
V190SG2E-BK8
User Manual
Operation and function.
g. 9
Electronic control
The electronic control ensures that the
temperatures set at the top and at the bot-
tom of the appliance are maintained. This is
achieved by means of an advanced control
of the refrigeration system, the heating ele-
ment, and the fan. The set temperature will
be stored in the event of power failure.
The electronic control has the following
functions:
● On/off switch
●Light switch*
● Temperature setting
● Temperature indication
● Alarm for too high and too low tempera-
tures
● Door alarm
* The light may either be turned on
constantly or only when the door is open.
Temperature indication
The display shows the actual temperature.
The upper digits of the display indicate the
temperature at the top of the appliance, and
the lower digits of the display indicate the
temperature at the bottom of the appliance.
The temperature indicator is equipped with
a built-in lter which simulates the actual
temperature in the bottles. Consequently,
the indicator does not react on short-term
uctuations of the air temperature
Temperature setting
The thermostat is equipped with a child lock
device. This device is activated by pushing
the “up and down” buttons simultaneously.
After approx. 3 seconds “Pof” ashes in the
display. Then the actual temperatures are
shown as usual. In addition, the set tem-
peratures can be shown by pushing SET1
and SET2, respectively.
The child lock device is cancelled by push-
ing the “up and down” buttons simultane-
ously. After approx. 3 seconds “Pon” ashes
in the display, and the temperature can be
set.
Temperature setting at the top
of the appliance
Push SET1. Then the temperature at the
top of the appliance can be adjusted up and
down by means of the “up and down” but-
tons. The temperature can be adjusted from
8 to 22°C, however so that the temperature
cannot be set at a lower temperature than
the actual set point for the bottom tempera-
ture sensor.
V190SG2E-BK 9
User Manual
Operation and function.
Two-zone setting for serving
temperature
Typical serving temperature settings for the
top and bottom sections are 16°C and 6°C
respectively. With these settings, a suitable
temperature gradient will be achieved in
the cabinet for the storage of various types
of wine distributed from top to bottom as
follows:
● heavy red wines +16 to +19°C
● rosé and light red wines +12 to +16°C
● white wines +10 to +12°C
● champagne and sparkling wines +6 to
+8°C
It is recommended that wine be served at a
temperature which is a couple of degrees
lower than the desired drinking temperature
as the wine will be warmed slightly when it
is poured into the glass.
Single-zone setting for long-
term storage
For long-term wine storage, the top and bot-
tom sections should both be set at 12°C.
With identical settings for the top and bot-
tom sections, the controls will maintain an
even temperature throughout the cabinet.
However, the temperature in the room will
gradually affect the temperature in the
cabinet through its door and sides, creating
a slight temperature gradient from top to
Temperature setting at the bot-
tom of the appliance
Push SET2. Then the temperature at the
bottom of the appliance can be adjusted up
and down by means of the “up and down”
buttons. The temperature can be adjusted
from 5 to 22°C, however so that the tem-
perature cannot be set at a higher tempera-
ture than the actual set point for the upper
temperature sensor.
Alarm devices
There is a sub-alarm for the low-temper-
ature sensor and an excess-alarm for the
high-temperature sensor.
The alarm consists of a beeper and a warn-
ing on the display.
Alarm for high temperature: beep sound
+ alternating display of “HtA” and actual
temperature
Alarm for low temperature: beep sound
+ alternating display of “LtA” and actual
temperature
The alarm temperature depends on the set
points.
The beep sound can be cancelled by push-
ing a random thermostat button. Push the
on/off button to erase the display alarm,
rst for cancelling the alarm, then again for
restarting the compressor.
Door alarm
When the door has been open for more
than 2 minutes the door alarm is activated.
Light
To turn off the lights, press once
Permanent lighting
For presentation purposes of your wine,
you can turn the lights permanently. Please
press the light switch image twice. To
switch off the lights press on again.
V190SG2E-BK10
User Manual
Automatic defrosting.
The wine cooler is defrosted automatically.
Defrost water runs through a pipe and is
collected in a tray above the compressor
where the heat generated by the compres-
sor causes it to evaporate. The defrost
water tray should be cleaned at intervals.
Cleaning.
Before cleaning the appliance, unplug it
from the main supply. The cabinet is best
cleaned using warm water (max. 65°C) with
a little mild detergent. Never use cleaning
agents that scour. Use a soft cloth. Rinse
with clean water and dry thoroughly. The
defrost water channel, in which condensa-
tion from the evaporator runs, is located
at the bottom of the rear inside wall of the
cabinet and must be kept clean. Add a few
drops of disinfectant, e.g. Rodalon, to the
defrost water drain a couple of times a year,
and clean the drain using a pipe cleaner or
similar. Never use sharp or pointed imple-
ments.
The sealing strip around the door must be
cleaned regularly to prevent discolouration
and prolong service life. Use clean water.
After cleaning the sealing strip, check that it
continues to provide a tight seal.
Dust collecting on the condenser on the
rear of the cabinet, the compressor and
in the compressor compartment is best
removed using a vacuum cleaner.
Defrosting, cleaning
and maintenance.
bottom. The controls will maintain the set
temperature at the bottom of the cabinet,
and any deviation from the setting will
therefore occur at the top.
The difference will vary from 0 to 3°C, de-
pending on the ambient temperature.
Table of contents
Other Vintec Wine Cooler manuals
Vintec
Vintec v40bvc User manual
Vintec
Vintec V190SG2E-AL User manual
Vintec
Vintec V26SG e SS/S3 User manual
Vintec
Vintec V30 User manual
Vintec
Vintec VWS050SBA-X User manual
Vintec
Vintec V20SG e SS User manual
Vintec
Vintec VWM198PBA-R User manual
Vintec
Vintec V300SGe User manual
Vintec
Vintec V190SG2e BK User manual
Vintec
Vintec VWS050SBB-X User manual
Vintec
Vintec 40BVC User manual
Vintec
Vintec V110SG e Series User manual
Vintec
Vintec V20SGEBK User manual
Vintec
Vintec VWCM149FAB User manual
Vintec
Vintec V30SGME User manual
Vintec
Vintec V20BVCBK User manual
Vintec
Vintec V190 SG2EBK User manual
Vintec
Vintec VWM148SBA User manual
Vintec
Vintec V110SGe-S3 User manual
Vintec
Vintec VWS035SCA-X User manual
