Vintage view FCF-HD User manual

W Series Wine Rack Frame 10

Installation Instructions for FCF-HD

• 2 Sections FCF-HD

• 2 Plastic Couplers

• 36 Self Drilling Screws

• Phillips head driver/drill

• Level

• Pencil

• Tape Measure

• Metal Cutting Saw

• Metal File

Parts List Required Tools

Fasteners:

There are pre-drilled mounting holes in each mounting plate. Appropriate fasteners for your surface must be

utilized in every mounting hole for proper installation. Fasteners for securing racks to the frames are provided,

but hardware for attaching the frames to the oor and ceiling are not. We recommend the following fasteners for

these surfaces:

Drywall installations should attach to joists or wood backing when available with a #8 X 1-1/2” course thread

screw or larger or use expanding hollow wall anchors with at least #8 screw size

Wood surfaces use #8 X 1 ¼” course thread screws or larger

Concrete, Brick or Stucco: 3/16” x 1 ¼” masonry screw or #8 x 1 ¼” screw with appropriate size expanding

concrete anchor

Figure A Figure B

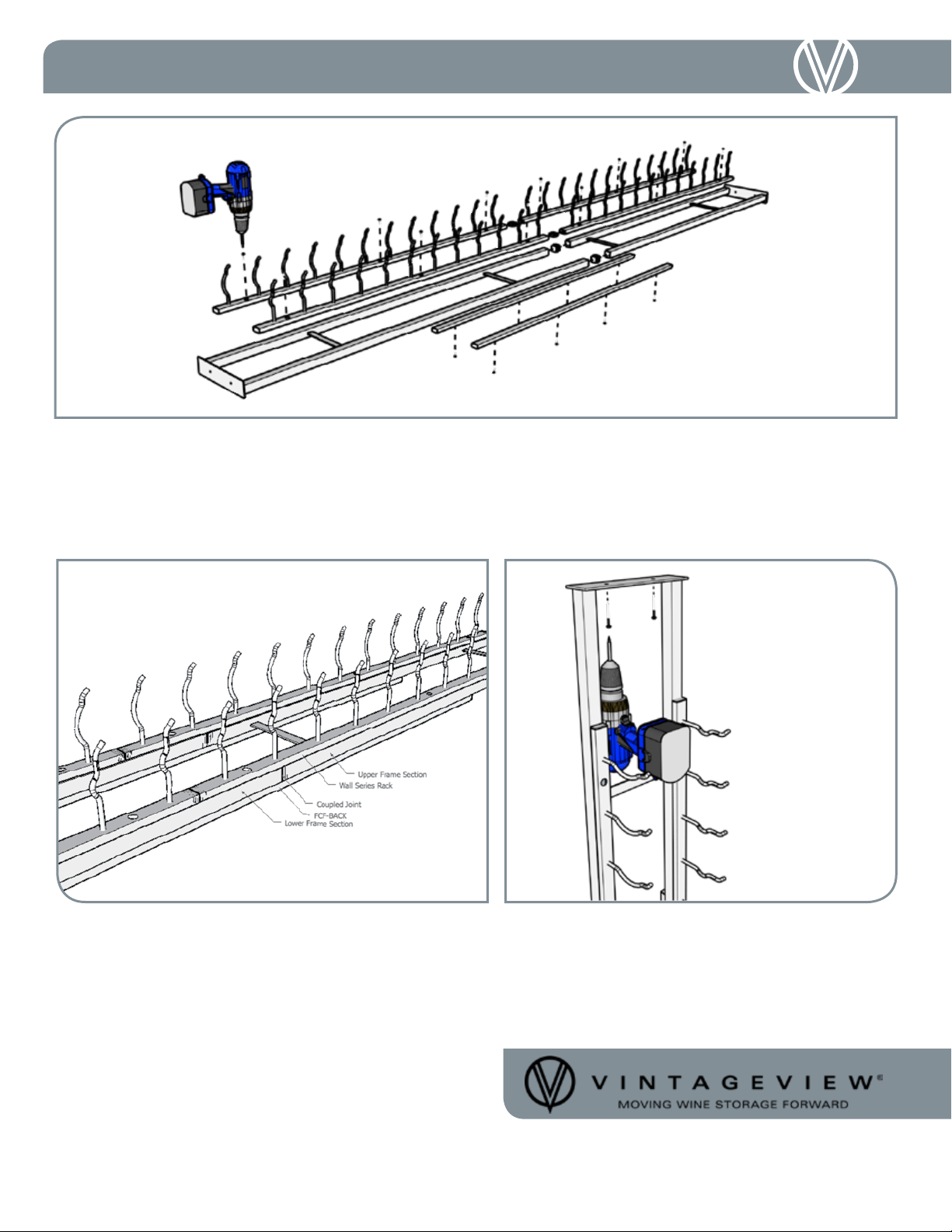

1. Measure ceiling height and mark the frames - Measure the ceiling height in the place where

the frame is to be installed. Insert the plastic couplers into the open ends of one frame section and lay it next

to the other frame section, interlaced, as shown below. Position the frames so that the measurement from top to

bottom of the base plates equals your ceiling height. At the widest part of the coupler, mark both legs of the other

frame section.

Note: If ceiling height results in the cut mark aligning with one of the cross members, cut 2 inches off of the section with the

couplers and perform the rest of the procedure again.

2. Cut the frame - Using a reciprocating saw, band saw or hack saw; squarely cut both legs of

the frame at the marks from Step 1.

Note: An abrasive cut-off saw should not be used, as the heat generated may damage the nish of the FCF-HD.

Instructions

4. Install the frame - Stand the rack in the desired location and ensure that the frame is plumb both front-

to-back and side-to-side using a level. Attach the mounting plate to the ceiling using the appropriate fasteners for

the ceiling material. Double check that the frame is plumb with a level and secure the mounting plate to the oor.

3. Assemble the frame - Slide the frame together with the couplers aligning the two sections. Secure the

W Series racks and/or FCF-BACK to the front and back faces, ensuring that the coupled joint of the frame is

spanned by the back strip of a W Series rack or an FCF-BACK and that the rack or FCF-BACK spanning the joint

is screwed into both the upper and lower sections of the frame.

Figure D

Figure C

Figure E
