Vimar ELVOX TAB 4.3 Due Fili Plus User manual
Installation and operation manual
TAB
7558
TAB 4.3 Due Fili Plus hands-free video entryphone
2
TAB: 7558
EN
The instructions manual can be downloaded from the website www.vimar.com
Installation rules
Installation must be carried out by qualied persons in compliance with the current regulations regarding the installation of
electrical equipment in the country where the products are installed.
Regulatory compliance
EMC directive
Standards EN 60065, EN 61000-6-1, EN 61000-6-3 and
EN 60118-4.
.
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.
WEEE - User information
The crossed bin symbol on the appliance or on its packaging indicates that the product at the end of its life must be
collected separately from other waste. The user must therefore hand the equipment at the end of its life cycle over to
the appropriate municipal centres for the dierentiated collection of electrical and electronic waste. As an alternative
to independent management, you can deliver the equipment you want to dispose of free of charge to the distributor when
purchasing a new appliance of an equivalent type. You can also deliver electronic products to be disposed of that are smaller
than 25 cm for free, with no obligation to purchase, to electronics distributors with a sales area of at least 400 m
2
. Proper
sorted waste collection for subsequent recycling, processing and environmentally conscious disposal of the old equipment
helps to prevent any possible negative impact on the environment and human health while promoting the practice of reusing
and/or recycling materials used in manufacture.
3
TAB: 7558
EN
Description
Wall-mount Tab series hands-free video entryphone for Due Fili Plus system with 4.3" LCD colour display, loudspeaker for calls,
capacitive keypad for entryphone functions (unlocking, self-starting, auxiliary services, volume, brightness and contrast controls)
and intercom calls.
Desktop installation is possible with the desktop base accessory 753A (sold separately).
Can be used by hearing aid wearers.
Technical characteristics
• Wall-mounted, with metal bracket, in box: circular 2M (Vimar V71701), 3M (Vimar V71303, V71703) vertical and square,
British standard.
• LCD 4.3” 16:9 display, resolution 480x272 pixels
• Minimum video signal level on the bus for reception: -20 dBm
• Capacitive touch keypad with backlit symbols.
• Powered from BUS terminals 1, 2 - nominal voltage 28Vdc
• Power consumption:
- in standby: 17 mA
- maximum current: 280 mA
• Ambient class: Class A1 (indoor use)
• IP30 protection degree
• Operating temperature: -5°C to +40°C (indoor use)
• Electronic ringtone with 10 different melodies.
• Input for landing call.
• Dimensions: 155 x 145 x 23.5 mm
• DIP switch for line termination impedance.
Audio frequency function for hearing aids (Teleloop)
The video entryphone can be used by people wearing hearing aids.
For correct functioning of the hearing aid, please refer to its instruction manual. Any metal objects or electronic equipment in the
vicinity may aect the quality of the sound received by the hearing aid.
Maintenance
Clean using a soft cloth. Do not pour water onto the appliance and do not use any type of chemical product.
Cleaning must be carried out either with the apparatus powered o (= disconnected from the bus) or after activating the keypad
cleaning procedure (see the relative paragraph in the user manual).
Warnings for the user
Do not open or tamper with the appliance.
In the event of faults, contact specialized personnel.
4
TAB: 7558
EN
Installation
Important: The device should be installed at a height of approximately 160 cm off the floor, taking care not to expose it to direct
sources of light so as to avoid annoying glare on the surface of the LCD screen.

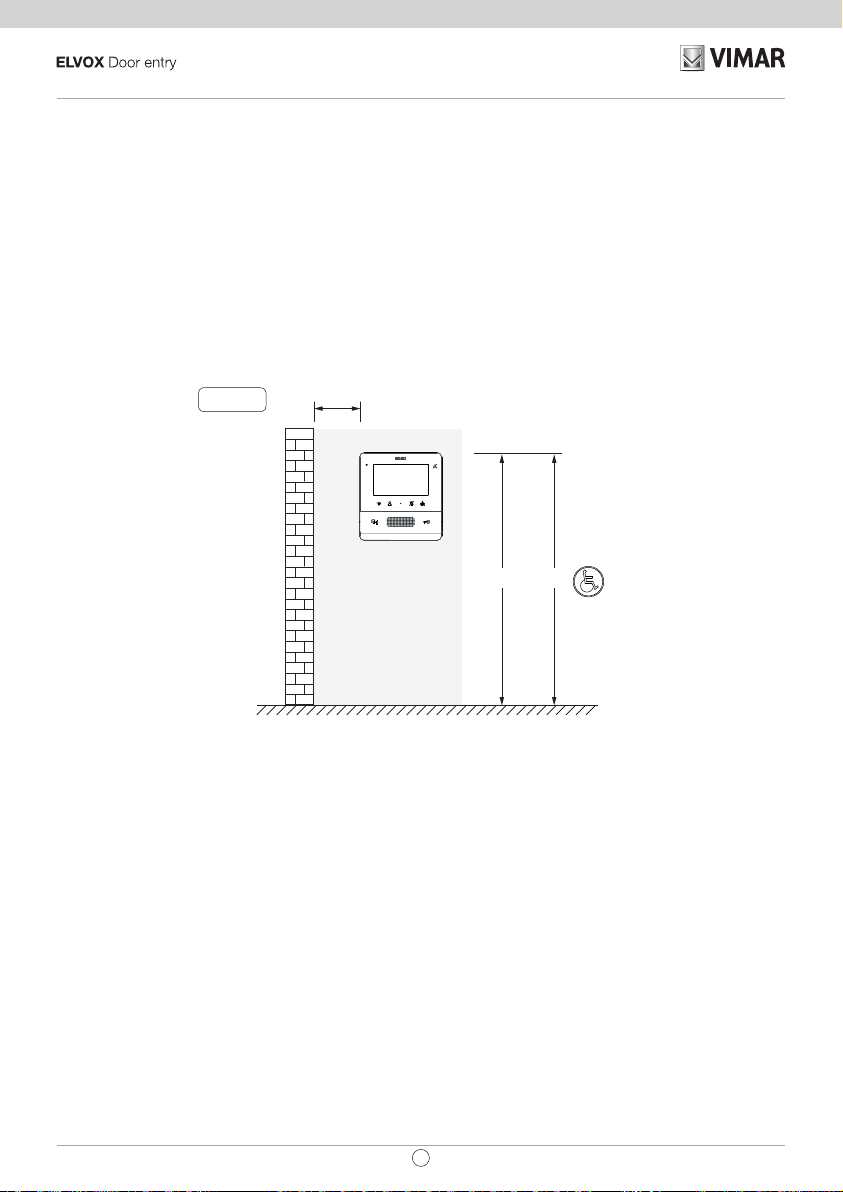

Note: Fig. 1 shows the recommended installation distances, unless otherwise specified by current regulations.
1. Secure the plate to the wall, with metal bracket, in box: circular 2M (Vimar V71701), 3M (Vimar V71303, V71703) vertical
and square, British standard.
2. Wire the terminal block (Fig. 5).
3. Terminate the video signal (Fig. 6)
4. Install the video entryphone as follows: position the video entryphone on the plate keeping it slightly raised. While keeping the
front panel pressed, apply a light downward pressure until it clicks into place.
5. Should you need to remove the monitor you need to apply a light pressure on the lever (Fig. 3) and raise it (from the bottom
upwards) so as to release the monitor from the chassis.
Fig. 1
1,20m1,60 / 1,65m
> 10 cm
5
TAB: 7558
EN
Fig. 2
Fig. 3
6
TAB: 7558
EN
Connections
On the rear there is a terminal board for:
• connection of the Due Fili Plus bus
• The local Landing Call input. The maximum connection distance is 10 m. When suitably programmed using SaveProg,
this input can be used for the Alert function. See the relative paragraph.
Connection terminal block
Terminals Function
1, 2 DUE FILI PLUS digital bus.
FP Landing Call button input (terminal M reference).
MReference earth
Note: Art. 7558 does not have terminals for an additional power supply. For this reason, if the section of the Due Fili bus in
which the indoor station is located is busy with another call/conversation, or another 7559, 7558 or 40505 is switched on for
any reason, regardless of its operating status, it will not be possible to switch on a second 7559, 7558 or 40505 and a tone
will sound to warn the user. The only possible action is to operate the lock, stair light or auxiliary function using the dedicated
buttons, provided they are not congured for other functions; the Alert function can be used as described in relative paragraph.
Fig. 5
7
TAB: 7558
EN
Video Termination
Select DIP switch to terminate the video signal
A) if the BUS cable enters terminals 1, 2 and continues to another indoor station.
B) when a BUS cable with a characteristic impedance of 100 Ohms (Elvox 732I or 732H cable) enters terminals 1, 2 and the
riser stops in the indoor station
C) when a BUS cable with characteristic impedance of 50 Ohms (Cat. 5 or Cat. 6 twisted pair cable) enters terminals 1, 2 and
the riser stops in the indoor station.
Fig. 6
8
TAB: 7558
EN
Connection
Connecting the indoor station in the in/out configuration
Cable riser
In/out wiring diagram
Wiring diagram with cable terminating in the indoor station
Variant for connecting the landing or alert button
Connecting the FP/M terminal
2
1
FP
M
2
1
FP
M
K
C
50Ω
B
100Ω
A
OPEN
ON
12
ON
12
ON
12
C
50Ω
B
100
Ω
A
OPEN
ON
12
ON
12
ON
12
Termination to apply
Termination to be applied depending
on the characteristic impedance of
the cable
2
1
FP
M
Cable riser
Connecting the indoor station in terminal conguration
9
TAB: 7558
EN
Key functions
In the subsequent sections of this document the touch keys are designated as shown in the gure below:
C(Access Menu
conguration)
P/A (Answer / End call /
Call to switchboard)
T4 (Stair light)
Lock
T2 (AUX2)
T1 (Self-start)
T3 (Ringtone mute / Mute
microphone)
At rest, none of the buttons perform the touch function, but must be pressed for longer (around 0.4 s): this prevents the
accidental activation of commands. Unless specically disabled, the recognition notice is given by acoustic signalling.
The T1, T2 and T4 keys have a default (when not programmed), as indicated in the following gure (Table 1), along with
the default icons. The T2 and T4 keys can be programmed from the installer menu or using SaveProg.
KEY ICON MEANING
T1 Self-start
T2 Aux 2
T4 Aux 1
Note: The icons are visible in call/conversation.
T2 (P4 for SaveProg) is not congured by default and controls the second relay (Aux2).
T3 has the function of ringtone mute / mute microphone. The associated LED will operate also as an indicator for:
• Ringtone disabled (the indoor station does not ring for calls from outdoor station or call button 20577, 19577, but
otherwise functions normally). In this case the LED is on steady, while any absent user conguration is eliminated
at the same time.
• Only where congured from SaveProg - User absent (the indoor station rejects the call from an outdoor station
and consequently the call is unsuccessful). In this case the LED ashes at intervals of 0.1 s on and 0.9 s o.
The LED is essential when the display is switched o.
The C key cannot be programmed and its function is context-dependent.
10
TAB: 7558
EN
The P/A key is used to answer or close a call / conversation. In standby it calls the porter switchboard, if the
management with switchboard is active. Moreover, where congured with SaveProg as "Enable missed calls", the LED
associated with the P/A key remains on permanently due to possible calls from the switchboard which were not
answered. Answering the current call causes the LED to switch o once the indoor station has returned to standby mode
(only in the indoor station from which it was answered). If there were unanswered calls from the switchboard, continu-
ously touching the P/A key for at least 2 s (until the video entryphone emits a tone) causes the missed call from
switchboard status to be reset. The same result can be obtained by also reactivating the ringtone, by making an intercom
call, or by answering a call.
N.B.: the missed call signal remains also in the case of a power outage.
By default, the LOCK key controls the lock of the last outdoor station to make a call or the outdoor station for which
self-start procedure was performed. It can only be programmed using SaveProg. The LED associated with the LOCK
key indicates door open status of the system, essential when the display is switched of, even if the same key is
programmed for another function. In some states (e.g. conversation) the icon also appears in the top right-hand side
of the screen.
In standby mode, the screen is completely switched o. (In the method described above), by activating any one of the
keys T1..T4 and LOCK by default the function is performed without switching on the display unless the function
has to do so in order to be performed, such as self-start.
Starting with 7558 in default, the T4 key enables the rst relay in the Due Fili system. It is usually indicated as stair
light or Aux1.
