Viking VERT301-4B Guide
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
All models include
• QuickCook™ surface elements utilize
ribbon technology—elements reach
full power in about three seconds
• Strong, wear-resistant glass ceramic
top
• High infrared transmission for fast
cooking, regardless of the type of
cookware used
• Left front element—6-1/2” 1,500 watts
• Left rear (dual element)—9” – 6”
2,400 – 1,000 watts
• Right front element—7” 1,800 watts
• Right rear element—7” 1,800 watts
• Bridge element between right front
and right rear elements; creates a
continuous heated surface—800 watts
FINISH DETAILS FOR VERT MODELS ONLY
• Stainless Steel (SS)
o Stainless steel control panel.
o Black glass ceramic top and knobs.
• Black (BK)
o Black glass ceramic top, black enamel
control panel, and knobs.
• White (WH)
o White glass ceramic top, white
enamel control panel, and knobs.
• Brass Trim Option (BR)—nameplate,
drip tray pull/trim, and knob bezels.
Brass components have a durable
protective coating for maintenance-free
normal use.
Standard Features & Accessories
Model Options
COOKING
Professional Built-In Electric 30”W. Rangetop
VERT301-4B*
30”W. Four-Burner
Rangetop
*Shown throughout with 6”H. backguard. See Installation Notes & Accessories for details.
ORDERING INSTRUCTIONS
First specify model number, and then color code (VERT301-4BSS). If ordering optional brass trim, specify code at end (VERT301-4BSSBR).
24”
(61cm)
25-15/16”
(65.9 cm)
27-7/16”
(69.7 cm)
29-7/8”
(75.9 cm)
7-7/8”
(20.0 cm)
13-7/8”
(35.2 cm)
COOKING
Professional Built-In Electric 30”W. Rangetop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
✪
Please see
Installation Notes &
Accessories
for important
installation
information,
including
backguard, high-
shelf, and island
trim.

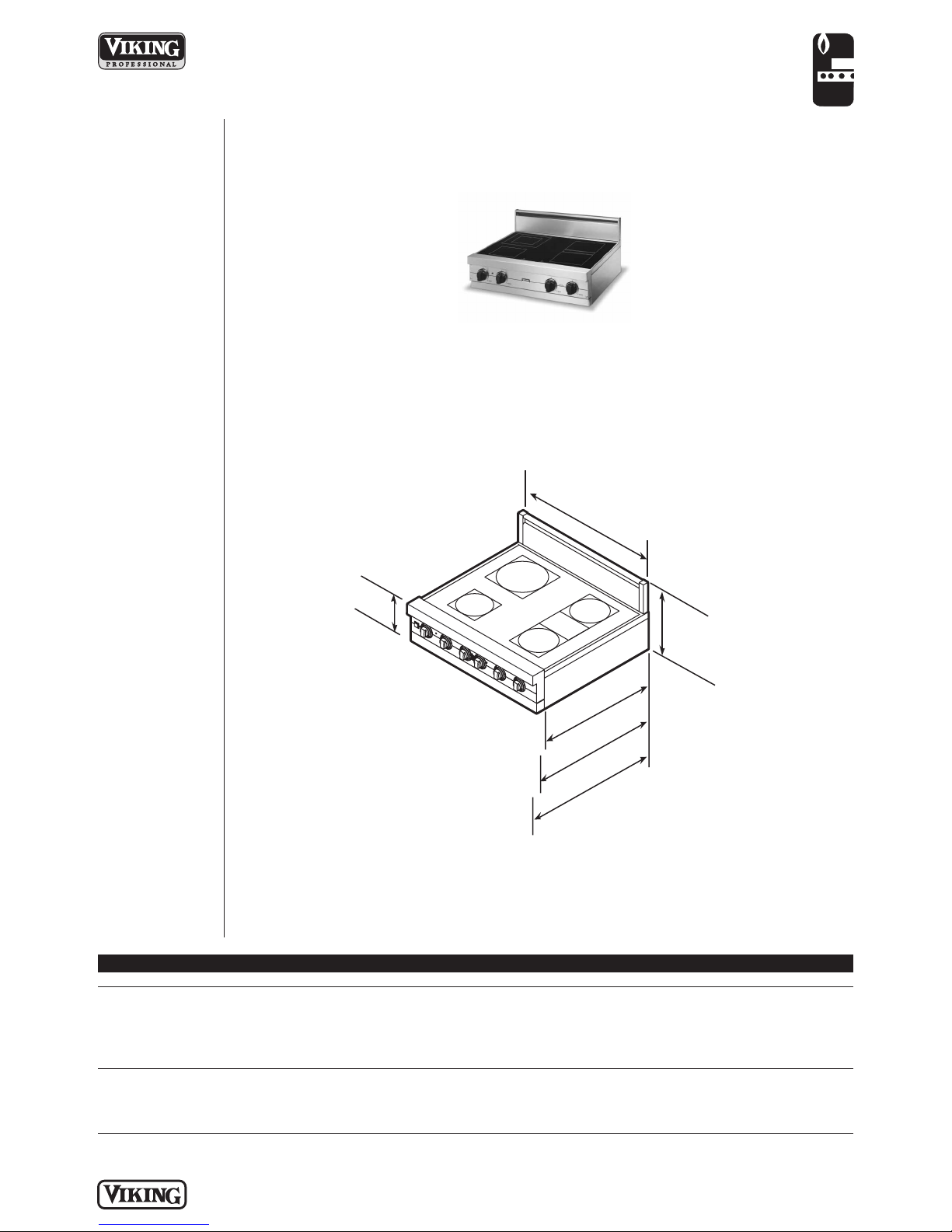

VERT301-4B
Overall width 29-7/8” (75.9 cm)
Overall height (from bottom)
To top of glass frame 7-7/8” (20.0 cm)
To top of island trim 8-7/8” (22.5 cm)
To top of 6” backguard 13-7/8” (35.2 cm)
To top of high shelf 31-3/8” (79.7 cm)
Overall depth (from rear)
To end of side panel 24” (61.0 cm)
To end of control panels 25-15/16” (65.9 cm)
To end of knobs 27-7/16” (69.7 cm)
Dimensions & Specifications
PRODUCT DIMENSIONS
VERT301-4B
Professional 30”W.
Four-Burner Rangetop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
COOKING
Professional Built-In Electric 30”W. Rangetop
18”min.
(45.7 cm)
36”
(91.4 cm)
6”min.
(15.2 cm)
30”
(76.2 cm)
24”
(61.0 cm)
13”max.
(33.0 cm)
36” min.
(91.4 cm)
7-1/2”
(19.1 cm)

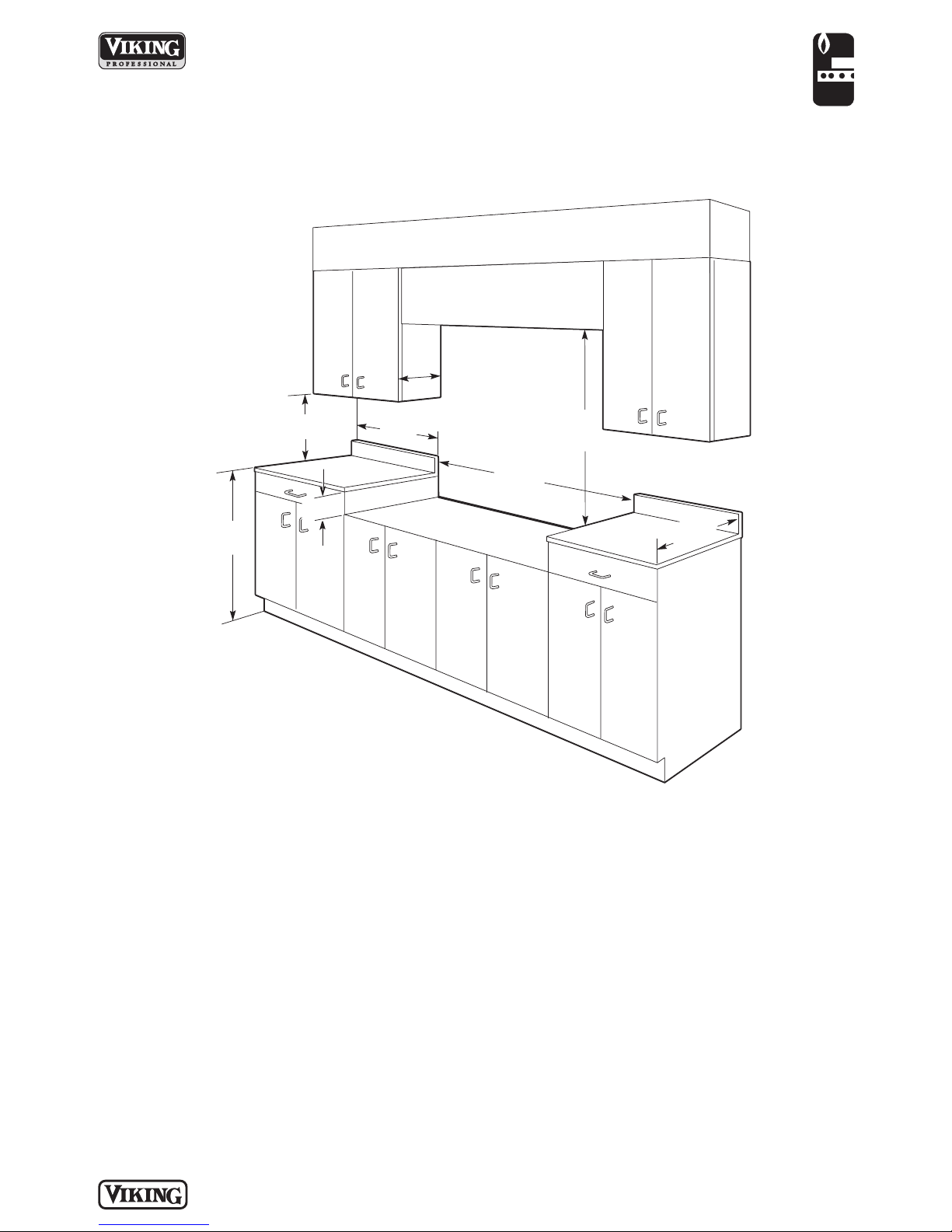

Minimum clearances from adjacent
combustible construction*
• Cooking surface and below, i.e., 36”
(91.4 cm) and below
o Sides—0”
o Rear—0” with backguard or high-
shelf; 0” with island trim and non-
combustible rear wall; 6” (15.2 cm)
with island trim and combustible rear
wall.
o Top grate support—36” (91.4 cm)
• Above cooking surface, i.e., above 36”
(91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance,
wall cabinets no deeper than 13”
(33.0 cm) must be minimum 18”
(45.7 cm) above cooking surface.
o Wall cabinets directly above product
must be minimum 36” (91.4 cm) for
open top burners above cooking
surface.
Do not install two or more units
side-by-side.
1. This rangetop may be installed directly
adjacent to existing 36” (91.4 cm) high
base cabinets. Important: The top
grate support must be 3/8” (0.95 cm)
above the adjacent base cabinet
countertop.
2. The rangetop cannot be installed
directly adjacent to sidewalls, tall
cabinets, tall appliances, or other side
vertical surfaces above 36” (91.4 cm)
high. There must be a minimum of 6”
(15.2 cm) side clearance from the
rangetop to such combustible surfaces
above the 36” (91.4 cm) counter
height.
3. Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6” 15.2
cm) side clearance must be 18” 45.7
cm) above the 36” (91.4 cm) high
countertop.
4. Wall cabinets above the rangetop
must be a minimum of 36” (91.4 cm)
above the rangetop cooking surface
for the full width of the rangetop. This
minimum height requirement does not
apply if a rangehood is installed over
the cooking surface.
Dimensions & Specifications
CLEARANCE DIMENSIONS
24”
(61.0 cm)
3/4”
(1.9 cm) min.
VERT301-4B
Cutout width 30” (76.2 cm)
Cutout height 7-1/2” (19.1 cm)
Cutout depth 24” (61.0 cm)
Surface element rating 240V 208V
Left front 1,500 watts 1,125 watts
Left rear (dual element) 2,400/1000 watts 1,800/750 watts
Right front 1,800 watts 1,350 watts
Right rear 1,800 watts 1,350 watts
Bridge 800 watts 600 watts
COOKING
Professional Built-In Electric 30”W. Rangetop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE

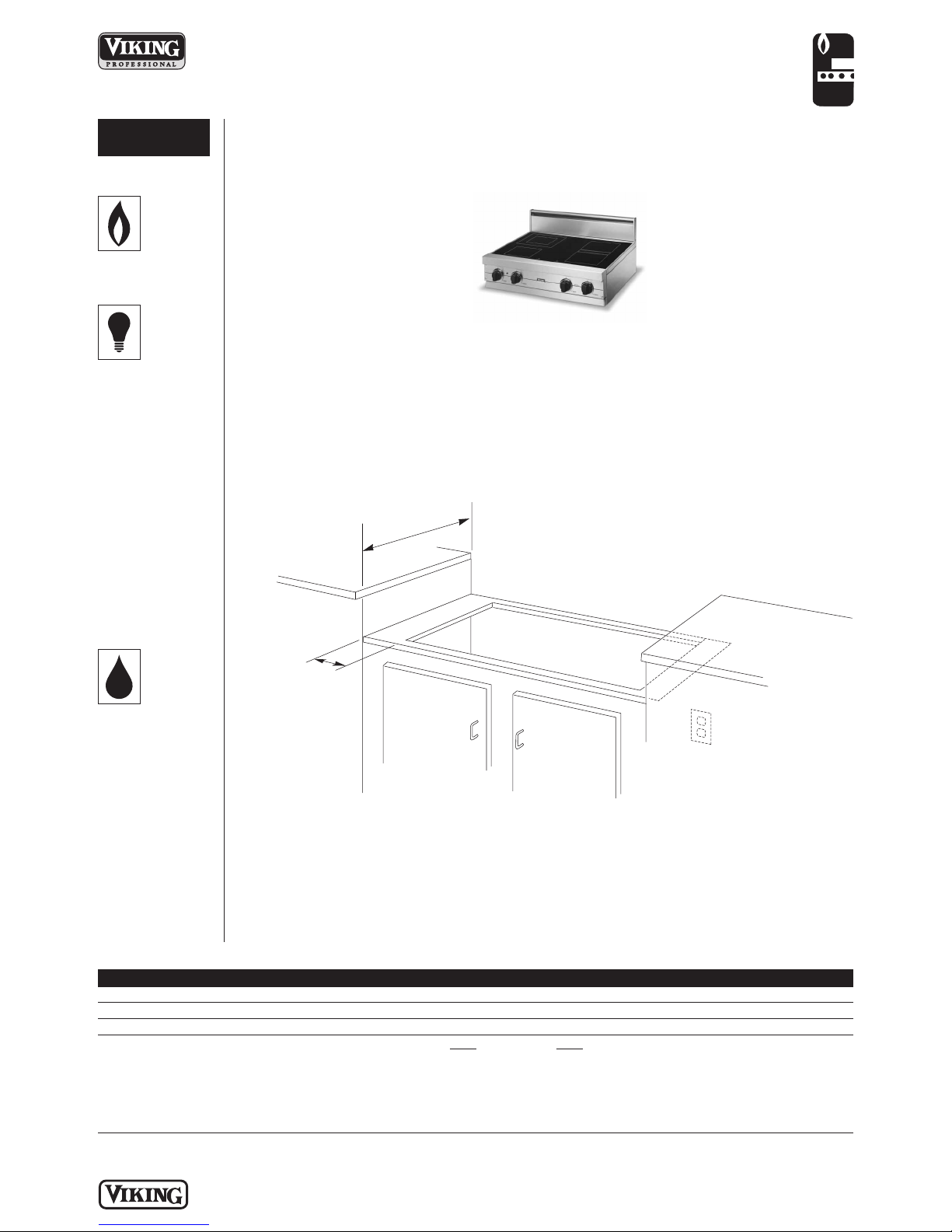

UTILITY
REQUIREMENTS
GAS
• Not applicable
ELECTRICAL
• Electrical
connection—40
amp. Three-wire,
240/208V, 60Hz. Unit
is equipped with No.
10 ground wire in
conduit. Should be
fused separately.
• Check your national
and local codes
regarding this unit.
• Maximum amp
usage—
o VERT
o 240V—34.6
o 208V—29.8
PLUMBING
Not applicable
Installation Requirements
ACCESS REQUIREMENTS
VERT301-4B
Professional 30”W.
Four-Burner Rangetop
6”H. Backguard
• Stainless Steel (SS)
• Coordinates with all finishes
High-shelf
• Stainless Steel (SS)
• Coordinates with all finishes
• Shelf comes attached to a 24”H. backguard
Island Trim
• Stainless Steel (SS)
• Coordinates with all finishes
• For island/peninsula installation
• Can replace backguard if wall is non-combustible
Countertop Side Trim
• Stainless Steel (SS)
• Coordinates with all finishes
• Installs on side of unit; overlaps countertop
• One pair of trim
Compliance Information
WARRANTY INFORMATION*
• One-year full warranty—complete product
• Ten-year limited warranty—all electric elements/oven elements
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items
* For complete warranty see
Use & Care Guide
. Warranty valid on Viking products shipped within the United States and Canada.
COOKING
Professional Built-In Electric 30”W. Rangetop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
✪ Installation Notes & Accessories
A backguard, high-shelf, or island trim must be used for all installations.
Model Description Approx. ship wt. lbs. (kg)
T30BG6 30”W./6”H. Professional backguard 14 (6.3)
Model Description Approx. ship wt. lbs. (kg)
T30HS24 30”W. Professional high-shelf 45 (20.3)
Model Description Approx. ship wt. lbs. (kg)
T30TII 30”W. Professional island trim 10 (4.5)
Model Description Approx. ship wt. lbs. (kg)
TE24CST Side trim 2 (0.9)
