Viking DVGBQ300T User manual

INSTALLATION

INSTRUCTIONS

ACCESS DOORS FOR VGBQ “T” SERIES GAS GRILLS

Retain for Future Reference

*Before centering doors in opening, make the notches in all four corners for double access doors and only in the hinge side for single

access doors. The notches need to be 1” long x 2” wide. Attach with the four screws that are provided.

A

B

AADD22882200TTAADD11662200TT

AA((iinncclluuddeessnnoottcchheess))28 1/4” (71.8 cm) Min. 16 1/4” (41.3 cm) Min.

30 1/4” (76.8 cm) Max. 18 1/4” (46.4 cm) Max.

BB((ooppeenniinnggoonnllyy))20 1/4” (51.4 cm) Min 20 1/4” (51.4 cm) Min

20 1/2” (52.1 cm) Max. 20 1/2” (52.1 cm) Max.

1” (2.54 cm) Min.

VIKING RANGE CORPORATION

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For Single Access Door (AD1620T): Only notch the side where the hinge is located. Door can be

mounted with left or right door swing

2” (5.1 cm)

2” (5.1 cm)

1” (2.5 cm)

1” (2.5 cm)

notch*

notch*

VIKING RANGE CORPORATION

111 Front Street • Greenwood, Mississippi 38930 • (662) 455-1200

Specifications subject to change

www.vikingrange.com

F20058C (PS0705VR)

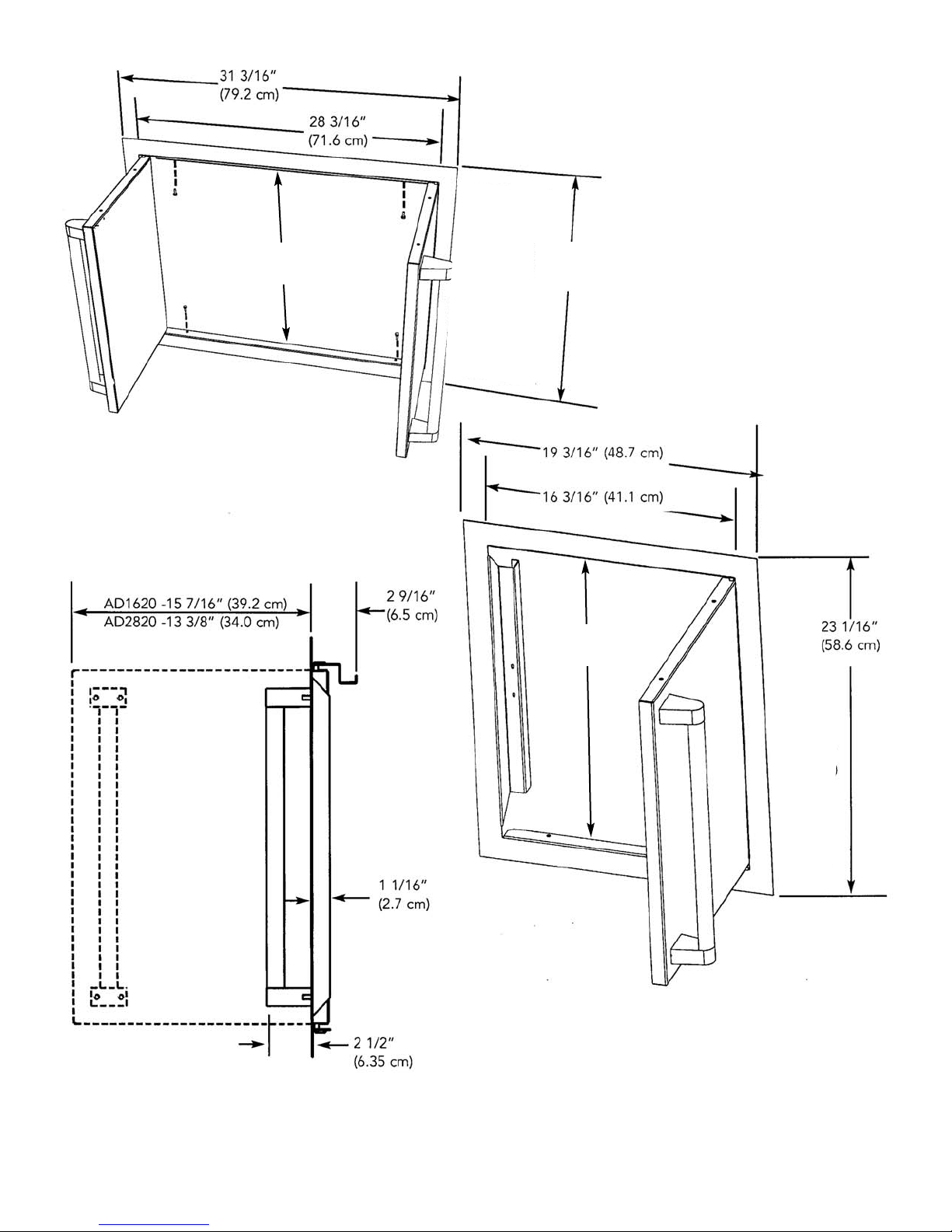

23 1/16”

(58.6 cm)

20 3/16”

(50.9 cm)

20 3/16”

(50.9 cm)

This manual suits for next models

4
