Viking VGBQ300-2RT1 User manual

INSTALLATION

INSTRUCTIONS

OUTDOOR GAS GRILL VGBQ-T SERIES CART ASSEMBLY

Retain for Future Reference

VIKING RANGE CORPORATION

111 Front Street

Greenwood, Mississippi (MS) 38930 USA

(662) 455-1200

BEFORE INSTALLING GRILL TO CART: Remove drip tray, grill grates, flavor grids, and warming racks from the grill.

IMPORTANT: PLEASE READ AND FOLLOW

1. Before beginning, please read these instructions completely and carefully.

2. Do not remove permanently affixed labels, warnings, or plates from product.

To mount grill to cart:

Always wear gloves when handling the gas grill. Although the grill is deburred prior to shipment, some edges may

still be sharp enough to cause injury during handling. With a minimum of two (2) people, place the grill in the cart with

about 3 to 4 inches hanging out the front making sure that the male fitting on the bottom of the grill is inside the cart.

Push the grill back until the front sides of the cart are flush with the back of the landing ledge on the grill. Be careful:

the grill unit is very heavy!

To remove side shelves:

The side shelves on the cart can be removed if needed. This must be done before installing the grill on the cart.

With the shelf in the up position, remove the screws in the shelf support bracket. This will allow you to remove both

the brackets and the shelf.

support bracket

screws

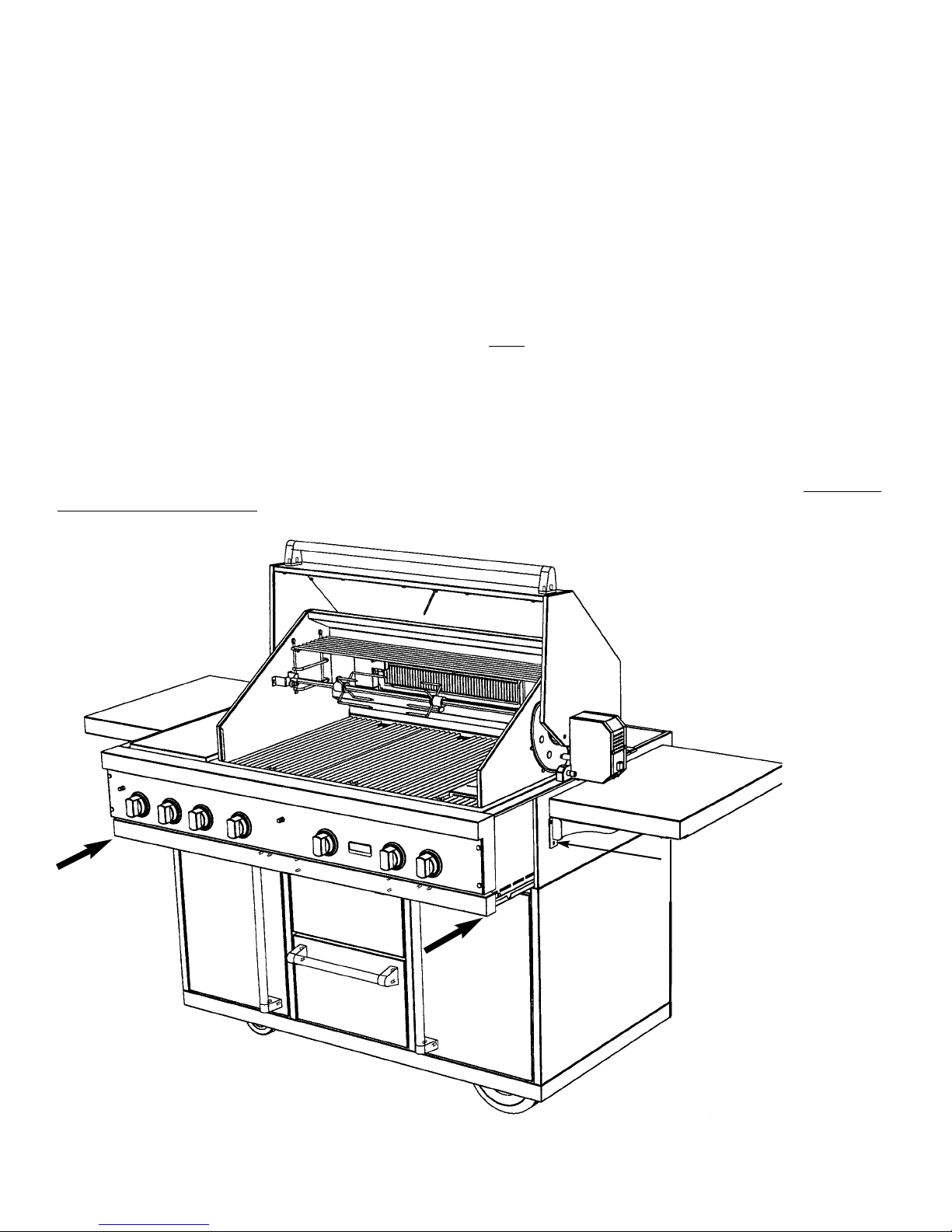

Attaching the grill to the cart

Once the grill has been mounted on

the cart, the back of the landing

ledge should be flush with the front

sides of the cart. The 5/8” (1.6 cm)

hole on the top front corners of the

cart should be aligned with the

receiving holes in the grill heat

shields. If your grill does not have

the receiving holes in the heat shield,

you will need to drill them out with a

9/64” (.14 cm) drill bit. With the grill

and cart mounted together, place the

drill bit in the 5/8 hole and center in

the 1/4”x3/8” slot. Drill through the

heat shield. Take the #10X3/4” (1.9

cm) sheet metal screws (A) supplied

with the cart and attach the cart sides

to the grill. After securing the grill to

the cart, snap the hole covers (B)

supplied with the cart into the 5/8”

(1.6 cm) holes in the cart corners.

support bracket

screws

SShheellff

aaddjjuussttmmeenntt

ssccrreeww

Front View

SSuuppppoorrttss

Leveling the Side Shelves

To level the side shelves, lift the shelf so that the

shelf adjustment screw is visible between the two

supports on the shelf brackets. Turn the screw

with a 3/32” (.2 cm) allen wrench counter clockwise

to raise the shelf and clockwise to lower the shelf.

5/8” (1.6 cm) dia. hole

(A) #10X3/4” (1.9 cm)

sheet metal screw

(B) 5/8” (1.6 cm)

hole cover

Cart Door Adjustment

The cart doors come adjusted from the factory. Depending on how level the surface the cart is being placed on, the

door(s) may need to be adjusted after teh grill is assembled on the cart.

There are two adjustment screws on the hinge receiver.

1) The front screw is used to center the door in the opening. Turning the front screws in or out will center the door in

the frame.

2) The back screw is used to align the front of the door with the cart frame and secure the door to the cart. Slightly

loosen the screw and slide the door in or out. Retighten the screw to secure the door.

DDoooorrHHiinnggee

((22ppllaacceess))

BBaacckk

SSccrreeww

FFrroonntt

SSccrreeww

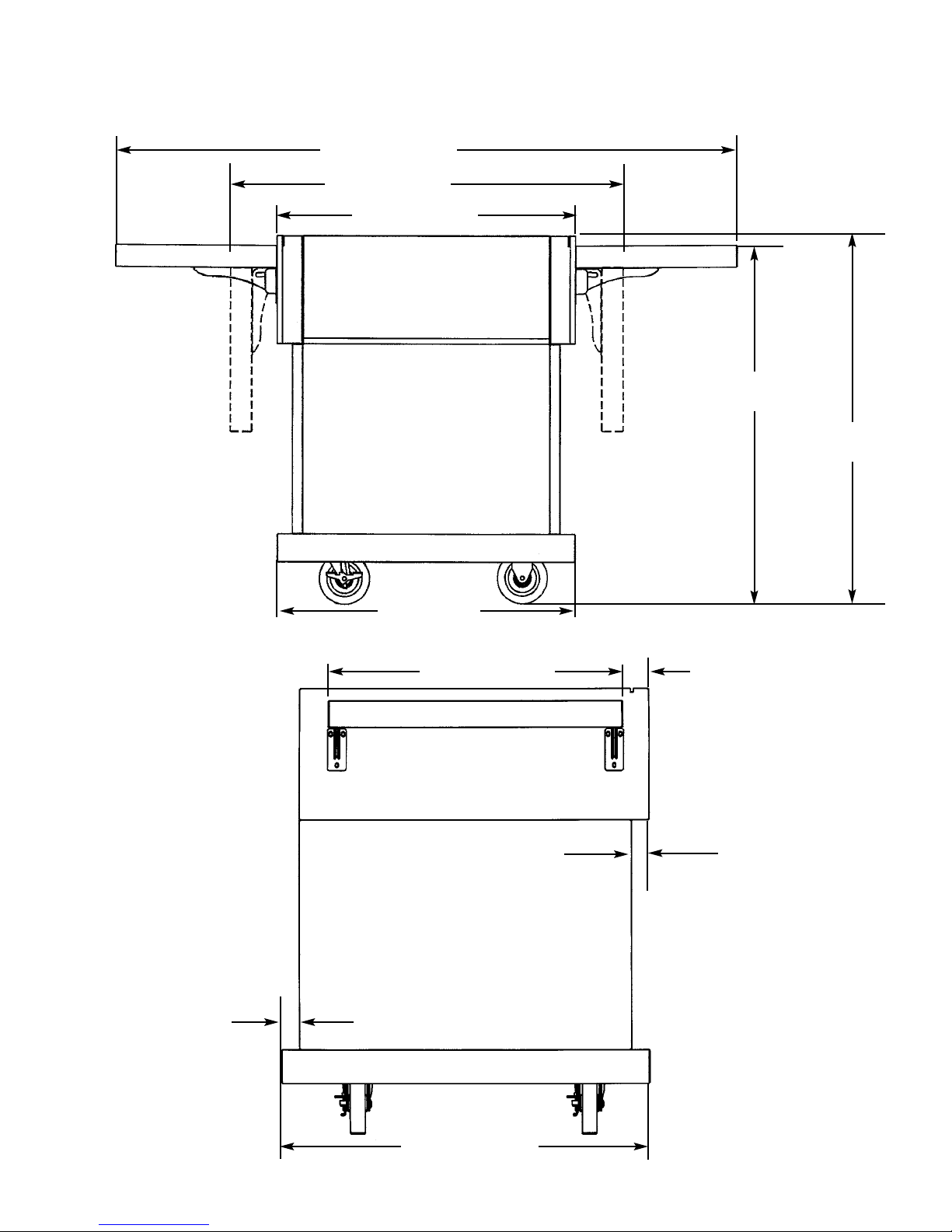

CART DIMENSIONS

3300””WW..CCaarrtt--FFrroonntt

3300””WW..CCaarrtt--SSiiddee

61 1/2” (156.2 cm)

38 3/4” (98.4 cm)

29 3/8” (75.6 cm)

36 1/2”

(92.7 cm)

37 1/2””

(95.3 cm)

30 1/16” (76.4 cm)

3/4”

(1.9 cm)

3/4”

(1.9 cm)

2 1/4”

(5.7 cm)

30” (76.2 cm)

23 7/8” (60.6 cm)

Front of Cart

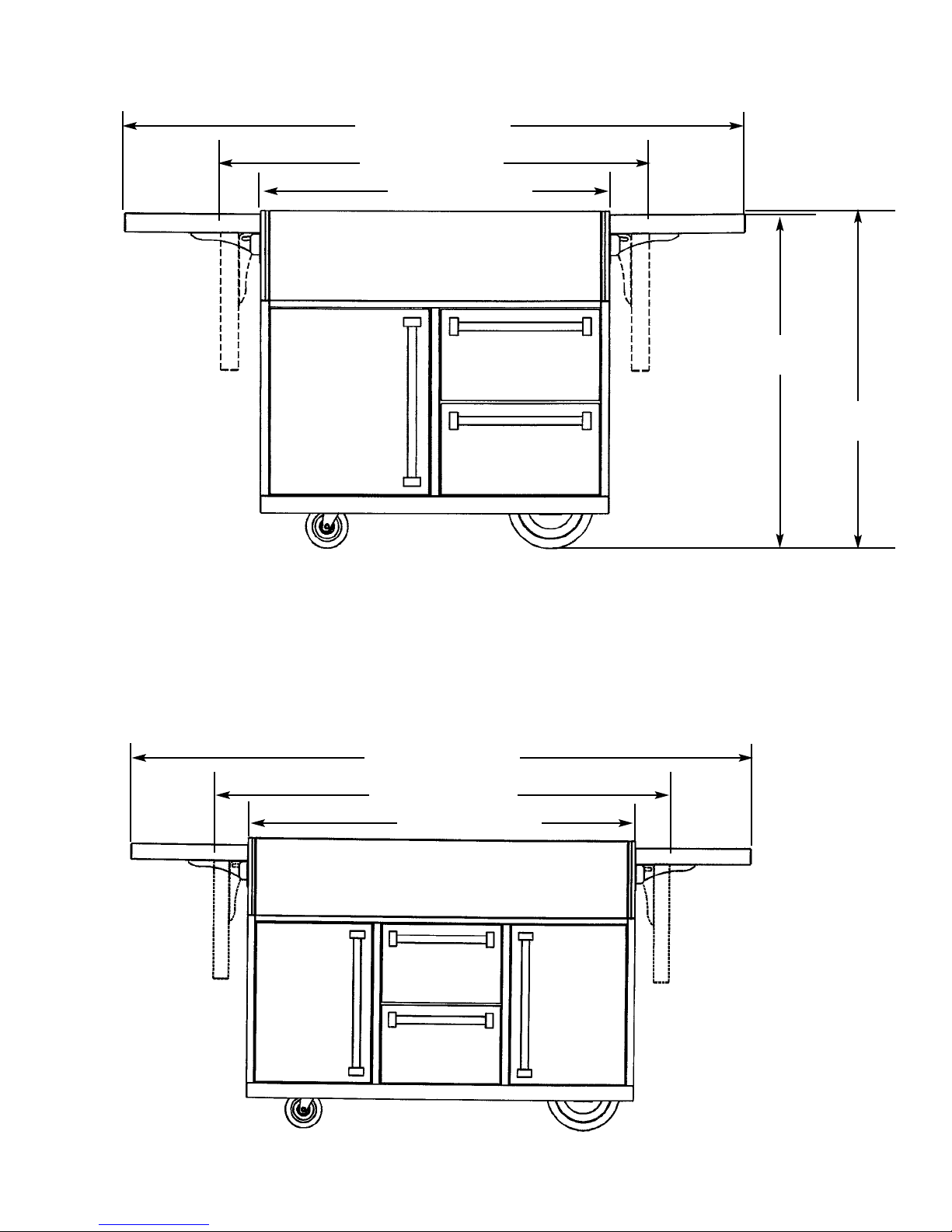

4411””WW..CCaarrtt--FFrroonntt

5533””WW..CCaarrtt--FFrroonntt

73 3/16” (185.9 cm)

50 1/2” (128.3 cm)

41 1/16” (104.3 cm)

85 1/4” (216.5 cm)

62 9/16 ” (158.9 cm)

53 1/8” (134.9 cm)

37 1/8”

(94.3 cm)

37 5/8””

(95.6 cm)

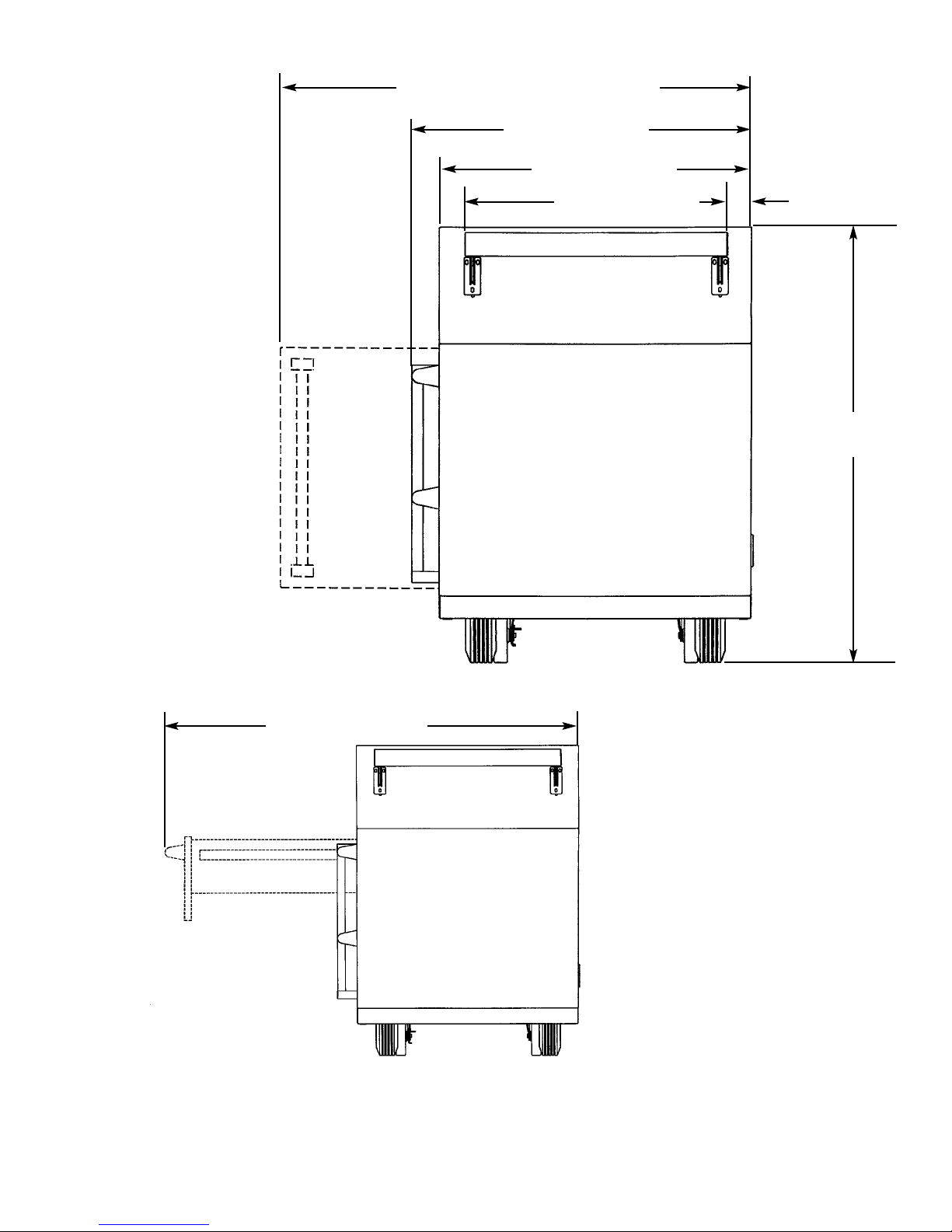

4411””WW..aanndd5533””WW..

CCaarrtt--SSiiddee

41” W. Cart - 45 7/8” (116.5 cm)

53” W. Cart - 43 1/16” (109.4 cm)

31 1/16” (78.9 cm)

28 9/16” (72.5 cm)

23 7/8” (60.6 cm)

37 5/8”

(95.6 cm)

2 1/4”

(5.7 cm)

53 1/16” (134.8 cm)

F20110C

Specifications subject to change

For more product information, call 1-888-VIKING1 (845-4641), or visit the Viking web site at

http://www.vikingrange.com

(PS0803VR)
