Viking EDFUD141 User manual

Professional Performance for the Home™

No matter what the photo spreads in home fashion

magazines would have you believe, the delight of cooking always begets the chore of

cleaning up. The most spectacular meal leaves a stack of dirty dishes in its wake.

But the Viking dishwasher tackles these mundane tasks with style and ease.

The heavy-duty dishwasher silently scours until the last stubborn morsel is gone.

And now this high-powered performance is available in both the bold, commercial look

of the Professional Series and the striking curves of the Designer Series. It may be

a dirty job. But it doesn’t have to look that way.

Design flexibility

■ Accepts two design options

• Locally customised panels completely integrate

unit with cabinetry

• Optional Viking door panel in any Professional or

Designer colour finish (see optional accessories)

Quiet, efficient operation

■ Sound-absorbing, heat-retaining insulation

• Heavy asphalt insulation on top, sides, rear, and

bottom of tank

• Top and both sides of tank and inside of door are

quieted by an additional layer of felt

■ Two motor/pump assemblies for more efficient

circulation and drainage than single-motor systems

• Anti-jam, auto-reversing pump

Dishwashers

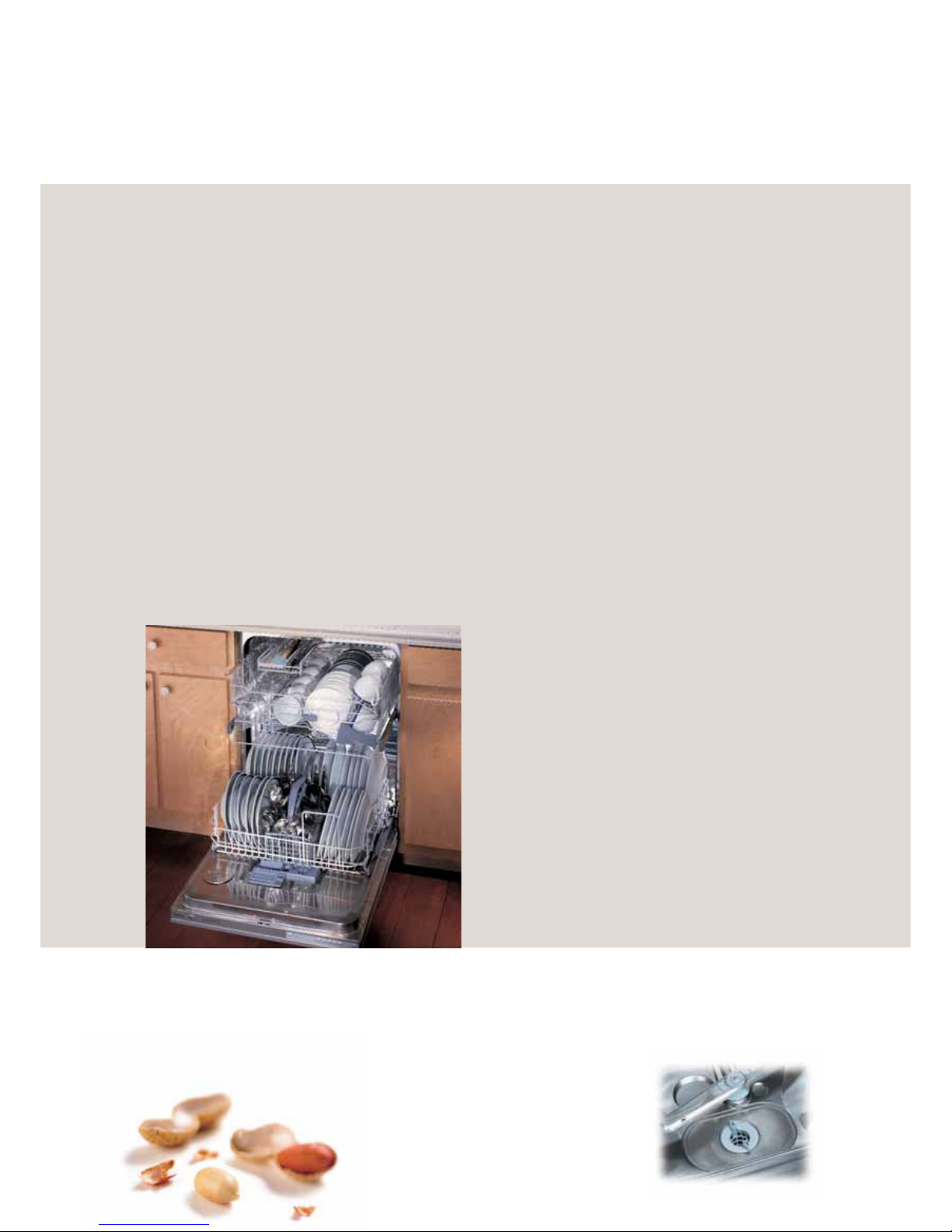

The triple filtration system leaves

dishes spot-free with its removable

large-objects strainer and

self-cleaning small-objects filter.

Interior design

■ Super-extendible, graphite nylon racks are fully

useable for no lost space

• Taller upper rack with super-stable rack guides

glides out to nearly full extension

• Two dual-level cup racks in upper rack

• Lower rack extends an extra ten centimetres from

tank for easier loading

• Fold-down tines provide space for large items

• Large silverware/cutlery basket includes

special compartment with lid to hold smaller

items in place during washing

■ Accommodates 14 international place settings of

china in a single load

■ Special basket located above upper rack

accommodates knives and long utensils

■ Interior light comes on when door is opened,

allowing better visibility

Washing and drying

■ Superior automatic water-heating system

• 1,800 watt water-heating element guarantees

ample supply of hot water

■ Heating accuracy assured by two separate thermostats

Fully useable graphite nylon racks

offer convenient random loading

without any lost space.

EDFUD141 – shown with optional

Professional door in Burgundy finish

and Brass Trim Option

Integrated controls inside dishwasher provide a smooth outside appearance.

The stainless steel tank and inner

door are completely rustproof and

offer unsurpassed durability.

EDFUD142 – shown with

optional Designer door

in stainless steel finish

The Sani Cycle setting heats the water

to a germ-incinerating 75º C, ensuring

even your dirtiest dishes come

out spotless and sterilised.

■ Multi-level wash system

• Stainless steel lower and upper wash arms turn in

opposite directions for complete water coverage

• Automatic detergent dispenser

• Automatic rinse agent dispenser with fill indicator

■ Triple filtration and waste-removal system

• Separate motor/pump quietly drains dishwasher

• Removable, self-cleaning fine filter captures

smaller particles

• Removable strainer captures large objects,

protecting pump from damage

■ Electronic controls offer several wash cycles as well as

other options designed to reduce energy costs

• Cycles include Pots/Pans, Heavy, Normal,

Light/China, Quick, and Rinse/Hold

• Cycle options include Temp Selection, Extra Dry,

and 5-Hour Delay

• Top/Bottom Rack Only and Express option

■ Temperature options range from 30˚C to 75˚C

depending on cycle

■ All cycles are extremely efficient, with Normal wash

using only 9,9 litres of water and China using only

8 litres of water

■ Convect-Air™ Drying

• Motorised fan extracts moisture from dishes,

utensils, and tank

• Switch-activated vent door opens only during

drying for quieter operation

• Safely vents between door and lower panel –

away from controls and cabinets

Commercial construction and design

■ Extra tall tank and inner door made from rustproof

surgical stainless steel

■ Counterbalanced, heavy-duty door springs for

effortless opening and closing

■ Tough, zinc-coated steel frame and one-piece

galvanised steel base pan

■ Twin fill valve and overflow protection switch

prevents mechanical malfunction overflows

Optional accessories

■ Professional door (PSD24) in any Professional colour

finish; must be ordered separately from dishwasher

■ Designer door (DSD24) in any Designer colour finish;

must be ordered separately from dishwasher

■ Professional (PHK23) and Designer (DHK20) handle

kits in Stainless Steel (SS) or Brass (BR) for use with

custom door panel

Custom door panel

with Professional handle

(may use custom handle)

Designer door panel

in Stainless Steel

Custom door panel

with Designer handle

(may use custom handle)

Professional door panel

in Stainless Steel

Exclusive finishes

■ Professional door panels (PSD24) available in

Stainless Steel (SS), Black (BK), White (WH), Almond (AL),

Biscuit (BT), Stone Gray (SG), Graphite Gray (GG),

Burgundy (BU), Lemonade (LE), Mint Julep (MJ),

Forest Green (FG), Viking Blue (VB), Cobalt Blue (CB),

and Eggplant (EP)

• May be ordered with Brass Trim Option (BR) for

nameplate and door handle/brackets

■ Designer door panels (DSD24) available in

Stainless Steel (SS), Black (BK), White (WH), Biscuit (BT),

Stone Gray (SG), and Graphite Gray (GG)

• May be ordered with Brass Trim Option (BR) for

door handle

■ All brass components have a durable, protective

coating for maintenance-free normal use

■ Viking Range Corporation uses the most up-to-date

processes and best materials available to produce all

colour finishes. However, slight colour variation may be

noticed because of the inherent differences in painted

parts and porcelain parts, as well as differences in room

lighting, product locations, and other factors.

white almond

biscuit

stone gray

graphite gray burgundy

lemonade mint julep

forest green

black

white

viking blue

cobalt eggplant

PROFESSIONAL DESIGNER

biscuit

stone gray

graphite gray

blackstainless steel stainless steel

Basic specifications

EDFUD141

Description 60CM WIDE DISHWASHERS

Overall Width

Overall Height from Floor

Overall Depth from Rear

Cutout Width

Cutout Height

Cutout Depth

Electrical Requirements

Water-Heating Element Rating

Maximum Amp Usage

59,6 cm

82 cm minimum

89,5 cm maximum

57 cm to edge of side (includes drain

hose and door panel)

115,2 cm with door open

60,0 cm

82 cm minimum

87 cm maximum

57 cm

230V/50Hz

10 amps

Performance Class A: Energy A: Cleaning A: Drying

Sound Level 47dB (A)

1,800 watts

Basic water supply data

■ Inlet water temperature – 60°C maximum at the

dishwasher recommended; however, dishwasher will

perform properly with cold water (see 15°C columns

on cycle data chart)

■ Inlet water pressure operating range – 0,3 - 10 bar

■ Unit supplied with 1,65 m PEX water supply line that

has a 3/4 inch NPT female connection

■ Water softener

Basic drain data

■ 2,0 m, 1,9 cm ID “crimp-proof” rubber drain hose with

clamp attached to dishwasher; can be extended up

to a maximum of 3 m with 1,9 cm ID copper tubing

■ High loop of drain hose required

■ Minimum height from floor – 35 cm

■ Maximum height from floor – 95 cm

■ Connect drain hose to drain motor/pump (right front

of dishwasher under lower panel)

■ Check local codes for air gap requirement in drain line

Must be 5,1 cm clearance to side wall if installed in

a corner.

All electrical and plumbing connections must conform

to local codes.

Approximate Shipping Weight 54 kg

EDFUD142

86 cm minimum

93,5 cm maximum

57 cm to edge of side (includes drain

hose and door panel)

119,2 cm with door open

86 cm minimum

87 cm maximum

55 kg

NOTE: Includes time for dry

■ Express option available for Pots/Pans, Heavy, Normal, and Light/China cycles.

■ Reduces washing time and lowers temperature (not available on Quick wash or Rinse/Hold).

Water

Temperature

Description 60CM WIDE DISHWASHER

Pots/Pans

Heavy

Normal

Light/China

Quick

Rinse/Hold

60˚C or 75˚C

Pre-Wash Main Wash Rinse

55˚C or 70˚C

55˚C or 65˚C

40˚C or 50˚C

30˚C or 50˚C

–

Extra Dry Option

Description

Pots/Pans

Heavy

Normal

Light/China

Quick

Rinse/Hold

Total Water Litre Input Water*

15˚C

Input Water*

60˚C

yes

Total Wash Time – Minutes

yes

9,9

200

195

165

140

180

175

150

105

–

Cycle data

*Using the higher water temperature setting
