QUICK CARD

Figure 1: Equipment Requirements

Updating Software via USB

This quick card outlines how to upgrade the SmartClass 4800 or T-BERD/MTS 5800 to the

latest software revision using a USB Flash Drive. Note: the software must be downloaded

to a PC and extracted to a formatted 4GB to 16GB USB flash drive. If the downloaded file

is copied directly to the USB flash drive, the upgrade will fail.

EQUIPMENT REQUIREMENTS

Equipment Requirements:

•Laptop or Personal Computer with

InternetAccess

•4GB to 16GB USB Flash Drive

FORMAT USB FLASH DRIVE

Press the Power button

to turn on the test set.

Insert the USB Flash Drive into a USB

port on the side of the T-

BERD/MTS test

set.

Tap the System icon

in the Status Bar at the top of the

display to show the System menu.

Tap the Removable Storage

Icon

to show the Removeable Storage menu.

Tap to format the USB Flash

Drive.

6. Tap and remove the USB Flash

Drive from the USB port of the test set.

Insert the formatted USB flash drive

into your Laptop or Personal Computer.

Figure 2: System Menu

Figure 3: Removable Storage Menu

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

1. On Laptop or Personal Computer, open an

Internet browser and navigate to the

software update portal for your test set:

►SmartClass 4800:

https://4800.updatemyunit.net/

►T-BERD/MTS 5800:

https://5800.updatemyunit.net/

►T-BERD/MTS 5800v2:

https://5800v2.updatemyunit.net/

►T-BERD/MTS 5800-100G:

https://5800-100g.updatemyunit.net/

►MAP 2100:

https://map-2100.updatemyunit.net/

Note: You must use the upgrade

corresponding to the correct platform.

For example, you cannot upgrade a T-

BERD 5800v2 using T-BERD 5800-100G

software.

2. Click a Flag icon to download software from

the nearest server:

►Europe Server

►North America Server

►Singapore Server.

3. Select “Run” or “Open file” to extract the

upgrade files to a USB drive. If you save the

.exe file directly to the USB flash drive, the

update will fail.

►Note: If your browser displays a warning

that the update is an unrecognized or

uncommon app, click “See more”, “…”,

“More info”, “Keep” and/or “Run

anyway” to continue.

4. Enter or browse to the path of the USB Stick

and press the OK button to extract update

files to the USB Flash Drive.

DOWNLOAD ARCHIVE AND EXTRACT TO USB FLASH DRIVE

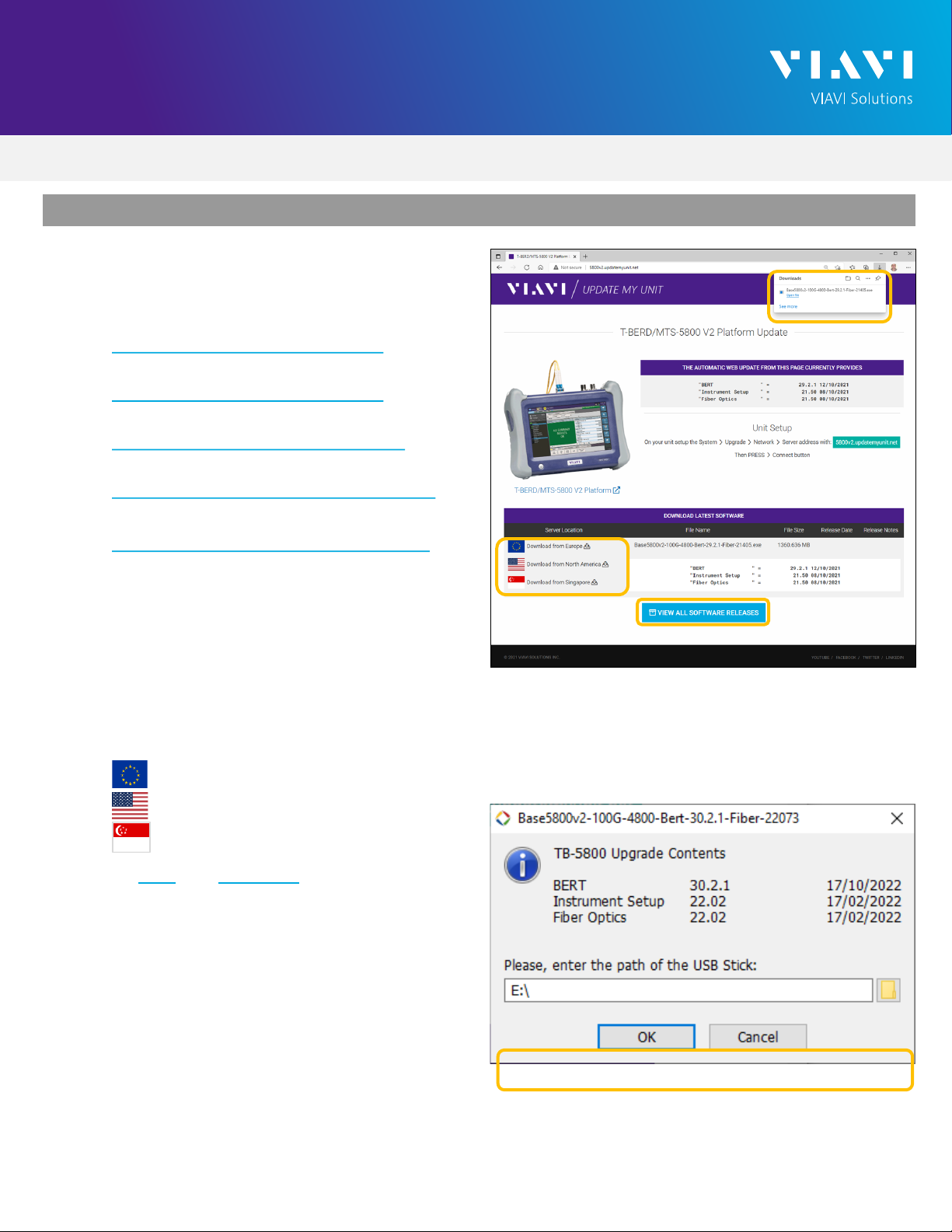

Figure 4: updatemyunit.net

Figure 6: Enter or Browse to the path of the USB Flash Drive

VIAVI//Public

T-BERD/MTS 5800 Portable Network Tester

T-BERD/MTS-5800 Portable Network Tester

QUICK CARD

Product specifications and descriptions in this

document are subject to change without notice.

Patented as described at viavisolutions.com/patents

To reach the VIAVI office nearest you,

visit viavisolutions.com/contact

+1 844 GO VIAVI

(+1 844 468-4284)

1. Eject and remove the USB Flash Drive

from the Laptop or Personal Computer.

2. Insert the USB Flash Drive into a USB

port on the side of the T-BERD/MTS test

set.

3. Plug the T-BERD/MTS test set intoAC

power. You cannot update the software

while running on battery.

4. Tap the System icon in the

Status Bar at the top of the display to

show the System menu.

5. Tap the Upgrade Icon to show the

Upgrade menu.

6. Select USB for the upgrade method.

7. Tap and follow screen

prompts to complete the software

upgrade.

➢Notes:

•V4.3 includes an upgrade to the

operating system, platform

software, and test applications.

•The BERT test application will be

renamed “Transport”.

•The update may take up to 30

minutes to complete.

UPGRADE TEST SET

Figure 7: System Menu

Figure 8: Upgrade Menu
