T-BERD/MTS 4000 Handheld Modular Test Set

T-BERD/MTS-4000 Handheld Modular Test Set

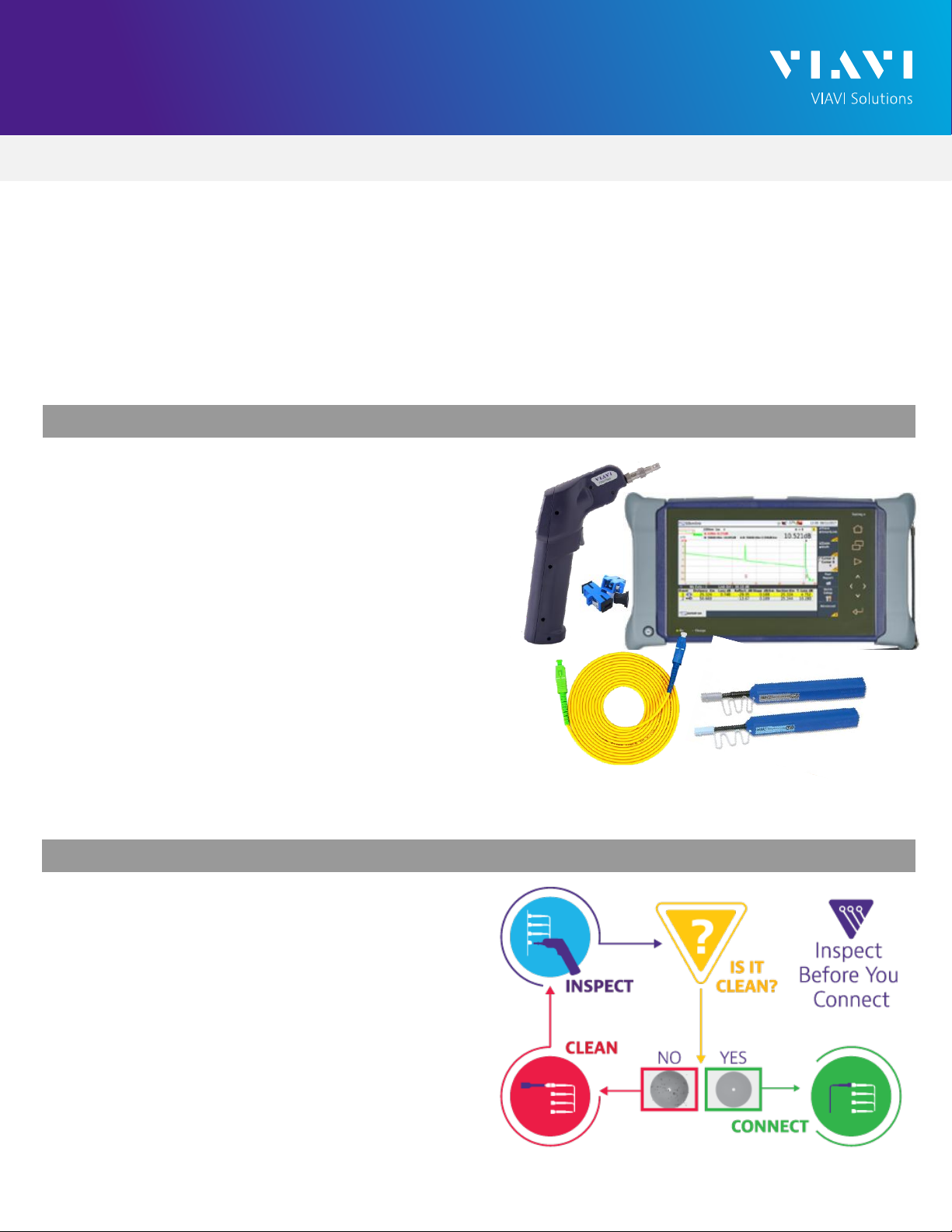

QUICK CARD

►Use the VIAVI P5000i or FiberChek Probe

microscope to inspect both sides of every

connection being used (OCC Port, Launch

Cable, bulkhead connectors, patch cables, etc.)

►Focus fiber on the screen. If dirty, clean the

end-face.

►If it appears clean, run inspection test.

►If it fails, clean the fiber and re-run inspection

test. Repeat until it passes.

Figure 2: Inspect Before You Connect

Figure 1: Equipment Requirements

4100-series OTDR Smart Test Assistant

This quick card describes how to connect to a fiber under test and use the Smart Test

Assistant to configure test setups, run tests, and analyze results on a VIAVI T-BERD/MTS

4000 equipped with a 4100-series OTDR module.

EQUIPMENT REQUIREMENTS

FIBER INSPECTION GUIDELINES

►T-BERD/MTS 4000 equipped with the

following:

•Fiber Optics Software Release V21.14 or

greater

•4100 Series OTDR Module

•Fiber optic cleaning and inspection tools

►Minimum 20-meter Fiber optic patch cable

(Launch Cable)

►Optical Coupler to connect Launch Cable to

Fiber Under Test

VIAVI//Public

T-BERD/MTS 4000 Handheld Modular Test Set

T-BERD/MTS-4000 Handheld Modular Test Set

QUICK CARD

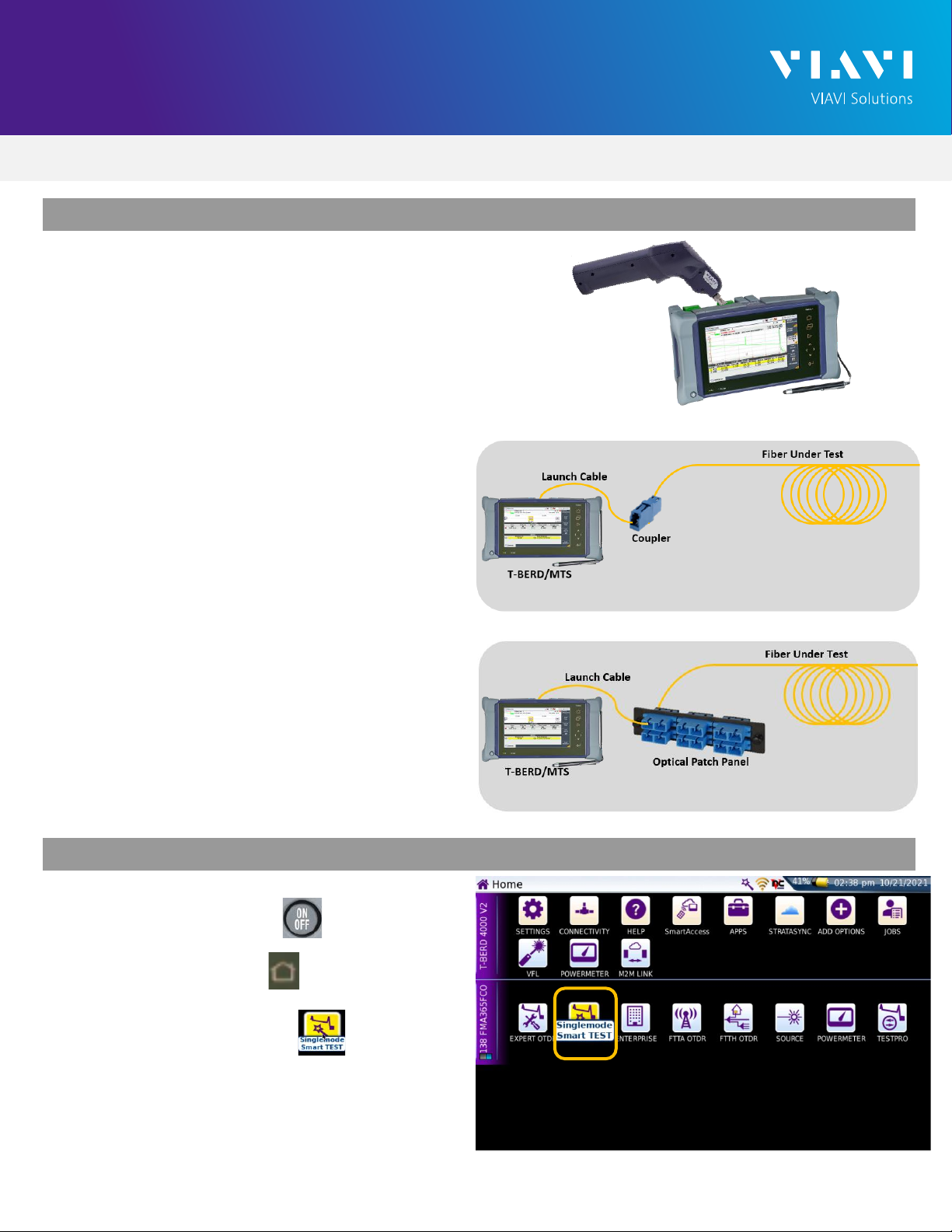

CONNECT TO FIBER UNDER TEST (FUT)

All fibers and connectors should be inspected and

clean prior to connection, as described on page 1.

The OTDR may be connected to the FUT via an

optical patch panel (OPP) or a coupler:

1. Inspect the OTDR port on top of the test set.

2. Inspect the fiber end face of the Launch Cable.

3. Connect the Launch Cable to the OTDR port.

4. If the interface to the FUT is a patch cord,

connect the patch cord to an optical coupler.

5. Inspect the FUT connected to the coupler or

OPP port and the fiber end face of the Launch

Cable.

6. Connect the Launch Cable to the coupler or

OPP port.

Figure 5: Connecting to OPP

LAUNCH TEST

1. Press the ON/OFF button to start the test

set.

2. Press the Home button to display the Home

view with the SMART TEST icon.

3. Tap the SMART TEST icon until it is

yellow and highlighted.

Figure 6: Home Screen

Figure 4: Connecting to coupler

Figure 3: OTDR Port Inspection

VIAVI//Public

T-BERD/MTS 4000 Handheld Modular Test Set

T-BERD/MTS-4000 Handheld Modular Test Set

QUICK CARD

1. Select a configuration file:

►Select the CERTIFICATION_AutoTest_20s

configuration file to setup the T-BERD/MTS

4000 for automatic 20 second acquisitions

to confirm loss and distanceAND analyze all

events (splices, connectors, etc.)

►Select the

CERTIFICATION_SmartAcq_20s

configuration file to setup the T-BERD/MTS

4000 for multiple 20 second acquisitions

using different pulse widths.

►Select the EXPRESS_AutoTest_5s

configuration file to setup the T-BERD/MTS

4000 for 5 second acquisitions to quickly

confirm total span loss and distance.

►Tap to select a user configuration file

stored in the /disk/fiber/config folder.

2. Tap to load the configuration and view the

SMART TEST Setup screen.

3. Configure test settings:

►Laser: Select the wavelength(s) to test.

–Select 1310 nm and 1550 nm to enable

bend detection.

►Distance Unit: Tap the desired unit of

measure.

►Launch Cable: Tap YES if you are using a

Launch Cable. Tap the icon and enter

the Launch Cable length. Enter 20 meters

or 66 feet for Viavi supplied 20-meter launch

cables.

►Alarms: Tap YES and choose Default for

Viavi recommended Pass/Fail limits.

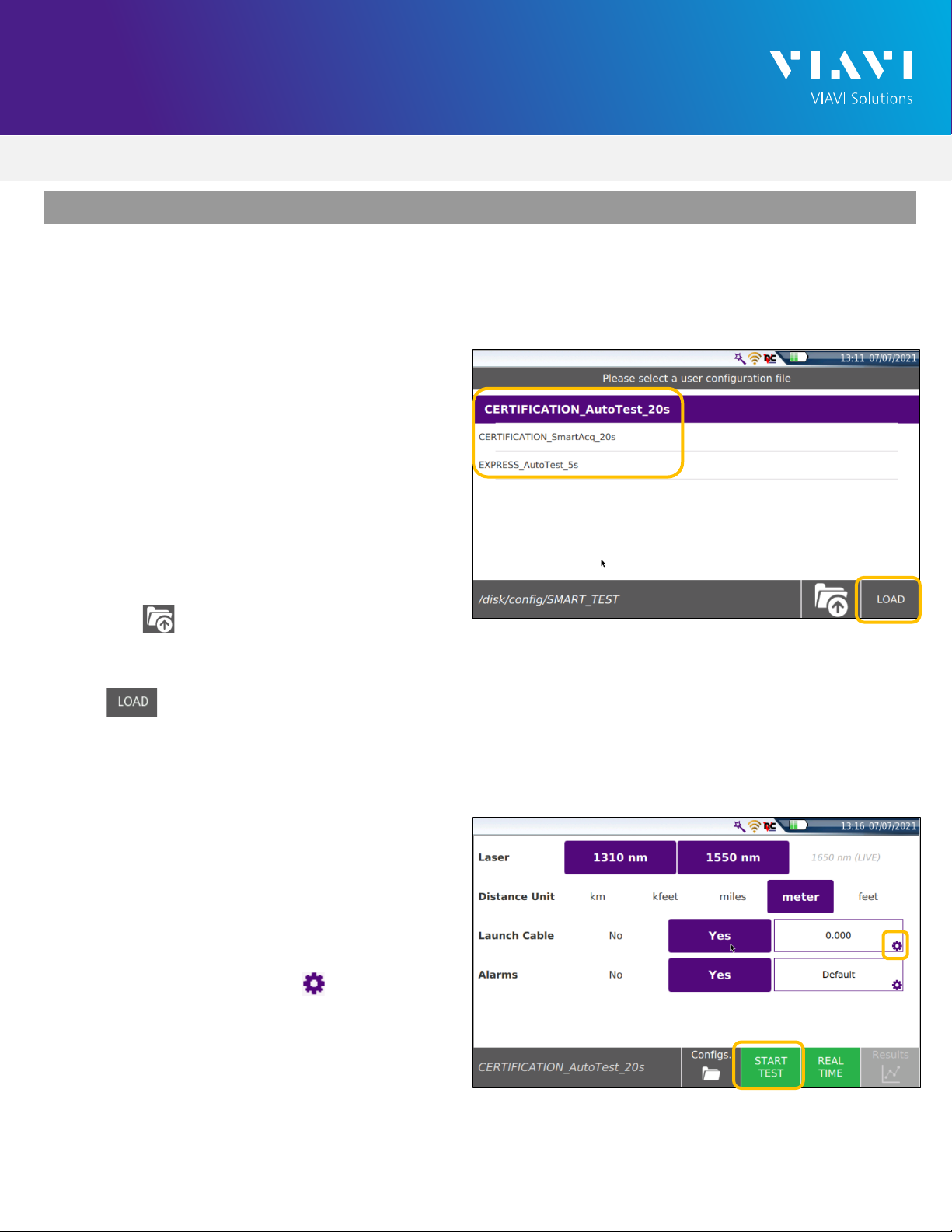

CONFIGURE TEST

Figure 7: SMART TEST Configuration Files

Figure 8: SMART TEST Setup

VIAVI//Public

T-BERD/MTS 4000 Handheld Modular Test Set

T-BERD/MTS-4000 Handheld Modular Test Set

QUICK CARD

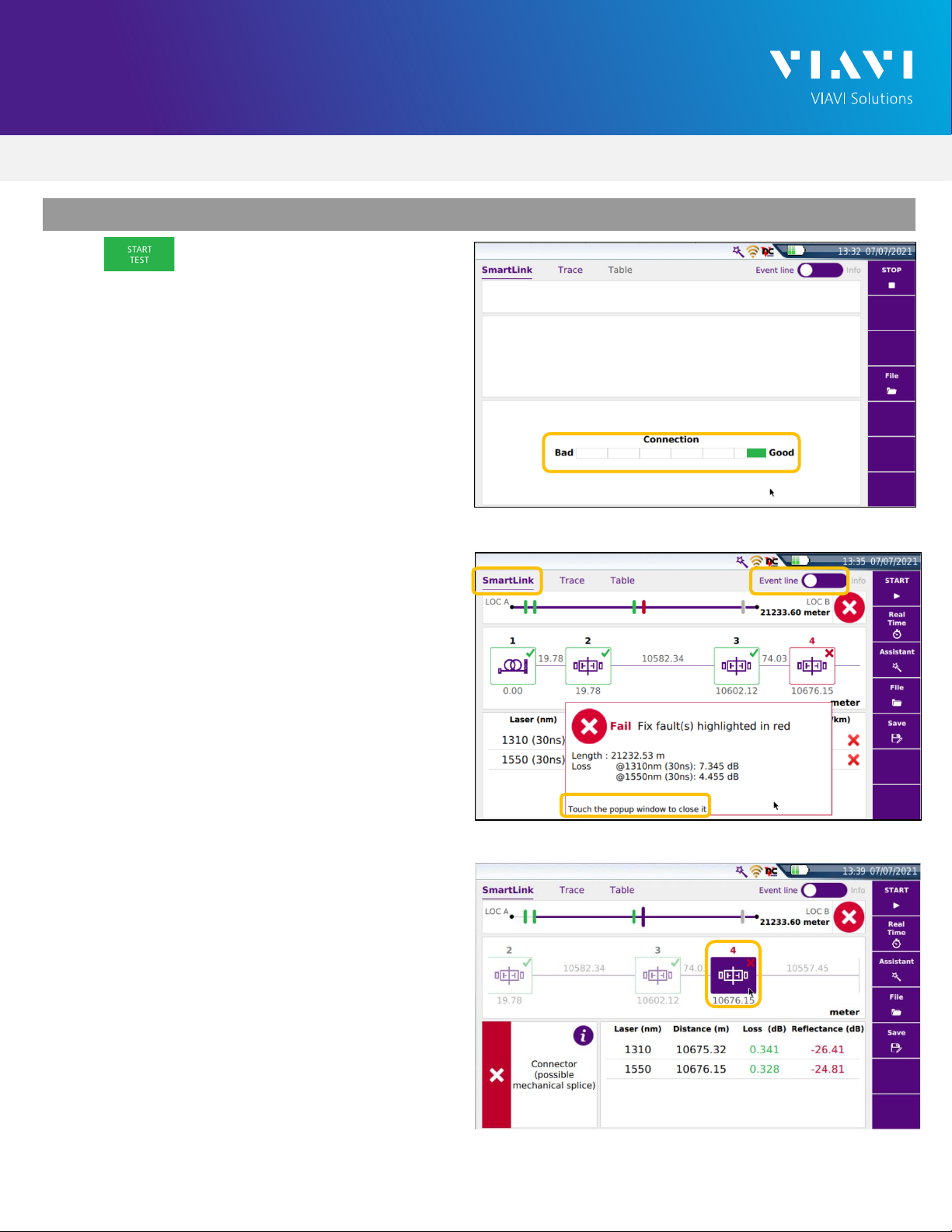

RUN TEST

1. Tap to start the test. After auto-

configuration, the OTDR will perform a

connection check to ensure that the connection

is Good. If the Connection is Bad, disconnect

the launch cable, and reconnect as described

on pages 1 and 2, cleaning every fiber end-face

that fails the inspection test.

2. The OTDR will perform acquisitions at the

configured wavelengths. Overall test results

(Pass or Fail) will be displayed in a popup

window. Touch the popup window to close it.

3. Tap the SmartLink tab at the left screen top to

select SmartLink view.

4. Set the toggle switch at the right screen top to

Event Line.

5. View SmartLink results:

►The FUT is displayed as a series of icons

representing events (front connector,

launch cable, connectors, splices, bends,

etc.) and distances. Swipe left or right to

view additional icons on spans with more

than 5 events.

►The lower display shows summary results

for the entire span for each acquisition or

wavelength. Tap any event in the upper

display to view detailed results for that

specific event.

►Events and Acquisitions are marked with a

green check or red xbased on the Alarms

setting.

Note: the icon-based view may not be

available on older T-BERD/MTS 4000s when

acquisition Mode = SmartAcq. Rerun the test

with the CERTIFICATION_AutoTest_20s

configuration file or contact VIAVI to upgrade

your unit to add this feature.

Figure 10: SmartLink View, Summary Results

Figure 11: SmartLink View, Event Results

Figure 9: Connection Check

VIAVI//Public

T-BERD/MTS 4000 Handheld Modular Test Set

T-BERD/MTS-4000 Handheld Modular Test Set

QUICK CARD

Product specifications and descriptions in this

document are subject to change without notice.

Patented as described at viavisolutions.com/patents

To reach the VIAVI office nearest you,

visit viavisolutions.com/contact

+1 844 GO VIAVI

(+1 844 468-4284)

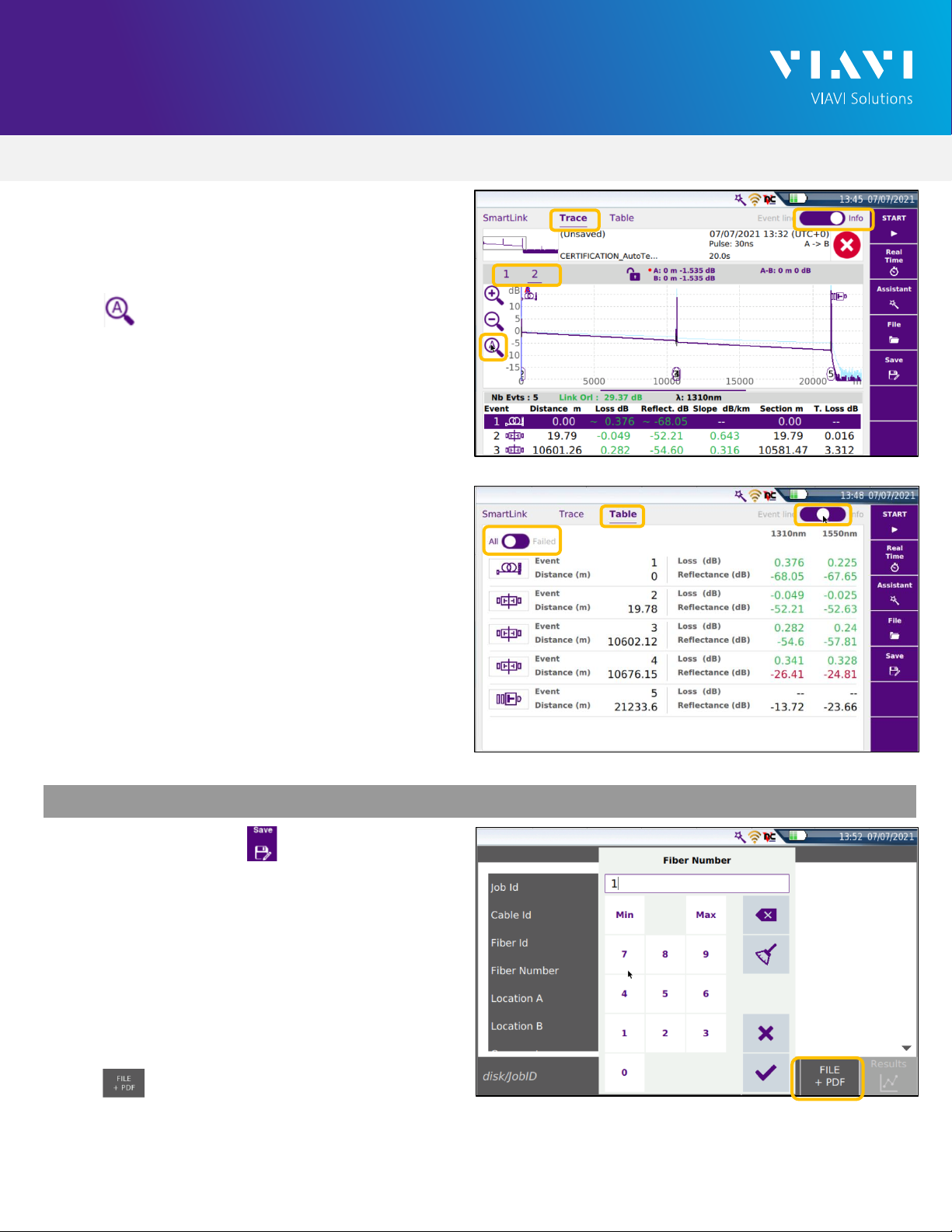

6. Tap the Trace tab at the left screen top to select

Trace view.

7. Set the toggle switch at the right screen top to

Info.

8. Tap to auto-zoom.

9. View trace results:

►Trace information is shown in the upper

display. Tap 1 or 2 to select the acquisition

(wavelength or pulse width) for results

display.

►Graphical results (dB versus distance) are

shown in the center display.

►A color-coded Event table is shown in the

lower display. Swipe up and down to view

all events.

9. Tap the Table tab to select Table view.

10. Set the toggle switch to the center (off) position.

11. View table results:

►Distance, Loss, and Reflectance are

shown for each event.

►Tap the toggle switch to view All events or

Failed events.

Figure 12: Trace view

Figure 13: Table view

SAVE RESULTS

1. Tap the Save softkey to view File Recording

Information.

2. Enter Job Id, Cable Id, Fiber Id and Fiber

Number.

►The Job Id field identifies the Job and

creates a folder by the same name.

Results are saved to this folder.

►The Cable Id, Fiber Id, and Fiber Number

fields determine the file name.

3. Tap to save a report in PDF format and

save a file containing the fiber trace data. Figure 14: Save Report
