VESTEL c55tw11 User manual
1
CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
WHITE GOODS ASSEMBLE & DISASSEMBLE
A- Changing The Door Swing Direction to Right Hand
Figure - 1
Figure - 2
Figure -3 Figure -4
1- Unscrew the two screws which are fixing the middle hinge and remove the two
middle hinge screw caps (big). (Fig-1)
2- Dismantle the refrigerator and freezer door from cabinet by pulling towards to you
together with the middle hinge. (Fig-2)
3- Lie down the appliance to the left side. Dismantle both leveling feet and unscrew
the bottom hinge fixing screws and remove it. (Fig-3) Unscrew the bottom hinge pin
and screw in the next hole.(Fig-4) Then screw the hinge to left side of the refrigerator.
Screw the both leveling feet.
Unscrew the two
hinge screw.
Remove the two
middle hinge
screw caps (big)
CUSTOMER
SUPPORT
2
VESTEL REFRIGERATOR
WHITE GOODS ASSEMBLE & DISASSEMBLE
Figure - 7
Figure - 5
Figure - 6
DETAIL-A
DETAIL-B
5-Unscrew the pin on the right. (Fig-6/Detail-A) and screw it to the left. (Fig-6/Detail-B)
REFRIGERATOR
DOOR
Insert the two
middle hinge
screw caps
(big) here.
4- Place the two middle hinge screw caps (big) as shown in the figure. (Fig-5)
You can find the new caps in the user manuel bag.
6- Replace the top bushing and top bushing cap. (Fig-7)
(You can use the bushing cap that is put in the user manuel)
Remove the bottom bushing and bottom stopper and
assemble them to the left hole. (Fig-7)
3
CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
WHITE GOODS ASSEMBLE & DISASSEMBLE
Figure - 8
7- Replace the top bushing and top bushing cap. (Fig-8)
Remove the bottom bushing assemble it to the left hole. (Fig-8)
Figure - 9
Turn the middle
hinge 180°
8- Turn the middle hinge 180º . Assemble the freezer door and refrigerator door
together with middle hinge. (Reverse operation of item 2) Fix the middle hinge by
tighting the screws. (Fig-9)
FREEZER
DOOR
CUSTOMER
SUPPORT
4
VESTEL REFRIGERATOR
WHITE GOODS ASSEMBLE & DISASSEMBLE
B - Changing The Thermostat :
1) Remove the lamp cover and unscrew the fixing screw.
2) Remove the screw cap and unscrew the fixing screw.
3) Remove the thermostat box by pulling it and disconnecting the wire connector.
4) Remove the thermostat knob by pulling forward. Loosen the nut fixing the thermostat.
5) Pull out the thermostat bulb from the housing.
6) Replace the thermostat with a new one and assemble the thermostat box following the steps
backwards.

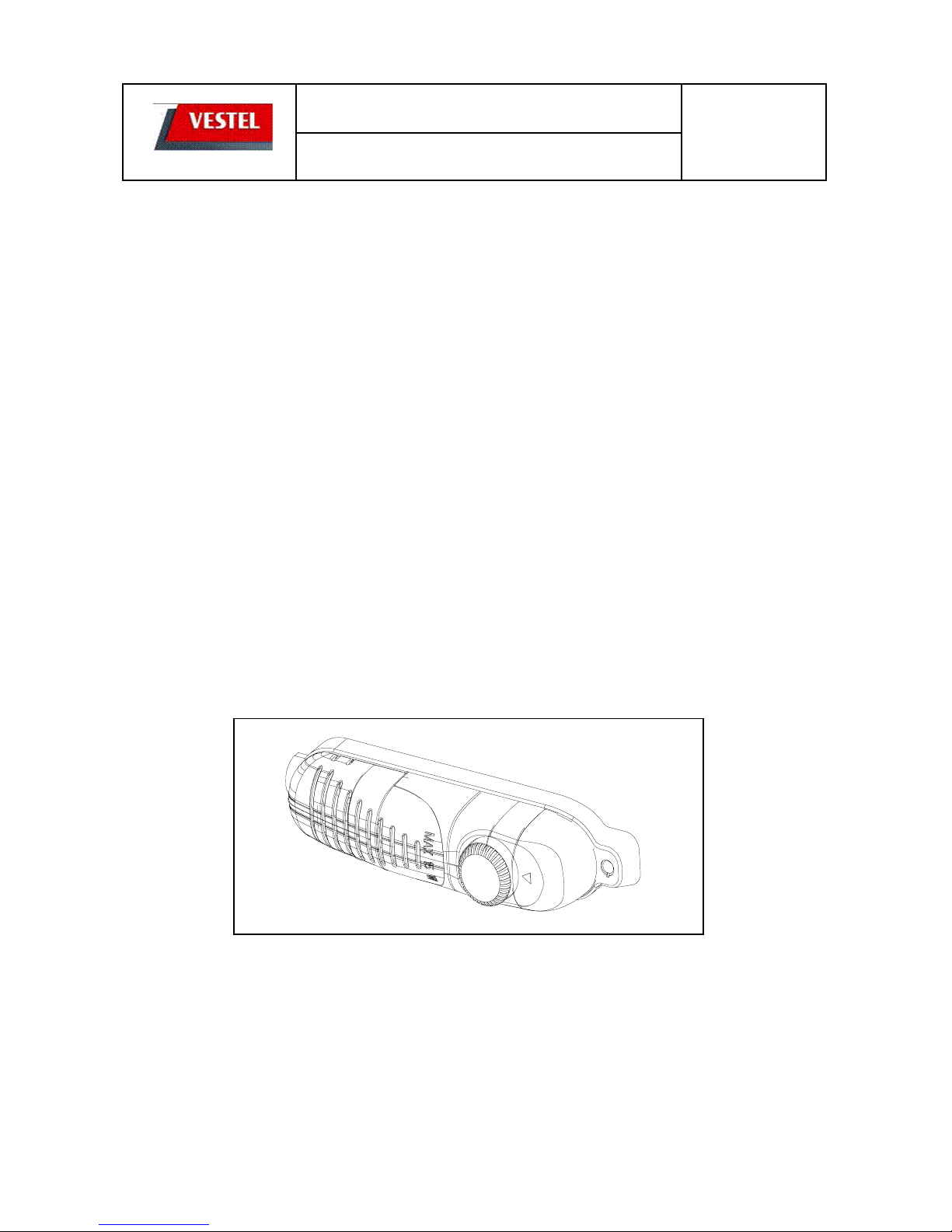

C - Thermostat Knob
This knob is used to control the temperature of the freezer and refrigerator parts automatically. It can
be set to any value between “0“ and “5“positions.
“ 0 ” position indicates that the thermostat is “off ”.The refrigerator is “off ” on this setting.
By turning the knob between “1” and “5”, you can increase or decrease the cooling degree.
The refrigerator is designed to get optimum performance when the thermostat knob is set between
position “2” to “4”.
5
CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
WHITE GOODS REFRIGERANT CYCLE DIAGRAM
F EVAPORATOR
R EVAPORATOR
CAPILLARY
DRYER
HOT PIPE
SUCTION PIPE
R EVAPORATOR
CONDENSER
SUCTION PIPE
CONDENSER
COMPRESSOR
F EVAPORATOR
DRYER
CAPILLARY
HOT PIPE
COMPRESSOR
