Vertiv Liebert GXT5 User manual

LIEBERT® GXT5™ UPS

6000VA HV, 208V (L1, L2, G) IN, 208V OUT

GXT5-6KL630RT5UXLN

Quick Installation Guide

SL-70306_REV1_11-19 1

I M P O R TA N T: Before installing,

connecting to supply or operating

your Liebert GXT5 UPS, please

review the Safety and Regulatory

Statements sheet. For detailed

installation, operating, maintenance

and troubleshooting info

rmation refer to the GXT5 User

Guide for your model available at

www.Vertiv.com.

INSTALLATION

1. Inspecting the UPS

Inspect the UPS for any signs of

obvious damage. If damage is

visible, do not proceed and call

our warranty support line for

assistance at 1-800-222-5877

menu option 3, or email at

microups.warranty@vertiv.com.

2. Choosing a location

Install the UPS in a

temperature-controlled

environment that is free of

corrosive and conductive

contaminants. Avoid locations

near heat or water sources and

exposed to direct sunlight.

For proper ventilation, leave

four inches clearance on all

sides of the UPS.

The input outlet should be

nearby and easily accessible.

3. Installing the UPS

The UPS and optional External

Battery Cabinets may be

installed in either a tower or rack

conguration. For tower

installation, assemble and attach

the tower support stands. For

rack installation, attach the

brackets to the UPS, install the

rail kit in the rack if needed, and

install the UPS in the rack.

NOTE:

This UPS is not for use in a

computer room as dened in the

standard for the protection of

electronic computer/data

processing equipment of ANSI/

NFPA 75.

Rear Panel of GXT5-6KL630RT5UXLN

GXT5 UPS

#Description

1Liebert® IntelliSlot™ port

2Terminal-block/Dry-contact communication connectors

3RS-485 port

4USB port

5RS-232 port

6REPO connector

7L6-30R output breaker

8External-battery-cabinet connector

9Programmable outlet maintenance bypass breaker

10 Programmable outlet maintenance bypass breaker

11 Maintenance-bypass breaker

12 Input circuit breaker

13 L6-30P input plug

14 L6-30R output receptacle (2x)

15 Programmable L6-20R output breaker

16 Programmable L6-20R output breaker

17 Programmable L6-20R output receptacle (2x)

LIEBERT® GXT5™ UPS HV GXT5-6KL630RT5UXLN

Quick Installation Guide

2 SL-70306_REV1_11-19

CONNECTIONS

4. Connecting External

Battery Cabinet

(Optional)

External Battery Cabinets

(EBC) provide longer battery

run-time for connected

devices. Refer to GXT5 User

Guide, to select the appropriate

model and quantity for your

GXT5 model and applications.

• Verify that the EBC breaker

is in the “O” position.

• Connect one end of the

supplied EBC cable to the

UPS battery connector and

autodetect port (terminal

block 3) and one end to the

EBC’s battery connector and

autodetect port. If connecting

more than one EBC, connect

one end of the external

battery cable to the second

set of connectors on the

battery cabinet, then connect

the other end to the next

battery

cabinet.

5. Connecting the UPS

to Receptacle

The UPS is cord and plug

connected using a L6-30P

input plug. Perform all wiring in

accordance to all local and

national electrical codes. The

UPS is equipped with output

receptacles. Connect the

equipment to be protected to

the output receptacles.

NOTE: Allow the batteries to

charge at-least 8 hours before rst

start-up to ensure adequate

back-up time. The batteries charge

when the UPS is connected to AC

input regardles of the o/on status

of the UPS.

EBC terminal

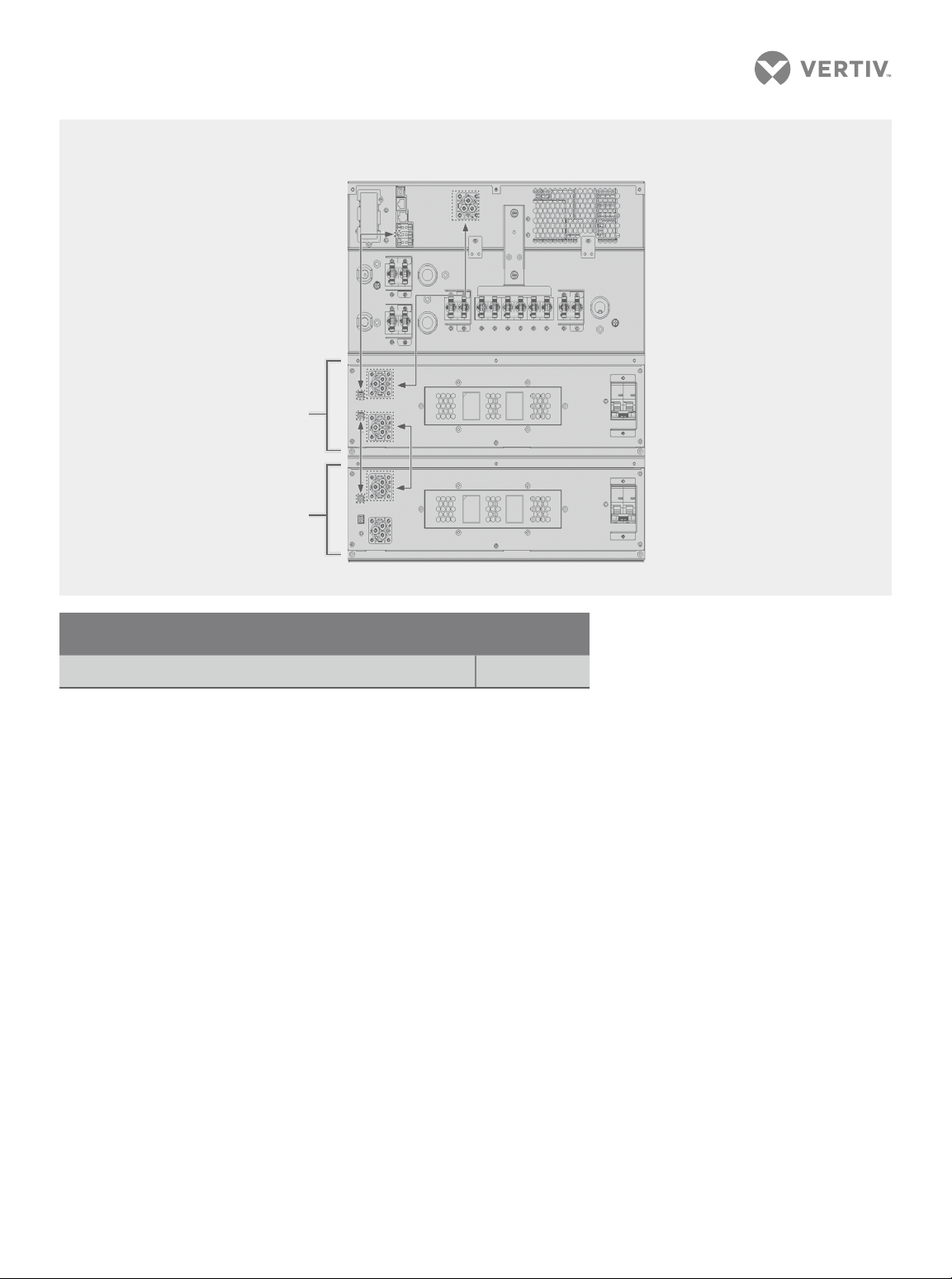

GXT5TM UPS to External Battery Cabinet Connections

UPS rear panel

Single/First EBC

Second EBC

WIRING

Recommended external over-current protection 30 A

LIEBERT® GXT5™ UPS HV GXT5-6KL630RT5UXLN

Quick Installation Guide

SL-70306_REV1_11-19 3

POWERING THE UPS

NOTE: Do not start the UPS until

the installation is nished, the

system is commissioned by an

authorized engineer, and the

external input circuit breakers are

closed.

1. Make sure the maintenance

bypass switch is in the open

“OFF” position and that the

guard is secured in place.

2. Ensure that the REPO

connector on the rear of the

unit has a jumper between

pins 1-2 or that it is properly

wired to an Emergency Power-

O circuit (normally closed).

3. Make sure the breaker supplying

power to the UPS is closed, and

close the input breaker on the

rear of the UPS.

4. If necessary, use the LCD

display or a connected

computer to adjust any required

settings. (Refer to the UserGuide

for conguration set up.)

5. Close all output breakers on the

rear of the UPS (or in an external

panel board, if used).

6. If external battery cabinets are

included, close the breakers on

the rear of each cabinet.

7. Power-on the UPS using the

Operation and Display Panel

(see the illustration on the

previous page) by pressing and

holding the power button until

the conrmation dialog appears.

Use the Up/Down arrows to

select “YES”, then press Enter.

NOTE: During operation, the UPS

may sound an alarm as the output

receptacles are powered. You may

press the Esc button for 2 seconds

to silence the audible alarm.

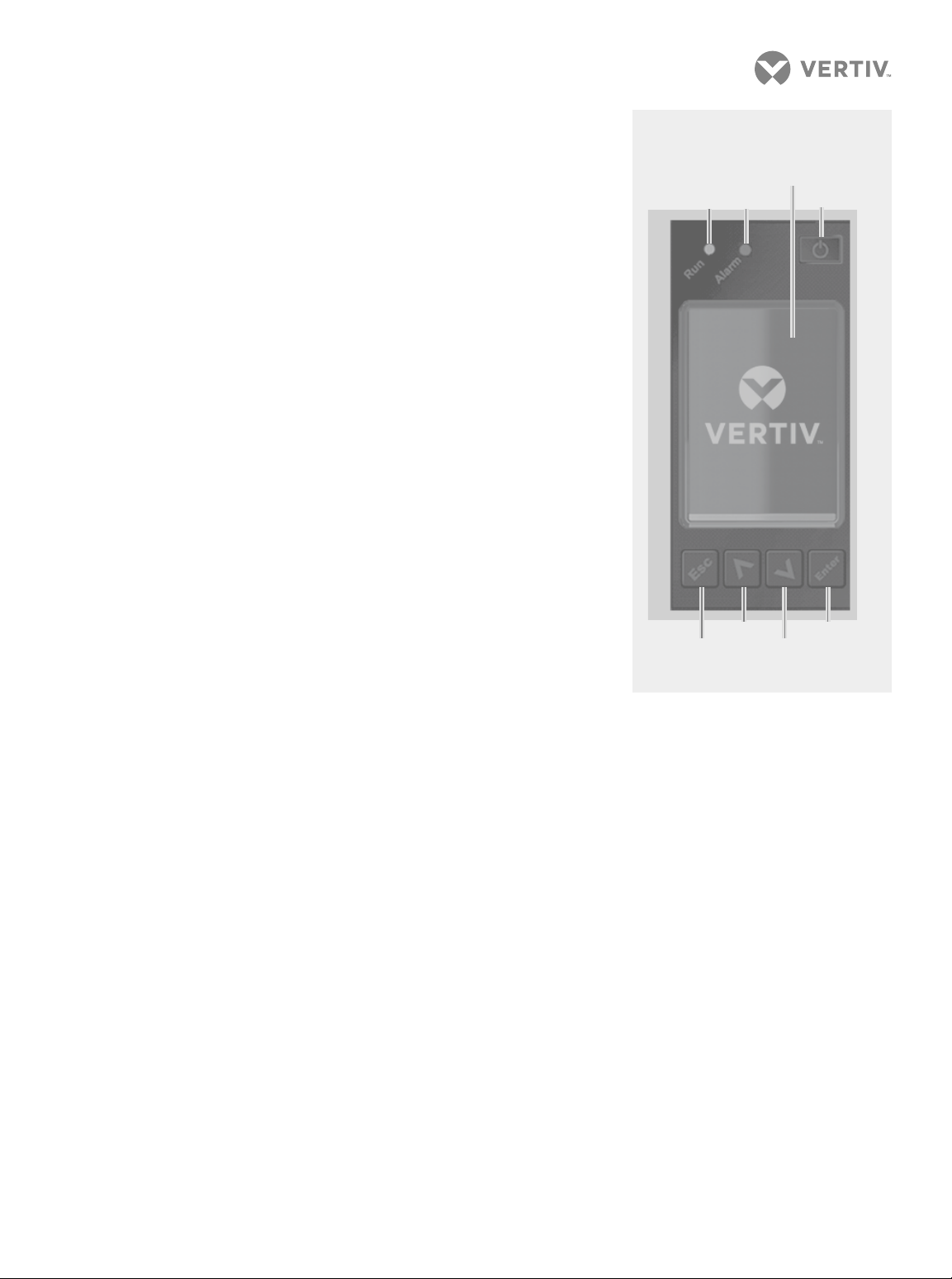

Operation and Display Panel

Enter

Down

Escape

Power

Run Alarm

Display screen

To contact Vertiv Technical Support: visit www.Vertiv.com

trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Group

Corp. assumes no responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specications are subject to change

without notice.

4 SL-70306_REV1_11-19
