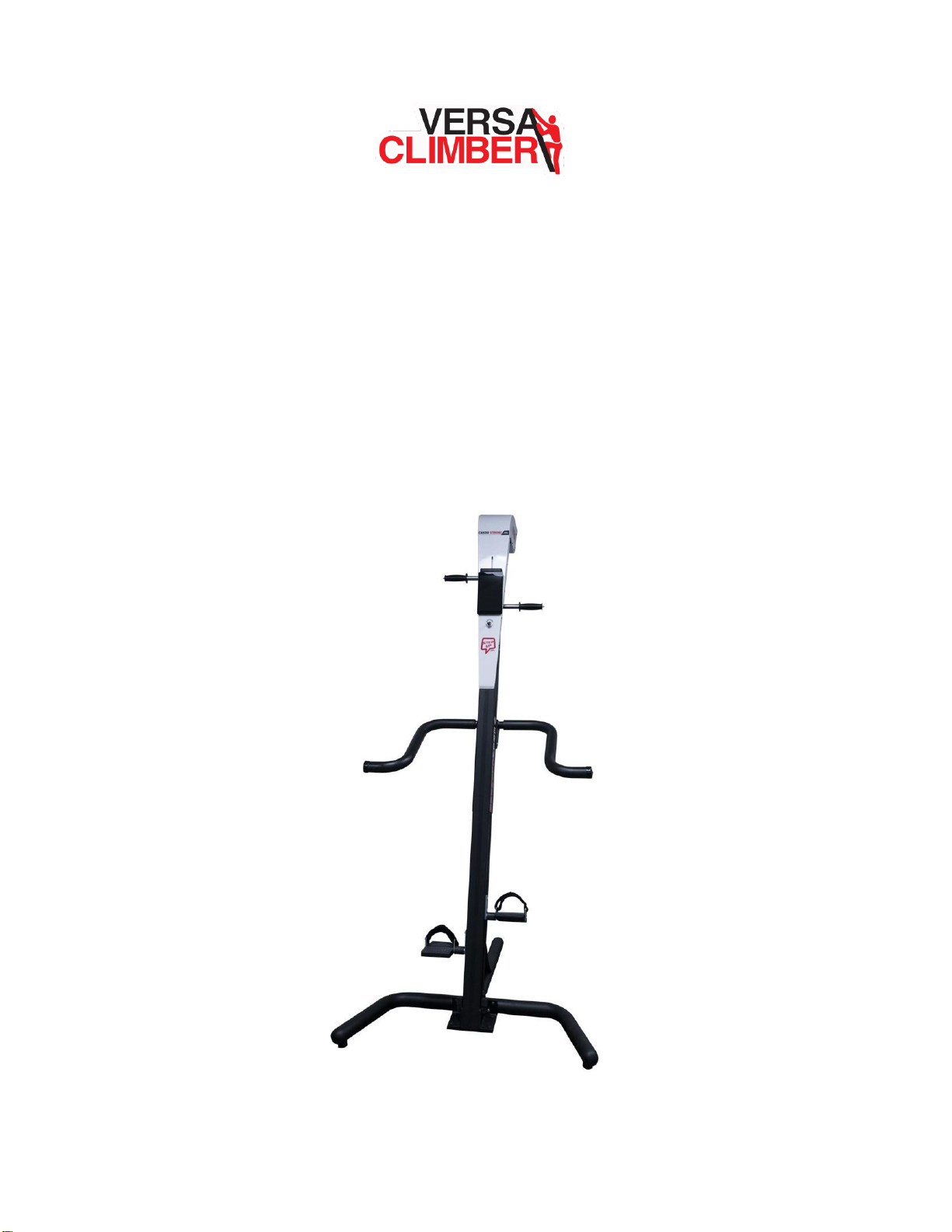

versa climber TS User manual
TS
ASSEMBLY MANUAL
MADE IN USA
VersaClimber® and the VersaClimber logo are trademarks or registered trademarks of Heart Rate, Inc. dba
VersaClimber in the U.S. and other countries.
Publication Date: July, 2019
Country of First Publication: United States of America
Author: Heart Rate, Inc.
No portion of this guide may be copied, reproduced or distributed other than by written permission of Heart
Rate, Inc. The unauthorized reproduction or distribution of this copyrighted work is illegal.
The information in this guide is distributed on an “as is” basis without warranty. While every precaution has
been taken in the preparation of this guide, Heart Rate, Inc. shall not have any liability, express or implied, to
any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly
by the instructions contained in this guide.
Heart Rate Inc., 1411 E. Wilshire Ave, Santa Ana CA 92705
Heart Rate Inc. All Rights Reserved © 2019. Pat NO 5,679,100 & 5,492,515 Proudly Made in USA since 1981
TABLE OF CONTENTS
TOOLS REQUIRED............................................................................................. 1
PARTS LIST......................................................................................................... 2
SPECIFICATIONS............................................................................................... 3
TS PART IDENTIFICATION................................................................................. 4
ASSEMBLY AND INSTALLATION....................................................................... 5
Assembly ..............................................................................................5-8
MAINTENANCE................................................................................................... 9
WARRANTY....................................................................................................... 10

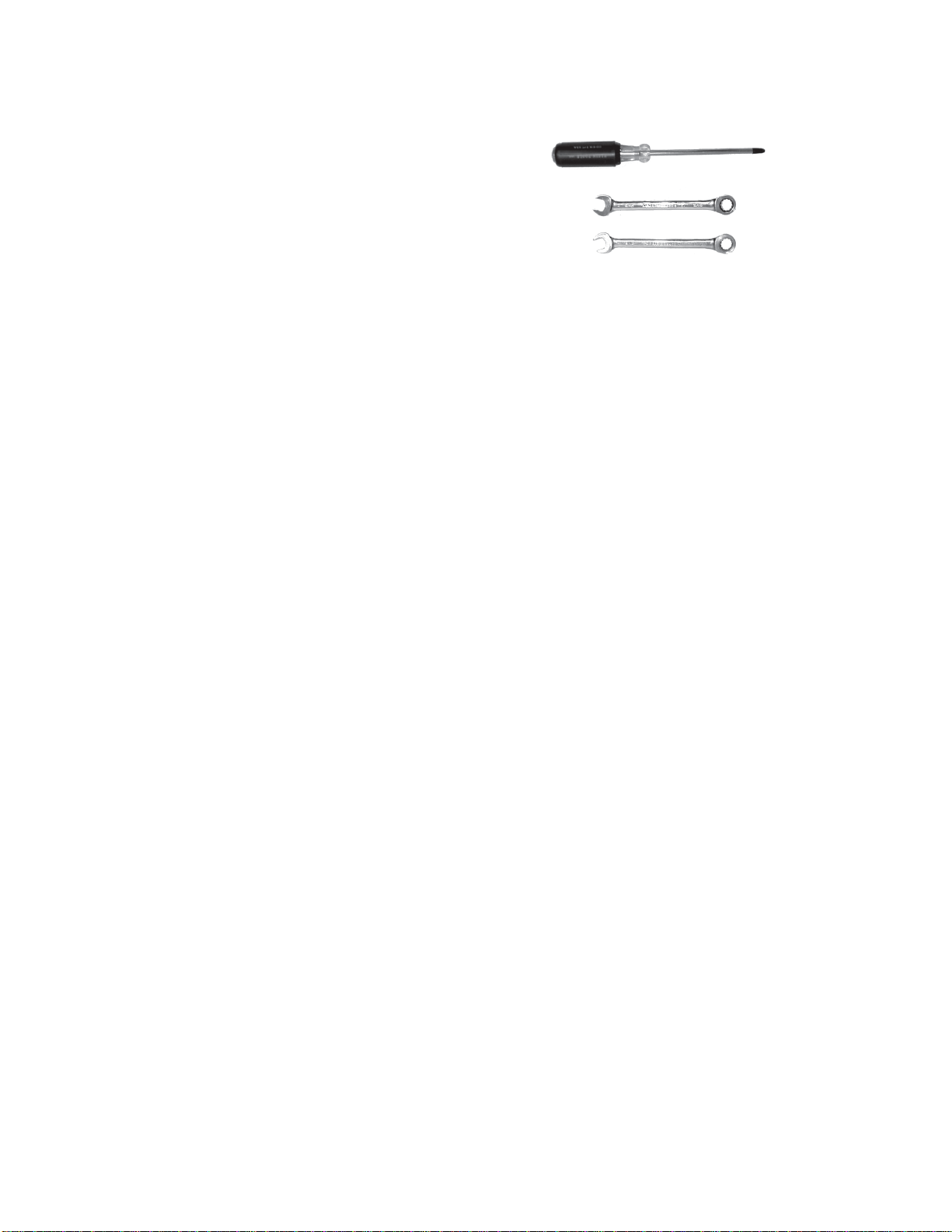

TOOLS REQUIRED FOR ASSEMBLY OF A SINGLE TS UNIT:
-One Phillips screw driver.
-Two 9/16” wrenches.
-Two able bodied persons are required for assembly.
UNPACKING INSTRUCTIONS
The following items are packaged in the container.
EQUIPMENT: (single unit TS)
- Vertical frame/post with control console attached.
- Two foot pedals.
- Two quick release hand grips.
- One front curved tubing base and two stable pads with nuts.
- One back straight tubing base.
- One brace, post to back base.
- Two side handrails.
- One metal hood cover / tablet display
- One transformer / 110 volt AC Adapter.
1

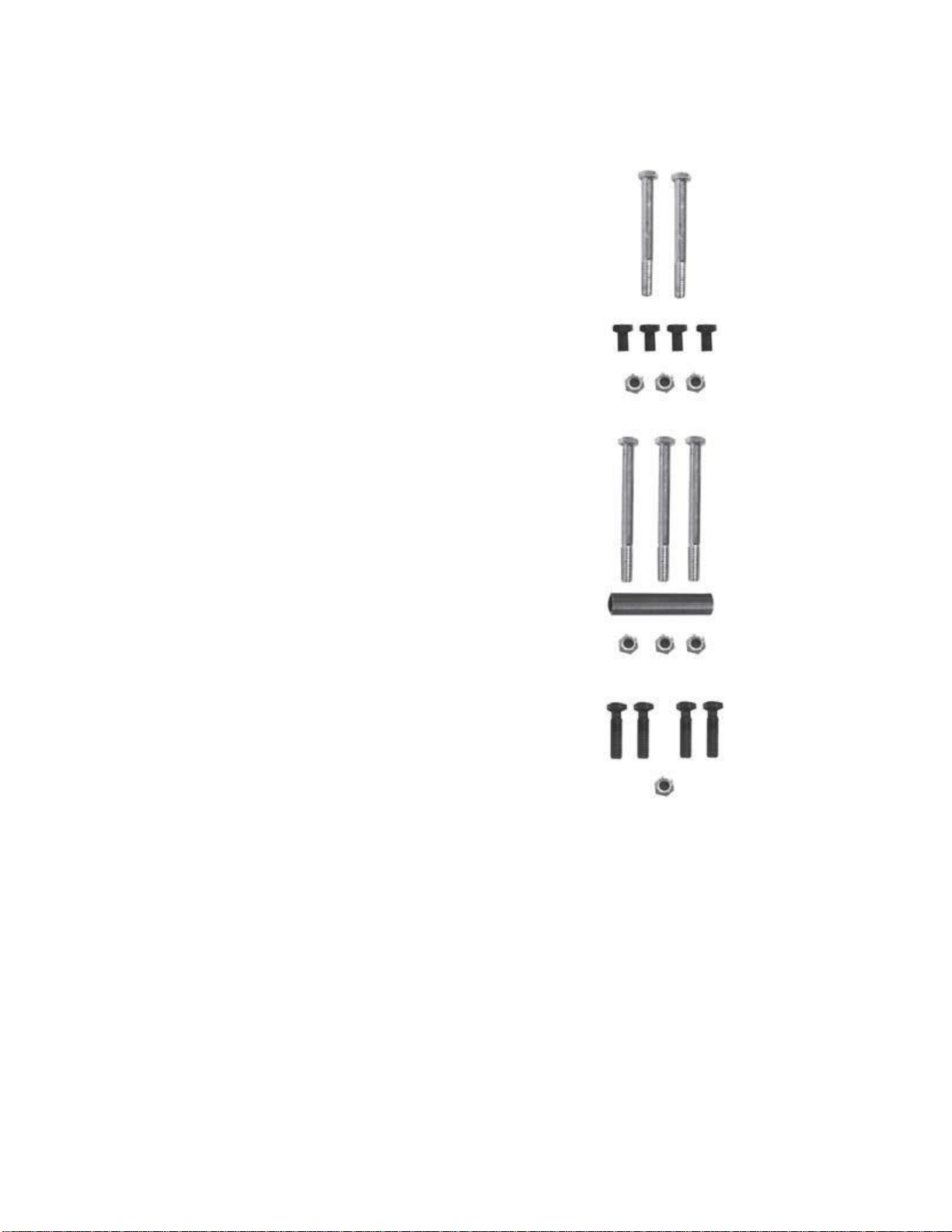

A. (2) Base Bolts 3/8” x 3 ¾”long
B. (4) Base Bolts 3/8” x 5/8” long
C. (3) 3/8” lock nuts
D.(3) Side Hand Rail Bolts 3/8” x 4 ¼” long
E. (1) 3” Hand Rail Spacer
F.(3) 3/8” lock nuts
G.(4) Foot Pedal Bolts 3/8” x 1 ½”
H. (1) 3/8” lock nut
A.
B.
C.
D.
E.
F.
G.
H.
2
TS VERSACLIMBER SPECIFICATIONS
PHYSICAL SIZE
Height 7 feet, 10 Inches (2.1 m x 25 cm)
Footprint 42 Inches x 45 Inches (106 cm x 114 cm)
Weight 155 pounds (70 kg)
FUNCTIONAL FEATURES
Pedal Step Height 0 to 20" (0 x 50 cm)
Arm Stroke Length 0 to 20" (0 x 50 cm)
Hydraulic Climb Rate Control Hydraulic
Force Control 0 To 500 lbs. (226 kg)
Climb Angle 75 Degrees
Vertical Lift Factor (% slope) 96.6 Percent
POWER SUPPLY
Power Cord 110v
USER ACCOMMODATIONS
Level of Physical Fitness Novice To Elite
Climber's Height 4' 2" to 6' 7" (1.21 m x 2.1 m)
Climber's Weight 65 lbs. to 352 lbs. (30 - 160 kg)
3
TS PART IDENTIFICATION
4

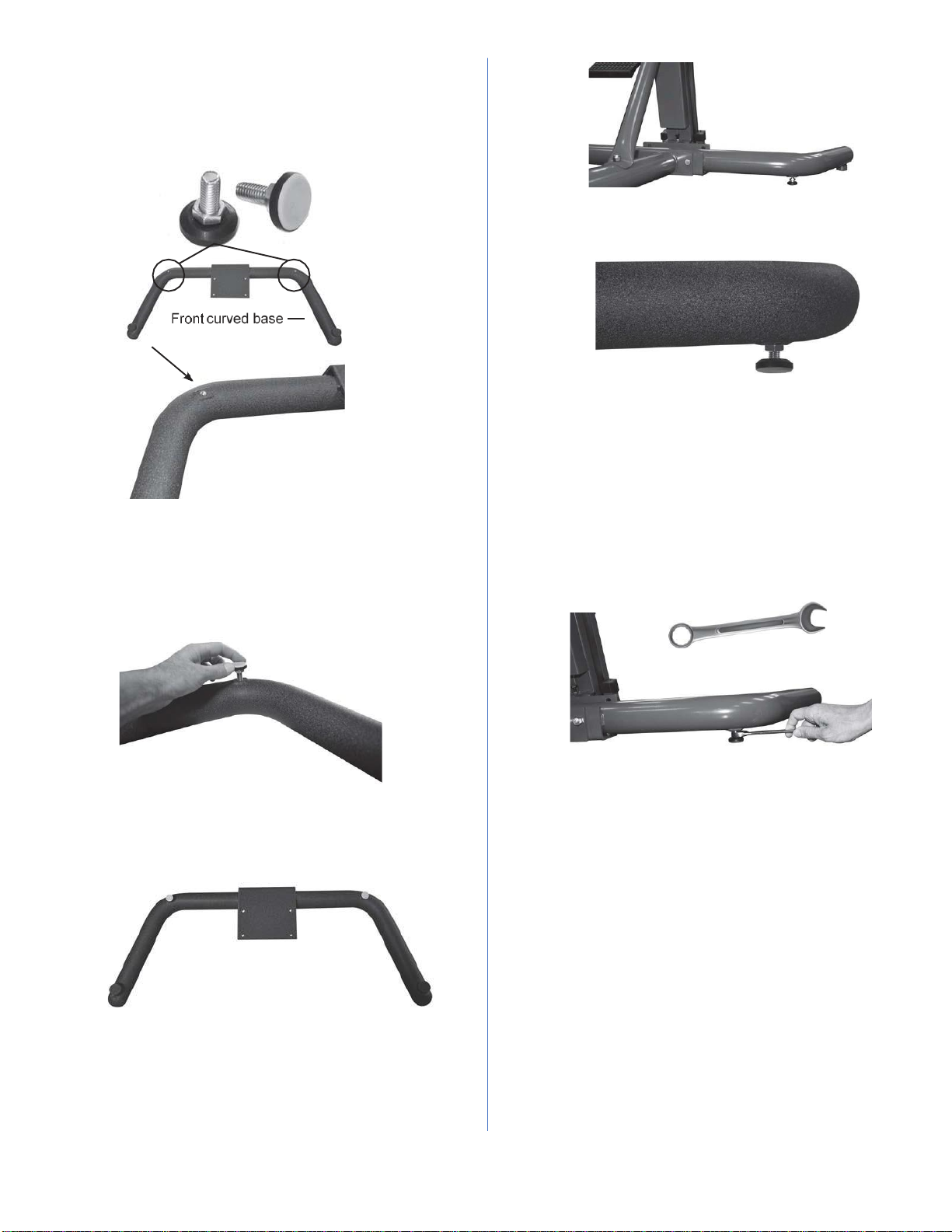

1. Screw in two Stabilizer Knobs
onto the corners of U base.
2. Locate the threaded inserts on
the underside of the front U base
at the sections that curve.
3. Make sure stabilizers are screwed all the way
into curved base before assembling TS VersaClimber.
5. Once both knobs are set into position,
spin the hex nut up until secured at the
bottom of the front base tube then tighten
firmly with a 9/16” wrench, to lock stabilizer
in place.
4. Screw down knobs until pads are
touching floor or just resting on.
9/16” wrench
5
