Vemer VE788600 User manual

Cronotermostato

Digitale

TUO WI-FI BATTERIA

Manuale d’Uso

User Manual

DIGITAL CHRONOTHERMOSTAT

PDF

English

- 41 -

Tuo Wi-Fi Batteria Chronothermostat User Manual

Index

QSafety warnings Page 42

QImportant usage notes Page 43

QDimensions Page 44

QConnection diagram Page 44

QDevice description Page 45

QDevice installation and conﬁguration Page 46

QApp description Page 51

QOperating mode Page 56

QConﬁguration menu description Page 58

QCLOCK menu - Date and time settings Page 59

QPROG menu - Programs setting Page 61

QSET menu - Temperatures T1, T2, T3 setting Page 63

QTIMER menu - Timing setting Page 64

QADV menu - Advanced parameters setting Page 65

- operating mode Page 65

- type of regulation Page 66

- parameters for regulation type Page 66

- antifreeze temperature Page 67

- adjustment of the measured temperature Page 67

- modem Wi-Fi (NET) Page 68

- Wi-Fi menu Page 69

- minimum/maximum settable temperature Page 70

- activation / deactivation of the keypad lock Page 70

- operating hour meter Page 71

- battery charge level Page 71

QOther functions of the device Page 72

- display of minimum/maximum daily temperature Page 72

- keypad unlock Page 72

QDevice reset Page 73

QRegulation types Page 74

QHow to do in case of replacement of the Access Point Page 75

QHow to transfer control of the device from one account (user) to another Page 75

QTechnical characteristics Page 76

QDisposal of Batteries Page 77

QReference standards Page 77

QWinter programs Page 78

QSummer programs Page 79

English

- 42 -

Tuo Wi-Fi Batteria Chronothermostat User Manual

This device is an electronic wall-mounting Wi-Fi chronothermostat powered by

batteries, designed to act on the control circuit of the burner or of the circulation pump

(heating mode) or on the control circuit of the air conditioner (air conditioning mode) in

order to guarantee maintenance of the desired temperature.

Thanks to the Vemer Cloud service, you can access your device from anywhere in the

world through the internet connection. Just connect the device to the home router

and install the “Clima Wi-Fi”app, which can be downloaded from the iOS and Android

stores, on your smartphone.

However, the device can also be used without connection to the Vemer Cloud, as a

common weekly chronothermostat with batteries.

The choice whether to use the device with Wi-Fi connection or not, takes place during

the initial conﬁguration; this choice can however be changed by the user at any time.

Code Model Description

VE788600 Tuo Wi-Fi Batteria Bianco Wi-Fi chronothermostat with batteries colour white

VE788700 Tuo Wi-Fi Batteria Nero Wi-Fi chronothermostat with batteries colour black

QDuring installation and operation of the device, it is necessary to comply with

the following instructions:

1) The device must be installed by a skilled person, in strict compliance with the

connection diagrams.

2) Do not power on or connect the device if any part of it is damaged.

3) After installation, inaccessibility to the connection terminals without

appropriate tools must be guaranteed.

4) The device must be installed and activated in compliance with current electric

systems standards.

5) Before accessing the connection terminals, verify that the leads are not live.

6) The device performs actions of 1B type and is suitable for environments

with pollution degree 2 and overvoltage category III (EN 60730-1).

SAFETY WARNINGS

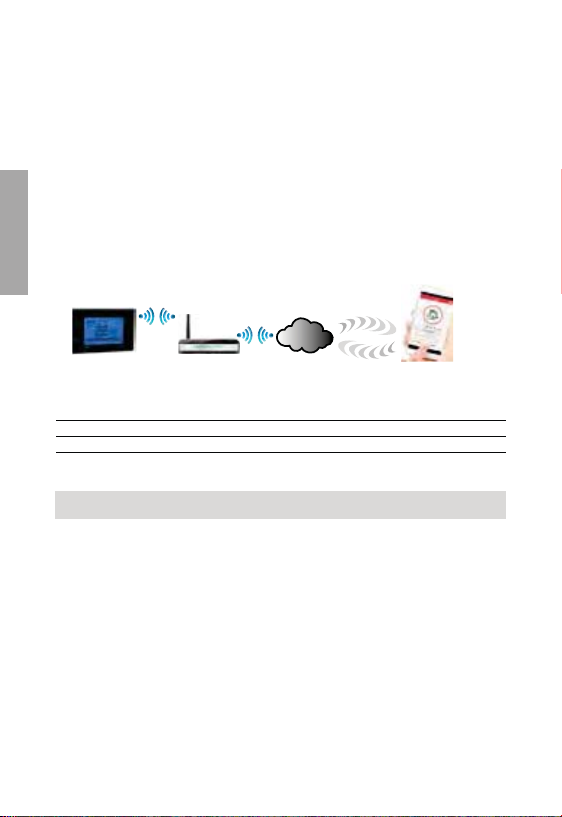

Cloud VemerTuoWi-Fi Batteria Access Point App

English

- 43 -

Tuo Wi-Fi Batteria Chronothermostat User Manual

In order to extend the battery life, the keypad is active only when the backlighting is on.

To activate the keypad, you need to press the key SET. The keypad remains active

as long as the backlighting is turned on.

This operation is not shown in the procedures described here below in this user

manual, but the user must take it into account every time he intends to use the

device keypad.

The “energy saving" function is useful for extending the life of the batteries because

it allows you to set the frequency with which the device connects to the Vemer Cloud to

download any programming updates.

The basic setting (factory conﬁguration) requires the device to log in to the Cloud:

• in the winter period (from October 1st to April 30th) once every 15 minutes

in the time slot from 6:00 to 24:00 and once every hour in the time slot

from 24:00 to 6:00

• in the summer period (from May 1st to September 30th) once every 8 hours

This setting should ensure the ideal compromise between battery life and parameters

update frequency, but can be customized by the user using the app "Clima Wi-Fi"

(see page 55).

It is important to keep in mind that any programming update can be received

only by the device only at the next programmed connection to the Cloud.

If the user is close to the device, he can still force a connection by pressing

the key for at least 3 seconds until the symbol starts ﬂashing.

IMPORTANT USAGE NOTES

English

- 44 -

Tuo Wi-Fi Batteria Chronothermostat User Manual

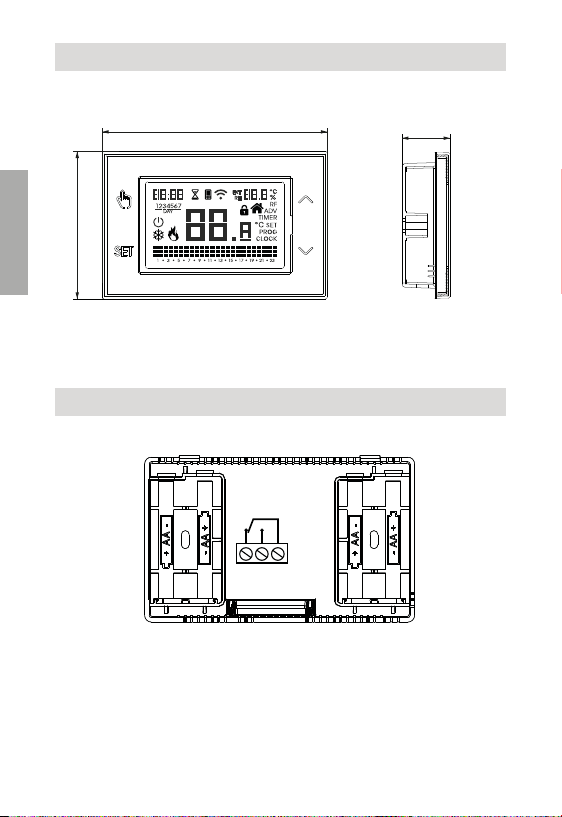

DIMENSIONS

CONNECTION DIAGRAM

1&12 &

130

English

- 45 -

Tuo Wi-Fi Batteria Chronothermostat User Manual

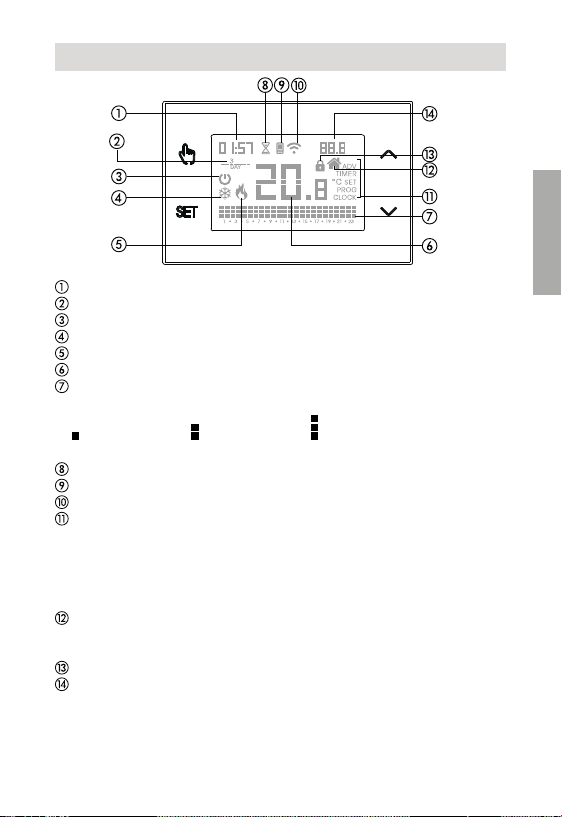

Clock

Day of the week

Off operation

Active load (conditioning mode)

Active load (heating mode)

Measured temperature

Running daily program divided into 24 histograms, one for each hour of the day.

Each hour is associated with one of the 3 temperatures:

Temperature T1 Temperature T2 Temperature T3

Active timed operation

Connection to the Vemer Cloud in progress

Connection to the active Wi-Fi network

Conﬁguration menu:

ADV advanced parameters of the device

TIMER timings

SET automatic operating temperatures T1, T2, T3

PROG automatic operating programs

CLOCK date and time

Local active operation. In this status the device is disconnected from the

Cloud Vemer and any change in operation must be made using the keys on the

chronothermostat. Local operation can be disabled only by the app (see page 54)

Active keypad lock

Connection error information

DEVICE DESCRIPTION

English

- 46 -

Tuo Wi-Fi Batteria Chronothermostat User Manual

DEVICE INSTALLATION AND CONFIGURATION

The device can be installed on the wall or to cover the 3-module ﬂush-mounting box

(type 503).

We recommend positioning at a height of 1.5 meters from the ﬂoor, in an area that

respects as much as possible the average temperature conditions of the entire

environment. Make sure that the distance between the Access Point and the device is

such as to guarantee stable communication.

Avoid installation near doors or windows, in niches, behind doors and curtains or

in positions with excess or total lack of ventilation, to avoid that the reading of the

temperature measured by the probe is in some way offset.

Device installation

Preliminary operations

If you intend to use the device by remote control, before proceeding with the

installation and conﬁguration make sure you have a Vemer account available.

To create a Vemer account,

proceed as follows:

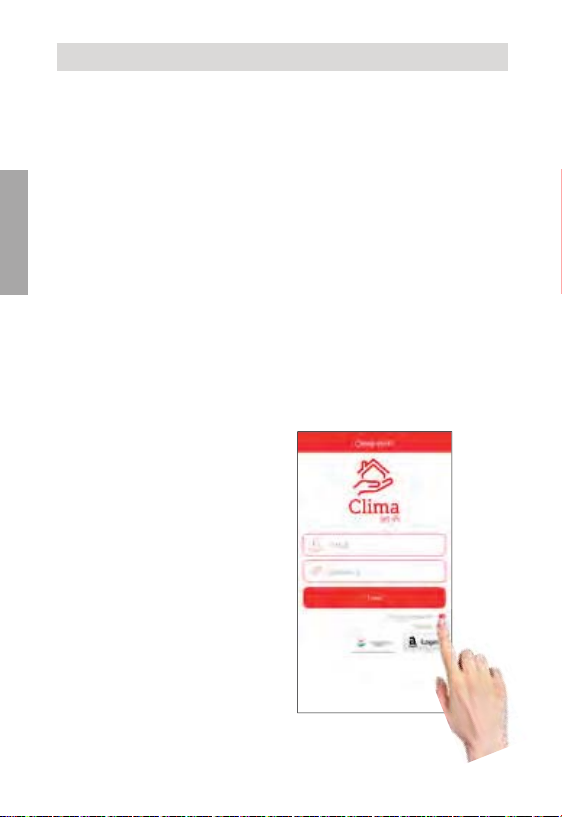

1. Install and start the "Clima Wi-Fi" app

on your smartphone (or tablet)

2. Choose “Register” and ﬁll in the “e-mail”

and “password” ﬁelds

Note: for security reasons it is

recommended to choose a password

different from the one used to access

your e-mail box

3. Check your e-mail box: conﬁrm the

activation of the account by clicking on

the link contained in the e-mail sent

by the system

4. Log in by entering the e-mail address

and password chosen in the registration

process

English

- 47 -

Tuo Wi-Fi Batteria Chronothermostat User Manual

Installing the device.

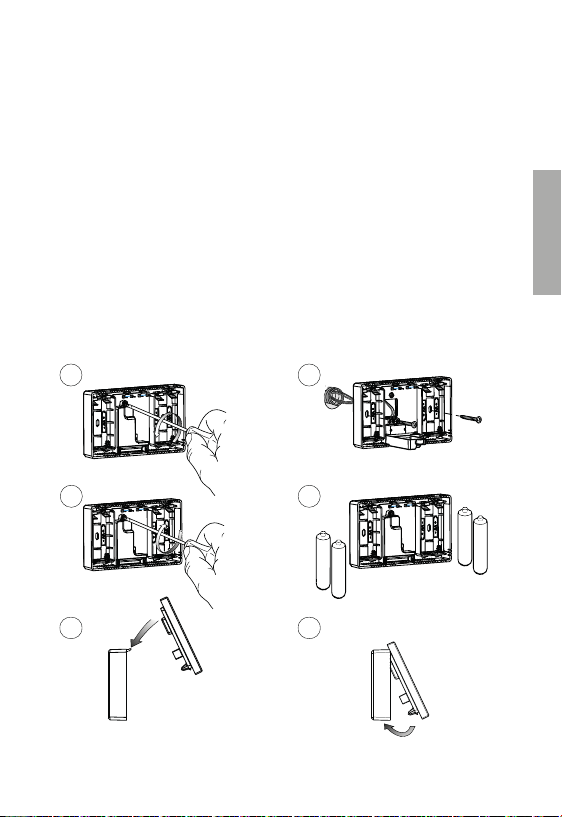

To install the device proceed as follows:

1. press the retaining hook on the underside to disconnect the display from the base

2. unscrew the terminal block cover (A)

3. pass the wires for connection to the boiler (or air conditioner) through the hole in

the base and fix the latter to the wall (or to cover the 3-module recessed box) using

the supplied screws (B) and connect the relay to the boiler or air conditioner control

circuit

4. close the cover of the terminal block and tighten the sealing screw (C)

5. insert the batteries observing the correct polarity and taking care not to bend the

contact strips (D)

6. reposition the display on the base, first coupling the teeth on the upper side (E)

7. turn the display until it hooks onto the retaining hook on the underside, applying

slight pressure on the hook until you hear a "click" (F)

8. the display turns on: proceed with the device configuration

E F

click

English

- 48 -

Tuo Wi-Fi Batteria Chronothermostat User Manual

Device conﬁguration with remote control (for Android)

To configure the device after the first power up or after a factory reset using an Android

smartphone, proceed as follows:

1. While the screen shown is displayed in the figure

on the side, press the keys and to choose

NET ON and press the key to confirm

(a lack of choice within 30 seconds is equivalent

to choosing NET ON).

2. Make sure the device displays “ Conf nEt”.

If not, press the keys and simultaneously for a long time

until the display shows “ Conf nEt”and the icon starts ﬂashing

(wait for it to become steady before proceeding with the next point).

3. Start the app, choose “New Thermostat”, select the TUO BATTERIA model

among those available and press "Next".

4. Select the network “iwm...” to connect to the network generated by the device.

Wait for the device display to show the icon to indicate the successful connection

between the app and the device.

5. Now choose the Wi-Fi network to connect the device to and enter the password,

be careful to digit faithfully all characters (uppercase, lowercase, spaces, digits)

that compose them. Conﬁrm to continue.

Important: before proceeding make sure that the icon on the device display is

still on. Otherwise, access the Wi-Fi settings of the smartphone to manually

reconnect to the "iwm ..." network

6. The device restarts: wait for the icon on the device to become steady and the

icon to start flashing.

7. Enter a name that identiﬁes the Tuo Wi-Fi Batteria, and choose an icon to help to

identify the device from those proposed and conﬁrm.

8. The conﬁguration procedure is ﬁnished. Now:

the app displays the list of devices associated with your account among which also

the newly associated device must appear.. 

The Tuo Wi-Fi Batteria displays the main screen. Check that the icon is steady

and the time shown at the top left is correct.

NOTE: If the conﬁguration is not successful, the message "Err" followed by a number

may appear on the device display. Repeat the conﬁguration procedure be careful to

digit faithfully all characters (uppercase, lowercase, spaces, digits).
