Operating Instructions & Installation Guide
SW5-1
Portable Backup Camera with 5”Monitor
Built-in battery and solar panel
USER MANUAL
Thank You for Buying VEKOOTO Product.
Read This User Manual Before Installing and Using It.
Pls keep this instruction or write down our email VEKOOTO@OUTLOOK.COM
So you can find us once you have any question.
VEKOOTO@outlook.com
2
Foreword
Thank you for purchasing committed to providing high-quality
products and bringing a good experience to our customers. It's
our great honor to have your trust! This manual includes a
product installation guide and system operating instructions. To
obtain the best performance please read the manual carefully
before installing and keep the manual properly.
If you're experiencing the following situations:
1. Open the package, finding something is broken or missing.
2. Open the package, and don't like the product.
3. Order a wrong product.
4. Need technical support.
5. Encounter problems with the camera or monitor in use.
6. Have any other problems or needs.
Please feel free to e-mail our after-sales team at any time:
VEKOOTO@OUTLOOK.COM
Each of your messages will be answered within 12 hours. We
will help you solve your problems and provide you with the best
after-sales service and technical support!
VEKOOTO@outlook.com
3
1. Monitor introduction.
Users can operate the monitor by the three buttons on
the left rear of the monitor.
① Up / down & Switch channel.
② Enter setup menu / Long press 3s to return to
previous level.
③ Up/down, Turn on / off parking guideline.
VEKOOTO@outlook.com
4
Monitor
Size
5 inches
Resolution
HD 800*480
Contrast ratio
500:1
Brightness
500 cd/m²
Viewing Angle
U:80, D:80, R/L:80
Power input
DC12-24v
Maximum power
Max 5W
Support channel
Support CH2/ CH1/ split
screen at the same time
Mirroring
Support
VEKOOTO@outlook.com
5

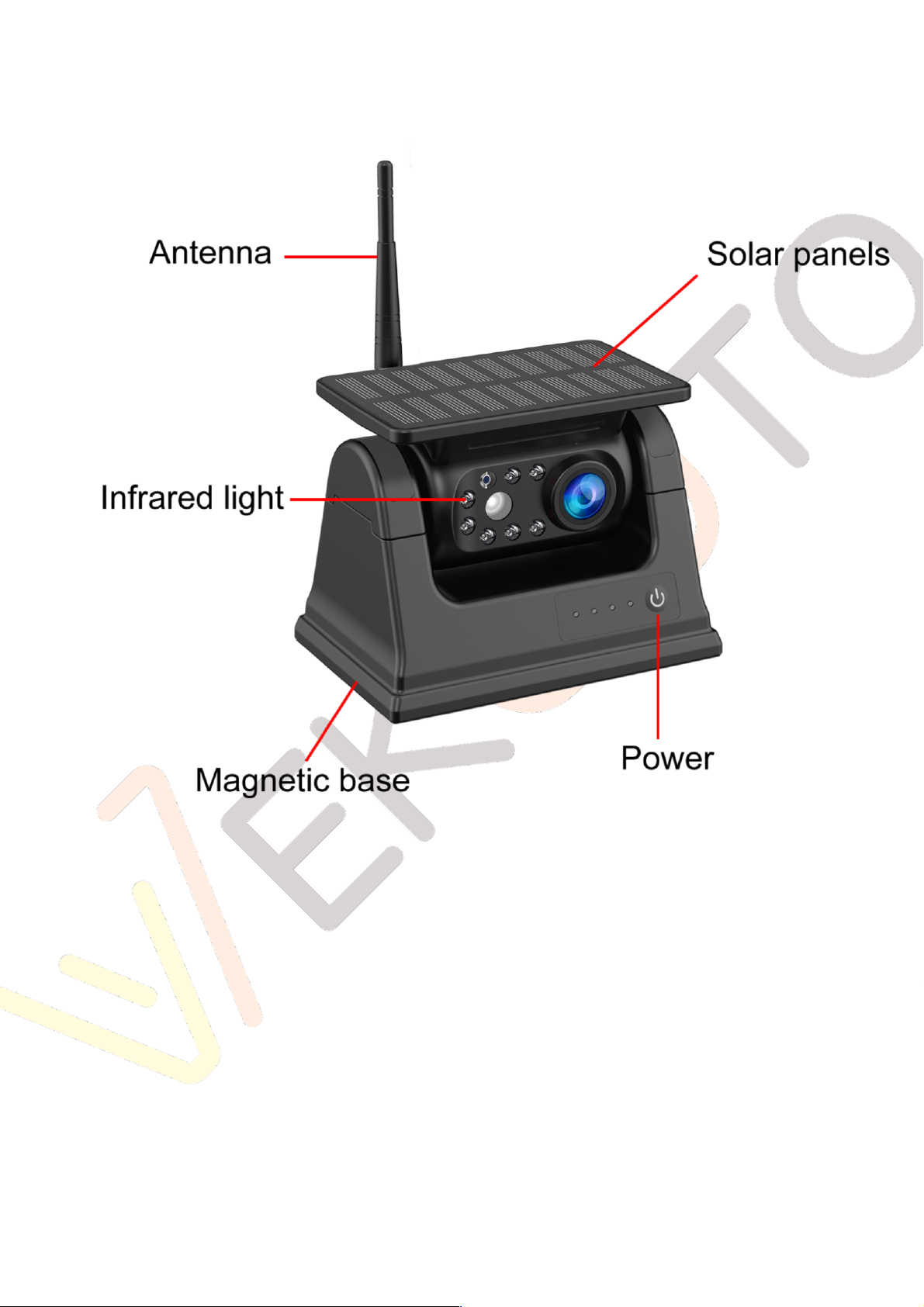

2. Camera Features:
!!! READ ME
！！！
The blue battery indicator will often light
up when the camera is enabled. When charging, the blue
power indicator will flash, and the power will stop flashing.
When the solar panel of the camera is exposed to
sunlight, the camera will start charging (the blue light
flashes) at this time, if you want to turn off or turn on the
VEKOOTO@outlook.com
6
camera, please cover the solar panel to check whether
you have turned on or off the camera.
Resolution
1920×1080（3 Million）
Image Sensor
AHD 1/2.9 inch
Viewing Angle
150 degrees
Transmission Bandwidth
20Mbps（Max）
Battery Capacity
9600mA
Battery Level Display
Yes，4 Blue lights
VEKOOTO@outlook.com
7
Battery Charging Time
USB 5V 2A / 6H
Working Time
Daytime/18H Night Vision/13H
Camera Adjustable
Angle
0-150 degree
Frequency
2400-2483.5MHZ
ON/OFF Mode
Press to ON/OFF
Installation Mode
Magnet base adsorption
installation
Night Vision
Support IR
SNR
50dB
Waterproof level
IP68
Receiver sensitivity
-94 dBm
VEKOOTO@outlook.com
8
3. Package List.
5-inch Monitor
Suction cup bracket
Camera
Camera antenna
Camera extended antenna
Monitor antenna
Power extension cable
Cigarette lighter power cord
VEKOOTO@outlook.com
9
Camera Charger
4. Install Monitor Bracket.
The four protrusions of the bracket are aimed at the grooves of
the monitor and push up.
VEKOOTO@outlook.com
10
5. MENU FAQ.
Q1: The screen shows a blue screen, no signal how to
do?
A1: First determine that the antenna of the camera and
the monitor has been installed to ensure that the camera
is electric, press the ○
1 button to switch the screen to
the channel 1 (the number of numbers in the upper left
corner represents the number of channels), and then
press the ○
2 button to enter the setting menu. Press
the ○
1 button to select to "Pairing", press the ○
2
button to start pairing.
Q2: How to solve the weak signal for long distance use?
A2: A extended antenna is included in the packaging,
and you can install it on the camera to expand the signal.
