VALCOBABY ION STROLLER Installation and operation manual

Thank you for purchasing a quality VALCO BABY product. Please read and follow the instructions outlined in

this guide carefully. Familiarise yourself with the construction and safety features; be sure that you understand

all the warnings and safety guidelines before use.

Important: Please read the following instructions carefully before assembling this product. Retain this

guide in a safe place for future reference.

PRODUCT REFERENCE GUIDE

STROLLER

valco

baby

Due to our policy of continuous

product development, this product

is constantly evolving. It is possible

that some features or procedures

outlined here have changed since

this document was written. If you are

unsure of any procedure shown here,

please contact us via the web at info@

valco.com.au to obtain the most up to

date information before use. Include

the batch number, which can be found

on a sticker on the frame.

All pictures and diagrams herein are

provided for illustration purposes only.

Actual product, colour or fabric may

vary. VALCO BABY reserves the right

to modify or alter any specication

or colour without notice or obligation

to modify any product previously

purchased

FURTHER INFORMATION

In Australia/New Zealand

www.valco.com.au

In North America only

www.valcobaby.com

1800 610 7850

ION

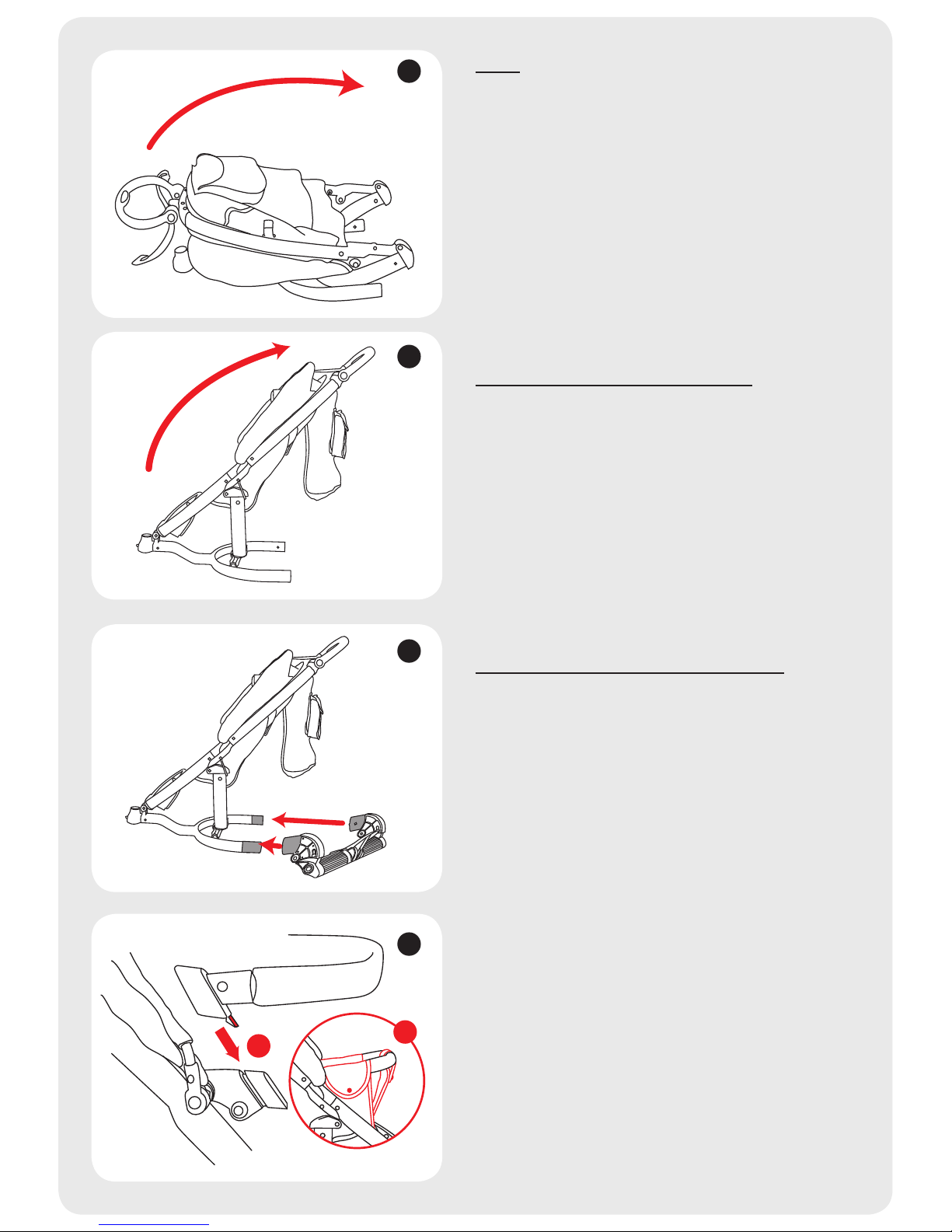

Remove the stroller from the carton and

dispose of all packaging thoughtfully.

FIGURE A

1. Lift your stroller handle upward. You will

feel the stroller chassis opening.

FIGURE B

2. Continue unfolding the chassis until you

hear the chassis click open in the locked

position.

INSERTING REAR AXLE

FIGURE C

1. Align the plastic housings of the silver

brake section with the open tubes of the

rear of the stroller chassis.

2. Insert the housings over the open tubes

until the brake section locks securely into

place. IMPORTANT: Test that the brake

section is securely engaged onto the

stroller frame by pulling on it rmly.

INSERTING BUMPER BAR

FIGURE D

1. Align the plastic housings of the bumper

bar with the housing on the sides of the

stroller chassis.

2. Slide the bumper bar into the housing

along the housing tracks until it locks into

place.

3. Repeat procedure for the second bar on

the other side of the stroller.

4. Pull the sides of the seat fabric, and the

crotch strap over the bumper bar and

snap into position.

5. To remove the bumper bar, unsnap the

crotch strap and the seat sides from the

bumper bar.

6. Lift both bumper bar latches found

on the underside of the each side

of the bumper bar housing, while

simultaneously lifting the bumper bar to

slide it free.

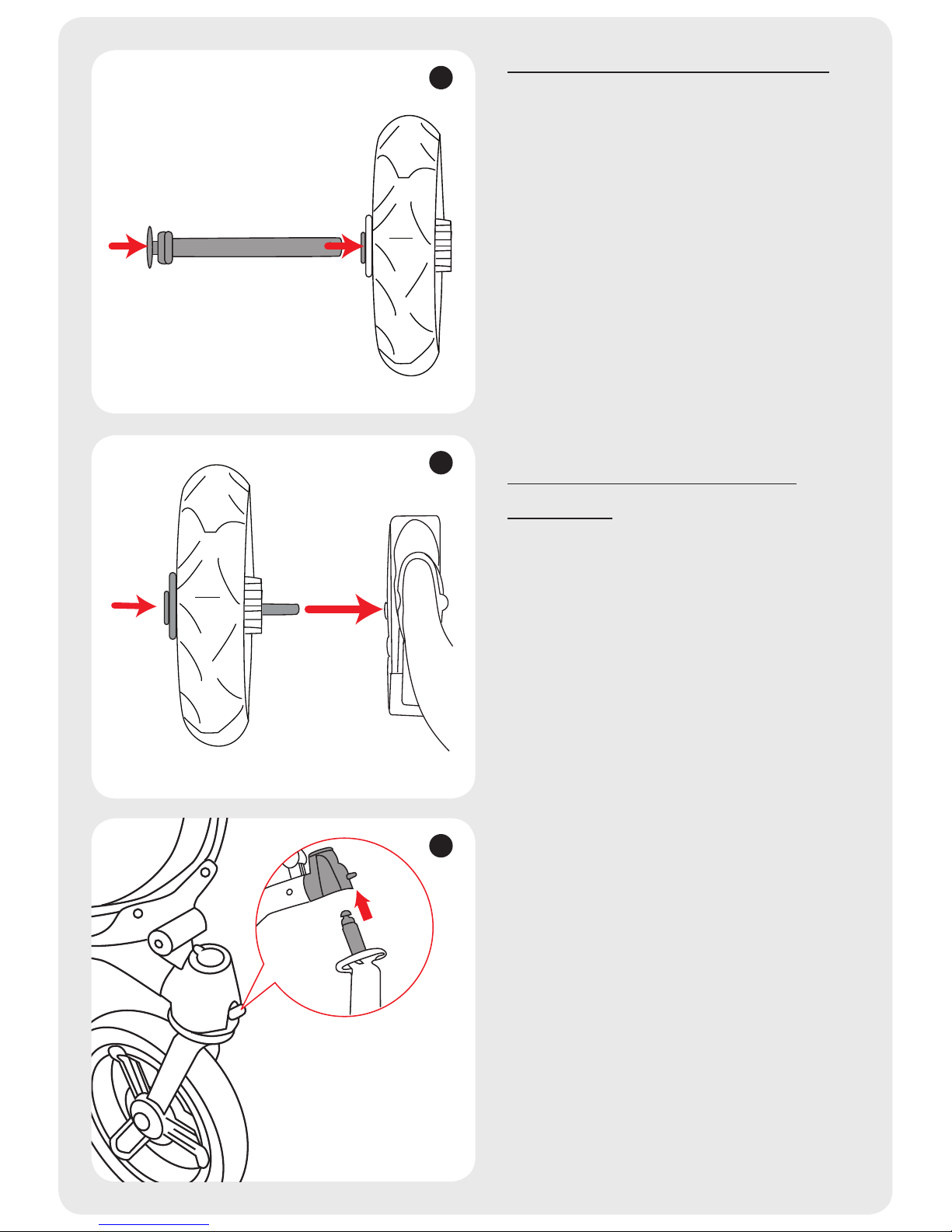

INSERTING REAR WHEELS

FIGURE E

1. Simultaneously press on the spring

loaded axle button and insert it

through the central hub of the rear

wheel. Repeat this process for the

other rear wheel.

FIGURE F

2. Pressing the axle button again, insert

the axle end into the side of the brake

housing as far as it will go. Release

the axle button and pull slightly on the

wheel to ensure that it has securely

engaged.

INSERTING THE FRONT

WHEELS

FIGURE G

1. Grasping the front wheel by the shaft,

align the shaft with the hole in the

underside of the swivel housing.

2. Insert the shaft into the housing

as far as it can go until it engages

securely.

3. Repeat the procedure for the other

front wheel.

IMPORTANT: Pull the wheel

downward to test that it has securely

engaged in the housing.

SECURING THE FRONT

WHEELS

FIGURE H

1. Your front wheels can be set to swivel

freely (360º) or can be xed in place

for use over rough or sandy surfaces.

2. To x the front wheel in the non

swivel position, turn the wheel so that

the two notches on both housings line

up. Press down rmly on the swivel

lock until it locks into place.

3. To unlock simply lift the locking tab

until it locks in the open position.

ADJUSTING THE HANDLE

FIGURE I

1. Your handle has been ergonomically

designed to provide a truly

comfortable ride for parents and

guardians of all heights.

2. To adjust your handle, simultaneously

press the two release buttons on

either side of the handle, moving it to

the desired position.

USING YOUR BRAKE

SYSTEM

FIGURE J

1. To engage the brake press down on

the central red brake pedal, at the tab

that is closest to you.

2. To disengage, simply reverse the

process.

TETHER STRAP

FIGURE K

1. Your stroller has been equipped with

a safety tether strap. This strap has

been designed to always keep your

stroller within constant reach.

NOTE: The tether strap doubles as

your locking strap (Figure O).

IMPORTANT: ALWAYS SLIP THE LOOP

IN THE STRAP SECURELY OVER YOUR

WRIST WHENEVER A CHILD IS IN

YOUR STROLLER.

FOLDING YOUR STROLLER

FIGURE L

1. Push hood back against the frame.

2. To fold your stroller, turn the release

key clockwise and push the handle

forward releasing the stroller frame

slightly.

FIGURE M

1. Lift the secondary locking latch clear

of the plastic frame catch. This latch

is spring loaded and you may need to

hold it open as you push the handle

forward.

2. Push the handle forward.

Tether

Strap

Lock

Strap

INSERTING REAR AXLE

FIGURE N

4. Continue to fold the frame forward.

Make sure that the lock strap is

threaded through handlebars

FIGURE O

6. To lock the frame, the keyhole of the

lock strap should be engaged over

the locking pin found on the frame

chassis behind the front wheel. Click

securely into place.

HINT: ADJUST THE HANDLE 180°

BACKWARD TO CREATE THE

SMALLEST FOLD

USING YOUR HARNESS

FIGURE P

Your stroller is tted with our unique

new multi point safety harness system.

Your child MUST always be harnessed

while in the stroller

TO OPEN YOUR HARNESS

1. Press down on the Buckle Prongs.

2. Simultaneously push the release

button in the centre of the buckle

3. Pull the buckles from the Buckle

Housing

NOTE: THIS PROCESS MAY BE

DIFFICULT AS YOUR BUCKLE SYSTEM

HAS BEEN DESIGNED TO MEET VERY

STRINGENT SAFETY STANDARDS

AND ENSURE THAT A CHILD CANNOT

RELEASE THE HARNESS UNAIDED.

PUSH

PRESS

DOWN

HOLD

DOWN

USING YOUR HARNESS

FIGURE Q

TO SECURE YOUR CHILD IN THE

HARNESS.

1. Overlap buckles so that they t

together to form one complete buckle.

FIGURE R AND Q

1. Insert the completed buckle into

the Buckle Housing until it engages

securely in place.

2. Carefully adjust the harness straps to

snugly t your child by adjusting the

sliders located on all shoulder straps,

waist straps and the crotch strap.

3. Your harness can be adjusted fro

even more comfort for smaller or

larger children (at the to of the

seat back and front of the seat) by

threading/removing the crotch or

shoulder straps through the webbing

sewn into the seat. You will need to

detach the waist straps at the sides

of the stroller in order to do so. ( To

detach the waist straps: With a pincer

movement, depress the centre buckle

button and pull the strap fee from the

housing.)

RELEASE

HOLD

CLICK

WARNING

• FOLLOW THE MANUFACTURER’S INSTRUCTIONS.

• PUT ON ALL THE BRAKES WHENEVER YOU PARK THE PRAM/STROLLER.

• DO NOT LEAVE CHILDREN UNATTENDED.

• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS PRAM/STROLLER.

• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST THE PRAM/STROLLER. OTHERWISE THEY MAY

BE INJURED.

Remember, your child’s safety is your responsibility...

•NEVER USE ON StAIRS OR ESCALAtORS.

• AlwAys use the tether strAp when the stroller is in use.

• the CorreCt use AnD MAintenAnCe oF this VehiCle Are essentiAl.

• Be sure thAt All ClAMps AnD BuCkles Are seCurely FixeD AnD in plACe BeFore use

• when in the stroller, your ChilD Must AlwAys weAr the sAFety hArness, CorreCtly FitteD AnD ADjusteD, At

All tiMes.

• the MAxiMuM weight oF the ChilD For whiCh this stroller wAs intenDeD is 18 kgs.

• CAn Be useD FroM A newBorn BABy onwArDs. A CoCoon, speCiAlly DesigneD to Be useD with A stroller, is

reCoMMenDeD when Any Fully reClining stroller is useD with A newBorn.

• neVer run with A newBorn BABy in Any prAM or stroller until the ChilD CAn sit up unAssisteD

(ApproxiMAtely 6 Months).

• CheCk All pArts BeFore use For BreAkAge or FAtigue. DisContinue use iMMeDiAtely iF Any pArt is FounD to Be

DAMAgeD or Broken.

• MAxiMuM loAD oF BAskets: 3.5kgs.

• Do not CArry ADDitionAl ChilDren. this stroller is MAnuFACtureD For the use with one ChilD only

• AlwAys Be AwAre oF the risks proViDeD By Fire AnD other signiFiCAnt sourCes oF heAt suCh As rADiAtors,

etC. whiCh MAy Be in the iMMeDiAte ViCinity oF your stroller.

• it MAy Be unsAFe to use Any ACCessories other thAn VAlCo BABy ApproVeD ones.

• this proDuCt is intenDeD For DoMestiC use only. it is not intenDeD For CoMMerCiAl use.

Should the chassis become wet, dry off promptly before storing. If this pram is used near the ocean or salted

roads, spray the chassis and seat frame with water and dry. We recommend a rust inhibiting product should

be used to prevent rust and fatigue on metal parts.

We recommend that you wipe down axles and lubricate the wheels every 3 months. Sand and dirt can grind

down axles, if you live near the beach or in a dusty environment you must wipe down the axles and wheels

then lubricate them monthly.

AXLES ARE BEST LUBRICATED WITH GREASE OR PETROLEUM JELLY. MOVING PARTS ARE BEST LUBRICATED

WITH SILICONE BASED PRODUCTS. DO NOT USE OIL BASED PRODUCTS.

In Australia/New Zealand

www.valco.com.au

In North America only

www.valcobaby.com

1 800 610 7850

valco

baby
