V-ZUG Adora L User manual
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
1
For Service and Spare Part Information please contact: V-ZUG AUSTRALIA Pty. Ltd. Tel+61732096822
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
These installation instructions apply to the models: L (11010), S (11011), SL (11012), SLQ (11013), SLQ WP (11014)

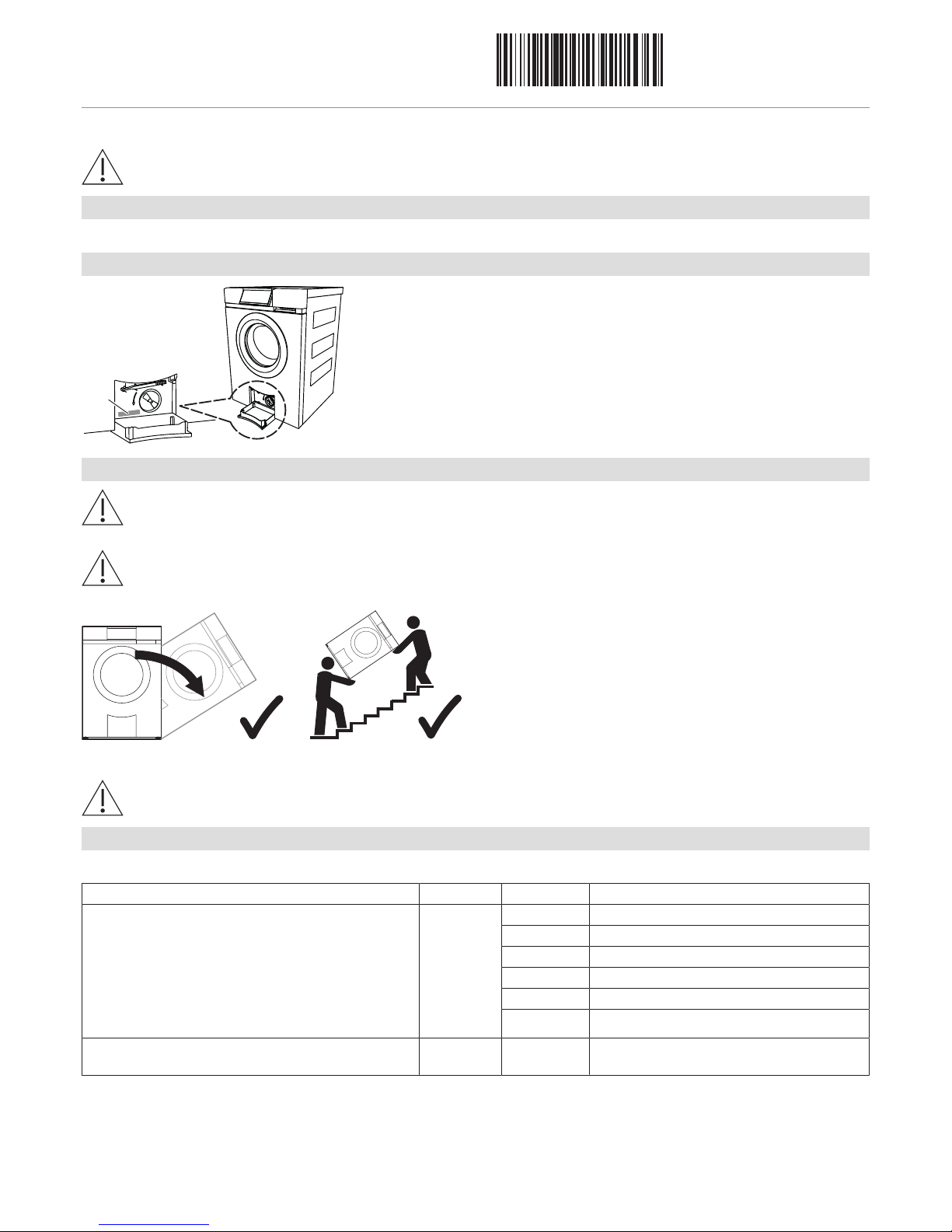

Identification plate
1
▸Open the drain tray below the appliance door (see «1. Opening
the appliance door»)
–Identification plate 1
Transport
If the weight of the appliance is greater than your lifting capacity, the appliance must be transported by several
people or using a transport aid. The weight of the appliance is given on the appliance packaging and in the operating
instructions.
Transport the appliance in an upright position only! Transporting it in any other position will cause damage. When
carried carefully without being shaken, the appliance may be tilted a maximum of 90° to the right (viewed from the
front).
Applicable only to model SLQ WP:
In the event that the appliance is tilted during transportation or installation it must not be put into operation for 2
hours.
Installation accessories supplied
The necessary installation accessories are located in the washing drum and in the appliance packaging.
Designation Article no. Number See installation step
Installation set, incl.:
▪Rubber stopper
▪Screw material
▪External drain hose
▪Wire hose clamp
▪Hose support
W41152 1
2 2. Removing the transport lock
1 4. Positioning the installation plate
1 5. Plumbing in
1 5. Plumbing in
1 5. Plumbing in
Installation plate (incl. double-sided
adhesive tape)
W40653 1 4. Positioning the installation plate
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
2
1. Opening the appliance door (without power)
A
1a
B
1b
A
B
C
2
A
D
1a Open drain tray A by
pressing it at the
bottom.
Or
1b
Remove liquid-detergent
flap B from detergent dis-
penser drawer C and
open drain tray A.
2Fold drain tray A
right down and re-
move it. Remove
emergency door re-
lease tool D from
bracket.
Insert tool D into blue eye of opening and pull
in direction of arrow (arrow on appliance).
2. Removing the transportation lock
The transport locks F on the rear side have to be removed before using the appliance for the first time.
GE
1.
2.
3.
F
1. Remove the hexagon head screws E of the transport locks F using a 10 mm ring or open-end wrench.
2. Push up and pull out the transport lock F.
3. Plug the holes with the rubber stoppers G.
Failure to carry out step3 can result in error messages.
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
3
3. Dimensions
The stated dimensions do not include distances from walls. To prevent disturbing noise and vibration the appliances
must not come into contact with the surrounding walls of their installation location.
All models
180° 180°
957 957
4
2
3
1
213
80
72
160
45
595
33
625
850
(125)
500
577
500 50
(42)
15 84.5
725
550 458 104
Open door 1059*
Left-hand opening Right-hand opening
Open door 1059*
1Cold water connection,
inlet hose with Aquastop,
length: 1.25 m, G¾"
2Drainage hose connection with elbow.
Length: 1.5 m
Pumping height for drain pump: 1.2 m
3Electrical connection cable outlet,
length: 1.8 m
4Installation plate
*In order that the detergent dispenser
drawer can be used without obstruction
and be taken out for cleaning, the clear-
ance space must be observed across the
entire front of the appliance.
4. Positioning the installation plate
Use the installation plate to install the appliance. It fixes the appliance in position, and is for use with both free-
standing appliances and appliances positioned in a niche.
Holes must not be drilled in the floor if the room has underfloor heating. The installation plate must be adhered to the
floor.
D
S
E
▸In the location where the appliance is to be installed, fix the in-
stallation plate with 3screws. In the case of underfloor heating,
adhere the installation plate to the floor with double-sided ad-
hesive tape S.
▸Dampen the mounting slots E on the installation plate with wa-
ter. This makes it easier to push the appliance in.
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
4
Free-standing position
If a tumble dryer and a washing machine are positioned side by side, keep a distance of min. 5mm between the in-
stallation plates and to the walls at the side and min. 45mm to the back wall. The installation plates for the washing
machine and tumble dryer are the same.
≥5
≥45
555
595
≥5
▸In order to keep the distance to the wall, fold out the spacers D
on the installation plate.
If an appliance with the V-ZUG-Home option is to be installed:
▸Connect network cable to the appliance.
Dimensions 45 and 555 only apply if no plumbing fittings are to be
installed behind the appliance.
Positioning in a niche
A
≥600
B
Cut-out for lateral
connection,
to the left or right
≥100 × 100 mm
Niche height
≥860 mm!
▸Centre the installation plate in the niche.
If a device is installed with the V-ZUG Home option:
▸Connect the network cable to the device.
Variant Positioning Niche depth AInstallation offset
for installation plateB
1Appliance door projecting from niche front ≥605 mm 50mm
2Appliance door recessed behind niche front ≥645 mm 90mm
Variant 1 Variant 2
B
A
Appliance door
Installation plate
Niche
B
A
Appliance door
Installation plate
Niche
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
5
5. Levelling
To ensure fault-free operation, the appliance must stand level with all 4 feet firmly on the installation plate and not
wobble.
S
W
▸Roughly adjust the height of the front and rear adjuster feet us-
ing wrench S (socket wrench 10). Height adjustment: ≤14mm
(1.5mm per turn)
▸Use a spirit level W to level the appliance.
▸Slide the appliance onto the installation plate.
▸Finely adjust the height of the front adjuster feet using wrench
S.
▸Use a spirit level W to level the appliance.
–The appliance must not wobble!
6. Plumbing in
Local water authority regulations must be observed.
Any old water supply and drain hoses must always be replaced with new hoses.
Water inlet
Preferred alignment for Aquastop valve block1 (sound-optimized installation):
1
▸Tap seal seat must be clean and flat.
▸Install hose without kinking or twisting it.
▸Check for leaks.
▪Cold water only G¾ inch.
▪Possible pressure range: 0.1–1.0 MPa (1–10 bar).
▪The appliance must not be connected to a mixer tap
or a continuous flow boiler!
Water outlet
Hose clamp
Drain hose
Rubber connector
Shorten drainage hose
to required length.
Cannot shorten
drainage hose!
ø exterior 28.0
ø interior 21.5
1500
Hose support (bend)
≤1200
≤700
≥350
▸When installing the drain hose, prevent it from becoming damaged or buckling (hot suds discharge).
▸For all connection types, mount the hose support.
▸If draining into the bath, sink, etc., use the hose support to fix the end of the hose.
▸Pumping height of drain pump with open outlet: ≤1.2 m.
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
6
7. Electrical connections
Electrical connections
Electrical connections must be carried out by qualified personnel in accordance with the guidelines and standards
for low-voltage installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. An
all-pole mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug and
socket devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles switching
are permissible as isolating devices. Effective earthing and separately installed neutral and earth conductors ensure safe and
fault-free operation. After installation, live parts and cables with basic insulation must not be accessible. Check old installa-
tions.
▸The appliance is designed for use up to a max. altitude of 2000 m above sea level.
▸Refer to the identification plate for information on the required mains voltage, current type and fuse protection.
The mains plug must not be cut off.
Connection cable
Valid for all washing machines and tumble dryers in the Adora model range.
The mains cable may only be replaced by the manufacturer, its Customer Services or a similarly qualified person.
Error messages «U1»
Disconnect the appliance from the mains and control the wiring.
Installation instructions
Washing machine
One-family household
1014123-R03
31/10/2017
1014123-R03
7
8. Using for the first time
Work steps which do not have to be taken are marked as follows: –
Perform stability check
Strong vibrations are deliberately produced during the stability check in order to check that the appliance is standing firmly on the
ground.
Work steps 11010 11011, 11012 11013, 11014
▸Prepare appliance. ▸Insert plug into mains socket or turn on at wall switch.
▸Remove drum contents, close appliance door.
▸Turn on water tap.
▸Select language. –▸Press « » to change lan-
guage.
▸Touch language.
▸Confirm language. –▸Press «OK». ▸Touch «OK».
In the display appears: – «Stability check» «Stability check»
▸Start stability check. ▸Depress the , and
buttons simultaneously
for 5 seconds.
▸Press «OK». ▸Touch «OK».
Stability check starts. The spinning sequence is carried out.
In the display appears: – «Creating unbalanced load,
please wait…»
«Creating unbalanced load,
please wait…»
After 2 minutes, in the display ap-
pears:
«Check stability» «Check stability»
▸Check stability. ▸Realign adjuster feet if necessary. The appliance must stand level with all 4 feet firmly on the
installation plate and not wobble. The user must carry out a visual and haptic assessment as
the appliance cannot detect or display the set-up.
▸Complete initial set-up. ▸Press the button. ▸Press the button. ▸Touch the button.
In the display appears: – «Create unbalanced load fin-
ishing…»
«Create unbalanced load fin-
ishing…»
Spinning sequence is finished. The appliance is drained.
▸Check stability. ▸Realign adjuster feet if necessary.
▸Repeat stability check if neces-
sary.
▸Depress the , and
buttons simultaneously
for 5 seconds.
▸Depress the , and
buttons simultaneously
for 5 seconds.
▸Depress the , and
buttons simultaneously
for 5 seconds.
Stability check is finished. The appliance is ready for operation.
▸Set time and date. –▸Press any main programme
button.
▸Follow the instructions.
▸Touch any button.
▸Follow the instructions.
Other manuals for Adora L
3
This manual suits for next models
4
Other V-ZUG Washer manuals
V-ZUG
V-ZUG Adora SLQ User manual
V-ZUG
V-ZUG Unimatic SL User manual
V-ZUG
V-ZUG Adorina L User manual
V-ZUG
V-ZUG 11001 User manual
V-ZUG
V-ZUG Adora S 266 User manual
V-ZUG
V-ZUG 11023 User manual
V-ZUG
V-ZUG Adora L User manual
V-ZUG
V-ZUG Adora SLQ 267 User manual
V-ZUG
V-ZUG AdorinaWash V200 User manual
V-ZUG
V-ZUG AdorinaLavage V400 User manual
V-ZUG
V-ZUG Adora L User manual
V-ZUG
V-ZUG Unimatic SL User manual
V-ZUG
V-ZUG AdorinaDry V200 User manual
V-ZUG
V-ZUG Adorina S User manual
V-ZUG
V-ZUG Unimatic T User manual
V-ZUG
V-ZUG UnimaticWash V2000 User manual
V-ZUG
V-ZUG UnimaticWash V4000 User manual
V-ZUG
V-ZUG AdoraWash V2000 User manual
V-ZUG
V-ZUG AW6H-11032 User manual
V-ZUG
V-ZUG AdorinaDry V400 User manual
Popular Washer manuals by other brands
Tricity Bendix
Tricity Bendix AW 1000 W Operating & installation instructions
Panasonic
Panasonic NA-F60L5WRB operating instructions
GE
GE WSLP1500 Dimensions and installation information
Electrolux
Electrolux EWF1284EDW Service manual
Bosch
Bosch WAN2829BSN User manual and installation instructions
LG
LG TV2516DV3B owner's manual
