V-Tec DT24 Series User manual

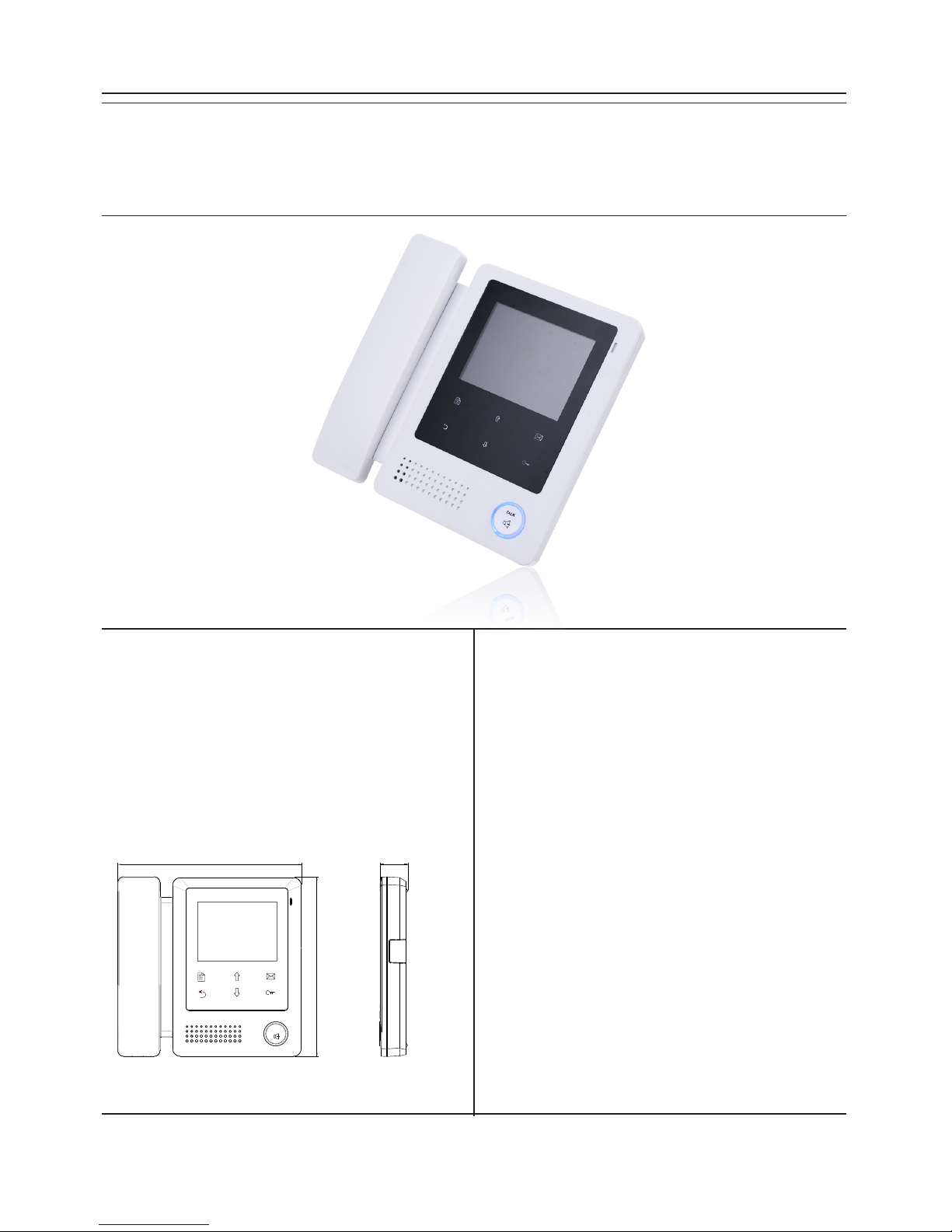

Product Information
DT24 Series
2-Wire Indoor Monitor
DESCRIPTION FEATURES
DIMENSION
2-wire system 4 inch color TFT Monitor ►Streamlined design with handset;
►Touch sensor button operation;
►Text menu display;
►Digital TFT screen with high resolution;
►Elegant talk button with blue backlight;
►12pcs 8-chord Melodies for choose freely;
►Multi languages for choices(customized);
►Compatible with all DT outdoor
28
186
190
TALK

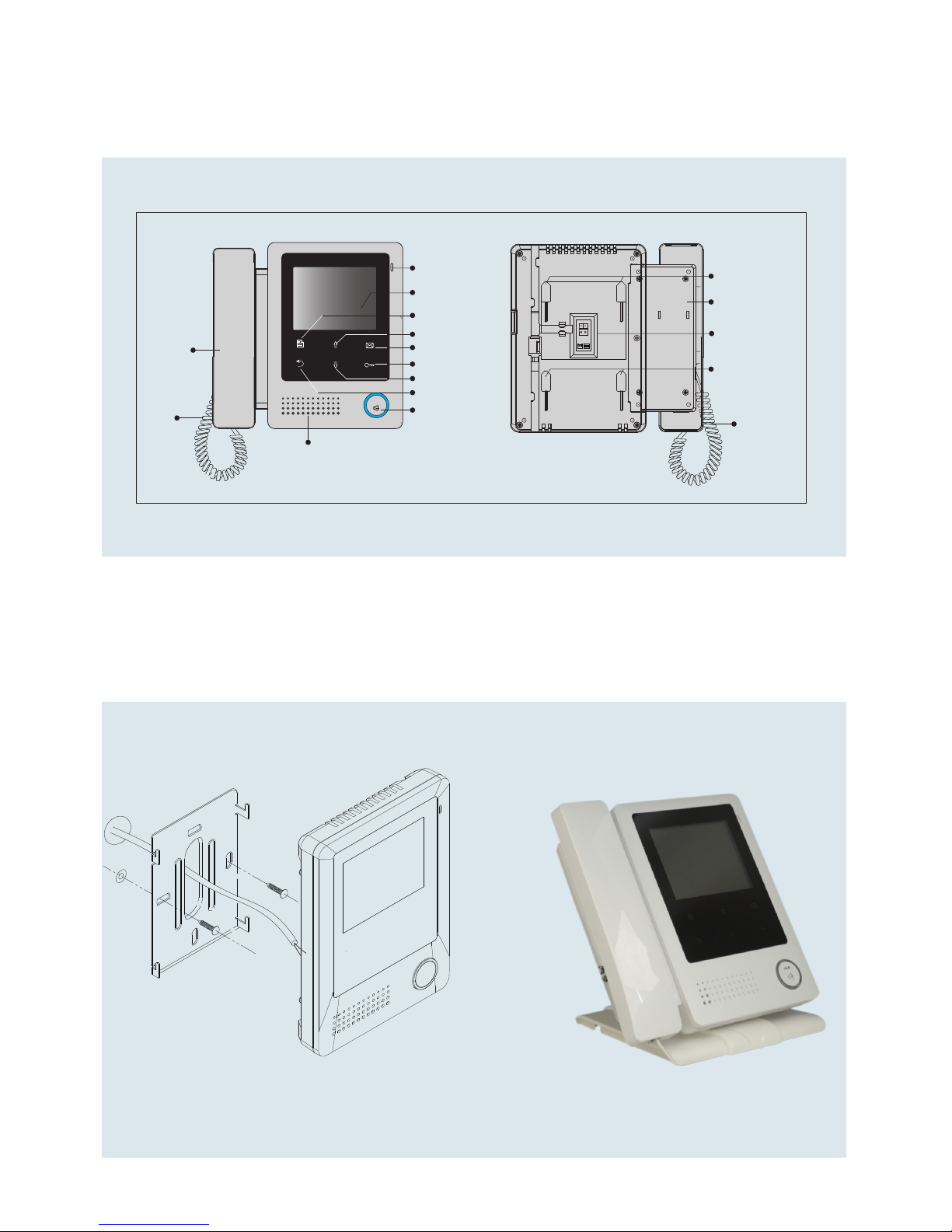

1. Parts and Funcons
2. Monitor Mounng
Wall Mounting Desktop Mounting
TALK
LCD Screen
UNLOCK Button
TALK Button
Memo Button
Up Button
MENU Button
Cancel Button
Down Button
Microphone
Speaker
Connection Port
Mounting Hook
Handset
Mounting Hook
Handset
Handset Line
Back viewFront view
Handset Line
1 2 3
ON
3. Specicaon
• Power Supply : DC 24V (supplied by PS4-24V or PS5-24V)
• Power Consumption: Standby 30mA; Working status 178mA;
• Display Device: 4’’Digital TFT screen with 4:3 rate;
• Resolution: 320*240 pixels,
• Wiring: 2 wires(non-polarity)
• Monitor Dimension: 186(H)×190(W)×36(D)mm;
• Gross Weight: 0.75KG;

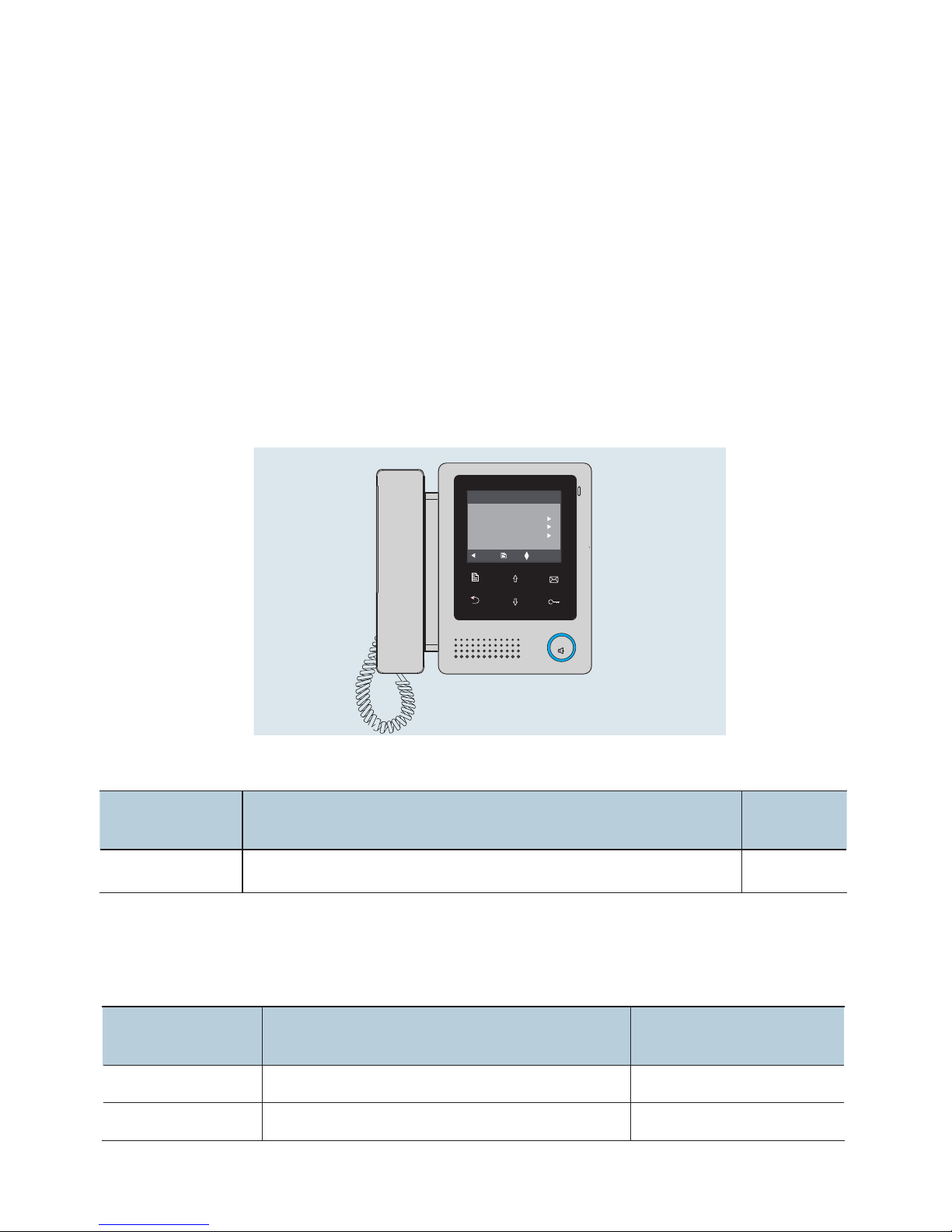

4. Ordering Informaon for Monitor
Model No. Brief Description Menu Style
DT24/D4/HS24 4 inch digital color TFT screen monitor with handset Text menu
Item Brief Description Remark
DB1-W Desktop bracket in white color For desktop mounng
DB1-B Desktop bracket in black color For desktop mounng
5. Oponal Accessories (Not included)
DT24/D4/HS24
TALK
Main Menu
Monitor ...
Manual Monitor
Intercom
User Setup
Close
About OK Select Item

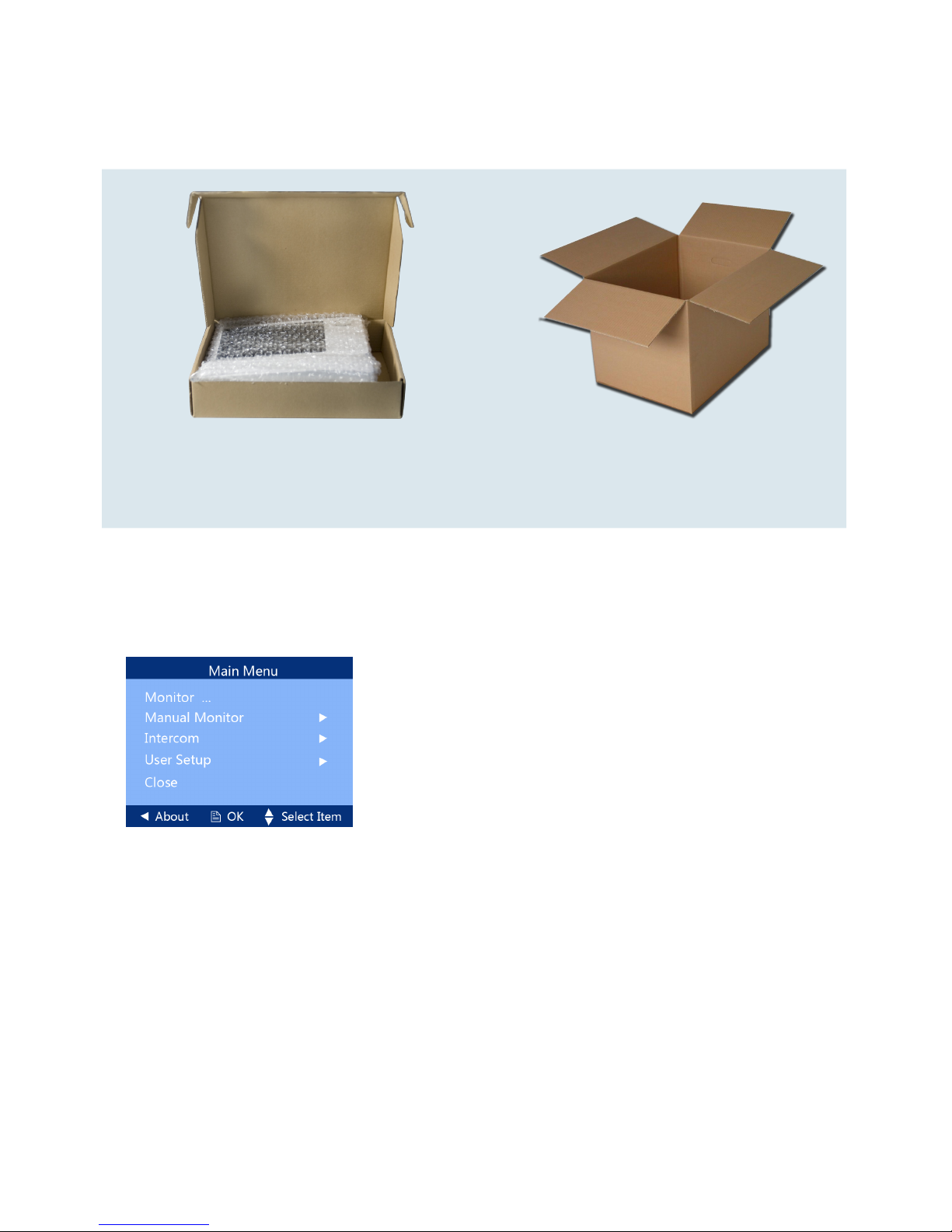

6. Packing Informaon
7. App: Menu style
Dimensions: 193(H)×226(W)×45(D)mm
Gross Weight: 0.60Kg
Carton: 415(H)×360 (W)×265(D)mm
Quanlity: 14PCS
Text menu style
This manual suits for next models
2
