Unitech PT630 Instruction Manual

PT063D-4 Ethernet Cradle Setup

Software needed:

Network Enabler Administrator v2.6

http://www.ute.com/files/software/38_NetworkEnabler.zip

OnlineCom Manager (or OnlineDll.dll)

http://www.ute.com/files/software/20_OnlineCommManagerSetup.exe

Connecting the Cradle to your Network:

1. Connect the 9V power adaptor to the cradle

2. Connect an Ethernet cable to either the IN or OUT (not both)

3. Run Network Enabler Administrator

Network Enabler Administrator:

a. Press the scan button to scan for the cradle once it is connected to your

network

Press the scan button to scan

for the cradle once it is

connected to

y

our network.

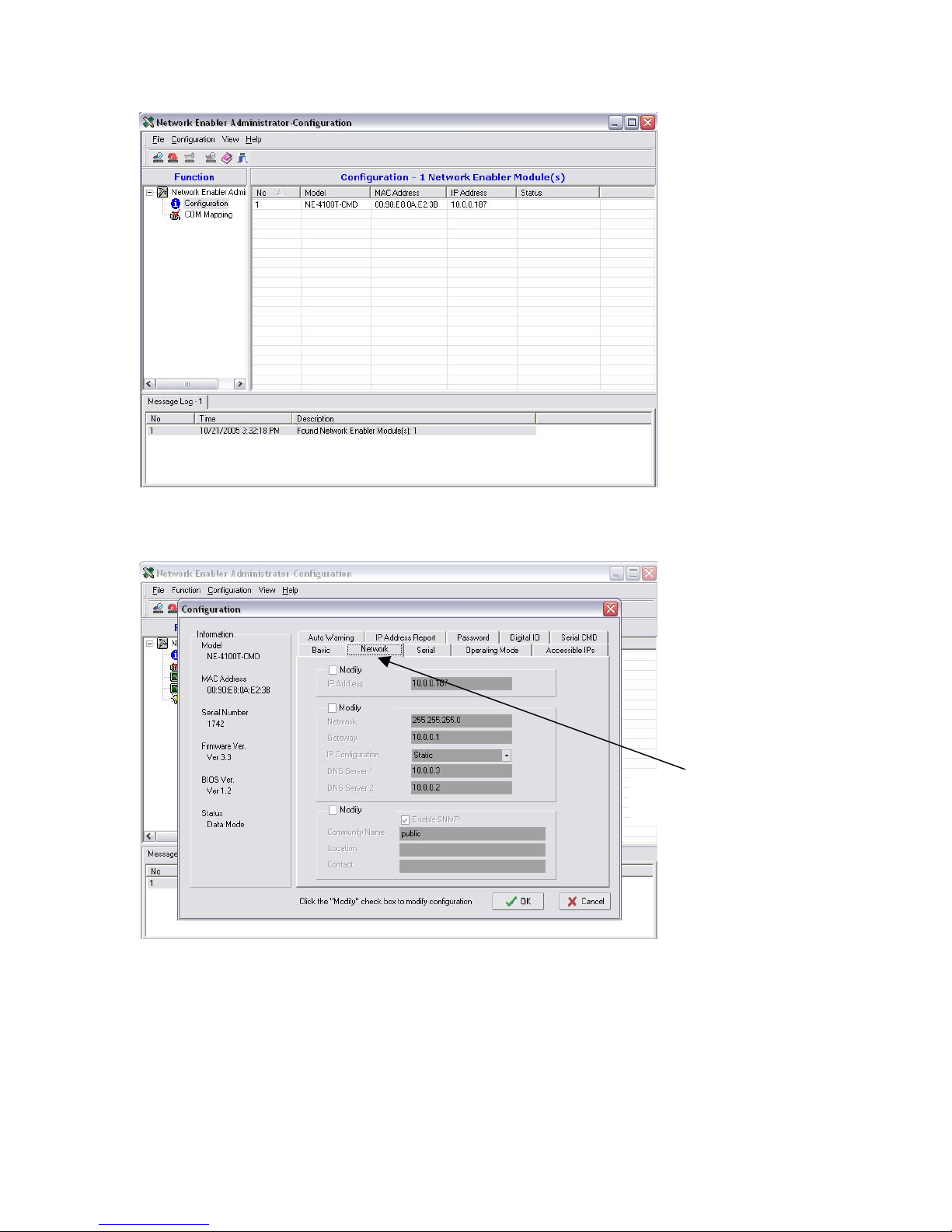

b. The Network Enabler Administrator software should see the cradle and

the IP address assigned to it. Double click this IP address for a new window

with all the setting.

c. Click on the “Network” tab and modify the IP address to match the IP

addresses distributed by your router. In this example, the router distributes

10.0.0.x IP addresses. You can enter the Gateway and a DNS Server 1&2

address.

Click the “Network” tab

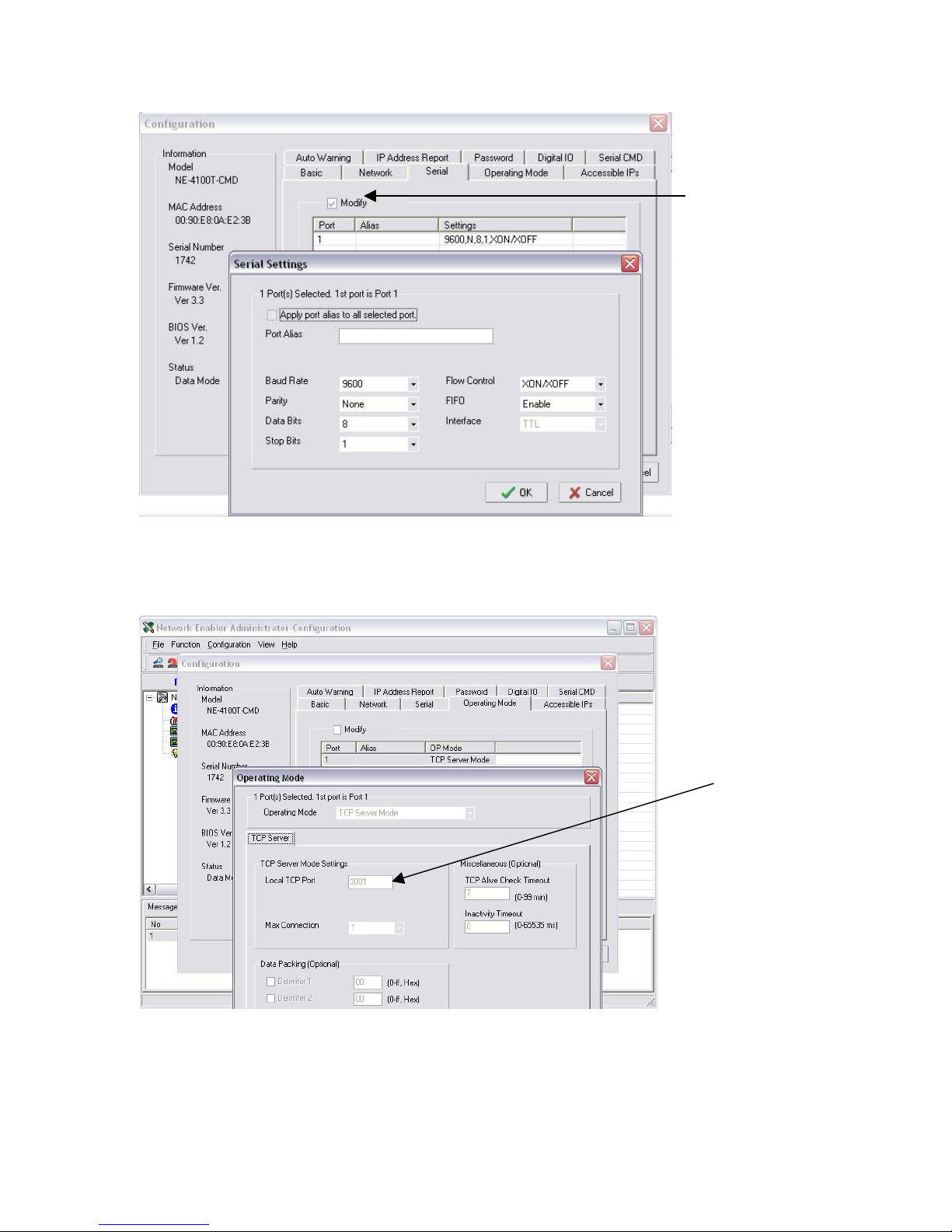

d. Now select the “Serial” tab and check the “Modify” box. Now click on

the settings that appear below. A new window will pop up that will allow

user to change baud rate, parity, data bits, stop bits and flow control. The

settings above are good settings to use.

e. Now select the “Operating Mode” tab and check the “Modify” box. Make

a note of the port, usually 4001. In this case it was changed to 3001.

Once all these steps are completed and updated the user can close the

Network Enabler Administrator application.

Check this box and

double click the settings

that come up.

Make a note of

this port

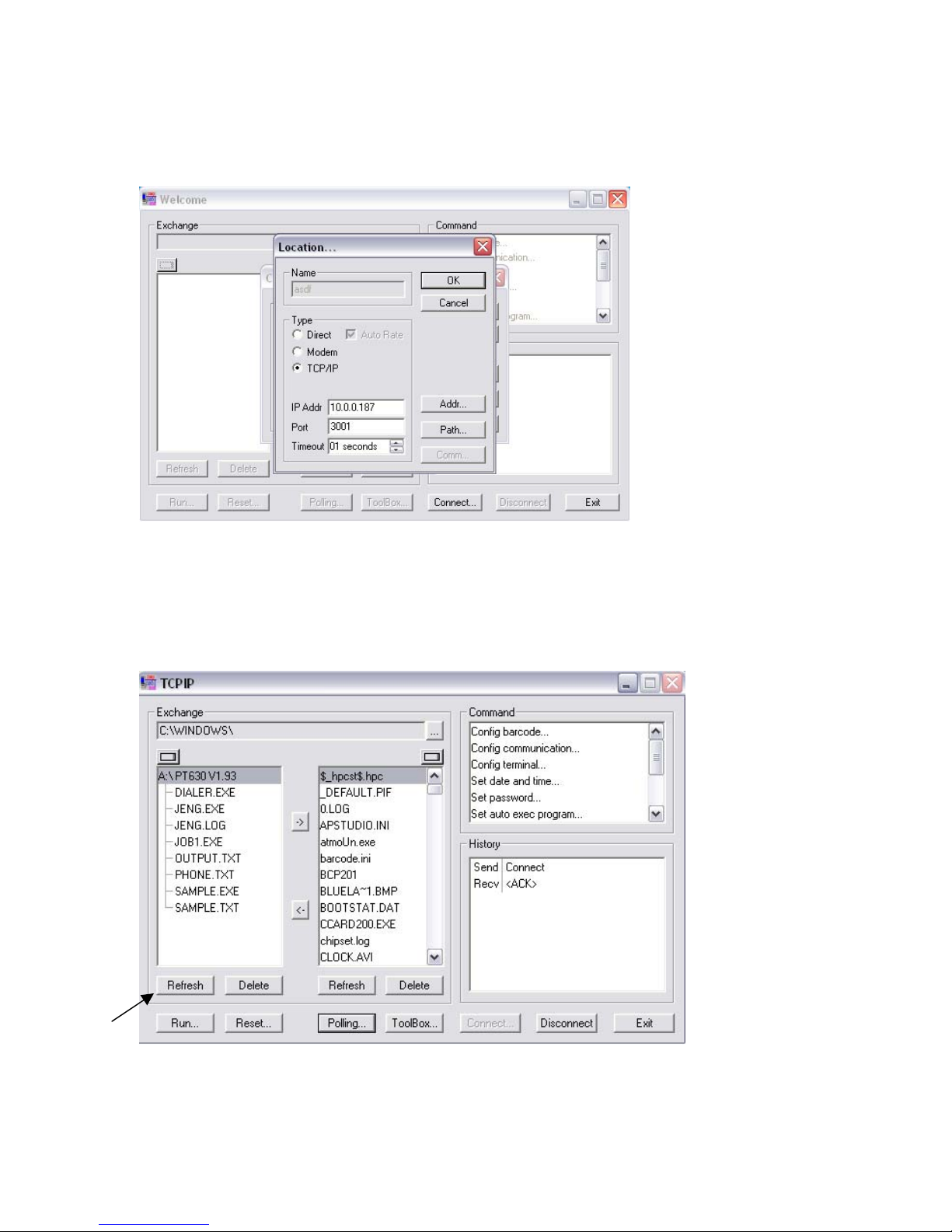

4. Run OnlineCom Manager or equivalent application that uses the

“OnlineDll.dll”

Set the IP address and port to the settings saved by the Network Enabler

Administrator application.

Once connected, the OnlineCom Manager application will display the

contents of the PT630 on the left side of the screen and the contents of the

PC on the right.

Note: If PC contents populate but receive “A:\?” on the left side (portable

side), then press “Refresh” under the left text pane.
