Uniden UH820 Series User manual
Handheld UHF-CB Transceiver
For more exciting new products please visit our website:
Australia: www.uniden.com.au
UH820 series
LITHIUM ION BATTERY PACK WARNING
•This equipment contains a Lithium Ion Battery Pack.
• The Lithium Ion Battery Pack contained in this equipment may
explode if disposed of in a fire.
• Do not short-circuit the Battery Pack.
• Do not charge the Lithium Ion Battery Pack used in this equipment in
any charger other than the one designed to charge this Battery Pack.
Using another charger may damage the Battery Pack or cause the
Battery Pack to explode.
• Lithium Ion batteries must be disposed off properly.
USER LICENSE INFORMATION
NOTE
The citizen band radio service is licensed in Australia by
ACMA Radio-communications (Citizen Band Radio
Stations) Class Licence and in New Zealand by MED
General User Licence for Citizen Band Radio and
operation is subject to conditions contained in those
licenses.
2
Warning
UNIDEN UH820
Handheld UHF-CB Transceiver
Introduction
4
Included in your Package 5
Controls and Indicators 6
Getting Started
Connect Drop-in Charger with the AC Adaptor 7
Attaching the Antenna 7
Attaching the Battery Pack 8
Attaching the Beltclip 8
Charging the Battery Pack 9
Battery Level Display 10
Accessory Jack Cover 11
Connecting the SPKR/MIC 11
Operation
Power On/Off 12
Volume 12
Setting the Squelch 12
Selecting Channel 13
To Transmit and Receive 13
To Operate in Duplex Mode 14
Transmit Power Select 15
Smart-key Function 15
Scanning 15
17
18
Open Scan (OS) Mode
Group Scan (GS) Mode
19
19
19
20
20
21
21
22
22
23
23
24
Priority Channel
Drop-Out Delay
Instant Priority Channel
Monitor
CTCSS
DCS
VOX
Busy Channel Lock-out (BCL)
Call Tone
Roger Beep
Key Beep
Keypad Lock
Backlighting 24
CTCSS Codes and Frequencies 25
DCS Codes Table 26
UHF-CB Channel Guidelines 27
UHF-CB Channels and Frequencies 28
Warranty 30
3
Contents
Handheld UHF-CB Transceiver
UNIDEN UH820
4
Introduction
Handheld UHF-CB Transceiver
The UH820 Series is a portable two-way UHF-CB radio. Its compact,
rugged and fits easily on your hand. This hand held UHF-CB radio will
give you consistent, outstanding performance in general conditions and
situations. To ensure that you get the most from the radio features,
please read this operating guide carefully before using the unit.
FEATURES
ŸDesigned and Engineered in Japan
Ÿ80 Narrowband Channels¹
Ÿ2.0 Watt Maximum TX Output Power
ŸLong Life 1600mA Lithium-ion Battery
ŸOne-Touch Smart Key
ŸRange Extender (Duplex) Capability
ŸVOX Hands Free Capable
ŸInterference Eliminator (CTCSS)
ŸDigital Coded Squelch (DCS)
ŸBacklit LCD Display
ŸAuto Battery Save
ŸOpen Scan
ŸGroup Scan
ŸRapid scan speed
ŸBattery Level Indicator
ŸBusy Channel Lockout Function
ŸRoger Beep
ŸKeypad Lock
1
Refer to p.27 - p.29 for channel information
UNIDEN UH820
ITEM
UH820 UH820-2
UH820 UHF Radio
1600mAh Li-Ion
Battery Pack (BT820) 1 2
Belt Clip 1 2
Drop-In Charger (DT820A) -- 1
AC Adaptor
(PS-S05C0BU4) 1 1
USB Cable 1 1
OWNERS MANUAL 1 1
5
Included in your Package
Handheld UHF-CB Transceiver
NOTE
If any of these items are missing from the box, contact your
place of purchase, immediately.
UNIDEN UH820
Optional Accessories
External Speaker MIC (SM-800)
Heavy Duty Earpiece MIC with VOX switch (EM-800)
Air Tube Headset with VOX switch (TM-800)
1 2
6

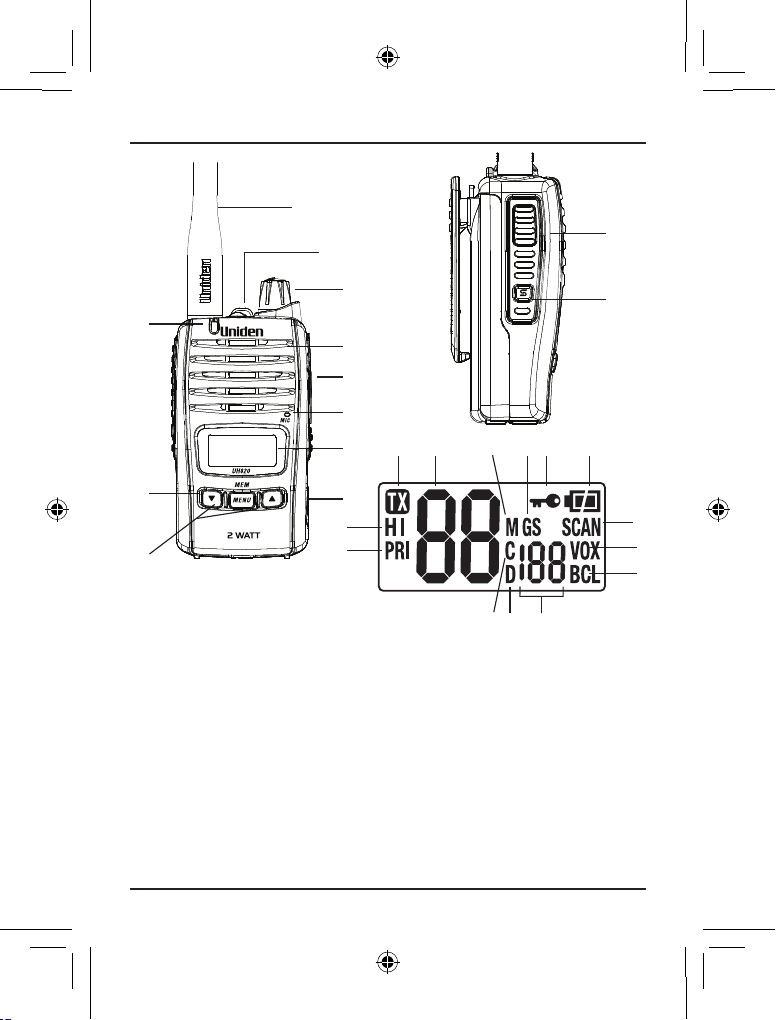

Controls and Indicators
Handheld UHF-CB Transceiver
1 Antenna
2 SCAN/MON
3 Rotary Vol/Power Knob
4 Speaker
5 Accy Speaker MIC Jack
6 Microphone
7 LCD Display
8 USB Charge port
9 UP and DOWN Keys
10 MENU [MEM] Key
11 LED
12 PTT KEY
13 SMART KEY
A Transmit
B Channel Indicator
C Scan CH Memory
D Group Scan
E Key Lock
F
G
Battery Indicator
H
Scanning
I
VOX
Busy Channel
Lockout
J CTCSS/DCS
Code Indicator
K
Digitally Coded
Squelch
L
Continuous Tone
coded Squelch
System
M Priority Watch
N High Power
1
2
3
4
5
6
7
9
11
10
12
13
A B
C D E F
G
H
I
N
M
L K J
UNIDEN UH820
8
7
Getting Started
Handheld UHF-CB Transceiver
UNIDEN UH820

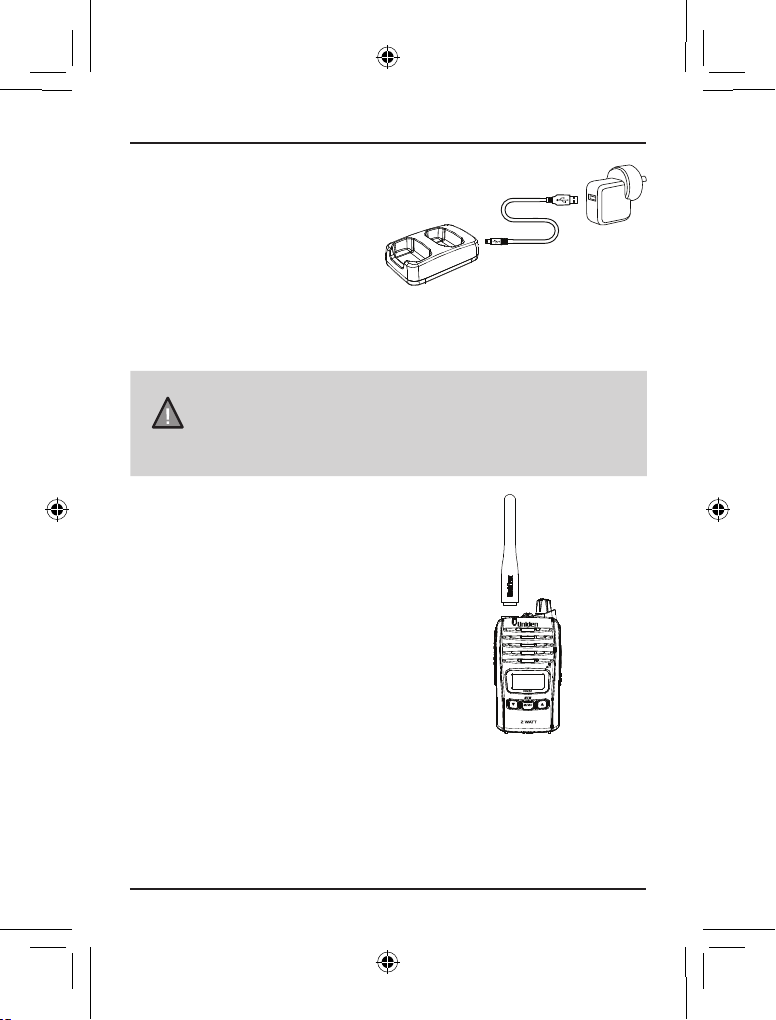

Connect Drop-in Charger with AC Adaptor
(UH820-2 only)
Plug one end of the USB cable into
the drop-in charger and the other
end to the AC adaptor. Plug the
AC adaptor into the wall outlet.
OR...
Connect the USB cable directly to the charge jack of the radio.
Attaching the Antenna
Attach the antenna to the radio.
Be sure the antenna is firmly seated.
NOTE
The drop-in charger are not water proof. Ensure the radio is
dry before connecting to the charger. Don’t use the
chargers when the ambient temperature is below 5º C (37º
F) or above 40º C (108º F). If Charge LED didn’t light up,
please confirm the above temperature.
8
Getting Started
Handheld UHF-CB
Attaching
Transceiver
the Battery Pack
Avoid exposing the Lithium Ion battery, attached or
CAUTION
unattached to the radio, in direct sunshine, heated cars, or
in areas with temperatures below –20°C (–4°F) or above
+60°C (+140°F).
Exposing the chemicals contained within the battery pack to
temperatures above +60 °C (+140°F) may cause the battery
to rupture, fail or reduce performance.
In case of exposure to cell contents, wash the affected area
thoroughly, and seek medical attention.
Additional battery cautions should be applied as described
on p.2.
To Attach the Belt Clip:
Slide the belt clip into the catch until it snaps into place.
To Remove the Belt Clip:
Pinch and hold the belt clip latch and then slide the belt clip up
and out of the catch.
UNIDEN UH820
The UH820 series radios can be powered with a
lithium ion battery pack or with optional 3xAA
batteries fitted into the battery jacket.
1. Remove COVER BATTERY
2. Place the battery pack onto the back of the
radio. It will only t one way.
3. While holding down the locking hook, slide
COVER BATTERY onto the back of Radio.
4. Completely slide in and then release the locking hook.
NOTE
The radio can be charged in the drop-in cradle on only
when the rechargeable lithium-ion battery is tted.
9
Getting Started
Handheld UHF-CB Transceiver
Your radio is powered by a specially designed Lithium Ion battery pack.
• Before operating the radio, charge the Lithium Ion battery pack for
4 hours without interruption in the drop-in charger.
The drop-in charger can charge the Lithium Ion battery pack attached to
the radio, in the front charging slot.
1. Place the radio, in the drop-in charger.
2. The red LED illuminates and stays ON, until fully charged.
• The charger won’t overcharge the battery packs.
3. The green LED illuminates and stays ON after charging is
completed.
•Do not transmit when the radio is charging; in the drop-in
charger or when connected to the DC adaptor!
• You can monitor incoming calls while the radio is in the drop-in
charger.
Charging the Battery Pack
For the initial battery charge, make sure the radio is off for
NOTE optimum charging.
UNIDEN UH820
Getting Started
10 Handheld UHF-CB Transceiver
Battery Level Display
When (PTT) is pressed at Level 1, an error tone sounds
NOTE
and transmission is disabled. Once at Level 1 the unit
will automatically shutdown after 30 seconds.
NOTE
Recharge the battery at any time. When the battery is
empty, it will take up to 4 hours.
Battery Life: up to 21 hours.
This is based on the following Duty Cycle:
Transmit (Low Power) 5%
Receive 5%
Stand-by 90%
LED Status
LED What it Indicates
Green Start Up/Power on
Green Flash Monitor mode
Green Receiving Signal
Red Transmitting signal
LED
UNIDEN UH820
The BATTERY icon at the top of the screen indicates the battery level at
all times. The battery level is displayed in 4 levels.
LEVEL 4 LEVEL 3
Battery 100% full Battery approx.
40% capacity
LEVEL 2 LEVEL 1
Low Battery (ashing)
Empty Battery
At LEVEL 2, low battery alert will be sounded every 15 minutes.
