Uniden DSS3450 User manual

Owners Manual

OWNER'S MANUAL

DSS3450

DSS3450+1

Contents

Welcome 5

Product Overview 6

Parts of the Handset 7

Parts of the Base 8

Handset Icons 9

The Standby Screen 10

Using the Interface 11

Installing the Phone 13

Basic Setup 19

Adding Extra Handsets 23

Registering Accessory Handsets 24

Setting Up the Phonebook 25

Terminology used in this Manual 5

Using the Four-way Function Key 11

Using the Handset Menus 11

Entering Text from Your Handset 12

Choosing the Best Location 13

Wall Mounting the Base 14

Direct Wall Mounting 15

Installing the Rechargeable Battery 16

Connecting the Base

and Charging the Handset 17

Connecting to the Phone Line 17

Testing the Connection 18

Changing the Dial Mode

(Australian Model Only) 19

Setting the Day and Time 19

Activating Caller ID on Call Waiting 20

Activating Distinctive Ring 20

Activating Key Touch Tone 20

Setting up Voice Mail 20

Programming One-Touch Voice

Mail Access

Message

Waiting Indicator 21

Compatible Handsets 23

Charging the Accessory Handset 23

Registering DSS3405 Handsets 24

Resetting Handsets 25

Creating Phonebook Entries 25

Programming Base Speed Dial Numbers 27

Finding a Phonebook Entry 27

Editing an Existing Phonebook Entry 28

Storing Caller ID or Redial Numbers

in the Phonebook 28

Installing the Belt Clip 18

Resetting the Voice

Activating Name Tag (POP ID) 22

Activating the Insert 0 22

[2]

Deleting Phonebook Entries 28

Deleting All the Phonebook

Entries at Once 29

Copying Phonebook Entries

to Another Handset 29

Changing the Handset Banner 30

Selecting Ring Tones 31

Activating AutoTalk 32

Activating Any Key Answer 32

Keypad Lock 34

Making a Call from the Phonebook 34

Making a Call with Speed Dial 34

Making a Call with Base Speed Dial 34

Switching to the Speakerphone During a Call 34

Using Caller ID and Call Waiting 34

Using the Caller ID List 35

Making a Call from a Caller ID Record 35

Deleting Caller ID Numbers 35

Using Call Waiting 36

Deleting a Redial record 37

Adjusting the Ringer Volume 37

Adjusting the Earpiece and Speaker Volume 38

Adjusting the Audio Tone and Clarity Boost 38

Placing a Call on Hold 39

Conferencing 39

Transferring a Call 40

Answering a Transferred Call 40

Do Not Disturb (All Calls) 41

Muting the Ringer (One Call Only) 41

Muting the Handset Microphone 41

Privacy Mode (Handset only) 41

Making a DirectLink Call 43

Exiting DirectLink Operation 43

Answering an Intercom Page 44

Customizing Your Phone 30

Using Your Phone 33

Redialing a Number 37

Adjusting the Ringer, Earpiece, and Speaker

Volume 37

Finding a Lost Handset 38

Using Hold, Conference, and Transfer 39

Using Special Features 41

Using the DirectLink Communication Feature 42

Making an Intercom Page 43

Room/Baby Monitor 44

Tone Dialing Switch Over

(Australian Model Only) 45

Installing the Optional Headset 45

[3]

Maintenance 46

Troubleshooting 47

Common Issues 49

Liquid Damage 52

Specifications 53

Index 54

Warranty 55

Battery Replacement and Handling 46

Battery Contact Maintenance 46

Low Battery Alert 47

Talk Time, Standby Time, and

Storing the Handset on the Base 47

Resetting the Handset 47

Resetting the Handset without the Base 48

Changing the Digital Security Code 49

Traveling Out of Range 49

[4]

Welcome

Terminology used in this Manual

Thank you for purchasing a Uniden Multi-Handset phone. This unit is different from conventional cordless telephones. When the

base unit is connected to AC power and a telephone line, it can support up to 4 handsets. Using extra handsets, you can establish

a 3-way conference call (2 handsets and an outside line), while two other handsets are making an intercom call. You can now

place a fully featured cordless handset anywhere in your home or office where AC power is available to connect the handset

chargers.

Note: Illustrations in this manual are used for explanation purposes. Some illustrations in this

manual may differ from the actual unit.

Caution: The earcap of this telephone may attract and retain small metallic objects.

Base

CID

CID/CW or CIDCW

Charger

DirectLink

Extra or

Accessory Handset

Global

Settings

The main part of the phone that connects to your phone line and lets you make and receive

calls.

Caller ID is available from your telephone provider. With this service, you can see the name

and number of incoming callers.

Caller ID on Call Waiting is available from your telephone provider. With this service, you can

see incoming caller information while on another call. Note: The Caller ID on Call Waiting

service is currently unavailable in NZ.

A cradle that comes with an accessory handset and charges the handset battery. It connects

to power but does not connect to a phone line.

If you have accessory handsets on your system, you can use two handsets as 2-way radios.

This phone system is expandable and will support a total of four handsets to one base. The

extra, or accessory handset, is a handset that is compatible with this model.

Apply to registered handsets. If you change something under the global menu, you change it

for all handsets. Only one handset can change global settings at a time, and the phone must

be in standby.

[5]

Standby

Station

Talk

The handset is not in use. If it is off the cradle, no line has been activated. No dial tone is

present.

Any handset or the base.

A telephone line has been activated on the handset enabling a dial tone.

[6]

Product Overview

Main Features:

2.4GHz Digital Expandable System

Expands up to 4 Handsets

Caller ID*

- Caller ID on Call Waiting*

- Distinctive Ring** by Party

- Name Tag** (POP ID) Caller Name Identification

100 shared Phonebook Entries/Caller ID

Numbers

DirectLink***

Room/Baby Monitoring***

20 Ringer Options (10 Tones/10 Melodies)

10 Speed Dial Locations

Last 3 Number Redial on handset

Copy Phonebook Entries to Another Handset***

Call Transfer***

Conferencing***

Intercom***

Handset Speakerphone

Base Keypad

Base Speakerphone

* Requires subscription to Caller ID and Caller ID on Call Waiting service provided by Network supplier. There is

usually a fee for this service. The Caller ID on Call Waiting service is currently unavailable in NZ.

** These features rely on the Caller ID service to function.

*** Requires the use of multiple handsets.

# Range may vary depending on environmental and/or topographical conditions.

Parts of the Handset 1. Handset Antenna

2. Headset Jack Cover

3. Beltclip Hole

4. Speakerphone Speaker and Ringer

5. Handset Battery Compartment

6. New Message LED

7. Handset Earpiece

8. LCD Display

9. key

10. key

11. key (talk/flash)

12. key (phonebook)

13. key

14. key

15. key (select/messages)

16. key (up)

17. key (end call)

18. key (caller ID)

19. key (down)

20. key (pound)

21. key (speaker)

22. Handset Microphone

23. Handset Charging Contacts

[menu/clear]

[redial/pause]

[ / flash]

[]

[*/tone/<]

[xfer/intercom]

[select/ ]

[]

[#/>]

[]

[7]

[8]

Parts of the Base

24. Base charging contacts

25. Base Speaker

26. key

27. Charge LED

28. in use LED

29. Base Antenna

30. keys

(Volume Up/Down)

31. key

32. key

33. key

(intercom/transfer)

34. key and LED

(do not disturb)

35. key

36. key

37. Base Microphone

38. key and

speaker LED (speaker)

39. key

40. key

41. [ key (find handset)

42. DC IN 9V Jack

43. TEL LINE Jack

[memory]

[]

[pause]

[hold]

[int'com/xfer]

[dnd]

[*/tone]

[#]

[speaker]

[flash]

[redial]

mute/find hs]

25 26 27 28

35 36 38

43 42

[9]

Handset Icons

ICON STATUS DESCRIPTION

Standby/Talk

Standby

Talk

The icon indicates the handset battery status: full, medium, low, and empty.

The icon indicates that the ringer is turned off.

The icon appears when you mute the handset.

The icon appears when the Clarity Boost feature is activated.

The icon appears when the handset speaker phone is in use.

The icon appears when Privacy Mode is turned on.

battery

ringer off

mute

boost

speaker

privacy

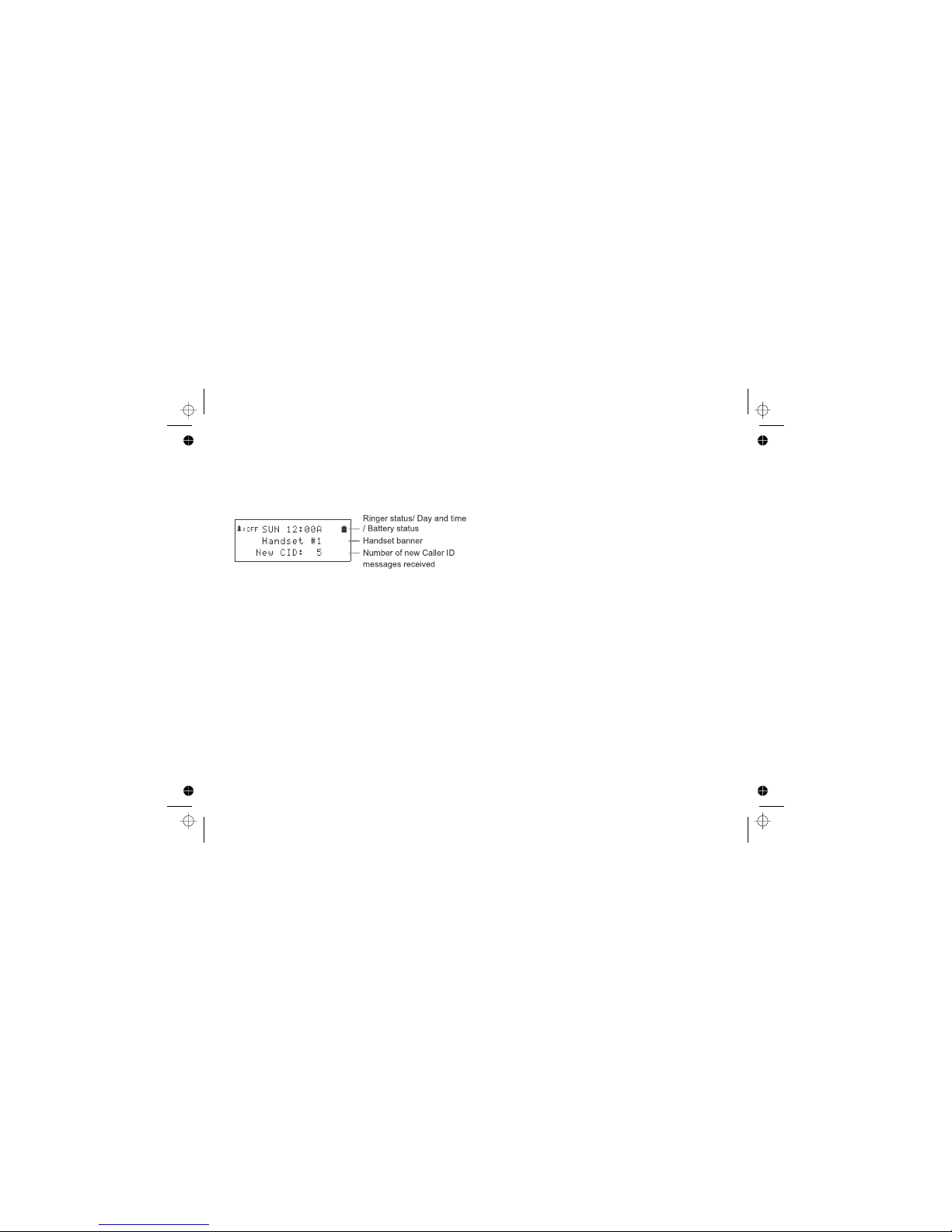

The Standby Screen

When the phone is in standby, the handset display shows the following items:

[10]
