Ulead PHOTOIMPACT MENU PLUG-IN User manual

Ulead DVD Menu Plug-in User Guide 1

Ulead DVD Menu Plug-in

Ulead DVD Menu Plug-in is a plug-in that allows you to export

PhotoImpact-designed DVD menu templates to Ulead’s DVD

authoring software. Create your menu templates using

PhotoImpact tools then use the plug-in to make the menu

template elements interactive when the selection menu is viewed

on DVD players.

Creating a menu template

Create your menu template using the variety of tools available in

PhotoImpact. Each menu template must contain certain elements

(objects) for it to be recognized as a menu template by Ulead DVD

authoring software. The necessary elements for a menu template

are listed below.

The following conditons must be followed for the template to be

valid:

• The canvas size must be 768x576.

• All template objects must fall within the boundaries of the

canvas.

• There must be at least one object in the template.

• All objects created using the Outline Drawing Tool or the

Line and Arrow Tool must be converted to an image object

first before saving the template.

• The template must be saved in the UFO file format.

Note: The Ulead DVD Menu Plug-in is only compatible with PhotoImpact 8

and later versions.

2 Ulead DVD Menu Plug-in User Guide

When you finish creating the menu template, save the template

first as as a UFO file then select Effect: DVD Menu - DVD Menu

Plug-in to open the DVD Menu Plug-in.

When DVD Menu Plug-in opens, you will see three tabs. These 3

tabs are the steps that you need to take to customize and then

export the menu template to Ulead DVD authoring software. The 3

tabs are: Set Up Template Properties, Assign Object Name

and Preview and Export.

Component Quantity Object Type Required

Background Image 1 Image Yes

Template Thumbnail*1ImageYes

Scene Button 1-32 Image Yes

Scene Highlight Image Same as Scene Button Image/Path/

Text

Optional

Scene Frame Same as Scene Button Image/Path Optional

Scene Text Same as Scene Button Text Optional

Scene Number Same as Scene Button Text Yes

Navigation Buttons 4 Image/Path/

Text

Yes

Navigation Highlight


Same as Navigation

Button

Image/Path/

Text

Optional

Title 1 Text Optional

Page Number 1 Text Yes

Decoration No limit Image/Path/

Text

Optional

Menu Overlay No limit Image/Path Optional

*The template thumbnail (120x90 pixels) is a visual representation of the

template. It must be set as a hidden object in PhotoImpact. It is

recommended that you do not create your own template thumbnail. If you

want a custom template, have the DVD Menu Plug-in create the template

thumbnail first (Preview and Export tab) before customizing it.

Ulead DVD Menu Plug-in User Guide 3

Step 1: Setting up template properties

Select which Ulead DVD authoring software you want to export the

menu template to. Select also the type and style of your template.

•Create template for Select the Ulead DVD software where

you want to export the template to.

•Template type Select the type of template you want to create.

•Template style Select the style for the template type you

selected. The available styles depend on the template type

selected.

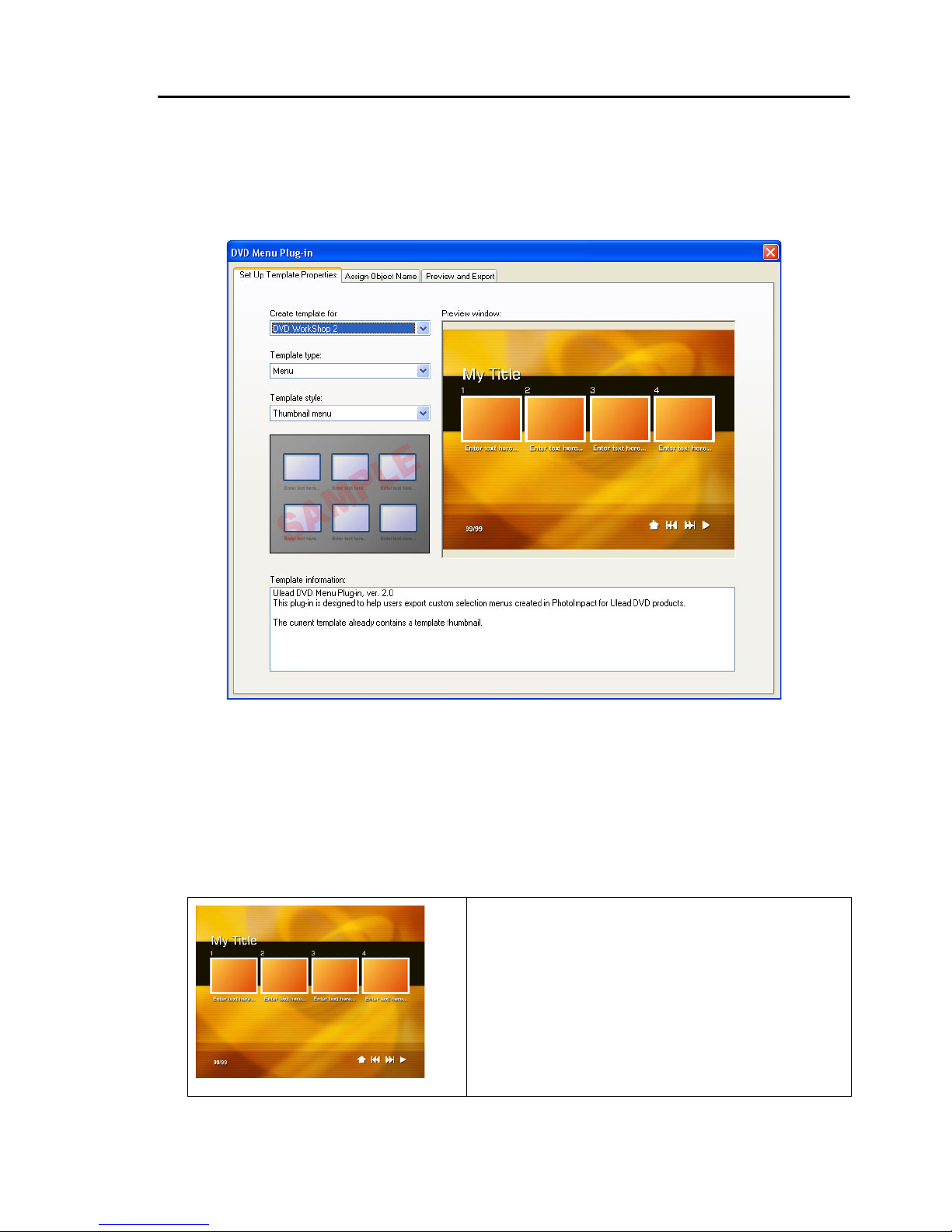

Thumbnail menu

A template style that contains both

thumbnail placeholders and text.

This style is ideal when you have

several videos on your disc or you

are creating chapter menus for

your video.

4 Ulead DVD Menu Plug-in User Guide

•Preview window Displays the menu template you are

currently working on.

•Template information Displays template properties like which

DVD authoring software the template was designed for and

what template style the template is using.

Step 2: Assigning object names

An Object name identifies whether a menu object is a background

image, button, decoration, or other. Assign an Object name to

your menu objects using the Assign Object Name tab. Basically,

the purpose of assigning Object names is to make menu objects

interactive when the DVD menu is viewed on the DVD player.

To assign an Object name to a menu object:

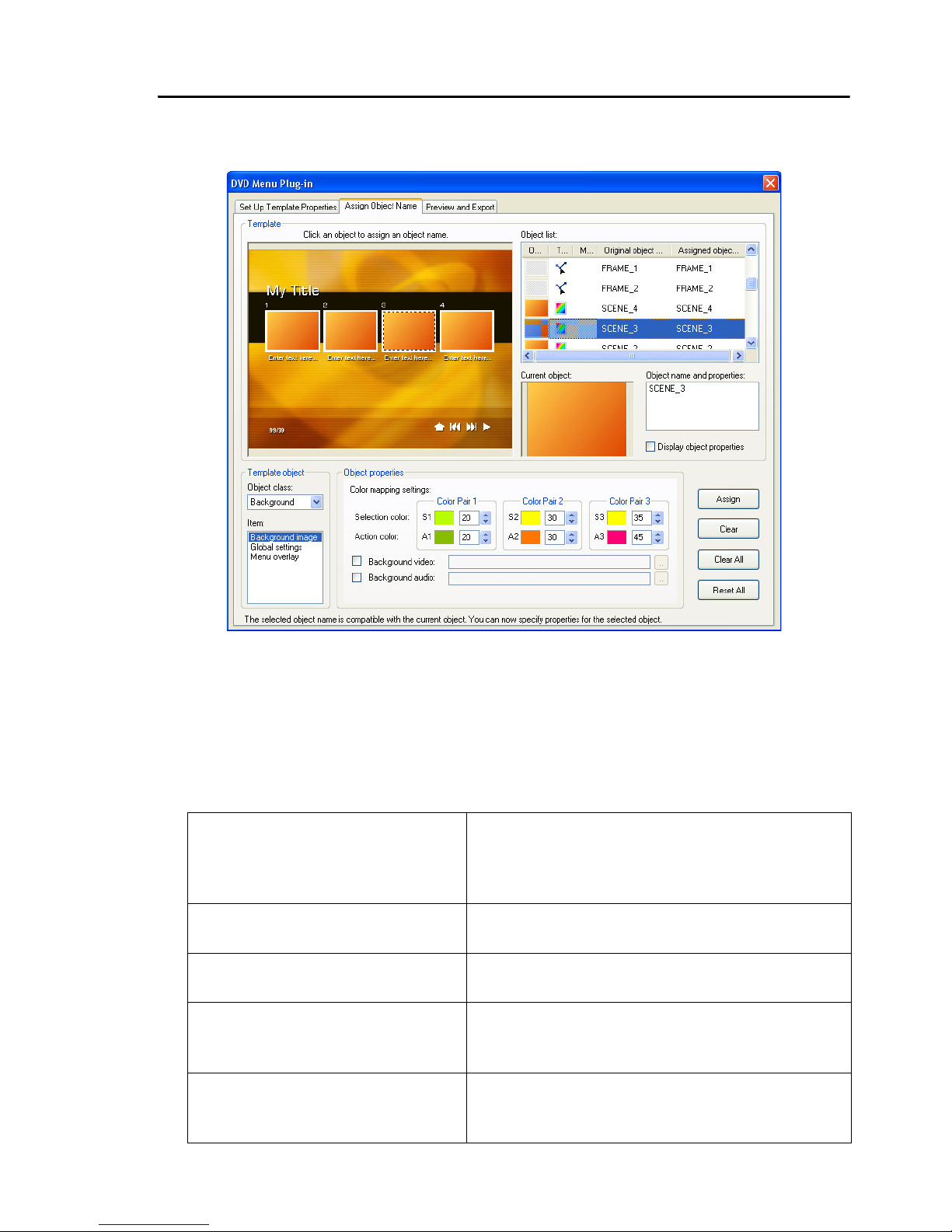

1. Select a menu object from the Preview Window.

2. From the Object class list, choose how the object will be used

in the menu template. (For instance, for a DVD Workshop menu

template, you can customize an object to be used for

navigation, or for use as a background image or scene.)

3. Choose an Item that you want to customize, then specify the

desired properties. To customize all of the items under the

selected Object class, choose each item one at a time and

customize its properties.

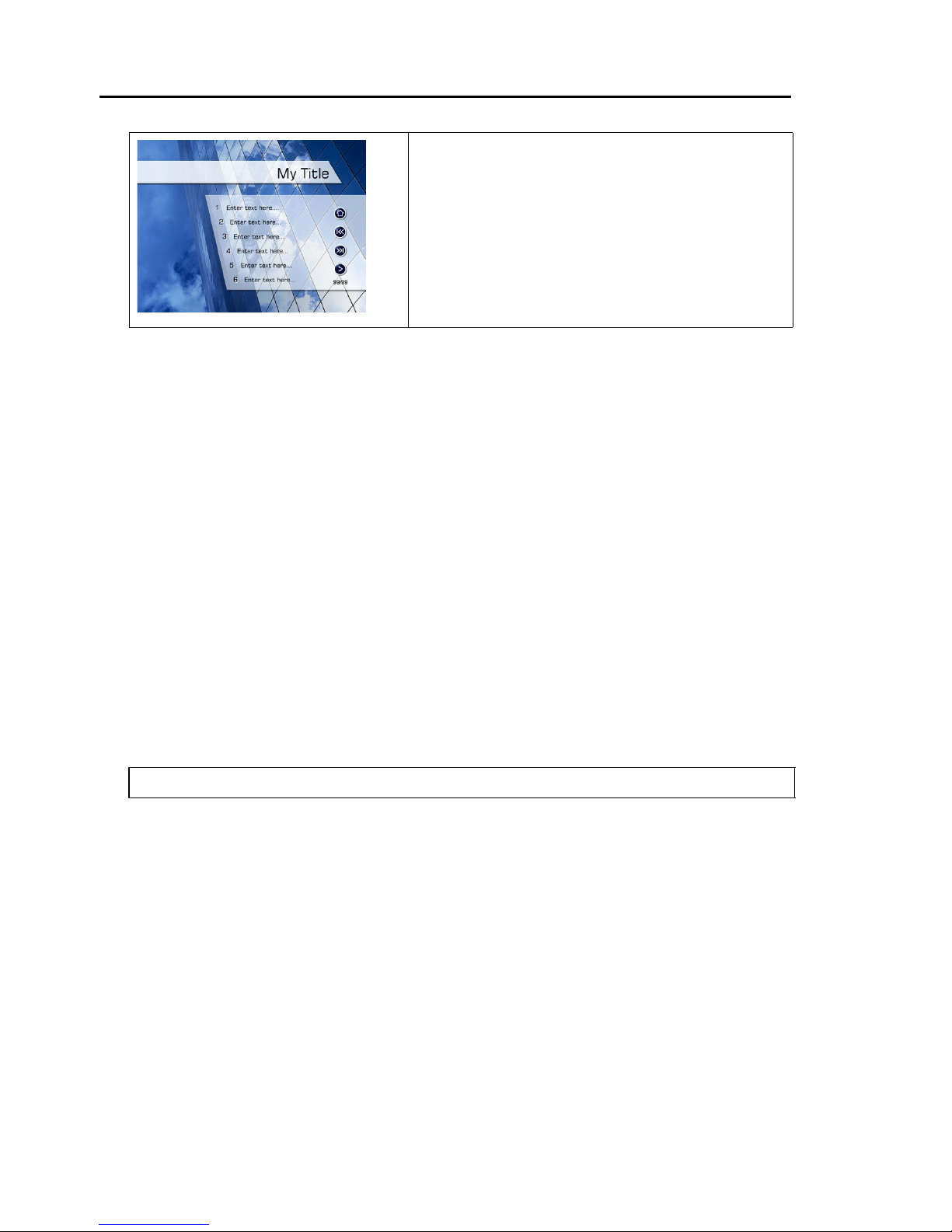

Text menu

A template style that only contains

text. This style is ideal when you

are creating a template for subtitle

or language options for your DVD

videos.

Tip: You can also select the object in the Objects list.

Ulead DVD Menu Plug-in User Guide 5

4. Click Assign to apply the specified properties to the object.

•Preview window Displays a preview of the menu template.

Click an object to assign an Object name to it.

•Object list Visual list of all objects in the menu template. It

also displays the original and assigned object names of your

objects in the template. Click an Object list heading to sort the

list according to that particular heading.

Object Displays an image of the object. Click to

arrange the objects according to their Z-

order. The Z-order determines which

objects lie on top of other objects.

Type Displays whether the object is a path, text

or image object.

Media files used Displays the associated media file linked, if

any, to the object.

Original object name Name of the object when it was created in

PhotoImpact or after you have clicked Apply

in the Preview and Export tab.

Assigned object name Designated Object name for the object. Click

Assign to designate the specified properties

to the object.

6 Ulead DVD Menu Plug-in User Guide

•Current object Displays a preview of the selected object.

•Object name and properties Displays the Object name as

well as the settings assigned to the selected object.

•Display object properties Select to display the current

settings of the selected object.

•Object class Select how you want the selected object to be

used in the template. (For instance, in a DVD Workshop menu

template, an object can be used as a navigation, background

image, or scene.)

•Item Specify the template element type of the selected object.

(For instance, if the Object class is Navigation, you can specify

the selected object as a Navigation button or Navigation

highlight image.)

•Assign Designates the specified properties to the selected

object.

•Clear Removes the selected object’s Object name.

•Clear All Removes all Object names from the template.

•Reset All Reverts all assigned object names back to the names

under the Original object name column in the Object list.

Object class and items

Object class: Background

Items:

•Background image Indicates that the selected object is used

as a background image for the menu template. This is also

where you specify the 3 color pairs (color mapping) for the

menu template. Color mapping indicates that a button in the

menu is either selected or activated. Click a color box to open

Ulead Color Picker and specify a color. You can also adjust

each color’s transparency by entering a value beside the color

box.

Ulead DVD Menu Plug-in User Guide 7

Also, a menu template can use a video file as its background

with background music. To use a video file, select Background

video and/or Background audio then browse for the file to

use.

•Global settings Specifies the template’s name and the default

color mapping settings for the navigation buttons, scene

selection buttons, text buttons, numbers, and frames.

•Menu overlay Indicates that the selected object will be used

as a frame for the menu template.

Object class: Scene

Items:

•Scene button Indicates that the selected object will be used as

a scene placeholder. You can specify the scene button’s button

number as well as the default color mapping settings.

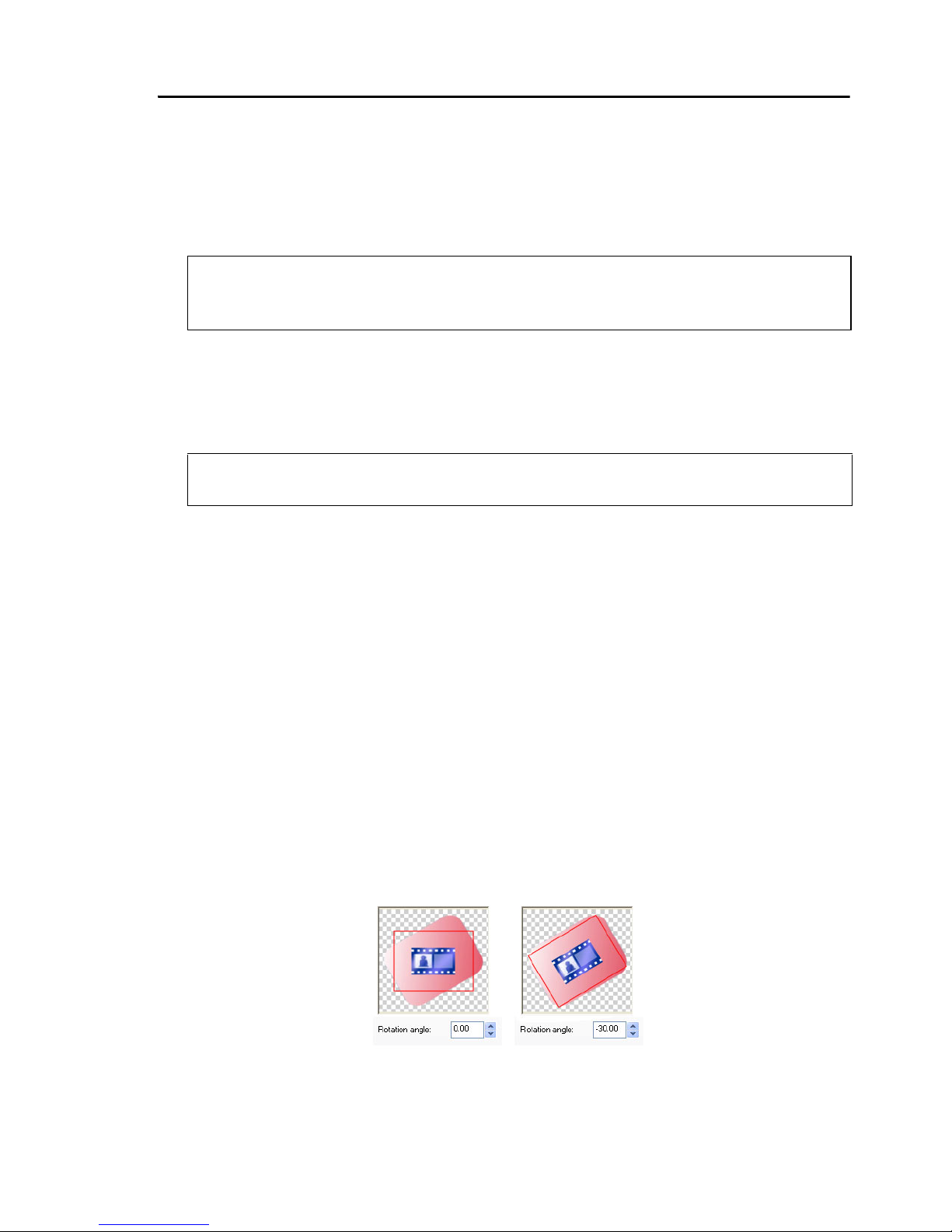

If you have a placeholder that is rotated to a certain degree,

use Rotation angle to correct the orientation of the video or

image link to make it conform to the angle of the placeholder.

Rotation angle does not rotate the placeholder.

Note: Make sure that the background object does not contain any masks.

DVD Menu Plug-in disregards any mask applied on the image. Also the

background image size must be the same as the canvas size.

Note: Color mapping settings of template objects can still be changed in

their respective object properties.

8 Ulead DVD Menu Plug-in User Guide

•Scene highlight image Indicates that the selected object will

be used instead of color mapping to show that an object is

selected. Instead of color mapping, the shape of the designated

image appears when a button is selected. This is only available

when creating a thumbnail menu. (See “Thumbnail menu” on

page 3).

•Scene frame Indicates that the selected object will be used as

a frame for a scene button.

•Scene text When creating a thumbnail menu, this indicates

that the selected object will be used as a caption for a scene

button. When creating a text menu, a scene text is used as a

selection button. (See “Text menu” on page 4).

•Scene number Indicates the order of the scenes in the menu.

Object class: Navigation

Items:

•Navigation button Indicates that the selected object will be

used as the menu’s navigation buttons. In Object name,

specify the button’s action when activated such as go to main

menu, next menu, or previous menu.

•Navigation highlight image Indicates that the selected

object will be used as a navigation button’s highlight image.

Instead of the usual color mappings, a designated image

appears when a button is selected.

Note: A scene text can be edited when creating a menu using Ulead DVD

authoring products.

Note: The Button number of a scene frame, scene text, scene number, or

scene highlight image must be the same as the scene button it is associated

with. For example, if the scene button button number is 1 and you want a

particular highlight image to be used when the scene button is selected, you

must also set the highlight image button number to 1.

Tip: Select Use animation to use an animated GIF file as a navigation

button.

Ulead DVD Menu Plug-in User Guide 9

Object class: Others

Items:

•Title Indicates that the selected object will be used as the title

for the menu template.

•Page number Indicates the selected object will be used as a

page counter.

•Decoration Indicates that the selected object will be used as a

decoration. These objects have no assigned links and no

particular function in the menu. You can use an animated GIF

file as a decoration by selecting Use animation.

Step 3: Previewing and exporting the menu

template

After assigning all Object names and customizing properties for

your menu template, click the Preview and Export tab to

simulate the behavior of the menu template. This tab also checks

if all template objects’ properties are properly defined and all

objects necessary in a template are present. If you see an object

that is not properly defined in Template details check, click the

Assign Object Name tab and set up the missing template

objects.

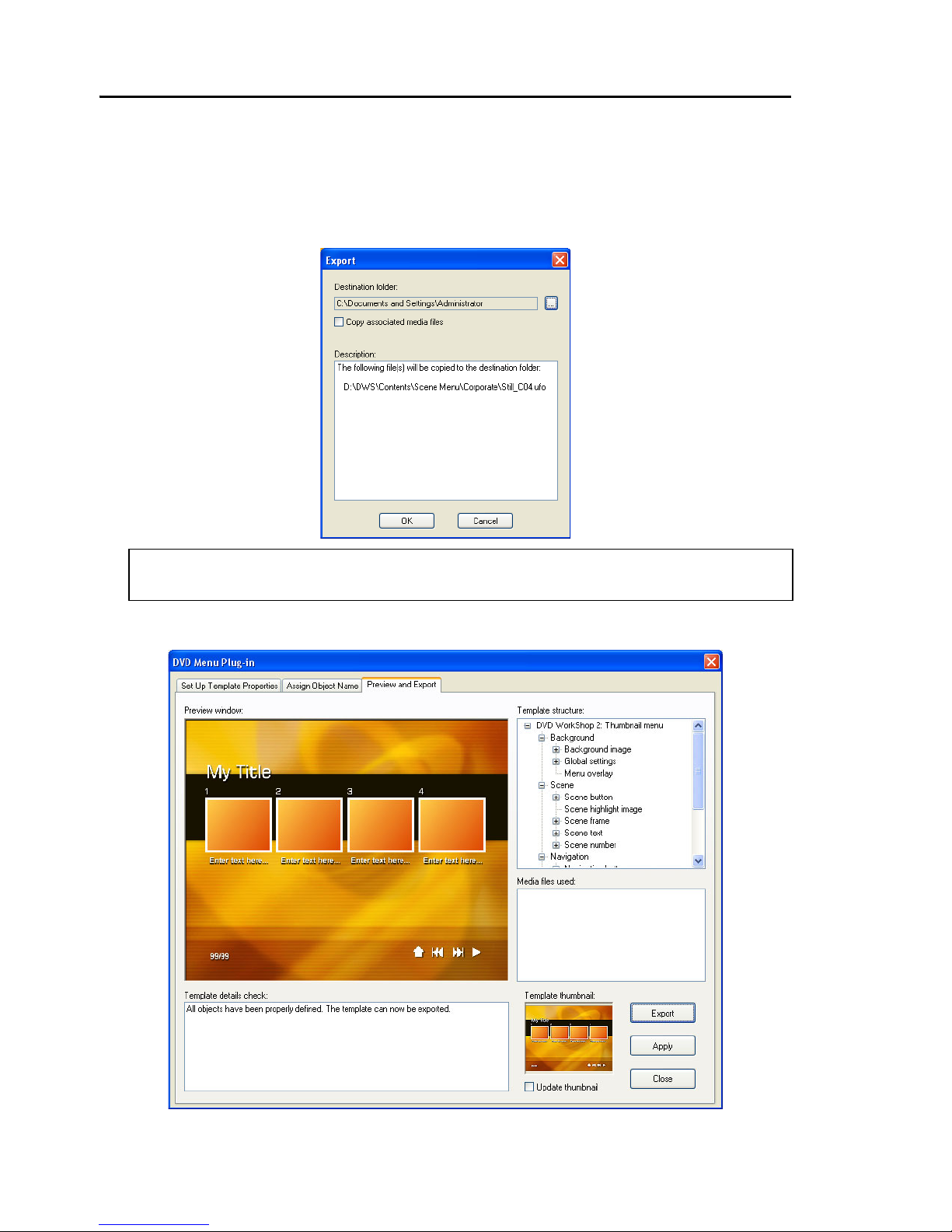

When the template objects are all properly defined, you can then

export the template to the contents folder of the Ulead DVD

authoring software you specified in the Set Up Template

Properties tab.

Tip: A title can be edited when creating a menu using Ulead DVD

authoring products.

Note: When creating a page number object, it is recommended that you

use this format: 99/99 (current page/total page).

10 Ulead DVD Menu Plug-in User Guide

To export a menu template:

1. Click Export in the Preview and Export tab.

2. In the Export dialog box, specify where the menu template will

be saved in Destination folder.

3. Click OK to export the menu template.

Tip: Select Copy associated media files to export all media files used,

such as video, audio, and animated images, to the destination folder.

This manual suits for next models

Table of contents

Other Ulead Software manuals

Ulead

Ulead DVD MOVIEFACTORY 5 User manual

Ulead

Ulead USBAV-701 User manual

Ulead

Ulead MEDIASTUDIO PRO 6.0 User manual

Ulead

Ulead COOL 3D User manual

Ulead

Ulead GIF ANIMATOR 5 User manual

Ulead

Ulead COOL 3D-PLUG-IN MADNESS II User manual

Ulead

Ulead MEDIASTUDIO PRO 8.0 - SMART COMPOSITOR... User manual

Ulead

Ulead BURN.NOW 1.5 User manual

Ulead

Ulead DLX-180 User manual

Ulead

Ulead PHOTO EXPRESS MD 5345 User manual

Ulead

Ulead MEDIASTUDIO PRO 6.5 User manual

Ulead

Ulead MEDIASTUDIO PRO 7 User manual

Ulead

Ulead MOVIEFACTORY 5 PLUS User manual

Ulead

Ulead GIF ANIMATOR 4.0 User manual

Ulead

Ulead DVD MOVIEFACTORY 5 User manual

Ulead

Ulead PHOTO EXPLORER 8.5 User manual

Ulead

Ulead DVD WORKSHOP 2 - User manual

Ulead

Ulead MEDIASTUDIO PRO 8 User manual

Ulead

Ulead PYRO1394WebCam User manual

Ulead

Ulead INSTAMEDIA - TIME-SHIFT User manual

Ulead

Ulead VIDEOSTUDIO SE User manual

Ulead

Ulead QUICK DROP 2.0 - VERSION 2006 User manual

Ulead

Ulead PHOTOIMPACT 11 User manual

Ulead

Ulead PYRO1394DV User manual

Popular Software manuals by other brands

COMPRO

COMPRO COMPROFM manual

Muratec

Muratec OFFICEBRIDGE ONLINE user guide

Oracle

Oracle Contact Center Anywhere 8.1 installation guide

Adobe

Adobe 65007312 - Photoshop Lightroom Programmer's guide

Avaya

Avaya NULL One-X for RIM Blackberry user guide

HP ProLiant BL420c user guide

PS Audio

PS Audio PowerPlay Programming manual

Brady

Brady LOCKOUT PRO 3.0 Administrator's guide

Avaya

Avaya Interaction Center user guide

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Guide book

Novell

Novell GROUPWISE 8 - INTERNET AGENT manual

Oracle

Oracle Application 9i Configuration guide

Acer

Acer RDM user guide

Canon

Canon Vixia HF21 instruction manual

Canon

Canon ZR950 instruction manual

Samsung

Samsung Auto Backup user manual

Polycom

Polycom Vortex EF2201 Application note

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c user manual
