Contents

Lighting Effects

Fireworks .................. 6

Lens Flare ................. 7

Light Bulb ................. 8

Sparkler ................... 9

Spotlight................... 10

Welcome to COOL 3D

PLUG-IN MADNESS III

Global Effects

Cloud ....................... 5

Ulead COOL 3D

PLPL

PLUG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS III

Welcome to COOL 3D

PLUG-IN MADNESS III

Plug-in Madness continues with a new group of amazing effects. What makes this pack

special is its ability to enhance both the background and the objects in your project. This

allows you to create an unique integrated effect that’s even more stunning when animated.

A newcomer to the Global Effects group is the Cloud plug-in, which you can use to create

clouds, fog, and even smoke. And the new Lighting Effects category of plug-ins allows

you to enhance your projects with lens flares, light bulb flashes, spotlights, fireworks, and

sparklers. All plug-ins come with plenty of presets in the EasyPalette. To use these,

simply double-click them or drag them to the Edit Window. Click on the links below to go

directly to that effect.

Cloud

Spotlight

Lens Flare

Sparkler

Fireworks

Light Bulb

USER GUIDE

PLPL

PLUG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS III

Global Effects

Cloud

This effect puts your 3D objects in the midst of realistic-looking clouds. Or you can adjust

the many options on the Attribute Toolbar to get a surrealistic misty effect in wild colors.

In this tutorial, learn how to make the clouds thin out to reveal the object behind it in an

animated sequence. (Settings: 40 frames, 15 fps)

To apply a cloud effect:

1 In the EasyPalette file directory, select

Global Effects: Cloud. Click the F/X

button on the Attribute Toolbar. Cloud

appearsonthePropertiesmenu.

2 On the Timeline Control, add a key frame

at frame 40.

3 At frame 1, on the Attribute Toolbar, set

the Cloud Type to Random, the Density

to 100, the Transparency to 0, and

specify a Color if desired. Set the X

Scale to 50 and the Y Scale to 25, giving

the clouds a flat, horizontal look.

4 Scroll down to the next set of attributes.

The default value for Move X, Y, and Z

should be 0. Experiment with different

random numbers for Seeduntil you see

the cloud effect that you want. Set the

Variation to 80 so that the clouds vary

from one another in size.

5 At frame 40, scroll back to the first level

of attributes. Set the Density to 90, and

the Transparency to 100. This makes the

cloudsevaporateconsiderably.

6 Scroll down to the second level of

attributes. Set the Move X and Move Z

values to 50. This makes the clouds move

to the left and away from you.

7 ClickPlay to preview the animation.

Click here to view an animation

Ulead COOL 3D

PLPL

PLUG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS III

Fireworks

Add a celebratory spirit to your 3D title by setting off fireworks. The many options on the

Attribute Toolbar let you determine where the fireworks explode, as well as how the

colors change during the course of the explosion. In this tutorial, learn how to set off three

fireworks in sequence at a single point in the title. (Settings: 30 frames, 15 fps)

Lighting Effects

To apply fireworks to a project:

1 In the EasyPalette file directory, select

Lighting Effects: Fireworks. Click the

F/X button on the Attribute Toolbar.

Fireworks appears on the Properties

menu.

2 At frame 1 on the Attribute Toolbar, set

the Amount of fireworks to 3, and set the

Current firework to 1. The Level should

be 0 by default.

3 Scroll down to the last row of attributes.

Set all Position values, the Initial Speed,

and the Gravity to 0.

4 Add a key frame to frame 25 of the

animation. On the first level of attributes,

set the Level to 100 to complete the

explosion.

5 At frame 1, select firework 2 as the

Current firework to edit. On the last

level of attributes, make the same settings

as step 3, then add a key frame to frame

10. At both key frames, the Level should

be 0. Add a key frame to frame 30, and

set the Level to 100.

6 At frame 1, select firework 3 as the

Current firework. On the last level of

attributes, make the same settings as step

3, then add a key frame to frame 20. Add

a key frame to frame 30, and set the

Level to 100.

7 ClickPlayto preview the animation.

Click here to view an animation

USER GUIDE

PLPL

PLUG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS III

Lens Flare

This plug-in can enhance your title by simulating the effects of light rays refracting in a

camera lens. Experiment with different lens options and colors to get the effect that

matches the spirit of your title. Learn how to make an object fly off into a burst of lens

flares in this tutorial. (Settings: 30 frames, 15 fps)

To apply the lens flare effect:

1 Insert an object into the project. On the

Standard Toolbar, click the Move Object

Button, then add a key frame to frame 30

ofthe animation.

2 At frame 1 on the Location Toolbar, enter

-800 for the Z value. At frame 30, enter

500 for the Z value.

3 In the EasyPalette file directory, select

Lighting Effects: Lens Flare. Click the

F/X button on the Attribute Toolbar. Lens

Flare appears on the Properties menu.

4 On the Timeline Control, add key frames

to frames 10, 20, and 30. Then, drag the

start of the red Control Line so that the

line covers only frames 10 through 30.

This makes the plug-in take effect only in

theseframes.

5 At frame 10 on the Attribute Toolbar, set

the Size to 5 and the Brightness to 100.

6 Scroll down to the next level of attributes,

and set the Light Position coordinates to

7 On the last level of coordinates, set the

Distance to 0 and Extra Strength to

220.

8 At frame 20, set the Size to 100 and

Extra Strength to 300.

9 At frame 30 of the animation, set the Size

to 75. Enter 20 for Light Position X and

Y, set the Distance to 30, and Extra

Strength to 150.

10 Click Play to preview the animation.

Click here to view an animation

Ulead COOL 3D

PLPL

PLUG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS III

Light Bulb

Put an eye-catching flash into your project with this plug-in effect. When animating this

effect, you can have it illuminate the 3D object from either the front or the back. In this

tutorial, combine the Light Bulb plug-in with a basic Light setting for an illuminating

effect. (Settings: 30 frames, 15 fps)

Click here to view an animation

To apply a light bulb effect:

1 In the EasyPalette file directory, select

Lighting Effects: Light Bulb. Click the

F/X button on the Attribute Toolbar.

Light Bulb appears on the Properties

menu.

2 At frame 1 on the Attribute Toolbar, set

the Brightness to 0. Scroll down to the

next set of attributes to make other

settingsas needed.

3 Add a key frame to frame 30. Set the

Brightness of the light to 200. Scroll

down to the next level, and increase the

Star Size to 100 and the Sun Size to 40.

4 Next, make settings to the light that

shines on the object. In the EasyPalette

file directory, select Object Style: Light &

Color. On the Attribute Toolbar, select

Light from the Adjust menu. On the

Properties menu, select Light to edit its

timeline.

5 At frame 1, click the buttons for Lights 1

and 4 to toggle them on, and toggle off

Lights 2 and 3.

6 Click the radio button for Light 1, set its

Color to black and its Mode to Point.

Click the Position Light Source button,

and on the Location Toolbar, enter a

positive value for Z to position the light

sourcebehind the object.

7 Repeat step 6 for Light 4. The object

should not be visible at this point.

8 Add a key frame to frame 30. Set a bright

color for both lights.

9 ClickPlayto preview the animation.

USER GUIDE

PLPL

PLUG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS III

Sparkler

Add glimmering attraction to you text or project by using the Sparkler effect. Sparklers

can be stationary, or they can move along a specially designed path. This tutorial shows

you how to combine it with an explosion for a brilliant effect. (Settings: 30 frames, 15

fps)

To apply a sparkler effect:

1 In the EasyPalette file directory, select

Lighting Effects: Sparkler. Click the F/X

button on the Attribute Toolbar. Sparkler

appearsonthePropertiesmenu.

2 At frame 1 on the Attribute Toolbar, set

the Mode to Natural Light, the Range to

20, the Density to 10, and the Brightness

to 50. Set the Level to 0, then scroll down

to the next set of attributes. Set the Path

to None, and adjust the X and Y coordi-

nates for Start Position until the sparkle

appears where you want.

3 Add a key frame to frame 30. Set the

Range to 100, the Density to 100, and

the Brightness to 400.

4 Just above the Timeline Control, adjust

the red Animation Control so that it

spans only frames 1 through 15. This

ensures that previews will be faster.

5 In the EasyPalette file directory, select

Object Effects: Explosion. Click the F/X

button to activate it.

6 On the timeline for Explosion, add key

frames to frames 15 and 30 of the

animation.

7 On the Attribute Toolbar for frames 1 and

15, set the Movement Type to Shatter

and set the Collapse Type and Action

Sequence to All. The Level should be 0

bydefault.

8 At frame 30, set the Level to 100 so that

theobjectexplodescompletely.Then,

adjust the red Animation control so that

it covers only frames 15 to 30.

9 ClickPlay to preview the animation.

Click here to view an animation

Ulead COOL 3D

PLPL

PLUG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS IIIUG-IN MADNESS III

UG-IN MADNESS III

Spotlight

Make your 3D object the center of attention with this plug-in effect. Have one or more

spotlights shine on your title from any direction. For added interest, combine a few

spotlights, each in a different color. This tutorial shows you how to animate the effect.

(Settings: 40 frames, 15 fps)

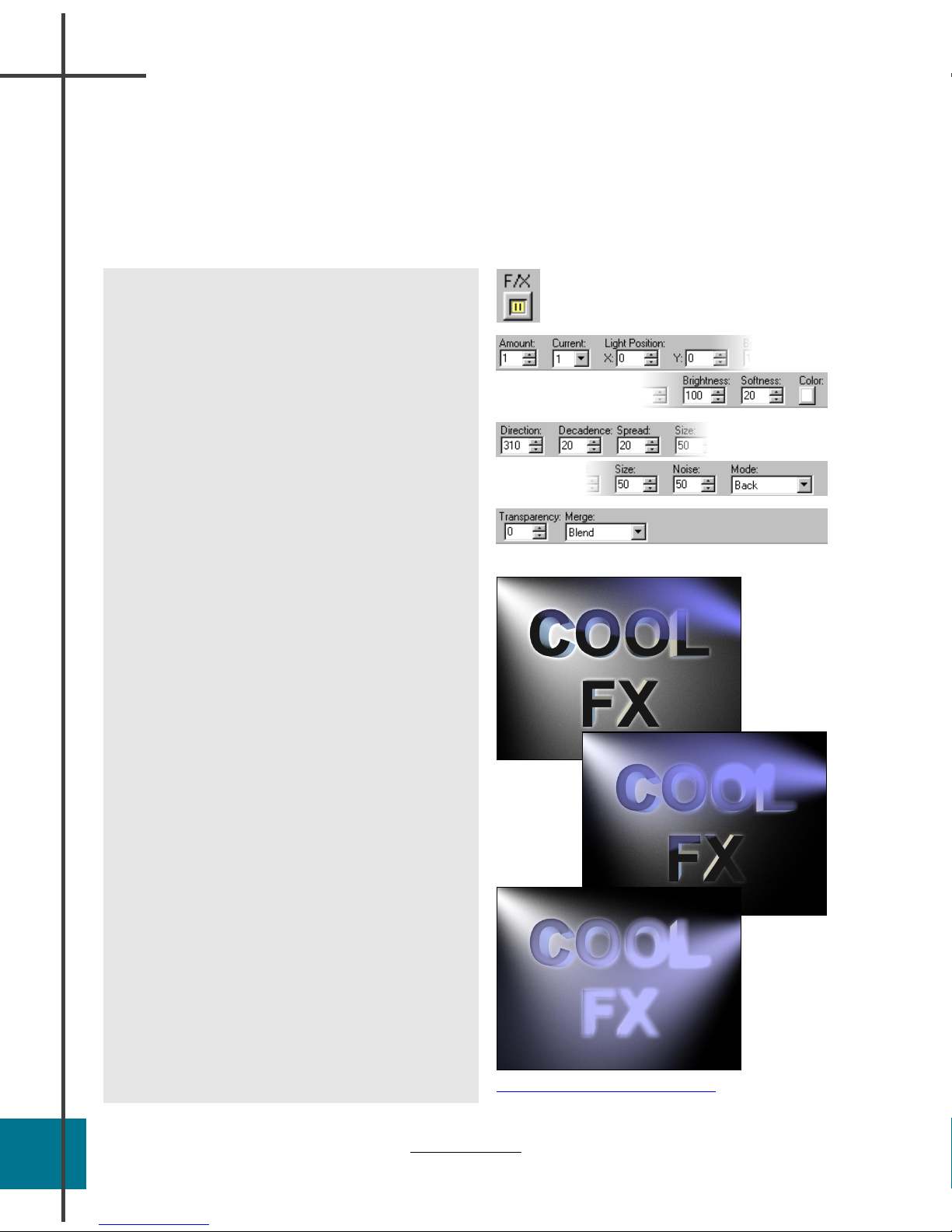

To apply a spotlight effect:

1 In the EasyPalette file directory, select

Lighting Effects: Spotlight. Click the F/X

button on the Attribute Toolbar. Spotlight

appearsonthePropertiesmenu.

2 At frame 1 on the Attribute Toolbar, set

the Amount of lights to 2, and select

spotlight 1 as the Current light to edit.

Set the Light Position X to -100 and the

Light Position Y to 90.

3 Scroll down to the next level of attributes.

Set the Direction to 320, Decadence to

60, and Spread to 30. By default, the

Mode should be set to Back, so that the

spotlightshines frombehind theobject.

Add a key frame to frame 20 of the

animation. The attributes at this key

frame should be the same as in frame 1.

4 Add a key frame to frame 10. Set the

Brightness to 300. On the second level

of attributes, set the Decadence to 20 and

the Spread to 50.

5 At frame 1, select spotlight 2 as the

Current light. Set the Light Position X

to 100 and the Light Position Y to 50.

6 On the second level of attributes, set the

Direction to 140, Decadence to 100, and

Spread to 20. Select Front as the Mode,

so that the light source is positioned in

front of the object.

7 Add a key frame to frame 30. Set the

Brightness to 250. On the next level of

attributes, set the Direction to 210, the

Decadence to 20, and the Spread to 40.

8 ClickPlayto preview the animation. Click here to view an animation

Other manuals for COOL 3D-PLUG-IN MADNESS II

Other Ulead Software manuals

Ulead

Ulead VIDEOSTUDIO 11 User manual

Ulead

Ulead DVD WORKSHOP 2 - User manual

Ulead

Ulead USBAV-701 User manual

Ulead

Ulead VideoStudio 7 User manual

Ulead

Ulead PHOTO EXPLORER VERSION 8.0 User manual

Ulead

Ulead BURN.NOW 1.5 User manual

Ulead

Ulead MEDIASTUDIO PRO 7 User manual

Ulead

Ulead QUICK DROP 2.0 - VERSION 2006 User manual

Ulead

Ulead MOVIEFACTORY 5 PLUS User manual

Ulead

Ulead VideoStudio 9 User manual

Ulead

Ulead QUICK DROP 2.0 - VERSION 2006 User manual

Ulead

Ulead DVD MOVIEFACTORY-DVD PLUG-IN User manual

Ulead

Ulead DVD PictureShow 2 User manual

Ulead

Ulead PHOTO EXPLORER 8.5 User manual

Ulead

Ulead DVD DISCRECORDER 2.2 User manual

Ulead

Ulead GIF ANIMATOR 5 User manual

Ulead

Ulead INSTAMEDIA - TIME-SHIFT User manual

Ulead

Ulead DVD WORKSHOP 2 - User manual

Ulead

Ulead MEDIASTUDIO PRO 8 User manual

Ulead

Ulead BURN.NOW 4 User manual

Ulead

Ulead MEDIASTUDIO PRO 6.0 User manual

Ulead

Ulead BURN.NOW 4.5 User manual

Ulead

Ulead VIDEO TOOLBOX 2 HOME EDITION User manual

Ulead

Ulead PHOTOIMPACT MENU PLUG-IN User manual

Popular Software manuals by other brands

COMPRO

COMPRO COMPROFM manual

Muratec

Muratec OFFICEBRIDGE ONLINE user guide

Oracle

Oracle Contact Center Anywhere 8.1 installation guide

Adobe

Adobe 65007312 - Photoshop Lightroom Programmer's guide

Avaya

Avaya NULL One-X for RIM Blackberry user guide

HP ProLiant BL420c user guide

PS Audio

PS Audio PowerPlay Programming manual

Brady

Brady LOCKOUT PRO 3.0 Administrator's guide

Avaya

Avaya Interaction Center user guide

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Guide book

Novell

Novell GROUPWISE 8 - INTERNET AGENT manual

Oracle

Oracle Application 9i Configuration guide

Acer

Acer RDM user guide

Canon

Canon Vixia HF21 instruction manual

Canon

Canon ZR950 instruction manual

Samsung

Samsung Auto Backup user manual

Polycom

Polycom Vortex EF2201 Application note

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c user manual
