Ubiquiti Loco5AC User manual

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

NanoStation loco Zip Tie

Package Contents

Installation Requirements

Shielded Category 5 (or above) cabling with drain wire should be used for all outdoor

wired Ethernet connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments and

destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For

more details, visit ui.com/toughcable

Surge protection should be used for all outdoor installations. We recommend that you use

two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation loco and the

other at the entry point to the building. The ETH-SP will absorb power surges and safely

discharge them into the ground.

Loco5AC Quick Start Guide

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

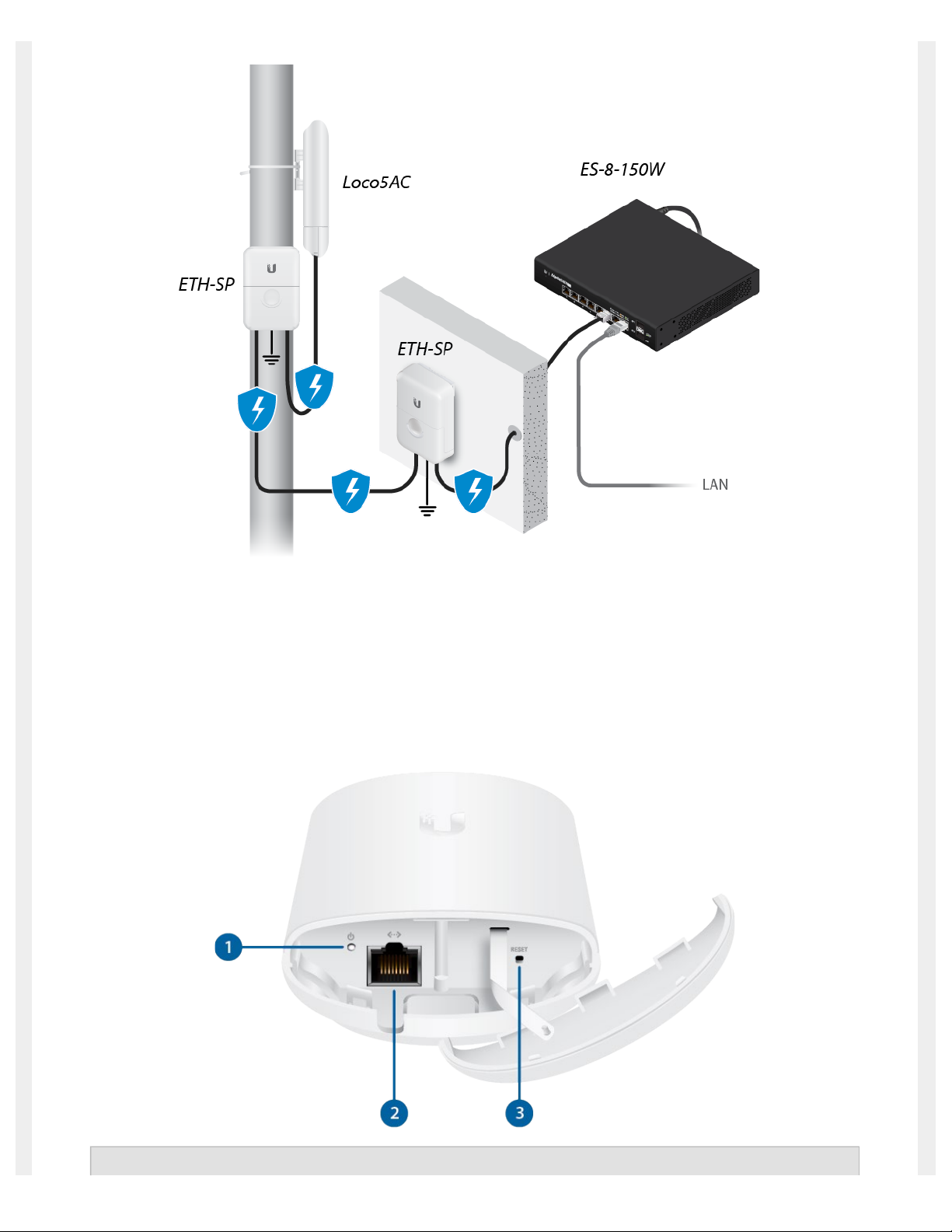

Diagram Showing Use of Ethernet Surge Protectors

Hardware Overview

Port View

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

Power LED

Ethernet Port

Reset Button

The Power LED will light blue when the device is connected to a power source.

10/100/1000 Ethernet port used to connect the power and should be connected to the

LAN and DHCP server.

To reset to factory defaults, press and hold the Reset button for more than 10 seconds

while the device is powered on.

Hardware Installation

1.

2.

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

Pole Mount

1.

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

2.

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

3.

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

Connecting Power

WARNING: The switch port must comply with the power specifications listed in this

“Specifications”.

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

Accessing airOS via Wi-Fi

Verify connectivity in the airOS® Configuration Interface using the UNMS™ app or Web Portal.

Both are available for 15 minutes immediately after you power on the device. If necessary,

you can power cycle the device to re-enable its Wi-Fi.

UNMS App

1. Download the UNMS app.

2. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address>

3. Launch the app and follow the on-screen instructions.

Web Portal

1. Connect your device’s Wi-Fi to the SSID named: <model>:<MAC Address>

Note: Ensure that DHCP is enabled on your Wi-Fi adapter.

Note: Ensure that your Wi-Fi connection has DHCP enabled.

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

2. Launch your web browser and go to: http://setup.ui.com

3. Select your Country and Language. You must agree to the Terms of Use to use the

product. Click Continue.

4. Create a username and password. Confirm your new password and then click Save.

Loco5AC Quick Start Guide

https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]

The airOS Configuration Interface will appear, allowing you to customize your settings as

needed. For additional details, refer to the User Guide available at ui.com/download/airmax-

ac

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer’s responsibility to

make sure the device is operated within local country regulatory requirements.
