UniFi AP FlexHD Base Mount Outdoor Mount

Wall/Pole Mount PoE Adapter* (48V, 0.32A) Power Cord

Zip Ties (Qty. 2) Screws (Qty. 2) Screw Anchors (Qty. 2)

Package Contents

* Included only in the single-pack of the UAP-FlexHD

Installation Requirements

Phillips screwdriver

Cat5/6 UTP cable for indoor installations

Shielded Category 5 (or above) cabling should be used for all outdoor wired

Ethernet connections and should be grounded through the AC ground of the PoE.

System Requirements

UAP-FlexHD Quick Start Guide

LED

UniFi Cloud Key or Dream Machine, or machine running Linux, Mac OS X, or

Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.11.31 or newer (available at:

ui.com/download/uniﬁ

)

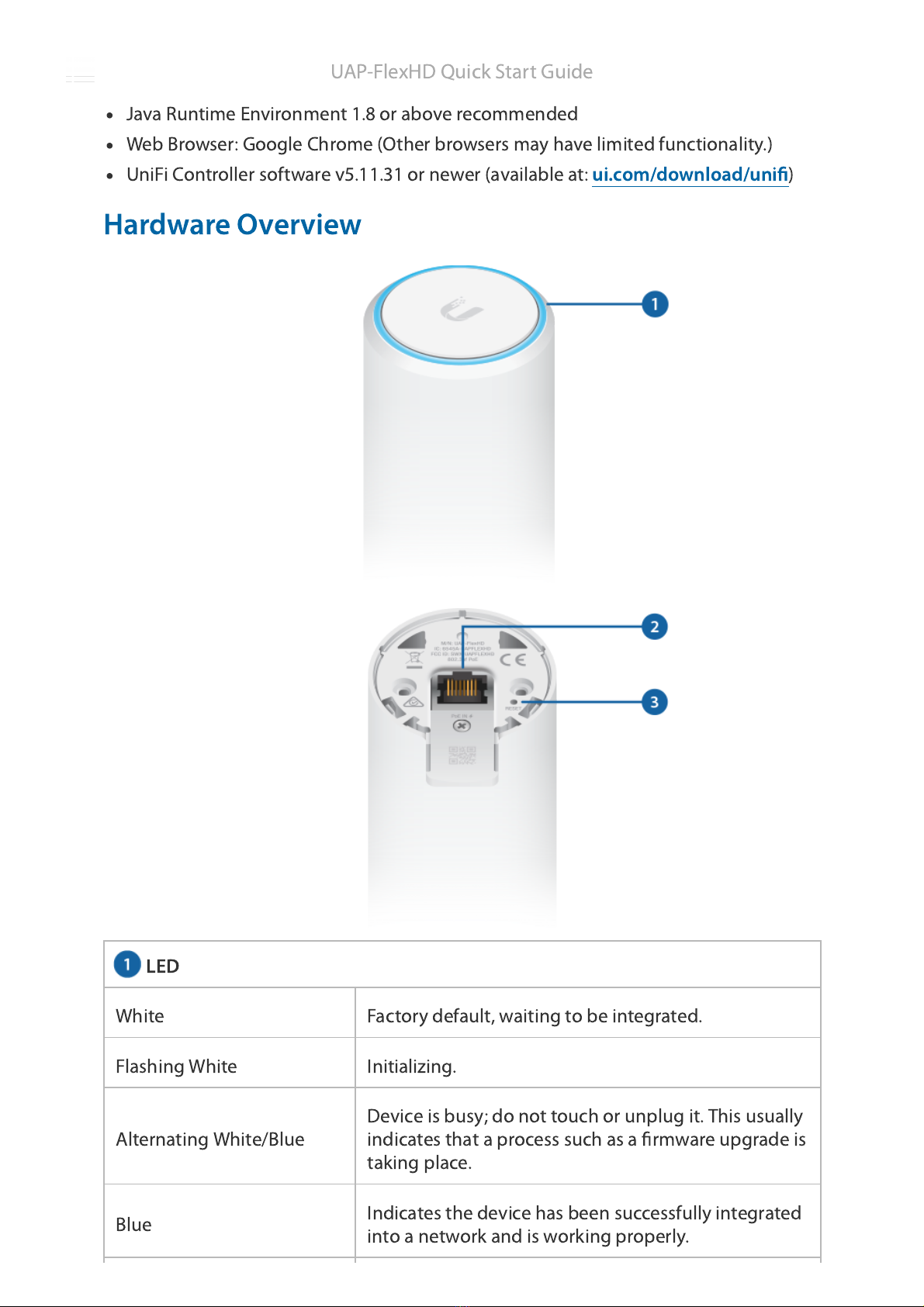

Hardware Overview

White Factory default, waiting to be integrated.

Flashing White Initializing.

Alternating White/Blue Device is busy; do not touch or unplug it. This usually

indicates that a process such as a ﬁrmware upgrade is

taking place.

Blue Indicates the device has been successfully integrated

into a network and is working properly.

UAP-FlexHD Quick Start Guide

Ethernet Port

Reset Button

Quickly Flashing Blue This is used to locate an AP.

When you click Locate in the UniFi Controller

software, the AP will ﬂash. It will also display the

location of the AP on the map.

Steady Blue with

Occasional Flashing Indicates the device is in an isolated state (all WLANs

are brought down until an uplink is found).

This Gigabit Ethernet port is used to connect 802.3af PoE power and should be

connected to the LAN and DHCP



server.

The Reset button serves two functions for the UniFi AP:

Restart

Press and release the Reset button quickly.

Restore to Factory Default Settings

Press and hold the Reset button for more

than ﬁve seconds.

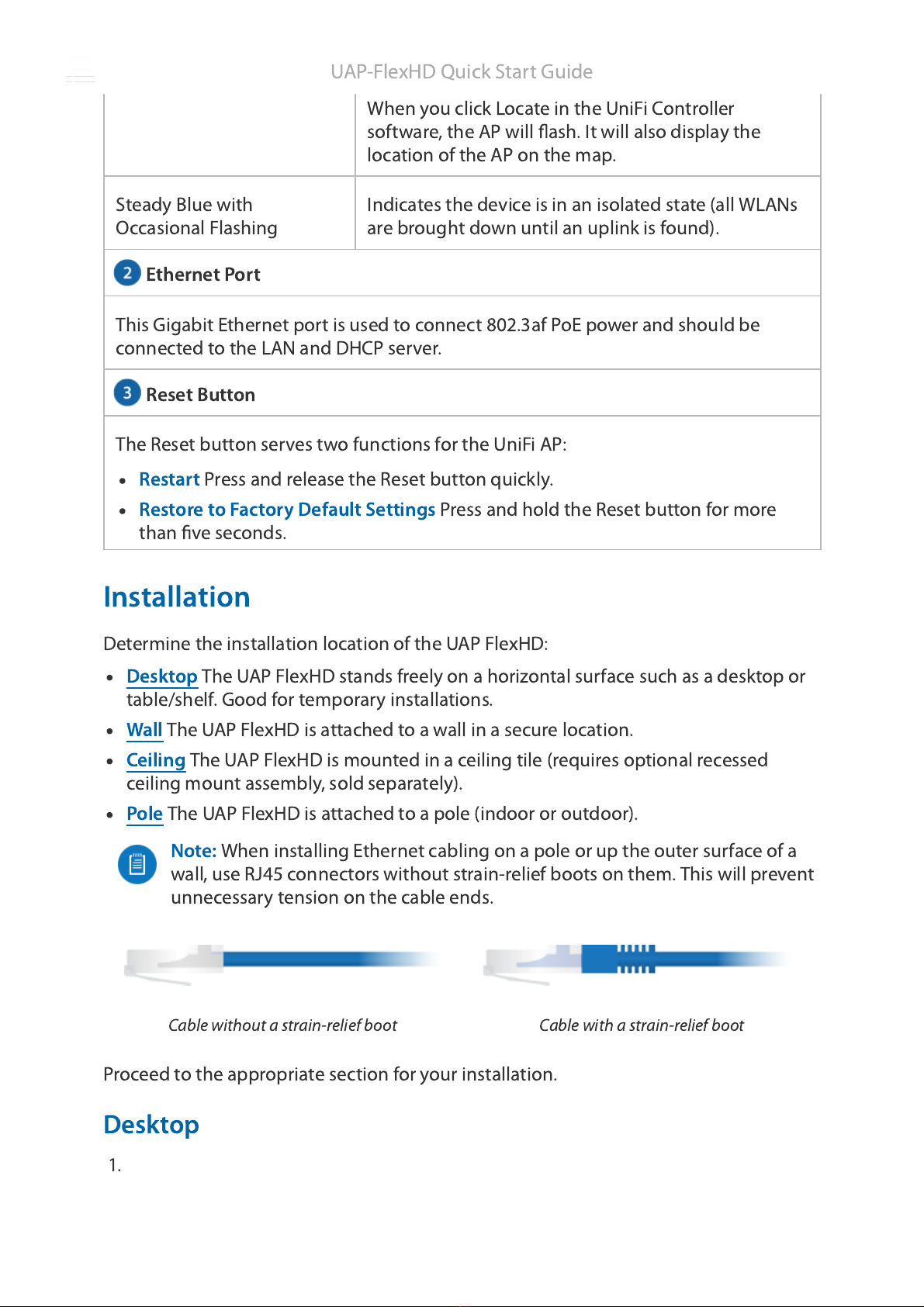

Installation

Determine the installation location of the UAP FlexHD:

Desktop

The UAP FlexHD stands freely on a horizontal surface such as a desktop or

table/shelf. Good for temporary installations.

Wall

The UAP FlexHD is attached to a wall in a secure location.

Ceiling

The UAP FlexHD is mounted in a ceiling tile (requires optional recessed

ceiling mount assembly, sold separately).

Pole

The UAP FlexHD is attached to a pole (indoor or outdoor).

Note:

When installing Ethernet cabling on a pole or up the outer surface of a

wall, use RJ45 connectors without strain-relief boots on them. This will prevent

unnecessary tension on the cable ends.

Cable without a strain-relief boot Cable with a strain-relief boot

Proceed to the appropriate section for your installation.

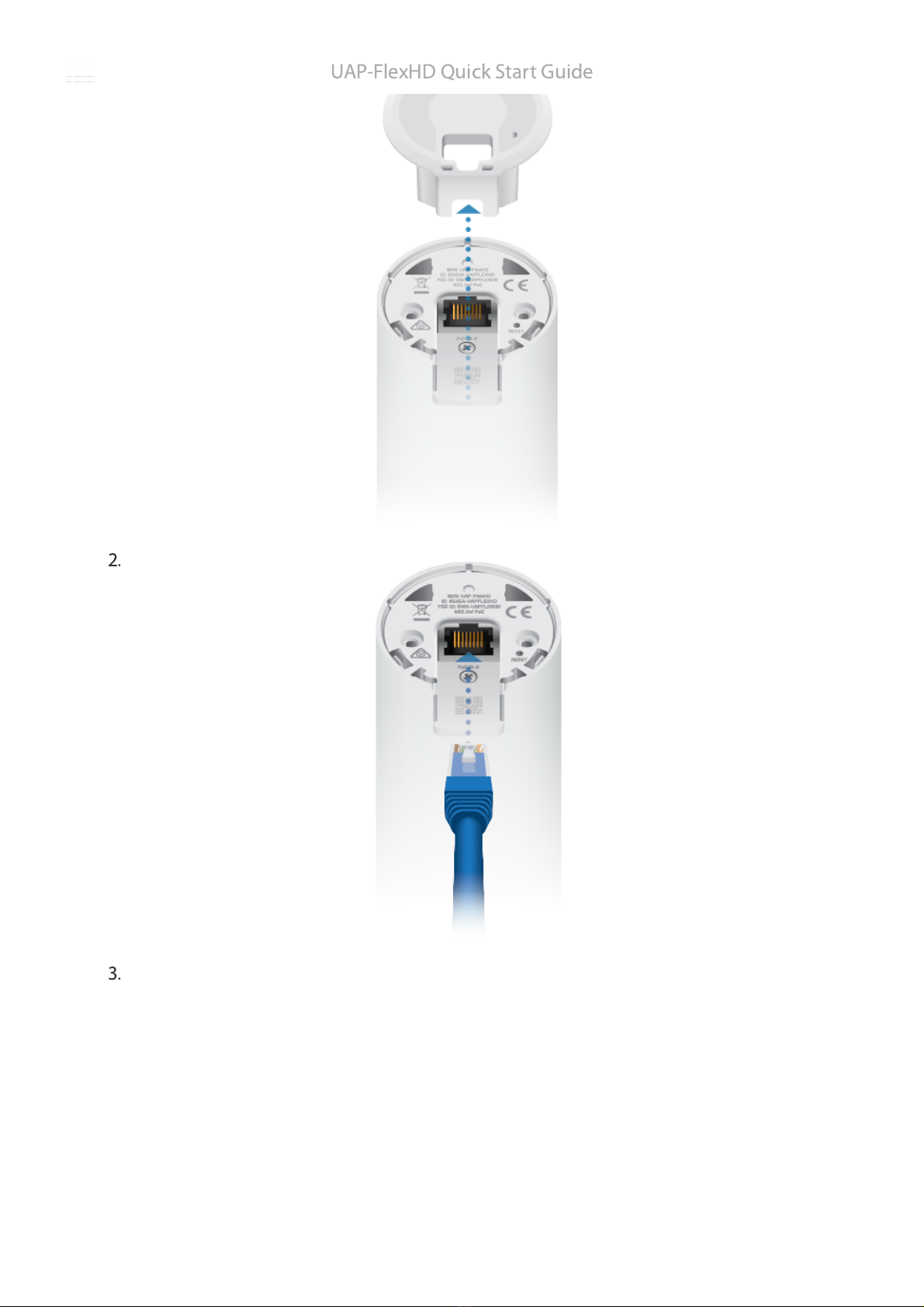

Desktop

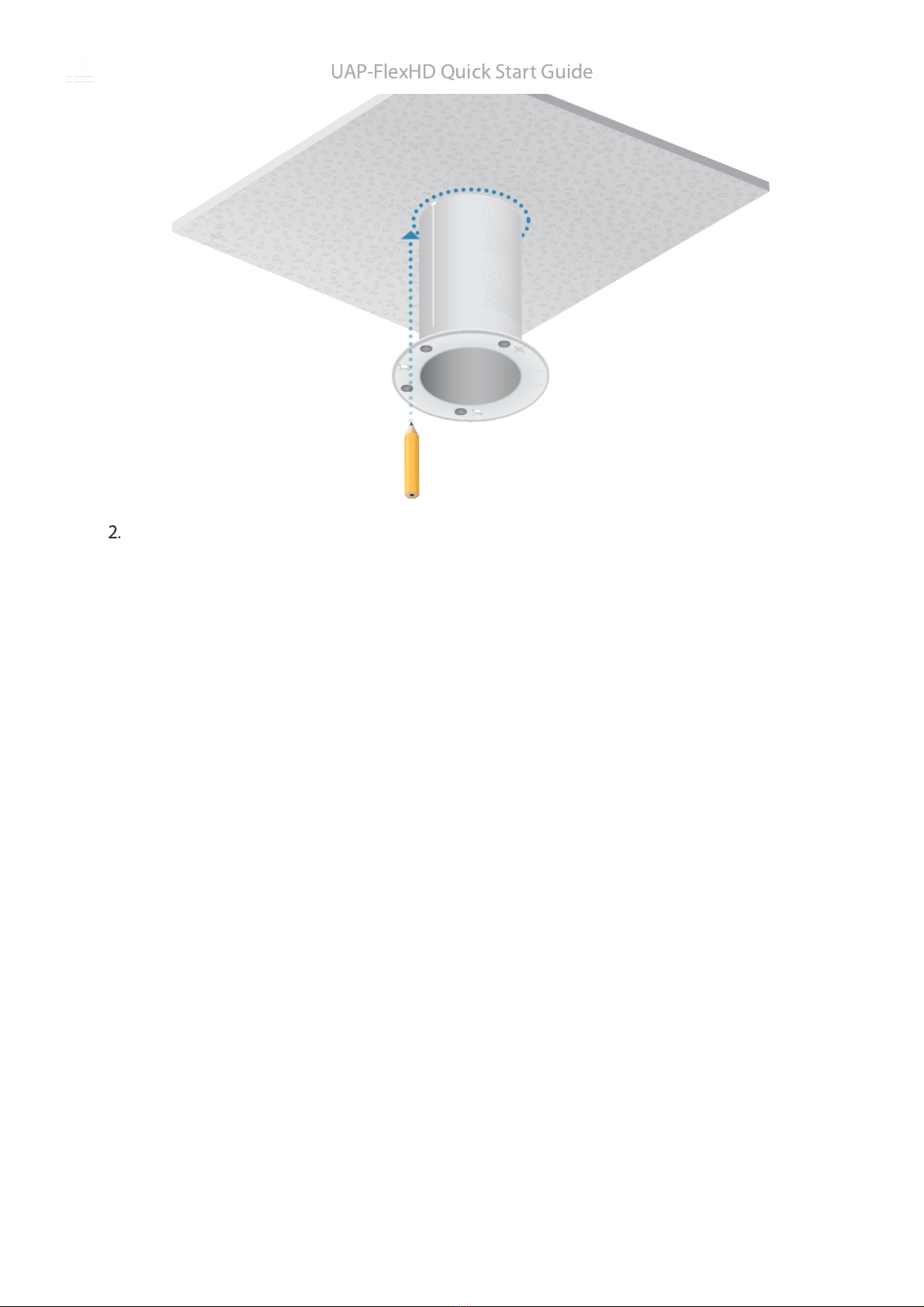

1.

UAP-FlexHD Quick Start Guide

2.

3.

UAP-FlexHD Quick Start Guide

4.

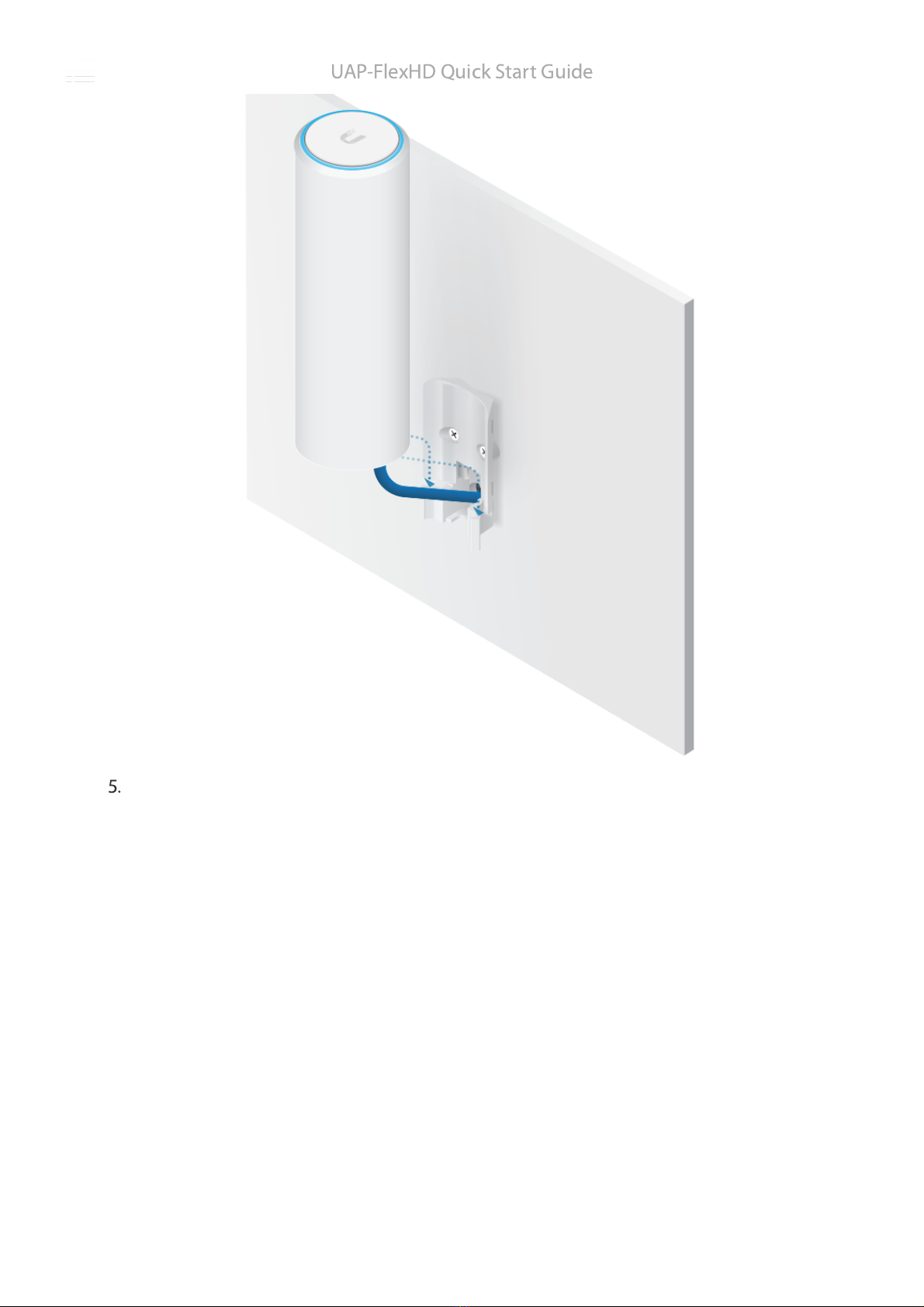

Wall

1.

UAP-FlexHD Quick Start Guide

2.

3.

UAP-FlexHD Quick Start Guide

4.

UAP-FlexHD Quick Start Guide

5.

UAP-FlexHD Quick Start Guide

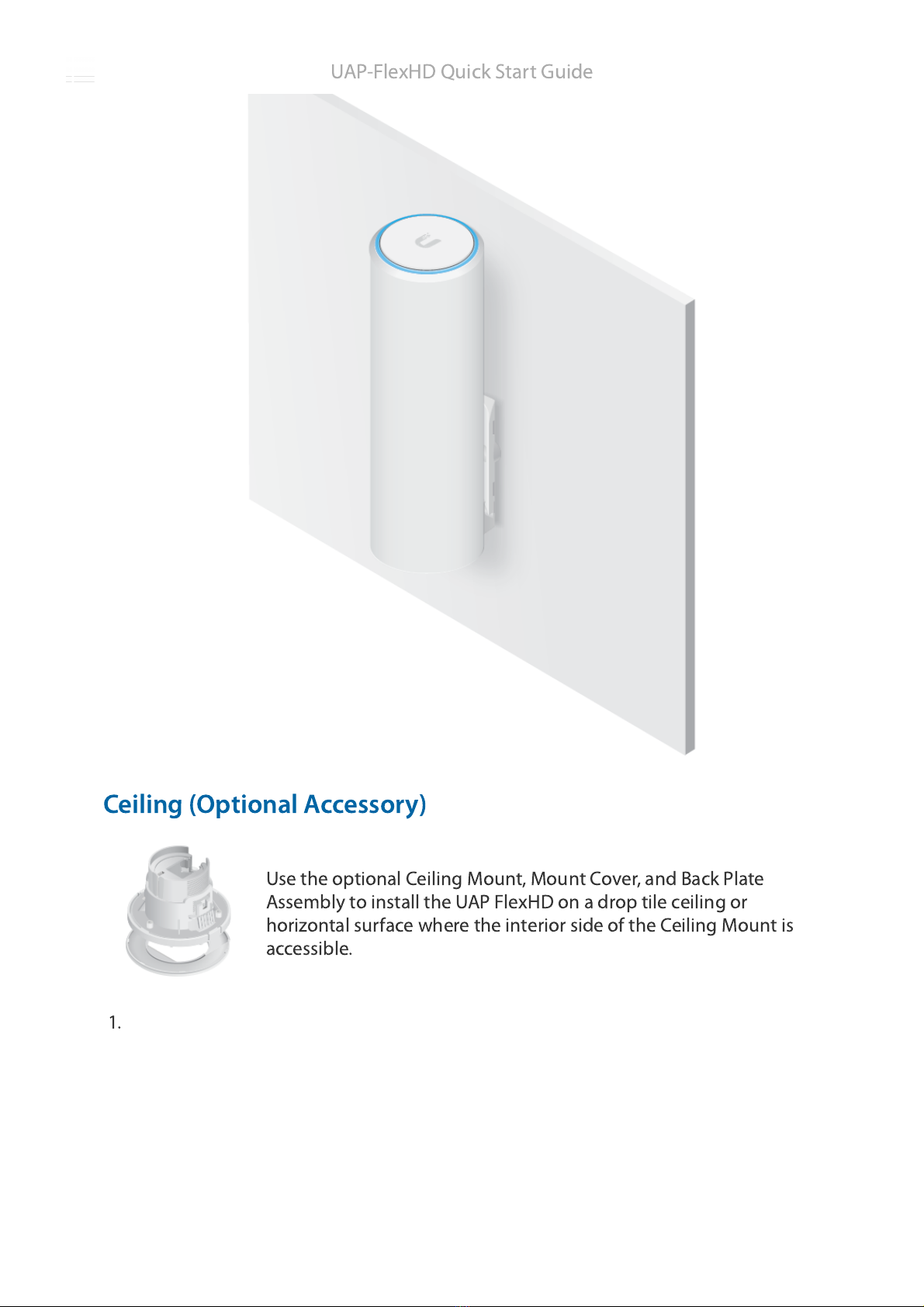

Ceiling (Optional Accessory)

Use the optional Ceiling Mount, Mount Cover, and Back Plate

Assembly to install the UAP FlexHD on a drop tile ceiling or

horizontal surface where the interior side of the Ceiling Mount is

accessible.

1.

UAP-FlexHD Quick Start Guide

2.

UAP-FlexHD Quick Start Guide
