Ubiquiti EdgeRouter ER-10X User manual
EdgeRouter ER-10X Wall Mount Screws (Qty. 2) Wall Mount Anchors (Qty. 2)
Ground Screw Power Adapter (24V, 1A) Cable Clip
Package Contents
Installation Requirements
Wall-mounting (optional)
Drill with 6 mm drill bit
Phillips screwdriver
For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be
used for all wired Ethernet connections and should be grounded through the
AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable
Note: Although the cabling can be located outdoors, the EdgeRouter itself
should be housed inside a protective enclosure.

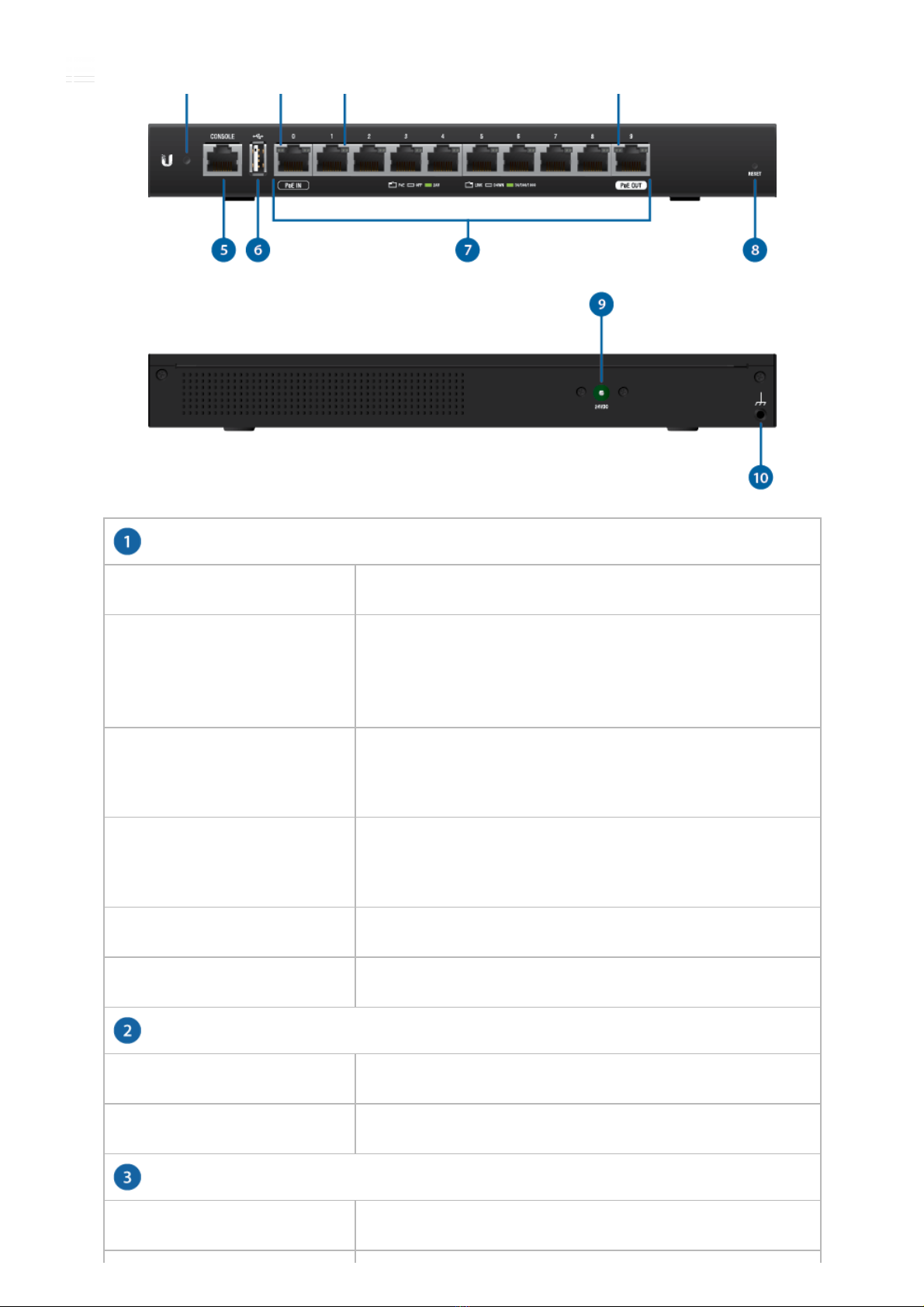

Hardware Overview
ER-10X Quick Start Guide
System LED
RJ45 PoE LED (Port 0)
RJ45 Speed/Link/Activity LED (Ports 0 - 9)
Flashing White Bootup in Progress
White
Ready for Use
Not Connected to Ubiquiti® Network Management
System (UNMS™)
Blue
Ready for Use
Connected to UNMS
Steady Blue with
Occasional Flashing
Ready for Use
Unable to Connect to UNMS
Quickly Flashing Blue Used to Locate a Device in UNMS
Alternating Blue/White Firmware Upgrade in Progress
Off No PoE
Green 24V Passive PoE Input
Off No Link
ER-10X Quick Start Guide
RJ45 PoE LED (Port 9)
Console
USB
RJ45 (Ports 0 - 9)
Reset Button
Power
Grounding Point
Green Link Established
Flashing Indicates Activity
Off No PoE
Green 24V 2-Pair Passive PoE Output
RJ45 serial console port for Command Line Interface (CLI) management.
Reserved for future use.
All RJ45 ports can be used for routing and support 10/100/1000 Mbps Ethernet
connections. Ports 0 - 9 can be configured for switching functions using the
EdgeOS® Configuration Interface.
PoE In (Port 0) Supports 24V Passive PoE input.
PoE Out (Port 9) Supports optional 24V Passive PoE passthrough (disabled
by default).
Click here to learn how to reset an EdgeRouter to factory defaults.
Connect the included Power Adapter to the Power port.
Ground bonding point for an optional ground wire.
Hardware Installation
Wall Mounting
1.
ER-10X Quick Start Guide
2.
3.
ER-10X Quick Start Guide
4.
Grounding the EdgeRouter (Recommended)
ER-10X Quick Start Guide
The Power Adapter grounds the device; however, you can add optional ESD
grounding for enhanced ESD protection (ground wire not included).
Optional
Connecting Power
ER-10X Quick Start Guide
Accessing the EdgeOS Configuration Interface
The EdgeOS® configuration interface can be accessed via DHCP or static IP
address assignment. By default, eth1 is set up as a DHCP client, while eth0 is
assigned a static IP address of 192.168.1.1. To configure the EdgeRouter,
proceed to the appropriate section: DHCP or “Static IP Address”.
DHCP
1. Connect an Ethernet cable from eth1 on the EdgeRouter to a LAN segment
that has an existing DHCP server.
2. To check the IP address of the EdgeRouter, use one of the following methods:
Set up the DHCP server to provide a specific IP address to the EdgeRouter
based on its MAC address (on the label).
Let the EdgeRouter obtain an IP address and then check the DHCP server
to see which IP address was assigned.
3. Launch your web browser. Enter the appropriate IP address in the address
field. Press enter (PC) or return (Mac).
4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License
Agreement, and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.
ER-10X Quick Start Guide
The EdgeOS Configuration Interface will appear, allowing you to customize your
settings as needed. For more information, refer to the EdgeOS User Guide, which
is available at ui.com/download/edgemax
For more information on PoE configuration, refer to “Configuring PoE Settings”.
Static IP Address
1. Connect an Ethernet cable from the Ethernet port on your computer to the port
labeled eth0 on the EdgeRouter.
2. Configure the Ethernet adapter on your host system with a static IP address on
the 192.168.1.x subnet.
3. Launch your web browser. Type https://192.168.1.1 in the address field. Press
enter (PC) or return (Mac).
4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License
Agreement, and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.
ER-10X Quick Start Guide
The EdgeOS Configuration Interface will appear, allowing you to customize your
settings as needed. For more information, refer to the EdgeOS User Guide, which
is available at ui.com/download/edgemax
For more information on PoE configuration, refer to “Configuring PoE Settings”.
UNMS Management
You can manage your device using UNMS, which lets you configure, monitor,
upgrade, and back up your devices using a single application. Get started at
www.unms.com
Configuring PoE Settings
The PoE setting for port 9 is set to Off by default.
WARNING: Before activating PoE, ensure that the connected device
supports passive PoE and the supplied voltage.
1. In the Dashboard tab, click Actions > PoE of the Ethernet port you want to
configure.
ER-10X Quick Start Guide
2. The Interface Configuration window will appear. Select the appropriate PoE
setting, and click Save.
3. The Ethernet port’s PoE LED will confirm the PoE setting.
For detailed instructions on configuring other features, please refer to the
EdgeOS User Guide. The User Guide is available at ui.com/download/edgemax
Specifications
ER-10X
Dimensions 268.1 x 136.5 x 31.1 mm
(10.55 x 5.37 x 1.22")
Weight 600 g (1.32 lb)
Enclosure Characteristics Metal Housing
Max. Power Consumption 8W (Excludes PoE Output)
Power Method External AC/DC Power Adapter, 24W (24V, 1A)
(Included)
24V Passive PoE
Power Supply External AC/DC Adapter
ER-10X Quick Start Guide
