Ubiquiti UniFi Switch Flex User manual

UniFi Switch Flex Wall Mount Pole Mount

Port Cover Mounting Screws (Qty. 2) Screw Anchors (Qty. 2)

Package Contents

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Zip Ties (Qty. 2)

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality)

UniFi Controller software v5.10.x (or newer), available at: ui.com/download/unifi

All UniFi devices support off-site management controllers. For setup details, refer to the

User Guide on the website: ui.com/download/unifi

Hardware Overview

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

RJ45 (Ports 1 - 5)

PoE In (Port 1)

System LED

RJ45 ports support 10/100/1000 Mbps Ethernet connections.

Supports 802.3af/at/bt

Steady White Factory defaults, awaiting adoption.

Flashing White Bootup in process.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

PoE LEDs (Ports 2 - 5)

Link/Speed/Activity LEDs (Ports 1 - 5)

Steady Blue Successfully adopted.

Flashing Blue Firmware upgrade in process.

Off No PoE

Amber Powered on, IEEE 802.3af

Off No Link

Green

Link established at 10/100/1000 Mbps

Flashing indicates activity

Hardware Installation

Wall Mounting

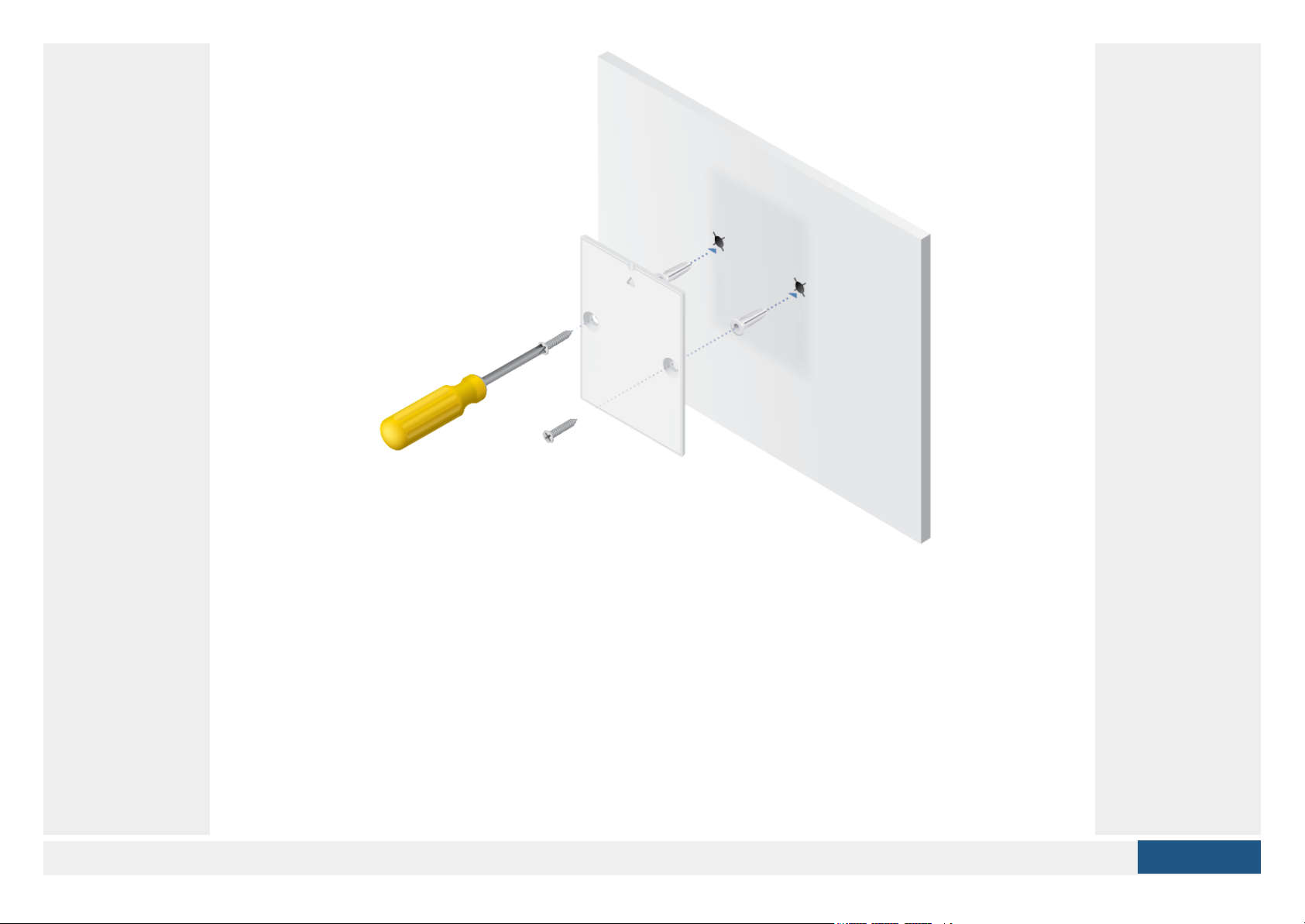

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

4.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Magnetic Mounting

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Pole Mounting

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Other manuals for UniFi Switch Flex

1

This manual suits for next models

1
