U-Line H-1713 User manual

PAGE 1 OF 5 0714 IH-1713

πH-1713

Take-a-number

sysTem (wireless)

1-800-295-5510

uline.com

TOOLS NEEDED

Large Flat Head Screwdriver

Phillips Screwdriver

Mini Flat Head Screwdriver

PAGE 2 OF 5 0714 IH-1713

COUNT PIECES BEFORE ASSEMBLING

CONTENTS OF LARGE RECLOSABLE BAG

(Stand and Wiring)

CONTENTS OF LARGE BOX

(Display)

CONTENTS OF A SMALL BOX

(Wireless Push Button Set)

ADDITIONAL PARTS INCLUDED BUT NOT NEEDED

Transformer x 1

Mounting Stand x 1

Indicator x 1

Indicator Wall Mount Bracket x 1

Wireless Receiver x 1 Wireless Push button x 2

Large Phillips Screws x 2

CONTENTS OF MEDIUM BOX

(The Dispenser)

Large Slotted Screws x 3

Large Slotted Bolts x 2

Nuts x 2

INSIDE THE DISPENSER

Dispenser x 1

Allen Wrench x 1

(used to disconnect

bottom base from

stand post)

“Please Take A Number” Sign x 1

Dispenser Mounting Bracket x 1

Label Sheet x 1

Wall Anchors x 2

Flat Indicator Wall

Mount Bracket x 1

Data Connector x 2 Power Connector x 1

PARTS

PAGE 3 OF 5 0714 IH-1713

OPERATION

1. Customer takes a number from the Dispenser and

waits until the number appears on the Indicator.

2. Press (+) on the wireless push button once to display

the next number.

3. Press and hold (+) on the wireless push button to

advance the numbers by tens.

4. Use (–) on the wireless push button to go back one

number at a time.

NUMBER DISPENSER

Can be mounted to either the wall or stand.

WALL MOUNTING

1. Mark mounting holes

on wall using Dispenser

Mounting Bracket as a

template. (See Figure 1)

2. Drill holes using 3⁄16" to

5⁄16" drill bit.

3. Use wall anchors (not

included) if attaching to

surfaces other than solid

wood.

4. Position Sign and Dispenser Mounting Bracket (longer

holder at the top) over holes in wall and fasten with

two slotted screws. (See Figure 2)

5. Snap Dispenser into Mounting Bracket. (See Figure 3)

STAND MOUNTING

1. Position Mounting Stand in the desired location on

countertop.

FOR CLEAN, SMOOTH SURFACES: Remove backing

from adhesive strips on the base of the Mounting

Stand and secure to surface.

FOR PERMANENT MOUNTING: Using the base of

Mounting Stand as a template, mark and drill 4

holes and secure base of stand to surface with 4

screws (not included).

2. Align holes in Sign and Mounting Bracket (longer

holder on top) with holes in post. Push two large slotted

bolts through Bracket and Sign and secure with nuts.

(See Figure 4)

3. Snap Dispenser into Mounting Bracket. (See Figure 3)

LOADING DISPENSER

1. Pull down Locking Bar to open Dispenser.

2. Drop in Number Roll (not included) so the numbers

roll out from the bottom. (See Figure 5)

3. Pull end of roll through end of Dispenser. Close

Dispenser and snap Locking Bar back into place.

12 3

5 - 5.5 mm

1 inch

min.

SIGN

Figure 1

BOTTOM VIEW

Adhesive Strips

Figure 4

12 3

5 - 5.5 mm

1 inch

min.

SIGN

Figure 2 Figure 3

NUMBER ROLL

(NOT INCLUDED)

LOCKING BAR

Figure 5

OPERATION AND USE OF DISPENSER

PAGE 4 OF 5 0714 IH-1713

ELECTRONIC INDICATOR

MOUNTING BRACKET TO WALL

1. Determine where to place the Indicator so it is easily

seen by customers.

2. Mark mounting holes on wall using the Indicator Wall

Mount Bracket as a template. (See Figure 6)

3. Drill holes using 5⁄16" drill bit.

4. Use wall anchors (included) if attaching to surfaces

other than solid wood.

5. Position Indicator Wall Mount Bracket over drilled

holes and fasten with two large phillips screws.

(See Figure 7)

TRANSFORMER

Plug the transformer into either of the two power

receptacles located on the back of Indicator.

(See Figure 8)

CONNECTING WIRELESS RECEIVER

1. Place the pin connector of the wireless receiver

on the pins located on the back of Indicator. (See

Figure 9)

2. Remove backing from adhesive strips on the wireless

receiver and mount it on the back of the indicator.

SET-UP

SETTING SOUND TONE AND VOLUME

Use a mini screwdriver to change the tone and volume

switches on back of the Indicator. (See Figure 10)

Set the Sound Tone with Switches 1-2:

•No Sound: SW1-OFF, SW2-OFF

•Single Tone: SW1-OFF, SW2-ON

•Double Tone: SW1-ON, SW2-OFF

•Triple Tone: SW1-ON, SW2-ON

Set the Volume with Switches 3-4:

•Low Volume: SW3-OFF, SW4-OFF

Figure 6 Figure 7

Figure 8

PIN CONNECTOR

Figure 9

Figure 10

INDICATOR - MOUNTING AND INSTALLATION

PAGE 5 OF 5 0714 IH-1713

•Medium Volume: SW3-ON, SW4-OFF

(recommended in most cases)

•High Volume: SW3-OFF, SW4-ON

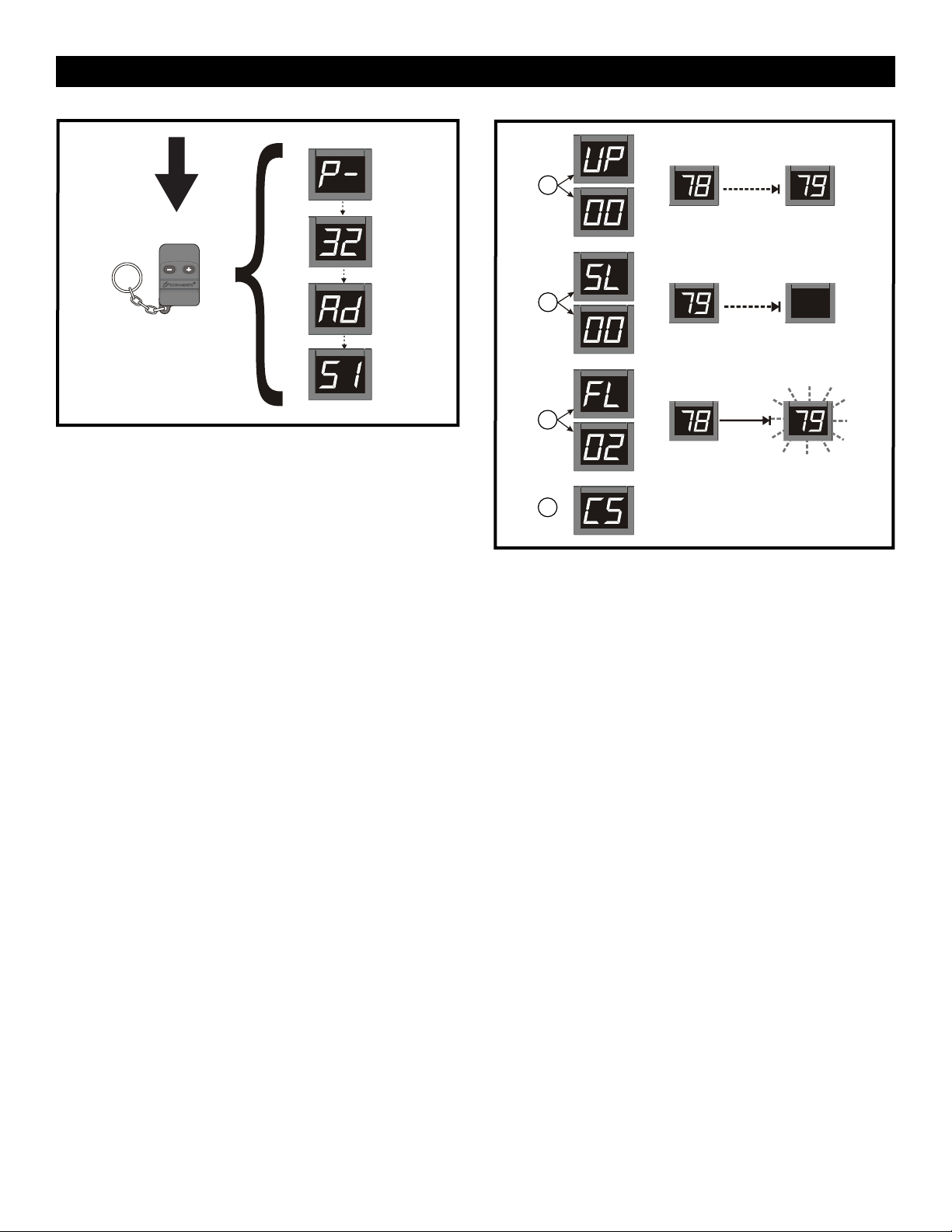

INDICATOR START-UP

The indicator displays a number of messages on

start-up once it is plugged in. (See Figure 11)

Indicator displays:

•Program Version: P-, then number

•TOM-Net Address: Ad, then 51

•Last Number Displayed when power was

disconnected: Number, (‘00’ if first-time start-up.)

•Error message if Indicator is set as a duplicate

Master: ‘Ed’

INDICATOR SET-UP (See Figure 12)

Restart the Indicator by unplugging it and plugging it

back in. Hold down (+) on the wireless push button while

the Indicator Start-up displays “RUN” to enter the set-up

options.

1. Set Indicator Update delay:

•Indicator shows ‘UP’ followed by the current delay

time in seconds, (ex. ‘00’). Press (+) on the wireless

push button to increase the delay 1 second at a

time.

•After 3 seconds without pushing the button, the Set

Indicator Sleep Time ‘SL’ appears.

2. Set Indicator Sleep Time

•Indicator shows ‘SL’ followed by the current setting in

minutes. (The Indicator shuts off after a set period of

time with no button pushes.) Press (+) on the wireless

push button to increase the delay before the

Indicator goes into sleep mode 1 minute at a time.

•After 3 seconds without pushing the button, the set

Indicator Flashes and ‘FL’ appears.

3. Set indicator Flashes when number changes:

•Indicator shows ‘FL’ followed by the current setting

showing number of flashes. Press (+) on the wireless

push button to increase the number of times the

indicator will flash when the number changes one

flash at a time.

4. After 3 seconds without pushing the button, the

indicator displays ‘CS’ and saves new settings to

memory.

Fi gu r e 11

Range: 00–99

Range: 00–29

Range: 00–09

Delay Time (seconds)

Sleep Time (seconds)

Number of Flashes (when changing)

Figure 12

INDICATOR CONTINUED

πCHICAGO•ATLANTA•DALLAS•LOSANGELES•MINNEAPOLIS•NYC/PHILA•SEATTLE•MEXICO•CANADA

1-800-295-5510

uline.com
