TurnOnGreen EV700 User manual
Installation
Guide
TurnOnGreenTM
EV700 Home Charger
2turnongreen.com
Important Safety Instructions
Save these instructions
1. Read and follow all warnings and instructions before installing and
operating theTurnOnGreen charging station. Install and operate only as
instructed. Failure to do so may lead to death, injury, or property damage, and
will void the Limited Warranty.
2. Only use licensed professionals to install your TurnOnGreen charging
station and adhere to all national and local building codes and standards.
Before installing the TurnOnGreen charging station, consult with a licensed
contractor, such as a licensed electrician, and use a trained installation expert
to ensure compliance with local building and electrical codes and standards,
climate conditions, safety standards, and all applicable codes and ordinances.
Inspect the charging station for proper installation before use.
3. Always ground the TurnOnGreen® charging station. Failure to ground the
charging station can lead to risk of electrocution or fire. The charging station
must be connected to a grounded, metal, permanent wiring system, or an
equipment grounding conductor shall be run with circuit conductors and
connected to the equipment grounding terminal or lead on the Electric Vehicle
Supply Equipment (EVSE). Connections to the EVSE shall comply with all
applicable codes and ordinances.
4. Install the TurnOnGreen charging station using a TurnOnGreen approved
method. Failure to install on a surface that can support the weight of the
charging station can result in death, personal injury, or property damage.
Inspect the charging station for proper installation before use.
5. This charging station is not suitable for use in hazardous locations. Do not
install EV700 near flammable, explosive, or combustible materials.
6. This device should be supervised when used around children.
7. Do not put fingers into the electric vehicle connector.
8. Do not use this product if the input power cable or EV charging cable is
frayed, has broken insulation, or any other signs of damage.
Call TurnOnGreen customer support immediately at 1-877-634-0982.
WARNING: This manual contains important instructions for EV700.
When using electric products, always follow basic precautions,
including the following.
turnongreen.com 3
9. Do not use this product if the enclosure or the EV connector is broken,
cracked, open, or shows any other indication of damage. Call TurnOnGreen
customer support immediately at 1-877-634-0982.
10. Use 105°C wire copper conductors only.
11. Do not operate EV700 in temperatures outside its operating range.
For charging stations set to 16-48 A, the range is -40˚F to 122˚F (-40˚C to 50˚C).
For charging stations set to 50 A, the range is -40˚ to 113˚F (-40 to 45˚C).
Important: Under no circumstances will compliance with the information in this
manual relieve the user of his/her responsibility to comply with all applicable
codes or safety standards. This document describes the most commonly used
installation and mounting scenarios. If situations arise in which it is not possible
to perform an installation following the procedures provided in this document,
contact TurnOnGreen, Inc. TurnOnGreen is not responsible for any damages
that may occur resulting from custom installations that are not described in this
document or for any failure to adhere to installation recommendations.
Product Disposal
The EV700 is electronic and therefore may not be disposed of as part of unsorted
domestic waste. Inquire with local authorities regarding proper disposal.
No Accuracy Guarantee
Commercially reasonable efforts were made to ensure that the specifications
and other information in this manual are accurate and complete at the time of its
publication. However, the specifications and other information in this manual are
subject to change at any time without prior notice.
Copyright and Trademarks
©2021 TurnOnGreen, Inc. All rights reserved. This material is protected by
the copyright laws of the United States and other countries. It may not be
modified, reproduced or distributed without the prior, express written consent
of TurnOnGreen, Inc. TurnOnGreen is a U.S. and European Union registered
trademark and service mark of TurnOnGreen, Inc. and cannot be used without
the prior written consent of TurnOnGreen.
4turnongreen.com
(This page was intentionally left blank.)
turnongreen.com 5
Table of Contents
Package Contents ...................................................................................7
Tools .............................................................................................................8
Location Planning.....................................................................................9
Electrical Requirements for Plug In...................................................11
Mounting the EV700 ............................................................................12
Complete Installation ...........................................................................13
Limited Warranty .....................................................................................16
6turnongreen.com
(This page was intentionally left blank.)
turnongreen.com 7
a. b. c.
Package Contents
Check the box to ensure you have the Quick Start Guide, this installation
guide, and these parts:
a. Charging station
• Mounting Bracket
• Input Cable (2 ft.)
• Output Cable (18 ft./24 ft. optional)
• Device/Mounting Bracket Joiner Screw
b. Screws (4) and washers (4)
c. User Guide
Notice: If any of the items listed above are absent, contact us at1-877-634-0982.
Notice: The EV700 Home charging station requires a NEMA 6-50 outlet.
Contact an electrician if you do not have a NEMA 6-50 installed. If you do
not know where to find one, refer to the
TurnOnGreen Quick Start Guide
or www.turnongreen.com/homeinstall for help.
NOTE: The EV700 contains no field serviceable parts. Do not attempt
to repair or service the unit yourself. Contact TurnOnGreen for repairs or
servicing.
8turnongreen.com

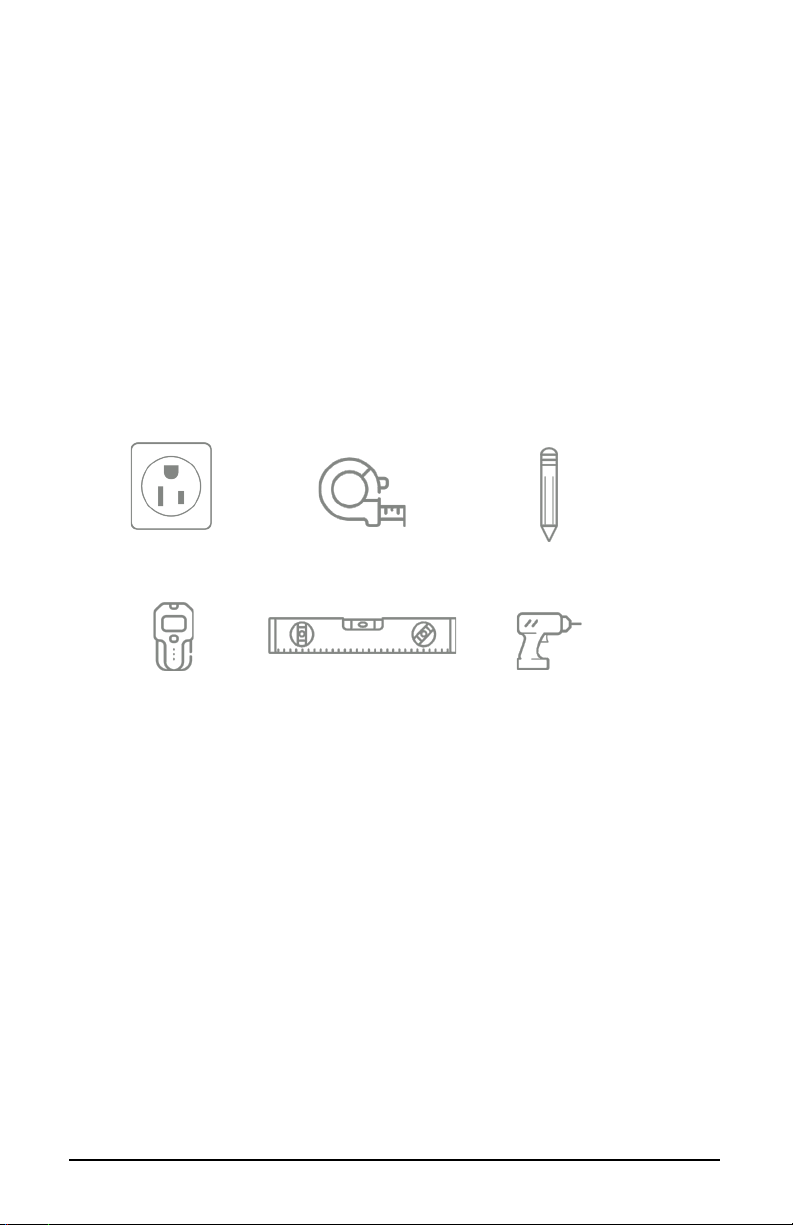

Tools
These additional tools will be helpful for a quick installation:
a. A NEMA-6-50 outlet
b. Measuring Tape
c. Pencil
d. Stud finer
e. Level
f. Drill
a.
d. e. f.
b. c.
turnongreen.com 9
1. Be sure the area you have selected to mount your EV700 has sufficient
space to accomadate the device. See dimensions below.
Input Cable: 2 ft
Output Cable: 18 ft
(24 ft optional)
Depth: 4.5” inches
Width: 9.8” inches
Height: 14.9” inches
Location Planning
2. Be sure the property owner has selected a location for installation that
allows enough cable to reach the car, plus enough for remaining cable
slack. Verify that a stud is available for mounting the charging device.
Prior to installation, verify your site has a sufficient electrical
capacity and suitable location for mounting.
CAUTION: The circuit in use must be rated for 125% maximum load.
The EV700 is a continuous load device.
Notice: A plug-in install with a 50 amp is the only amperage allowed in
Canada.
4.5” 9.8”
14.9”
18-24 ft max
10 turnongreen.com
3. This charging station is not suitable for use in
hazardous locations. Do not install EV700 near
flammable, explosive, or combustible materials.
4. Be sure to install this device in an area that
is inaccesible to children.
5. Failure to install this device on a surface that can support the weight of
the charging station, cables, and necessary cable movement could result
in personal injury or property damage.
WARNING: When installing outdoors, be sure the electrical outlet in use
is weather-resistant and is outdoor-rated.
