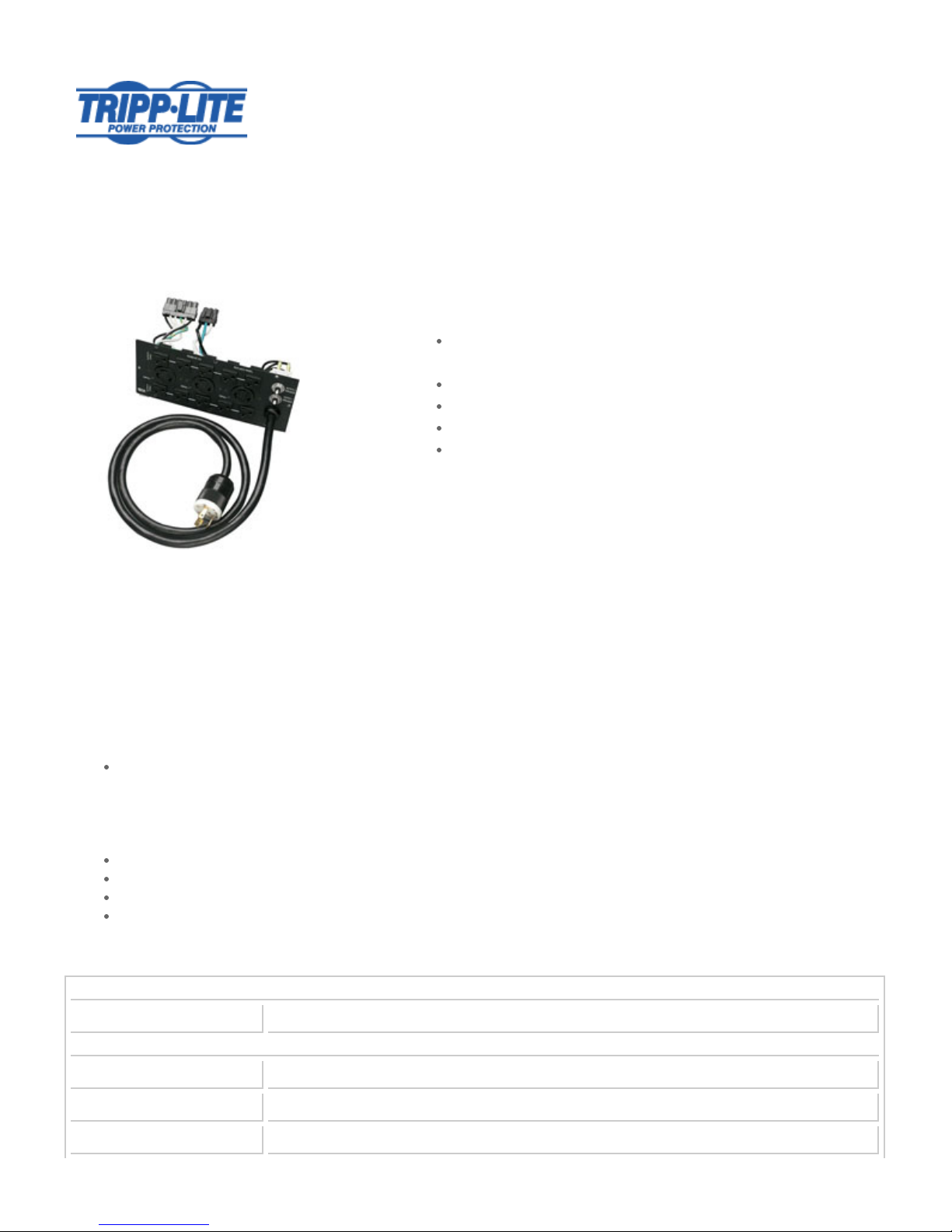

Tripp Lite SUPDM12 User manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SUPDM12

Corded UPS Backplate Outlet Kit - Adds AC plug-in connection and AC output receptacles to SU6000RT3U

and SU6000RT3UXR UPS for use with 208V UPS output voltage configurations

Highlights

Converts Tripp Lite's hardwire SU6000RT3U UPS systems to one with AC

plug and outlets

For use with 208V mains and UPS output voltage configurations

10 ft. / 3m AC input power cable with NEMA L6-30P input plug

1 L6-30R, 2 L6-20R and 10 5-15/20R output receptacles

Easy quick-connect wiring installs in minutes

Description

Tripp Lite's SUPDM12 corded backplate kit converts Tripp Lite's hardwire SU6000RT3U or SU6000RT3UXR UPS system into one with AC plug and

outlets. 10 ft./3m input line cord with L6-30P plug enables simple connection to 208V 30A mains power. Includes 1 L6-30R, 2 L6-20R and 10

5-15/20R output receptacles. Easy quick-connect wiring installs in minutes.

VOLTAGE COMPATIBILITY NOTE - SUPDM12 supports SU6000RT3U and SU6000RT3UXR applications configured for 208V nominal input

voltage only (See SUPDM13 for 240V input voltage configurations).

Applications

Ideal for 208V applications calling for Tripp Lite's SU6000RT3U and SU6000RT3UXR UPS systems where plug-in AC input and output

connections are required

Features

Converts Tripp Lite's hardwire SU6000RT3U or SU6000RT3UXR UPS system to one with an AC plug and outlets

10 ft./3m AC line cord with L6-30P input plug-in connection

Includes 1 L6-30R, 2 L6-20R and 10 5-15/20R output receptacles

Easy quick-connect wiring installs in minutes

Specifications

OVERVIEW

Model Type Outlet Kits

OUTPUT

Output nominal voltage Simultaneous 208 and 120V output

Overload protection 120V outlets are protected by 2 separate 20A branch rated circuit breakers

Outlet quantity / type 208V: 1 L6-30R, 2 L6-20R / 120V: 10 5-15/20R

INPUT

UPS Input cord length (ft.) 10 ft. / 3m

UPS Input cord length (m) 3.05

Recommended Electrical

Service

30A 208V

Input connection type NEMA L6-30P input plug

Voltage compatibility (VAC) 208

PHYSICAL

Shipping weight (lbs) 6.6

Shipping weight (kg) 3

Unit Dimensions (HWD/in) 2.5 x 5 x 11

Unit Dimensions (HWD/cm) 6.4 x 12.7 x 28

Shipping Dimensions

(HWD/in)

5.5 x 9 x 14.25

Shipping Dimensions

(HWD/cm)

14 x 22.9 x 36.2

Unit weight (lbs) 6

Unit weight (kg) 2.8

Material of construction Steel

WARRANTY

Product Warranty Period

(Worldwide)

2-year limited warranty

Related Items

Optional Products

Product Type Related Model Description Qty.

Audio Cables PDU1230 Basic PDU / Power Distribution Unit - Safe, reliable power distribution

for critical networking equipment

Audio Cables PDU40TDUAL Basic PDU / Power Distribution Unit - Safe, dual-circuit power

distribution for critical networking equipment

Audio Cables PDUMH20 Metered PDU / Power Distribution Unit- Safe, reliable power

distribution with digital current meter

Audio Cables PDUMH20AT Metered PDU with ATS - Power Distribution Unit with dual-input Auto

Transfer Switching

Audio Cables PDUMH20ATNET Switched, Metered PDU with ATS - Power Distribution Unit with

dual-input Auto Transfer Switching, individual outlet control and SNMP

network interface

Audio Cables PDUMH30HVNET Switched, Metered PDU with Remote Monitoring - 2U Rackmount

Power Distribution Unit for Networks with Individually Switchable

Outlets, Current Metering, Remote Monitoring and Control

Audio Cables PDUMV20 Metered PDU / Power Distribution Unit - Safe, reliable power

distribution with digital current meter

Audio Cables PDUMV20HV Metered 0U Vertical Rack PDU - Metered Power Distribution Unit for

Network Applications

Audio Cables PDUMV20HVNET Switched, Metered PDU with Remote Monitoring - 0U Vertical

Rackmount Power Distribution Unit for Networks with Individually

Switchable Outlets, Current Metering, Remote Monitoring and Control

Audio Cables PDUMV20NET Switched, Metered PDU with Remote Monitoring - 0U Vertical

Rackmount Power Distribution Unit for Networks with Individually

Switchable Outlets, Current Metering, Remote Monitoring and Control

Audio Cables PDUMV30HV Metered 0U Vertical Rack PDU - Metered Power Distribution Unit for

Network Applications

Audio Cables PDUMV30HVNET Switched, Metered PDU with Remote Monitoring - 0U Vertical

Rackmount Power Distribution Unit for Networks with Individually

Switchable Outlets, Current Metering, Remote Monitoring and Control

Audio Cables PDUMV40 Metered PDU / Power Distribution Unit - Safe, dual-circuit power

distribution with current meters

Audio Cables PDUNV Basic PDU / Power Distribution Unit - Safe, reliable power distribution

for critical networking equipment

Audio Cables PDUV20 Safe, reliable power distribution for critical networking equipment 1

Audio Cables PDUV30HV Basic 0U Vertical Rack PDU - Power Distribution Unit for Network

Applications

Power Distribution PDU1220 Basic PDU / Power Distribution Unit - Safe, reliable power distribution

for critical networking equipment

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=2777.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
