Thank you for purchasing TRENDnet's TEW-450APB Super G Access Point
This guide will help you set-up your Access Point quickly and easily. Just follow
the step-by-step instructions below, and enjoy the benefits of accessing the
Internet without ever being tied down to wires! If you run into problems, please
refer to the Troubleshooting section. If you need further technical support,
please visit www.TRENDNET.com or call technical support by phone.
Verify Equipment
Before setting up the Access Point, you should have:
1. A Computer with a Wired (RJ-45) or Wireless network card.
2. TCP/IP protocol installed on the Computer.
3. A Web Browser such as Internet Explorer (5.0 or higher) or
Netscape Navigator (4.7 or higher).
4. A Hub or Switch connecting your existing wired network.
5. An RJ-45 Network Cable for connecting the Access Point to your
network Switch.
Verify Package Contents
Please make sure you have everything in the box:
1
External Power Adapter 1.5M RJ-45 cable
CD-ROM (User’s Guide)
Quick Installation Guide
TEW-450APB
1. Prepare for Installation
English QIG
English
Copyright ©2005. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TEW-450APB
Version 06.28.2005
Super G Access Point Quick Installation Guide
Point d'accès Super G Guide d'installation rapide
Super G Access Point Kurzanleitung zur Installation
Punto de Acceso Súper G Guía de instalación rápida
Точка доступа Super G Руководство по быстрой установке
2
1. Locate an optimum location for the Access Point. The best place for the
Access Point is usually at the center of your wireless network.
2. Connect the RJ-45 network cable to the Access Point, then connect the
other end of the network cable to a Switch or Hub. The Access Point is now
connected to your 10/100Mbps network.
3. Connect the power adapter to the Access Point. Make sure you use the
power adapter supplied with the Access Point; using a different power
adapter may damage the unit.
2. Install Hardware
Make sure the front panel lights are on: Power, LAN, WLAN.
Verify Hardware Installation
NOTE: If you are using a wired computer to configure the Access Point,
please connect this computer to the same Switch or Hub the
TEW-450APB is connected to.
POWER
LAN
WLAN
2
TEW-450APB
English
3
3
3. Configure TCP/IP Settings
Before the Access Point can be accessed and configured, the computer's
TCP/IP settings need to be changed. (That includes your wireless card's IP
address, too.)
English
Windows 2000/XP
1. Find the Start button located on the Desktop.
2. Click Start, and click on Control Panel. For Windows 2000, click Start,
highlight Settings, and click Control Panel.
3. Double-Click the Network Connection icon.
4. Right-Click on the Local Area Connection icon, then click on Properties.
The Local Area Connection Properties box will appear.
5. Under the General tab, locate and select Internet Protocol TCP/IP and
then click Properties. The Internet Protocol (TCP/IP) Properties box will
appear.
4
6. Click on Use the following IP address. Enter 192.168.1.50 for IP
address and 255.255.255.0 for Subnet, then click OK.
8. Your computer is now ready to access and configure the Access Point.
7. Click OK.
English
5
4. Configure the Access Point
From a Wired Computer

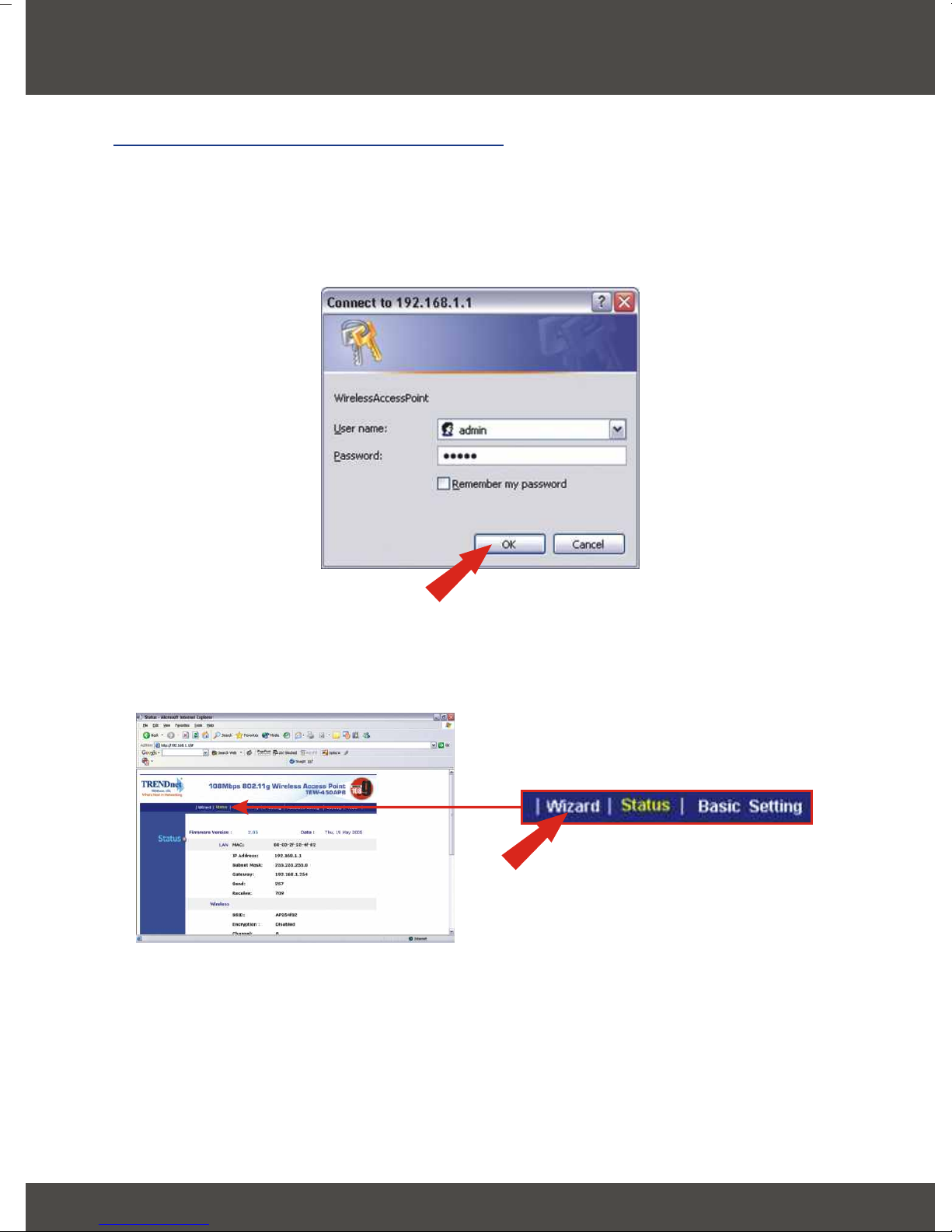

1. Open a web browser (Internet Explorer or Netscape) and enter
http://192.168.1.1 at the address bar, then press the Enter key. Type admin
for username, and type admin for your password. Click OK.
English
2. Click Wizard.
6
3. Click Next.
4. If you want to change the default password, type in a new password and
click Next. Otherwise, click Next.
English
7English

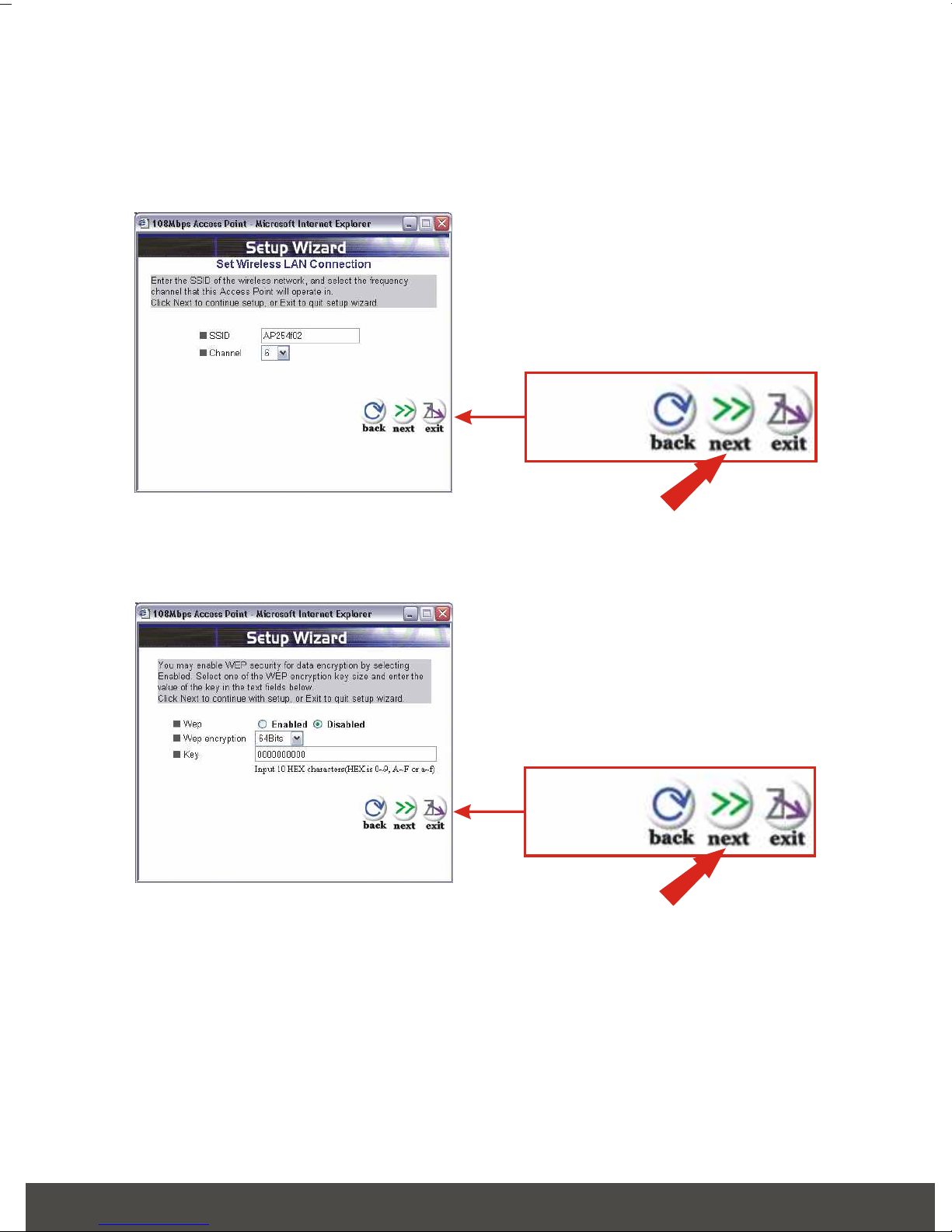

5. If you want to change the default SSID or channel, type in the appropriate
information and click Next. Otherwise, click Next.
6. Click Next.
8English
7. Click Restart and click Close.
Congratulations!
Installation is now complete.
From a Wireless Computer
(using TRENDnet's TEW-441PC as an example in this section)
The default settings of the Access Point are:
SSID - AP254f02
Channel - 6
8. On your wireless computer, open up your Wireless Utility Program.
