TRENDnet TK-1603R User manual

Quick Installation Guide

TK-1603R

TK-803R

English 1

1. Before You Start 1

2. How to Install 2

3. Operation 4

Technical Specifications

Troubleshooting

Table of Contents

Version 08.14.2009

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

1. Before You Start

?PS/2 or USB Keyboard

?PS/2 or USB Mouse

?VGA Compatible Monitor

?USB/ VGA KVM cables (e.g. TK-CU06, TK-CU10, TK-CU15)

?Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux and Mac

Package Contents

?TK-803R/TK-1603R

?Multi-Language Quick Installation Guide

?Rack mount kit

?AC Power Adapter (9V DC, 1A)

System Requirements

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

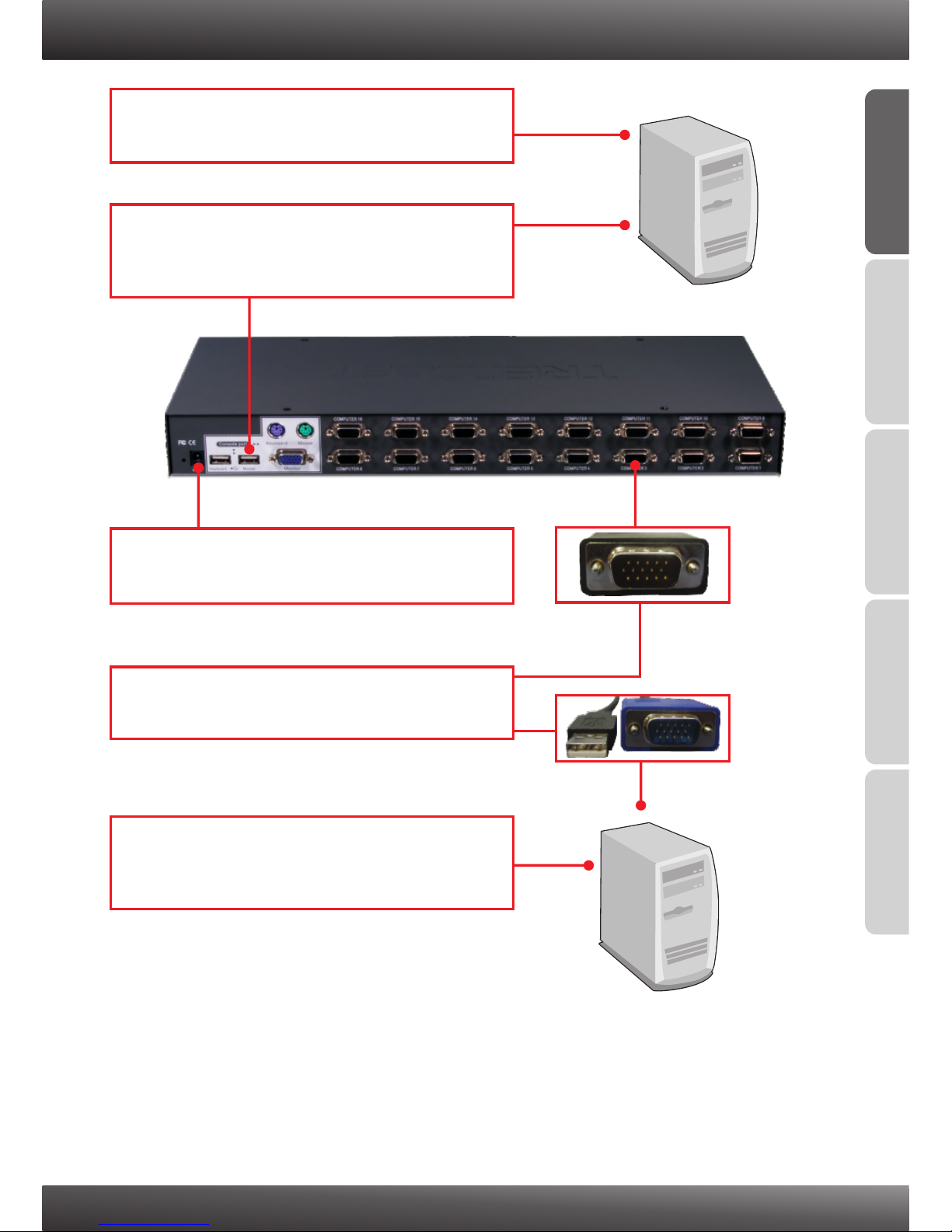

2. How to Install

PC 1, 2, 3, 4, 5, 6, 7, 8 (TK-803R)

PC 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,

13, 14, 15, 16 (TK-1603R)

1. Turn OFF all computers and their peripherals,

and then disconnect all power cords.

5. Turn ON the connected computers one-by-one

and wait until each computer's desktop

appears.

3. Connect the included AC Power Adapter to the

KVM switch and then to a power outlet.

4. Use the KVM cables to connect each computer

to the KVM switch.

2. Connect the shared PS/2 or USB keyboard,

monitor, and PS/2 or USB mouse to the KVM

switch's Console Port. (TK-1603R shown)

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

The KVM Switch can be mounted in an EIA standard-size, 19-inch rack, which can be

placed in a wiring closet with other equipment.

Note: If you would like to mount the KVM switch to a EIA 19” equipment rack, install the

included mounting brackets to the sides of the KVM switch, secure them with the

screws provided, and then mount the KVM switch to the equipment rack with the

hardware provided by the equipment rack manufacturer.

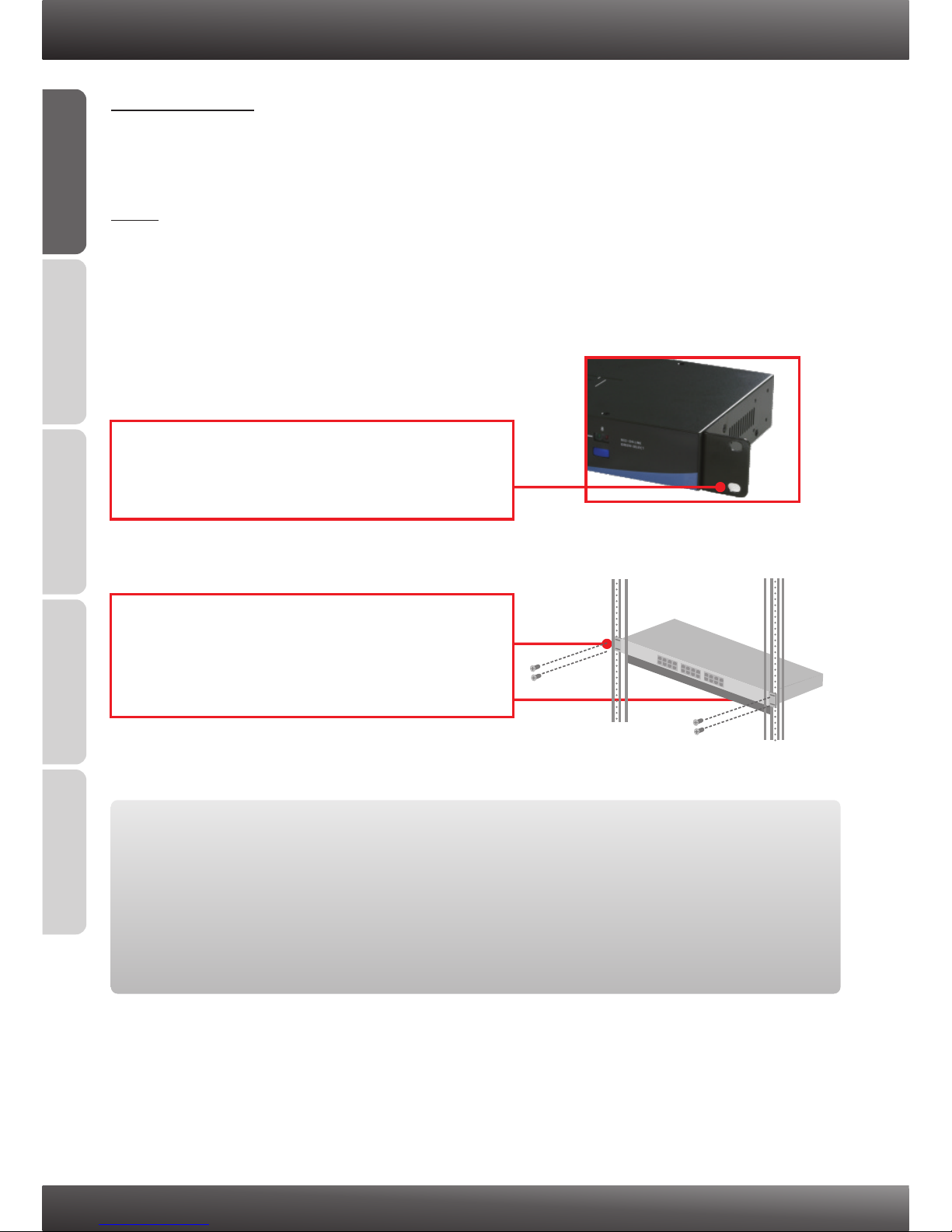

Rack Mount

Your installation is now complete.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet.

2. Carefully position the KVM switch onto the rack.

Align the bracket to the screw holes on the

rack, then use the screws provided with the

equipment rack to mount the KVM switch.

1. Attach the mounting brackets to both sides of

the KVM switch and secure them with the

provided screws.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

3. Operation

Note: To switch between computers, you can use the front-panel push buttons or the

Hot Key commands.

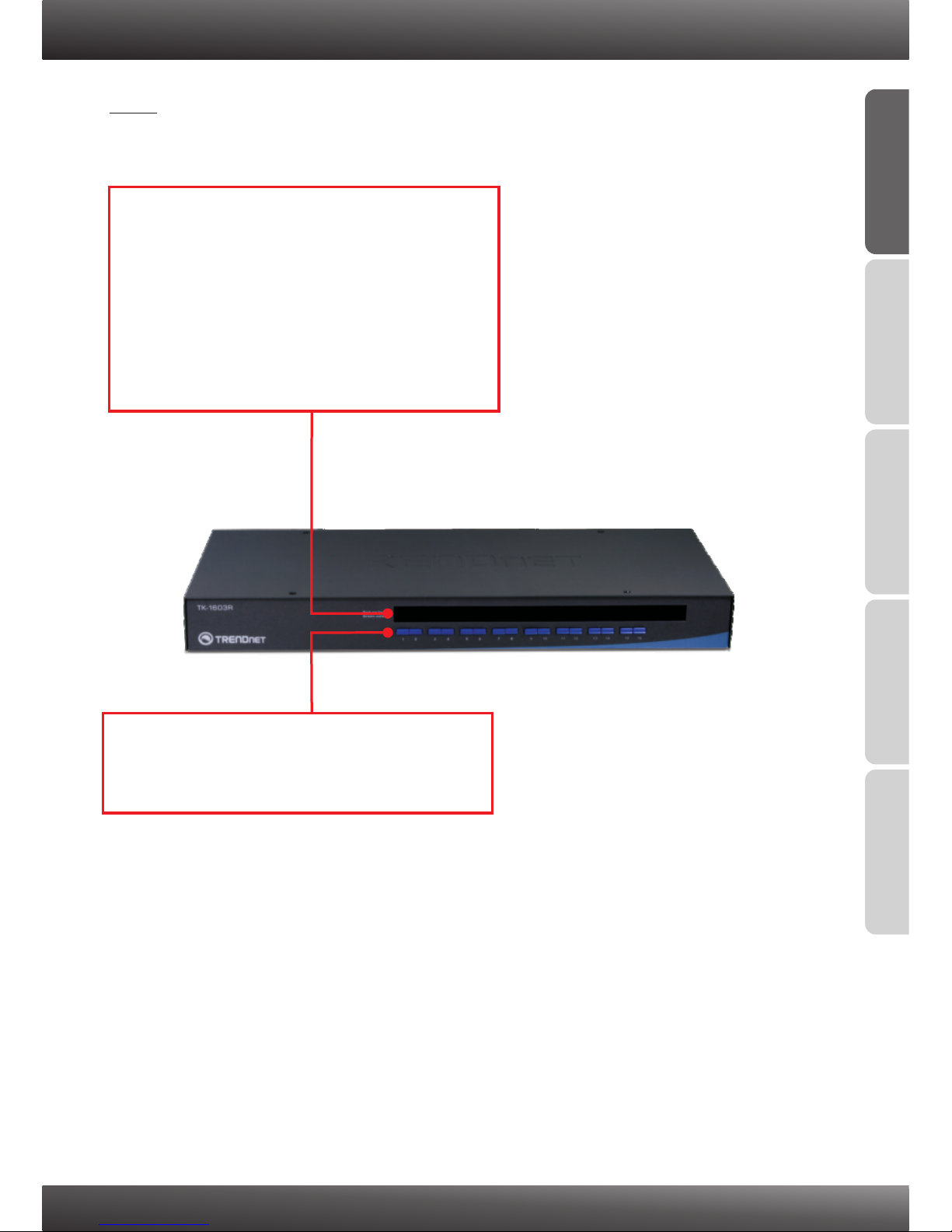

LED Indicators

Red LED light: KVM cable is connected and

PC is powering the KVM switch.

Green LED light: Indicates the selected PC

port is active, whether the computer is turned

on or off.

Push Buttons

Press the push buttons to switch between

computers.

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Hot Key Commands

A keyboard hot key command consists of three keystrokes:

Hot Key command = Scroll Lock + Scroll Lock + Command key(s)

After pressing the Scroll Lock key, you have 2 seconds to press the Scroll Lock key

again. You then have another 2 seconds to press a command key. A beep confirms that

the KVM switch is in "Hot Key" mode. If you do not press a key within 2 seconds, the

switch will exit hot key mode.

To select a specific PC port:

For TK-803R

Select PC=

For example, to Select Port 1 on the TK-803R you hit the following key sequence:

Select PC=

For TK1603R

Select PC=

For example, to select Port 1 on the TK-1603R you hit the following key sequence:

Select PC =

To select port 10 on the TK-1603, hit the following key sequence:

Select PC =

Scroll Lock Scroll Lock +

For a list of all the Hot Key commands, please see the Quick Reference Sheet.

MAC USERS

Standard PC Keyboard to MAC Keyboard mapping information:

CD/DVD drive

eject key

F13

F15

F14

Scroll Lock Scroll Lock C

Scroll Lock Scroll Lock F10

Scroll Lock Scroll Lock F11

Scroll Lock Scroll Lock F12

Scroll Lock Scroll Lock +

+Y+Z

Scroll Lock Scroll Lock +

+0+1

Scroll Lock Scroll Lock +

+1+0

(Arrow down)

ENGLISHFRANÇAISDEUTSCHESPAÑOL

ÐÓÑÑÊÈÉ

Scroll Lock Scroll Lock +

Scroll Lock Scroll Lock ++

Scroll Lock Scroll Lock END

Command Hot Keys Description

Front-Panel

Buttons

Quick Reference Sheet for TK-803R/TK-1603R

Select PC

Autoscan

Next higher channel

Next lower channel

Autoscan with

Programmable

Delay Time

Autoscan Beep

Sound On/Off

Mouse/Keyboard

Reset KVM

Restore to Factory

Defaults

Define Hotkey

Sequence

(default = Scroll Lock +

Scroll Lock)

Stop Autoscan Press any key on keyboard

Select the active PC

channel

Press the Push Button

for a specific port to

switch to that port

Select the next lower PC

channel

Autoscan through every

connected channel for quick

screen browsing of each

channel

Select the next higher PC

channel

Autoscan through every

connected channel for quick

screen browsing of each

channel in intervals of X

seconds

Toggle On/Off beep sound

during Autoscan mode.

Resets Mouse/Keyboard

Restore to Factory Defaults

Select the hotkey preceding

sequence among 5 options

Terminate Autoscan activityPress any button

- - -

(YZ)= 2-digit channel number

TK-803R

TK-1603R

Y = Scroll Lock, Caps Lock, Esc, F12 or Num Lock

(X) = 0~9

1 = 10 seconds

2 = 20 seconds

3 = 30 seconds

4 = 40 seconds

5 = 50 seconds

6 = 60 seconds

7 = 70 seconds

8 = 80 seconds

9 = 90 seconds

0 = 100 seconds

Note: If you have defined a different hot key preceding sequence key (e.g. Caps Lock,

Esc, F12), press that button instead of scroll lock. For example, if you want to turn off

beep and have defined the hotkey preceding sequence key as F12, press F12 + F12 +

Scroll Lock Scroll Lock ++

Scroll Lock Scroll Lock B

Scroll Lock Scroll Lock S

Scroll Lock Scroll Lock R

Scroll Lock Scroll Lock +

(Arrow up)

Technical Specifications

Port Selection: Push Button and Hot Key Commands

Keyboard Status:

Power:

Save and restore

LED: Per Port : PC Link (Green) ; PC Active (Red)

Management: TK-803R: 8 computers

TK-1603R: 16 computers

Console Port Connectors:

1 x USB keyboard Type A

1 x USB mouse Type A

1 x PS/2 keyboard 6-pin mini din female

1 x PS/2 mouse 6-pin mini din female

1 x VGA HDB 15-pin female

PC Port Connectors: TK-803R: 8 x VGA HDB 15-pin

TK-1603R: 16 x VGA HDB 15-pin

female

Video Resolution: 2048 x 1536

Weight: TK-803R : 1.84 kg (4.05 lbs)

TK-1603R : 2.04 kg (4.5 lbs)

0ºC ~ 40ºC (32ºF ~104ºF)Operating Temperature:

-20ºC ~ 60ºC (-4ºF ~ 140ºF)Storage Temperature:

0%~90%, Non-Condensing

Humidity:

FCC and CECertifications:

Auto-Scan Intervals: 10 ~ 100 seconds

PS/2 Interface Power

USB Interface Power

External AC Power Adapter : 9V DC, 1A

Size (19" Rack mount):

Dimensions:

405 x 163 x 44 mm (15.94 x 6.42 x 1.74 in.)

Troubleshooting

Do I need to use the included external AC adapter?

It is recommended that you use the included external AC adapter with the

TK-803R/TK-1603R KVM switch.

I have the KVM switch connected properly, but my USB keyboard and mouse don't work.

1. Make sure your USB port is working properly by testing it with your other USB devices.

2. Once you confirm that the USB port is functional, please reboot your computers, and try to

use the KVM switch again.

3. If your computer is running Windows 98SE, you may need to download and install the

USB hot fix.

Please go to this link for download and installation instructions:

http://support.microsoft.com/kb/q240075. Once the hot fix is installed, follow the installation

instructions in Section 2.

Can I connect or disconnect the KVM cables while the computers are turned on?

Yes, you can connect or disconnect the KVM cables while the computers are turned on,

because the interface is Hot-Pluggable.

Yes, the KVM switch will restore the keyboard settings when switching between computers.

(i.e.: Caps Lock, Num Lock, etc.)

Go to Section 3 Operation for more information.

If you still encounter problems or have any questions regarding the TK-803R/TK-1603R please

contact TRENDnet's Technical Support Department.

Will the KVM switch restore the keyboard settings when switching between computers?

How do I switch from one computer to another with the KVM switch?

You can switch PCs by pressing the push button on the KVM switch or by using the Hot Key

commands.

How to upgrade new firmware to my KVM switch?

Please go to the TRENDnet website (www.trendnet.com) to check if there is a new firmware

available for your KVM switch and follow the installation procedure to perform the update.
