TRENDnet TEG-424WS User manual

24-Port 10/100Mbps Web Smart Switch

w/4 Gigabit Ports and 2 Mini-GBIC Slots

TEG-424WS

1.03

ŸQuick Installation Guide (1)

ŸTroubleshooting (3)

1

Minimum Requirements

Package Contents

If any of the above contents are missing, please contact your reseller.

1. Before You Start

ŸWeb Browser: Internet Explorer (6.0 or above)

ŸComputer with network adapter installed

ŸCat. 5, Cat. 5e or Cat.6 RJ-45 network cable

Ÿ

Ÿ

Ÿ

Ÿ

Ÿ

TEG-424WS

Multi-Language Quick Installation Guide

CD-ROM (Utility and User Guide)

Power Cord

Rack Mount Kit

Optional Equipment

ŸStandard 19” Rack

ŸMini-GBIC Modules (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,

TEG-MGBS80, TEG-MGBS10D35, TEG-MGBS40D35)

2. Hardware Installation

Note:

1. After hardware installation is complete, use the Web Smart Switch

Management Utility to configure the TEG-424WS. To access the Web Smart

Switch Management Utility, open your web browser, and enter the default IP

Address http://192.168.0.1 and default password "admin". Make sure your

computer and the TEG-424WS are configured to the same network segment.

2. The Mini-GBIC slots are shared with Gigabit Ethernet ports 25 and 26. When

the Mini-GBIC slots are in use, Gigabit Ethernet ports 25 and 26 are disabled.

3. If you would like to easily discover all the Web Management Switches on the

network, assign IP Address, change the password, and upgrade new

firmware, then install the Web Smart Switch Management Utility. Follow the

steps provided on the user's guide.

2

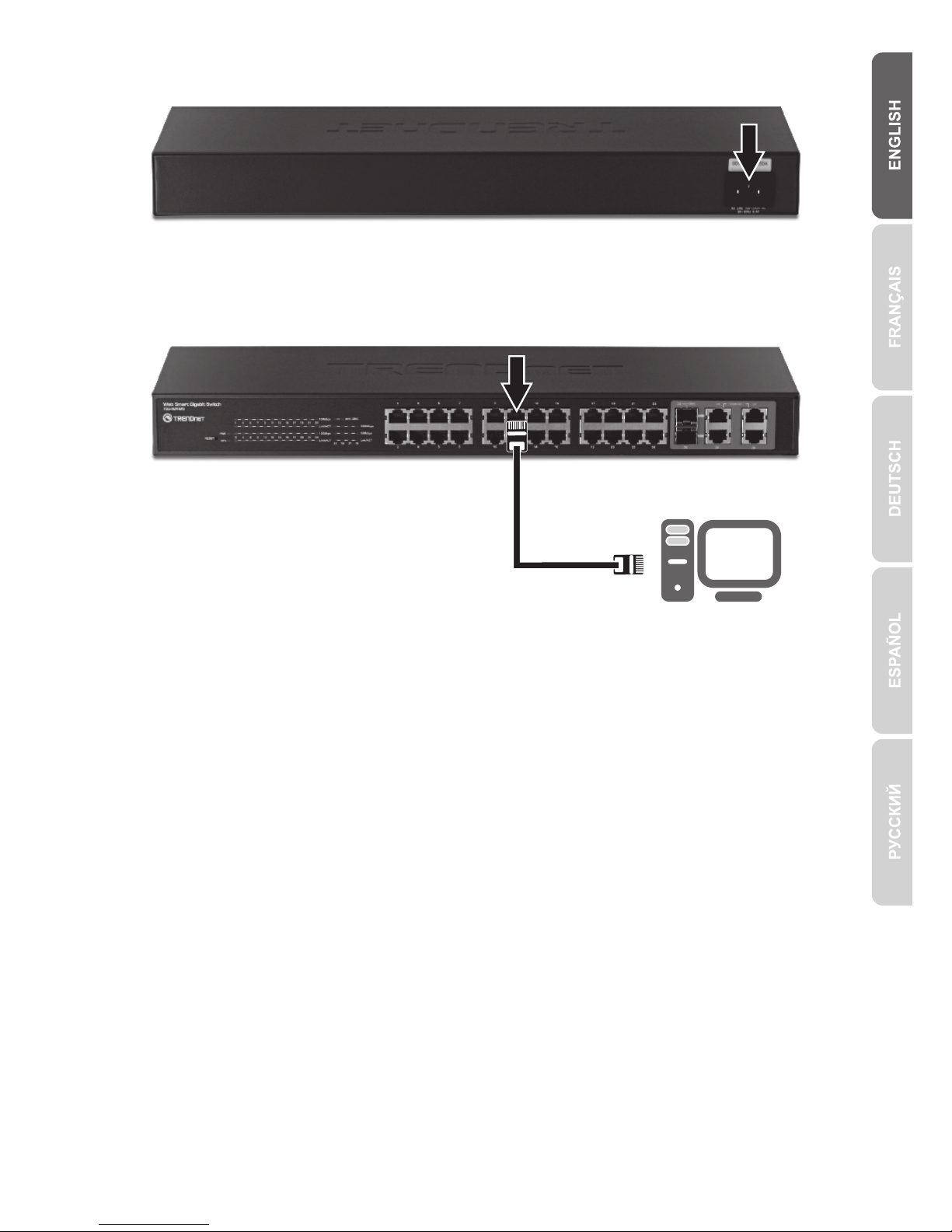

2. Connect a RJ-45 network cable from the computer to an available Ethernet

port of the TEG-424WS.

1. Connect the Power Cord to the TEG-424WS and then to a power outlet.

For more information regarding the Web Smart Switch Management Utility

configuration and advanced settings, please refer to the User's Guide included

on the provided CD-ROM or TRENDnet's website at www.trendnet.com

Troubleshooting

1. After connecting the TEG-424WS to a power outlet, the LEDs do not turn

on.

1. Check the connection of the power cord to the TEG-424WS and the power

outlet.

2. Check that the power outlet is receiving power.

2. When I access the TEG-424WS using a web browser, I get a screen that

tells me “only one user can login”. What should I do?

Another computer is configuring the TEG-424WS. Please wait until the user

logs off. If the other user has already logged off and you still get the same

screen, then disconnect the power cord from the TEG-424WS, wait for 5

seconds, reconnect the power cord to the TEG-424WS, allow 5 seconds for

the switch to power on, and then attempt to access the web configuration

page again.

3. I forgot the administration password. How do I reset my TEG-424WS?

Press on the reset button using a pen or paperclip for 10 seconds. The default

password is admin. Note: The default password is case sensitive.

4. When I connect a computer to the Switch's Gigabit Ethernet port, I am

not getting Gigabit speeds. What should I do?

1. Check the LEDs on the Switch. When the 1000Mbps LED is off, the

computer's connection speed is 10 or 100Mbps.

2. Make sure that you have a Gigabit Ethernet adapter installed.

3. Make sure to use a Cat. 5e or Cat. 6 Ethernet cable. Some Cat.5 cables

are not rated to run in Gigabit.

If you still encounter problems or have any questions regarding the

TEG-424WS, please refer to the User's Guide included on the provided

CD-ROM or contact Trendnet's Technical Support Department.

3

TRENDnet

20675 Manhattan Place

Torrance, CA 90501. USA

Copyright ©2011. All Rights Reserved. TRENDnet.
