TRENDnet TE100-PCIFC User manual

MicheM

Table of Contents

PRODUCT OVERVIEW 3

PACKAGE CONTENTS..............................................................................3

PRODUCT FEATURES ............................................................................. 4

Driver Support 4

Utilities (Windows only, Vista is not supported) 5

LEDs 5

DRIVER/HARDWRE INSTALLATION 6

INSTALLING DRIVER/HARDWARE............................................................. 6

CONNECTING REMOTE WAKE-UP CABLE ...............................................10

CONNECTING TO YOUR NETWORK .........................................................11

Fiber Adapter 11

Cabling Requirements 12

NIC CONTROL SET UTILITY 13

MY COMPUTER.....................................................................................13

NIC 13

Protocol 13

Service 14

Client 14

GENERAL .............................................................................................15

SETTING...............................................................................................16

STATISTICS...........................................................................................16

DIAGNOSTICS .......................................................................................17

WAKE-UP PACKET.................................................................................17

VLAN SETTINGS...................................................................................18

Add/Remove VLAN 18

Setting for add/remove VLAN 18

VLAN01 (VLAN ID =1) added 18

Driver setting changed by NIC Control Set 19

Remove VLAN/Change VLAN property 20

DOS DIAGNOSTIC UTILITY 21

DIAG UTILITY.......................................................................................21

MAIN MENU..........................................................................................21

FUNCTIONS KEY ...................................................................................21

LOADING NETWORK DRIVERS................................................................22

SPECIFICATIONS 23

Product Overview

Package Contents

When you unpack the product package, you shall find the items listed below.

Please inspect the contents, and report any apparent damage or missing items

immediately to our authorized reseller.

•TE100-PCIFC

•Multi-Language Quick Installation Guide

•CD-ROM (Driver & User’s Guide)

Product Features

zProvide

One 100Base-FX port

zfiber connections:

SC type multi-mode connector

Compliant with IEEE 802.3u 100Base-FX

PCI 2.1, 2.2 Specification compliant

zSeparate 2K Bytes FIFO for receive and transmit controllers

zFlow Control:

Support IEEE 802.3x for full duplex

Multiple pause frame XON/XOFF

zACPI (Advanced Configuration and Power Interface):

Support PC99, PC2001 and Net PC hardware system requirements

Support PCI Bus Power Management Interface Specification

Version 1.0/1.1

Support ACPI Specification 1.0

Support Network Device Class Power Management Specification

Version 1.0a

Support Wake-on-LAN magic packet

zMAC Enhancement Function:

IEEE 802.1q multiple VLAN with VLAN ID auto

insertion/extraction

UDP, TCP/IP checksum offload for Ipv4 frames

zTwo LEDs: LNK/ACT (link/activity), 100 (100Mbps speed)

Driver Support

The Adapter supports a wide range of drivers for commonly used network

operating systems:

zWindows 95 (including OSR2), Windows 98, Windows 98 (including SE),

Windows ME, Win2000, Windows 2003, Windows XP, Workgroups 3.11,

Windows NT 3.51 and 4.0

zLAN Manager, LANtastic, PC-NFS

zNovell Netware 3.11,3.12, 4.x, 5.x, 6.0, Client 32

zLinux Kernel 2.2.x/2.4.x/2.6.x

zFreeBSD 3.2, 4.0, 4.11, 4.2, 5.x

zSCO UnixWare 7.x/OpenUnix 8, SCO UNIX 5.0

Utilities (Windows only, Vista is not supported)

zNIC Control Set

zDos Diagnostic Utility

LEDs

cLNK/ACT Link/Activity

d100 100Mbps

LEDs Status Indication

LNK/ACT

Steady A valid network connection established.

LNK stands for LINK.

Flashing Transmitting or receiving data.

ACT stands for ACTIVITY.

Off Neither connection nor activity.

100 Steady 100Mbps.

Off 10Mbps.

Driver/Hardwre Installation

Installing Driver/Hardware

Windows Vista/2003 Server/XP/2000

Step 1: Insert the Drive CD-ROM into your computer’s CD-ROM drive.

Step 2: Click Install Driver, and then click your operating system.

Step 3: Click OK to finish the installation

Step 5: Turn off the power to the PC.

Step 6: Remove any metal decorations from your hands and wrists.

Step 7: Remove the cover from your PC.

Step 8: Locate an empty, non-shared bus mastering PCI slot and remove the corresponding

backplate. Save the screw for use in Step 10.

<Note>

i. Do not install the TE100-PCIFC in a shared PCI slot. Avoid any PCI slot next to an ISA slot because this

is often a shared slot and does not support bus mastering.

ii. If you are going to install the Remote Wake-Up cable, choose an available PCI slot most close to the 3-

pin Remote Wake-Up connector on the PC motherboard.

iii. If you have problems in identifying a suitable slot, check your PC documentation or ask your system

administrator for help.

Step 9: Carefully insert the TE100-PCIFC into the chosen slot and press firmly with proper push

to ensure it is fully seated in the slot.

Step 10: Secure the TE100-PCIFC with the screw you saved in step 8.

<Note> If you wish to use the Remote Wake-Up function, please complete the installation in next section

“Connecting the Remote Wake-Up Cable” before proceeding to step 10.

Step 11: Replace the PC cover.

Step 12: Proceed to “Connecting to Your Network” section.

Install the TE100-PCIFC into the PCI slot and screw it onto the backplate.

Windows 98/ME

Step 1: Insert the Drive CD-ROM into your computer’s CD-ROM drive. Then click Exit.

Step 2: Turn off the power to the PC.

Step 3: Remove any metal decorations from your hands and wrists.

Step 4: Remove the cover from your PC.

Step 5: Locate an empty, non-shared bus mastering PCI slot and remove the corresponding

backplate. Save the screw for use in Step 6.

<Note>

i. Do not install the TE100-PCIFC in a shared PCI slot. Avoid any PCI slot next to an ISA slot because this

is often a shared slot and does not support bus mastering.

ii. If you are going to install the Remote Wake-Up cable, choose an available PCI slot most close to the 3-

pin Remote Wake-Up connector on the PC motherboard.

iii. If you have problems in identifying a suitable slot, check your PC documentation or ask your system

administrator for help.

Step 6: Carefully insert the TE100-PCIFC into the chosen slot and press firmly with proper push

to ensure it is fully seated in the slot.

Step 7: Secure the TE100-PCIFC with the screw you saved in step 4.

<Note> If you wish to use the Remote Wake-Up function, please complete the installation in next section

“Connecting the Remote Wake-Up Cable” before proceeding to step 7.

Step 8: Replace the PC cover.

Step 9: Turn the PC on again.

Step 10: When the autorun pop up, click Install Driver, and then click your operating system.

<Note>If the autorun did not appear, please go to the disk driver, right click on the explorer. In the

Driver folder, click the the driver of

Windows 98SE_ME_2K_XP_Srv2003_Vista x86 Edition, then click WinSep.exe to

execute the program.

Step 11:Wait until the TE100-PCIFC finishes the installing.

Step 12: If the following screen pop up, insert the Windows 98SE CD-ROM into CD-ROM driver.

(For Windows 98SE only)

Step 13: Click OK to reboot your computer.

Connecting Remote Wake-Up Cable

The unit support optional Wake-on-Lan magic packet feature. Proceed with the

installation only when your PC supports this remote wake-up and you wish to

use this function. If your PCI bus supports version 2.2 or higher, there is no

Wake-Up cable required. The feature can be enabled without using the cable.

For more detail information, please check the User’s Guide of your Motherboard.

Wake-on-LAN magic packet

Step 1: Make sure the power to the PC is off.

Step 2: Check if the TE100-PCIFC is properly installed in a PCI slot.

Step 3: Prepare a Remote Wake-Up cable. Connect the cable from TE100-PCIFC to motherboard

connector.

Step 4: Replace the PC cover.

Step 5: Proceed to “Connecting to Your Network” Section.

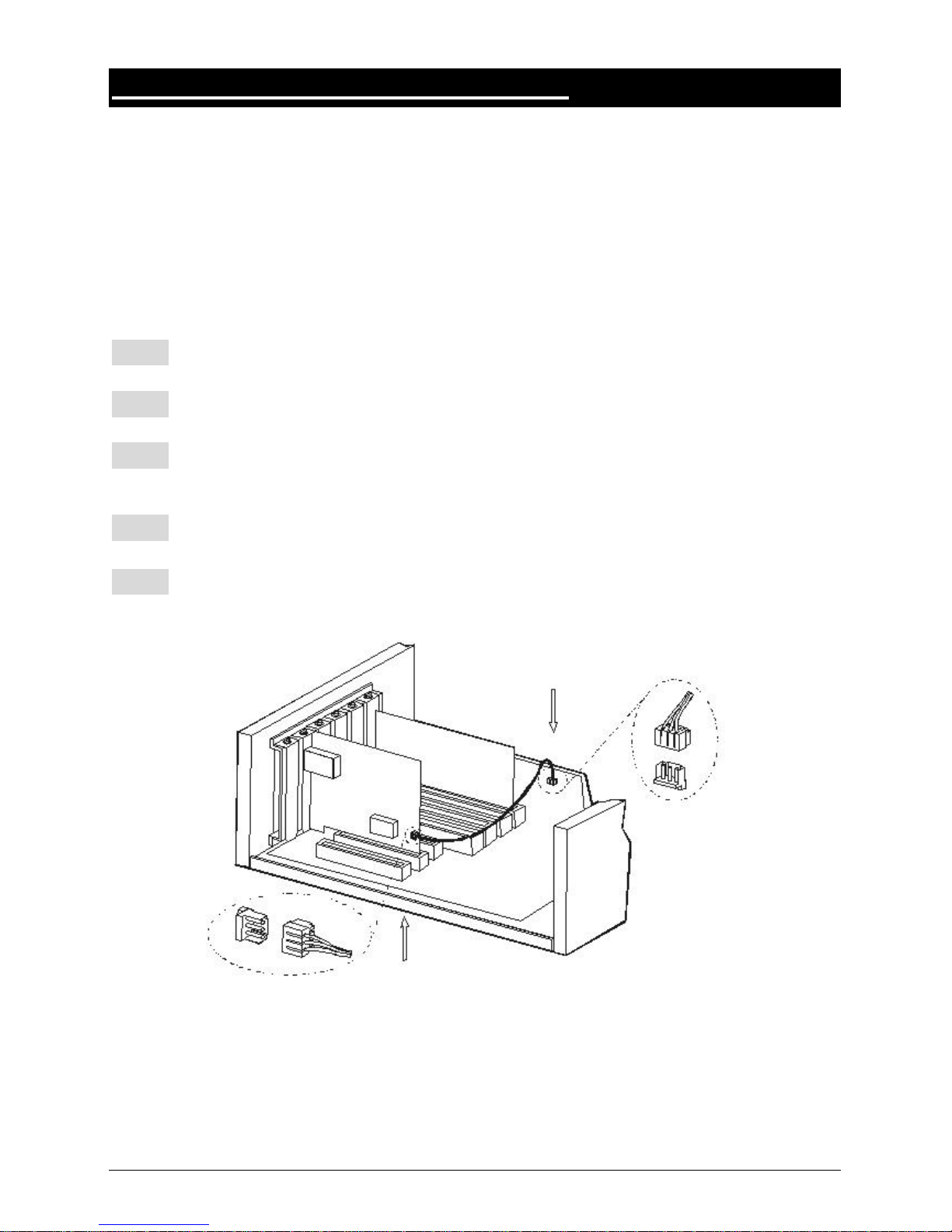

Connect Remote Wake-Up cable from TE100-PCIFC to motherboard connector.

Plug in Remote Wake-Up cable to connector on Ethernet Adapter.
