TRENDnet TW100-BRM504 User manual

TW100-BRM504

Quick Installation Guide

Table of Contents

Version 08.30.2006

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Install Hardware .................................................................................

3. .................................................................

.................................................................................

Configuration The Modem

Installation Requirements

Application

A working DSL Internet Connection

A computer with a wired or wireless network adapter properly installed

Package Contents

1. Before You Start

English

TW100-BRM504

Quick Installation Guide

User's Guide CD-ROM

1 x RJ-45 Ethernet Cable (Yellow)

1 x RJ-11 Telephone Cable (Gray)

Mounting Stand

Power Adapter

Web Browser: Internet Explorer (5.0 or higher) or Netscape Navigator

(4.7 or higher)

10/100Mbps

Phone Jack

4-Port ADSL Modem

Firewall Router

(TW100-BRM504)

Workstation with10/100Mbps

Fast Ethernet PCI Adapter

(TE100-PCIWN)

Internet

ADSL Account Ready Line

Notebook with 10/100Mbps

CardBus PC Card

(TE100-PCBUSR)

English

Collect Internet Service Provider (ISP) Information

During the installation of your Wireless ADSL Modem Router, the Setup Wizard

will automatically detect your ISP connection type. If the router cannot detect

your ISP connection type, you can manually specify the connection type.

Please verify your DSL Internet broadband connection type with your ISP and

ensure you have all the information for one of the following connection types:

A. Dynamic IP connection

ADSL Modem parameters (VPI or VCI), if it cannot be detected automatically.

ISP may require you to use a particular Hostname or Domain name.

B. Static or Fixed IP connection

Internet IP Address:_____. _____._____._____ (eg. 215.24.24.129)

Subnet Mask: _____. _____._____._____

Gateway IP Address: ____. _____._____._____

Primary DNS:_____. _____._____._____

Secondary:_____. _____._____._____

ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.

C. PPPoE or PPPoA Dynamic IP connection

Password: ________________

ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.

D. IPoA Static or Fixed (IP over ATM) connection

Internet IP Address:_____. _____._____._____ (eg. 215.24.24.129)

Subnet Mask: _____. _____._____._____

Gateway IP Address: ____. _____._____._____

Primary DNS:_____. _____._____._____

Secondary:_____. _____._____._____.

ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.

English

2. Hardware Installation

2. Connect one end of the yellow RJ-

45 cable to one of the

TW100-BRM504's LAN ports.

Connect the other end of cable to

the computer's Ethernet port.

4. Connect the AC Power Adapter to

the TW100-BRM504 and then to a

power outlet.

1. Attach the mounting stand to the

side of the unit.

5. Verify that the following panel lights

are on: Power, LAN.

3. Connect one end of the gray RJ-11

cable to the TW100-BRM504's

ADSL port. Connect the other end

of the cable to the phone jack.

English

3. Configure the Modem

Note: It is recommended that you configure the Modem from a wired computer.

2. Enter User name and Password,

and then click OK. By default,

User name: admin

Password: password

1. Open your web browser, type

http://192.168.0.1 in the

Address bar, and press Enter.

3. Click Setup Wizard.

English

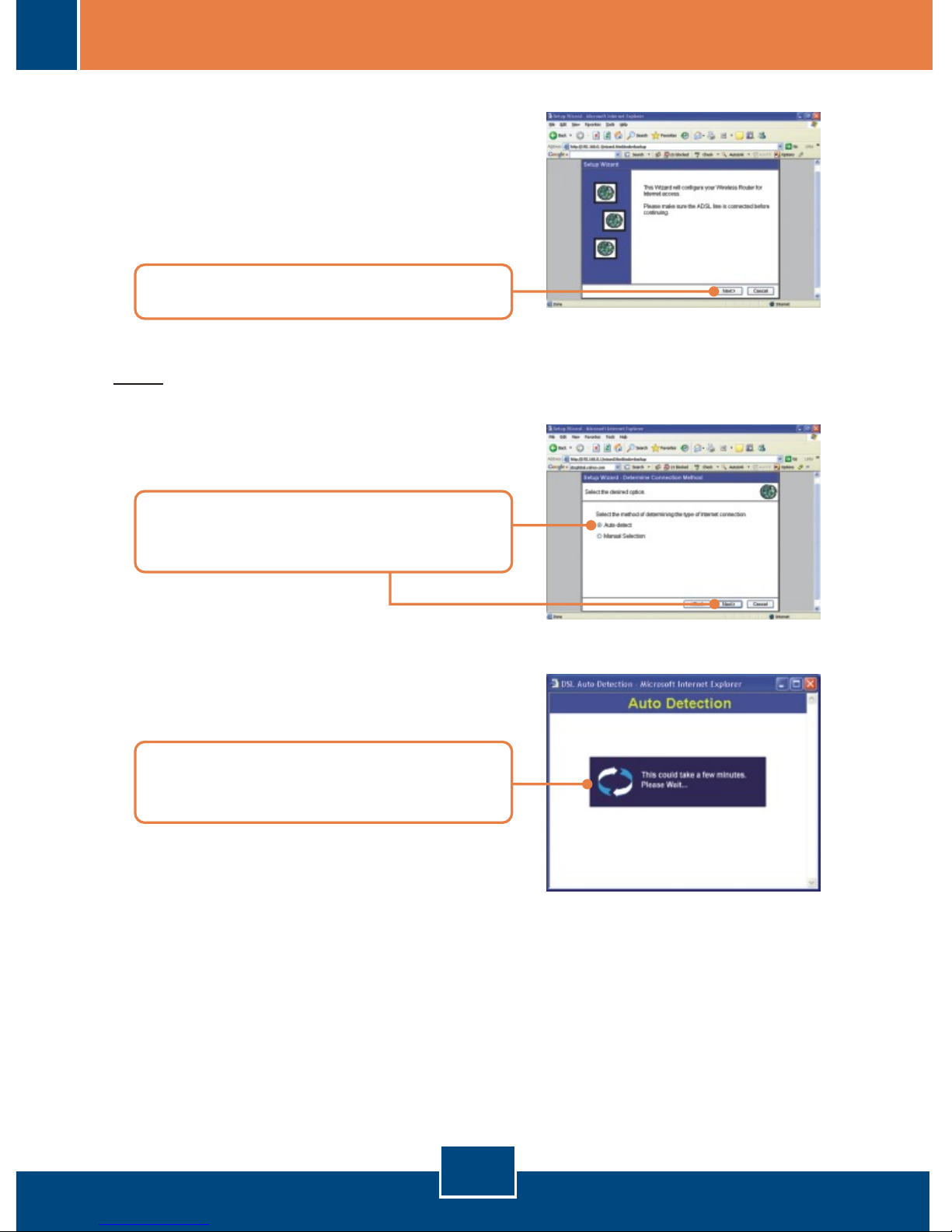

5. Select Auto-detect, and then click

Next.

Note: In the example, the DSL connection is PPPoE.

4. Click Next.

6. Wait for the Auto Detection process

to complete.

Note: If the Setup Wizard could not automatically detect your Internet

connection, select Manual Selection and input the information using the

information provided by your ISP.

Note: For other connection methods, follow the on screen instructions after the

Auto Detection.

7. Configure the settings based on

information provided by your ISP.

Then click Next.

9. Verify that the ADSL LED is lit and

then click Close.

Your installation is now complete.

For detailed information regarding the TW100-BRM504's configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

CD-ROM, or TRENDnet's website at http://www.trendnet.com.

English

8. Check Test Internet Connection,

and then click Finish.

Troubleshooting

Q1:

A1:

I typed http://192.168.0.1 in my Internet Browser's Address Bar, but an error

message says “The page cannot be displayed.” How can I get into the

TW100-BRM504's web configuration page?

First, check your hardware settings again by following the instructions in Section 2.

Second, make sure the LAN and WLAN lights are lit. Third, make sure your TCP/IP settings

are set to Obtain an IP address automatically (see the steps below).

1. Go into the Control Panel and double-click

the Network Connections icon, right-click

the Local Area Connection icon and then

click Properties.

2. Click Internet Protocol (TCP/IP) and then

click Properties. Then click on Obtain an

IP address automatically.

Fourth, press on the factory reset button for 15 seconds.

The Modem does not auto-detect my DSL connection. What should I do?

First, verify that your DSL account is activated. Second, make sure all the cables are

properly connected (see Section 2). Third, in Section 3, select manual selection in the Setup

Wizard and configure the Modem based on information provided by your ISP.

Q2:

A2:

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.
