Trek SUPERCALIBER SL User manual

2024 SUPERCALIBER SL AND SLR

SERVICE MANUAL

2024 Supercaliber

Contents

Safety Rear axle with UDH Rear axle with SRAM

Transmission

Derailleur

Main pivot Swingarm

SLR routing with

AXS shifting

SLR routing with

mechanical shifting

SL routing with

AXS shifting

SL routing with

mechanical shifting

Frame guards

2024Supercaliber

Speciﬁcations

Chainline (1x only)

55mm

Chainring (1x only)

Minimum Maximum

30TRound 38TRound

Rear brake mount

160mmDirect Post Mount

OLD

RearHub: 148mm

Maximum tire size

29" x 2.4"

Notice:Measurements of actual tires may vary. Always

verify there is sufcient clearance between the tire and

the frame. Improper tire size could damage the bicycle

frame. Trekrecommends 6mm clearance above and on

the sides of the tire.

Bottom bracket

Press t BB92

Seat post

WARNING

Alwaysfollow the seatpost manufacturer’s minimum

insertion recommendation. Failure to follow the recom-

mendationcould cause damage to the seatpost and

result in injury to the rider.

Minimuminser tion: Referto seatpost manufacturer

Maximuminser tion:

S:21 5

M:225

ML:250

L:27 0

XL:330

Seattube inside diameter: 31.6mm

Seattube post clamp outer diameter: 36.2mm

Fork

WARNING

Exceedingthe recommended maximum fork length could

damage the bicycle and result in injury to the rider.

Travel

Sag

Axle to Crown

Frame/Size Axleto Crown (mm) Travel(mm)

S,M, ML, L, XL Recommended 515 110

Maximum 533 120

Recommendedsag: Refer to the suspension setup card

includedwith your bike or the suspension calculator at

Trekbikes.com/suspension-calculator.

IsoStrut IsoStrut maintenance Bushings, carriage

wiper seals, and foam

blocks

Replace bushings and

carriage wiper seals

Specications

2024 Supercaliber

Safety

WARNING

Properly tighten hardware

Always tighten hardware to the specied torque.

Over-tightening hardware could deform or break the

hardware or components. Under-tightening hardware

could cause hardware or components to become loose.

Either situation could damage the bicycle and result in

injury to the rider.

WARNING

Reapply threadlocker

All reused-fasteners with pre-applied threadlocker must

be cleaned with isopropyl alcohol and have new thread-

locker applied before re-assembly. If threadlocker is not

applied, the fasteners may loosen which could damage

the bicycle and result in injury to the rider.

Scope

This manual contains parts diagrams, specications (such

as grease and torque values), instructions, and helpful

tips. It does not contain instructions for all components

(such as brake calipers). Refer to the original manufactur-

er for more information.

Legend

Apply grease

Do not apply grease

Apply threadlocker

Nm Torque

Zip tie

Additional resources

• Trek’s YouTube channel: youtube.com/trekbikes

• Trek Owner’s Manual: trekbikes.com/manuals

• RockShox SIDLUXE IsoSrut Service Manual found on

SRAM’s dealer portal.

2024 Supercaliber

Rear axle with UDH

25Nm

10Nm

1Switch lever — W573860

2Thru axle, 12x180 — W5290786

3Dropout brake mount — W5307257

4Derailleur hanger, UDH

Notice: Do not apply grease.

— W5271424

5Washer, 25mm

Notice: The washer is frame-specic. Install only the washer size specied.

6Bolt

Notice: Do not apply grease. Left-hand thread. Do not over-tighten.

Over-tightening could cause the hangar to break

For additional information about the UDH, refer to the SRAM user manual at sram.com.

2024 Supercaliber

Rear axle with SRAM Transmission Derailleur

10Nm

1Switch lever — W573860

2Thru axle, 12x180 — W5290786

3Dropout brake mount — W5307257

4SRAM Transmission Derailleur

— Refer to information on sram.com.

5Bushing

6Mounting bolt

For additional information about the Transmission derailleur, refer to the SRAM user manual at sram.com.

2024 Supercaliber

Main pivot

Install driveside bearing rst.

1Bearings, 28x15x7 — W5290782

2Main pivot sleeve — W5290783

2024 Supercaliber

Swingarm

10Nm

5Nm

7Nm

20Nm

Important: Torque 5

prior to installing

6, 7, and 8.

See page 13.

M5x18

M6x12

9Install between the main frame

and driveside of the swingarm.

Important: Do not

apply grease to the

threads.

M5x25

1Swingarm SM — 45582

M-XL — 45583

2IsoStrut axle bolt, M6x10mm — W5290780

— IsoStrut mounting fasteners

3Endcap fastener, M6x1mm — W582252

4Fasteners, M5x18mm, with washers, — W584485

5Main pivot bolt, M15x71mm — W5306810

6Wedge spacer — W5306811

7Washer, 5.3mm x 1mm — W5309244

8Fastener, M5x25mm — W5306809

9Spacer, 15x26x4 — W5307573

2024 Supercaliber

SLR routing with AXS shiing

Note: The fork must be removed to route the brake hose and IsoStrut lockout cable housing.

Important:

Route the cables as shown below.

Install the grommet prior

to routing the brake hose.

Cable tunnel

molded into

the frame

1Rear brake hose

2IsoStrut lockout cable housing

3Dropper seatpost cable housing

4Cable housing plugs — W600649

5Cable exit plug — W5256254

6Chainstay plug — W5259425

7Cable exit grommet — W5255861

8Chainstay plug — W600209

9Foam housing sleeves — W528082

2024 Supercaliber

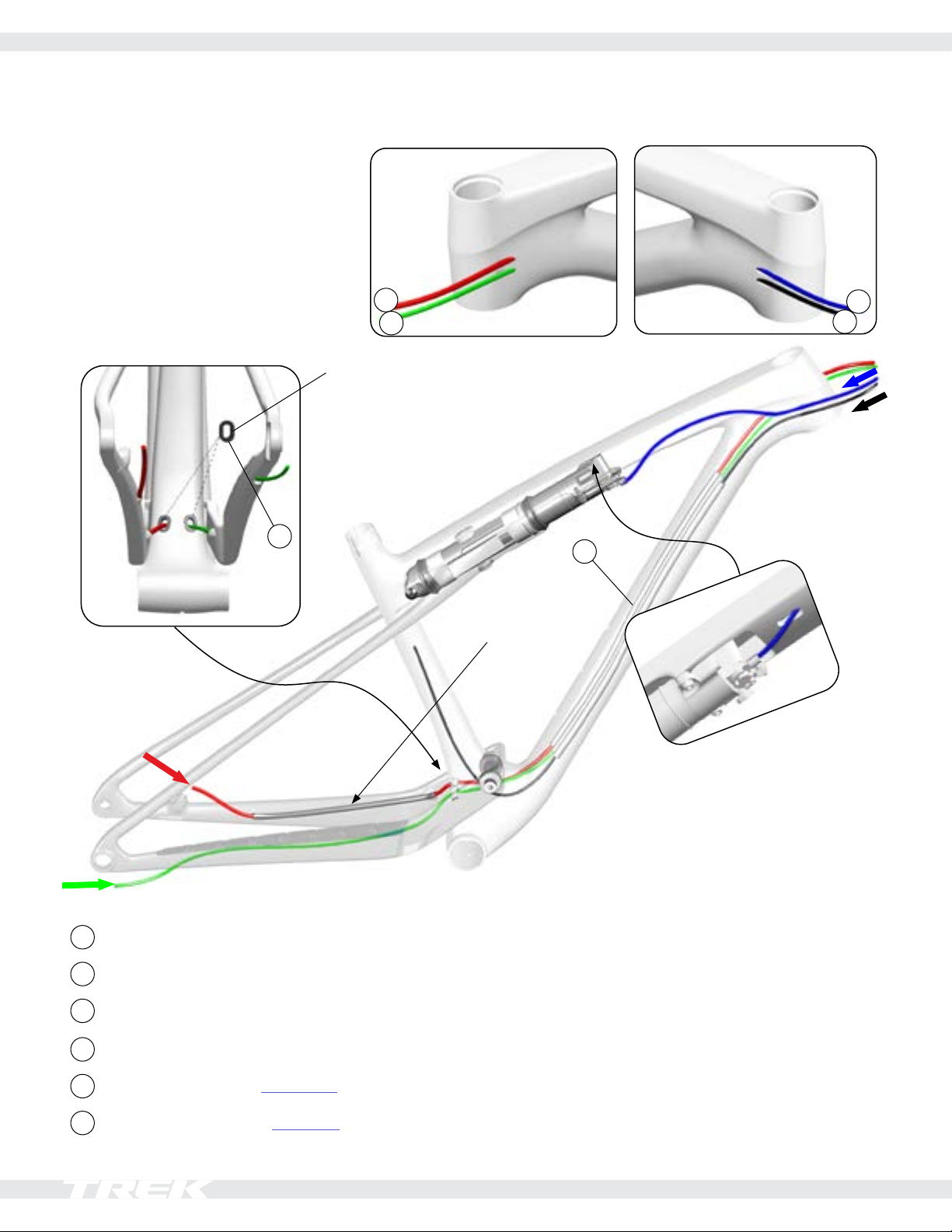

SLR routing with mechanical shiing

Note: The fork must be removed to route the brake hose and IsoStrut lockout cable housing through the head tube.

Install the grommets prior to

routing the brake hose and

derailleur cable housing.

Important: Route the cables as shown below.

Cable tunnel

molded into

the frame

1Rear brake hose

2Rear derailleur cable housing

3IsoStrut lockout cable housing

4Dropper seatpost cable housing

5Cable exit grommets — W5255861

6Foam housing sleeves — W528082

2024 Supercaliber

SL routing with AXS shiing

Important:

Route the cables as

shown below.

Cable tunnels

molded into

the frame

1Rear brake hose

2IsoStrut lockout cable housing

3Dropper seatpost cable housing

4Cable housing plugs — W600649

5Chainstay plug — W5259425

6Chainstay plug — W600209
