Trane TCONT600AF11MA User manual

TCONT600AF11MA

Programmable Comfort Control

Installation Instructions

69-1834-2

Pub. No. 18-HD25D20-3

Product Application

This Comfort Control provides electronic control of 24 VAC single-stage heating

and cooling systems.

System Types

• Gas, oil or electric heat with

air conditioning

• Warm air, hot water, high-efficiency

furnaces, heat pumps

• Heat only with fan

• Cool only

Power

• Common wire only

• Common wire with battery backup

Changeover Options

• Selectable manual or

auto-changeover modes

System Settings

• Heat, Off, Cool, Auto

Fan Settings

• Auto, On

Must be installed by a trained, experienced technician

• Read these instructions carefully. Failure to follow these instructions can

damage the product or cause a hazardous condition.

• Check the ratings in this booklet to verify that this product is suitable for your

application (see page 12).

• Always test for proper operation after installation (see page 8).

CAUTION: ELECTRICAL HAZARD

Can cause electrical shock or equipment damage. Disconnect power before

beginning installation.

MERCURY NOTICE

If this product is replacing a control that contains mercury in a sealed tube, do not

place the old control in the trash. Contact your local waste management authority

for instructions regarding recycling and proper disposal.

Install the Comfort Control about 5 feet (1.5m) above the floor in

an area with good air circulation at average temperature.

Do not install in locations where the Comfort Control can be affected by:

• Drafts or dead spots behind doors and in corners

• Hot or cold air from ducts

• Sunlight or radiant heat from appliances

• Concealed pipes or chimneys

• Unheated/uncooled areas such as an outside wall behind the Comfort Control

NO NO

Installation

Pre-installation checklist .................2

Wallplate installation ......................3

Wiring .............................................4

Wiring diagrams ..............................5

Power options ................................6

Comfort Control mounting .............6

Setup and testing

Installer setup .................................7

Installer system test ........................8

Explanation of features ...................9

Appendices

Quick reference to controls .........10

Quick reference to display ...........10

Battery replacement .....................10

In case of difficulty .......................11

Accessories/replacement parts .....12

Specifications ................................12

Table of contents

Installation tips

Pre-installation checklist

Package contents

Check to make sure your package includes the following items:

Owner’s Guide

Wall anchors and

mounting screws

(2 each)

AA alkaline

batteries (2)

Programmable

Comfort Control

(wallplate attached to back)

Required tools & supplies

• No. 2 Phillips screwdriver

• Small pocket screwdriver

• Drill

• Drill bit (3/16” for drywall, 7/32” for plaster)

• Hammer

• Pencil

• Electrical tape

• Level (optional)

Quick

reference

card

Remove the wallplate from the

Comfort Control as shown at left, then

follow directions below for mounting.

1 Insert quick reference card in slot

in back of Comfort Control.

2 Pull wires through wire hole.

3 Position wallplate on wall, level and

mark hole positions with pencil.

4 Drill holes at marked positions as

shown below, then tap in supplied

wall anchors.

5 Place wallplate over anchors, insert

and tighten mounting screws.

Drill 3/16” holes for drywall.

Drill 7/32” holes for plaster.

Wall anchors

Mounting screwsWire hole

Wallplate installation

Insert quick reference card

Remove battery holder.

Pull here to remove wallplate

from new Comfort Control.

Wiring

1 Loosen screw terminals, insert

wires into terminal block, then

re-tighten screws.

2 Push excess wire back into the

wall opening. Keep wires in shaded

area as shown at left.

3 Plug the wall opening with non-

flammable insulation to prevent

drafts from affecting Comfort

Control operation.

Terminal Designations

G Fan relay.

W (O) Heat relay or changeover valve

terminal for heat pumps.

B Common wire from secondary side

of cooling system transformer.

Y Compressor contactor.

R Heating power. Connect to

secondary side of heating

system transformer.

Rc Cooling power. Connect to

secondary side of cooling

system transformer.

Terminal

block

NOTES

R & Rc terminals

In single-transformer system, leave metal

jumper in place between R & Rc. Remove

metal jumper if two-transformer system.

B terminal

B is the common wire terminal.

W (O) terminal

If Comfort Control is configured for a heat

pump in the Installer Setup, changeover valve

is configured for cool (“O” factory setting).

Wire specifications

Use 18- to 22-gauge thermostat wire.

Shielded cable is not required.

Keep wires in this

shaded area

CAUTION: ELECTRICAL HAZARD. Can cause electrical shock or equipment damage.

Disconnect power before wiring.

Wiring

Typical 1H/1C system: 1 transformer Typical 1H/1C system: 2 transformers

Factory-installed jumper. Remove for 2-transformer systems only.

• Provide Power Supply disconnect means and overload protection as required.

In Installer Setup, set system type to Heat Pump.

Wiring diagrams

Typical 1H/1C heat pump system:

SINGLE STAGE GAS FURNACE – SINGLE STAGE COOLING

SINGLE STAGE

AIR CONDITIONER

SINGLE STAGE

GAS FURNACE

24VAC HOT

24VAC

600 COMFORT CONTROL

TERMINAL BLOCK

FAN

COOLING

HEATING

FACTORY INSTALLED JUMPER.

SINGLE STAGE OIL FURNACE – SINGLE STAGE COOLING

SINGLE STAGE

AIR CONDITIONER

SINGLE STAGE

OIL FURNACE

24VAC HOT

24VAC

600 COMFORT CONTROL

TERMINAL BLOCK

FAN

COOLING

HEATING

600 COMFORT CONTROL

TERMINAL BLOCK

HEAT PUMP – AIR HANDLER 1H/1C

HEAT PUMP

AIR HANDLER

24VAC HOT

24VAC

FAN

COOLING

SOV

FACTORY INSTALLED JUMPER.

SET SYSTEM TYPE TO HEAT PUMP.

AC Power

The Comfort Control must be

To wire the Comfort Control for AC

power, connect the common side of

the cooling transformer to the “B”

terminal as shown at left.

Important: Remove R/Rc jumper for

2-transformer systems only. (See wiring

diagram on page 5.)

Connect common

side of transformer

to “B” terminal

Install batteries in back of thermostat

(optional if AC powered).

Battery Backup Power

The Comfort Control can be powered

by backup batteries when used with

AC power. During power interruptions

the batteries will save time/day set-

tings and power the display.

After installation, batteries can be

changed without removing the

Comfort Control from the wall

(see page 10).

To Mount Comfort Control

Align the 4 tabs on the wallplate

with corresponding slots on the

back of the Comfort Control, then

push gently until the Comfort

Control snaps in place.

Jumper

Power options & mounting

Done Next

To begin, press and hold the and fan

buttons until the display changes

System type

Fan control

(heating)

Heating cycle rate

(CPH: cycles/hour)

Compressor

cycle rate (CPH)

System setting

adjustment

Adaptive Intelligent

Recovery™

Temperature

display

Compressor

protection

Schedule format

Heat temperature

range stops

Cool temperature

range stops

Dehumidification

Control

0 Gas, oil or electric heat with air conditioning

1 Heat pump

2 Heat only (2-wire systems/power to open & close zone valves/

normally open zone valves)

3 Heat only with fan

4 Cool only

0 Gas or oil furnace — equipment controls fan in heating

1 Electric furnace — Comfort Control controls fan in heating

5 For gas or oil furnaces of less than 90% efficiency

1 For steam or gravity systems

3 For hot water systems & furnaces of over 90% efficiency

9 For electric furnaces

[Other cycle rate options: 2, 4, 6, 7, 8, 10, 11 or 12 CPH]

3 Recommended for most compressors

[Other cycle rate options: 1, 2, 4, 5 or 6 CPH]

0 Manual changeover (Heat/Cool/Off)

1 Auto changeover (Heat/Cool/Auto/Off) **See page 9

2 Auto changeover only (Auto) **See page 9

1 On **See page 9

0 Off

0 Fahrenheit

1 Celsius

5 Five-minute compressor off time **See page 9

[Other options: 0, 1, 2, 3 or 4-minute off time]

0 5/2 (programmable weekdays and weekends)

1 5/1/1 (weekdays, Saturday & Sunday programmable)

90 Highest heating temperature setting

40-89 Heating temperature range (increments of 1°F, or 0.5°C)

60 Lowest cooling temperature setting

61-99 Cooling temperature range (increments of 1°F, or 0.5°C)

1 Cooling Droop

2 Cooling Droop with Comfort-RTM (15 seconds Fan Delay)

3 Cooling Droop with Comfort-RTM (30 seconds Fan Delay)

0 None

Setup Function Settings & Options (BOLD is “as shipped” settings)

Function

number

Press or to change settings

Press next to advance to next function

Press done to exit and save settings

Setting

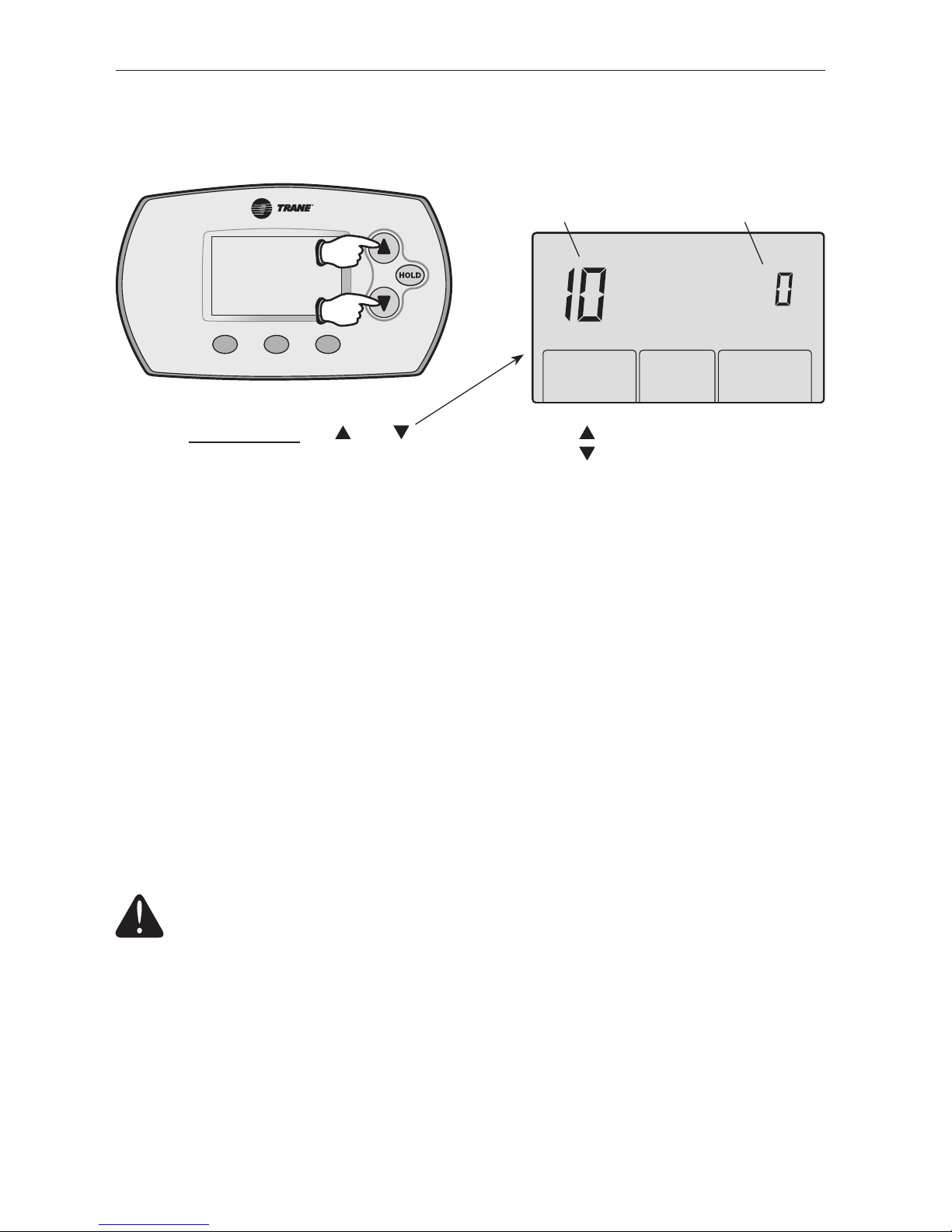

Installer setup

Follow the procedure below to configure the Comfort Control to match the

installed heating/cooling system, and customize feature operation as desired.

Done Next

To begin, press and hold the and

buttons until the display changes

System test

number

Press to turn on system

Press to turn off system

Press next to advance to next test

Press done to terminate system test

System

status

Heating system

Cooling system

Fan system

Comfort Control

information

(for reference only)

0 Heat and fan turn off.

1 Heat turns on. Fan also turns on immediately if Function 1 or 3 is

set to “1” (see page 7).

0 Compressor and fan turn off.

1 Compressor and fan turn on.

0 Fan turns off.

1 Fan turns on.

71 Software revision number (major revisions)

72 Software revision number (minor revisions)

73 Configuration identification code (major)

74 Configuration identification code (minor)

75 Production configuration date code (week)

76 Production configuration date code (year)

System Test System Status

Installer system test

CAUTION: EQUIPMENT DAMAGE HAZARD

Compressor protection (minimum off time) is bypassed during testing. To prevent

equipment damage, avoid cycling the compressor quickly.

Follow the procedure below to test the heating, cooling and fan.

Other manuals for TCONT600AF11MA

Table of contents

Other Trane Thermostat manuals

Trane

Trane TAYSTAT 370 User manual

Trane

Trane TZON1050AC52ZAA User manual

Trane

Trane TCONT402AN32DA Assembly instructions

Trane

Trane X39641161-01B Operator's manual

Trane

Trane Thermostats Operational manual

Trane

Trane TAYSTAT 375 User manual

Trane

Trane TCONT802AS32DA User manual

Trane

Trane DELUXE programable XT302C User manual

Trane

Trane TZONE950AC52ZA User manual

Trane

Trane TAYSTAT 575 User manual

Trane

Trane TCONT800 Series User manual

Trane

Trane XR102 User manual

Trane

Trane Thermostats Operating instructions

Trane

Trane Link UX360 User manual

Trane

Trane TZEMT400BB32MMA User manual

Trane

Trane TZEMT500AB32MAA User manual

Trane

Trane X13511538-01 Owner's manual

Trane

Trane Nexia TCONT624AS42DA User manual

Trane

Trane TR-BAC-1000-DX2 User manual

Trane

Trane BAYSTAT150A Manual

Trane

Trane BAC-1000 User manual

Trane

Trane 3518-7064 User manual

Trane

Trane X13511537-01 User manual

Trane

Trane TR-SAS908MTW-0-F3 Operational manual

Popular Thermostat manuals by other brands

EWELLY

EWELLY EW-181 manual

Prolon

Prolon T1100 Hardware guide

Computherm

Computherm Q20 operating instructions

Heatmiser

Heatmiser neoStat user manual

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA user manual

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat user manual

Saswell

Saswell SAS920XWHB-7-S-RF User manual and warranty card

Aircalo

Aircalo TFP1-ET85P2 operating manual

Honeywell

Honeywell CM721 user manual

Carrier

Carrier DEBONAIR 33CS Installation and operating instructions

Lennox

Lennox iHarmony Zone Thermostat Installation and setup guide

Gemtech

Gemtech GT7000 Operation

Rollei

Rollei Smartes 45000 manual

Sinope

Sinope TH1300RF user guide

Honeywell

Honeywell RLV4305 owner's guide

Honeywell

Honeywell Prestige 2.0 THX9421 manual

NuTone

NuTone NTBZ48 Installation & operation guide

Stelpro

Stelpro MAESTRO ASMT402AD user guide
