TP-Link KS220M User manual

User Guide

Kasa Smart Wi-Fi Dimmer Switch, Motion-Activated

Contents

About This Guide ···················································· 1

Introduction ······························································· 2

Appearance ······························································· 3

Set Up Your Smart Dimmer Switch··············· 4

Main Device Controls·········································10

Adjust Brightness ·················································11

Set Preset Brightness ········································12

Congure Smart Control ··································13

Set Schedules ························································20

Set Timer···································································23

Set Away Mode······················································24

Manage Device Settings ··································25

Reset Your Smart Dimmer Switch ···············35

Create Groups ························································38

Create Scenes························································42

Smart Actions·························································44

Discover Kasa·························································55

Authentication························································56

About This Guide

This guide provides a brief introduction to Kasa Smart Wi-Fi Dimmer Switch and the Kasa Smart app, as well as regulatory information.

Features available in Kasa Smart Wi-Fi Dimmer Switch may vary by model and software version. Kasa Smart Wi-Fi Dimmer Switch availability may also

vary by region. All images, steps, and descriptions in this guide are only examples and may not reect your actual experience.

Conventions

In this guide, the following convention is used:

Convention Description

Teal Key information appears in teal, including management page text such as menus, items, buttons and so on.

Underline Hyperlinks are in teal and underlined. You can click to redirect to a website.

More Info

• Specications can be found on the product page at https://www.tp-link.com.

• Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support.

• A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com.

• Frequently Asked Questions (FAQs) can be found at https://www.tp-link.com/support/faq/.

Introduction

Built-in motion and ambient light sensors work together for true hands-free control. Our smart dimmer conveniently auto-adjusts your room’s

brightness. With Smart Control, further customize your light settings to follow your routine with the easy-to-use app. Just set it then forget it. The Kasa

Smart app also provides easy step-by-step installation instructions and enables convenient remote control from anywhere, anytime.

Energy

Saving

Easy

Installation

Customized

Dimming

Smart

Control

Advanced

Sensing

No Hub

Required

Control from

Anywhere

Set

Schedules

• Advanced Sensing - The equipped sensors detect motion and ambient lighting so your lights only

trigger on at night.

• Smart Control - Set dierent light triggers based on your routine for eortless control.

• Easy Installation - The detailed in-app guide and unique circuit design make installation simple.

• Customized Dimming - Experience a full range of brightness before fading them o for bedtime.

• Energy Saving - Turn o the light automatically after you leave the room for a set time.

• Control from Anywhere - Control anything connected to your smart light switch, like lights, ceiling fans

or other xtures, from anywhere using the Kasa Smart app.

• No Hub Required - Connect to your existing Wi-Fi router.

• Scheduling - Set lights to automatically turn on and o throughout the day or night whether you’re home

or away.

Appearance

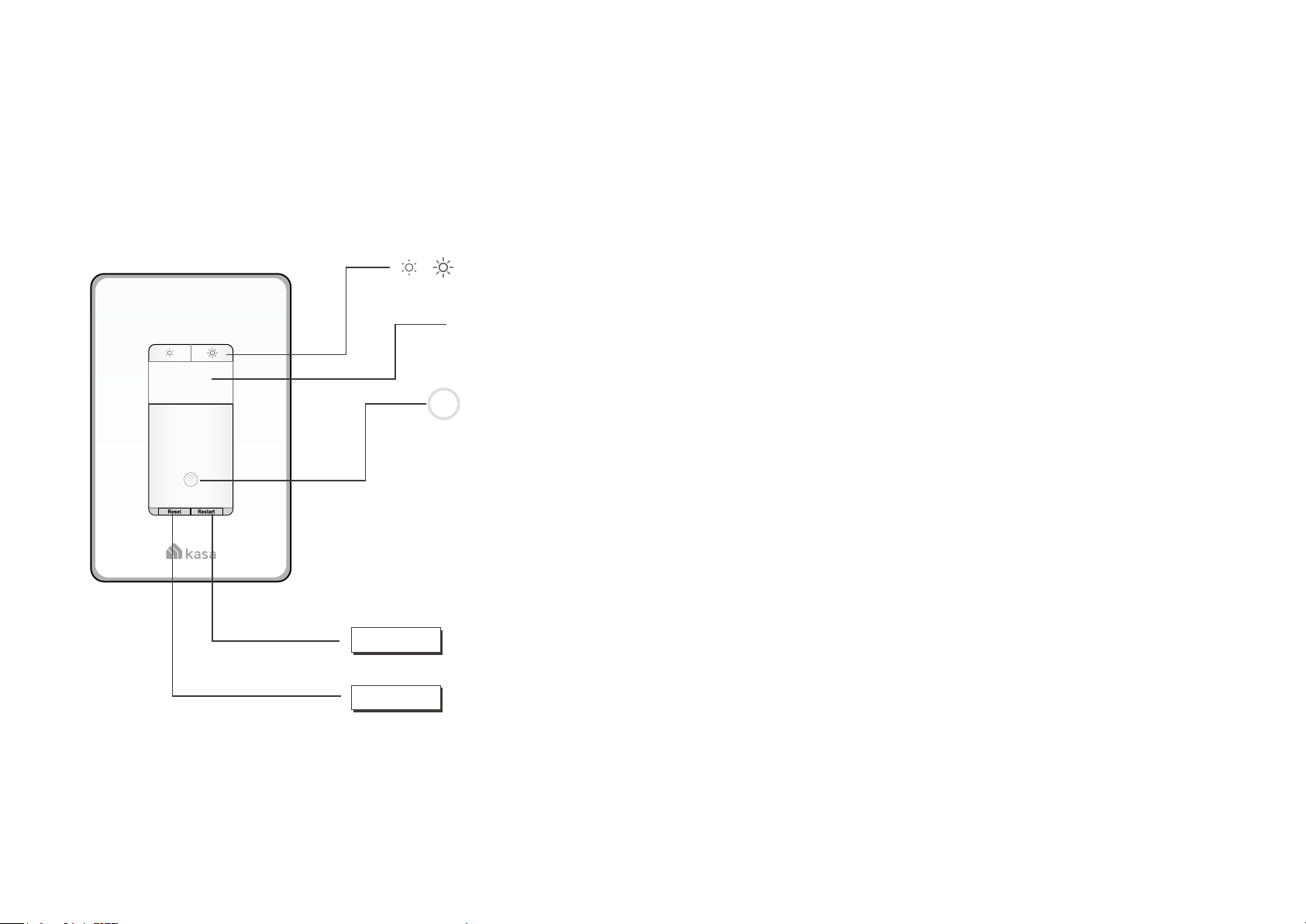

The Smart Dimmer Switch is compatible with incandescent, LED, Halogen, and compact uorescent light bulbs. The dimmer switch also includes two

brightness adjustment buttons, and an LED indicator to easily locate the dimmer switch at night. See the explanation below:

Blinking Amber and Green: Ready for setup.

Blinking Green: Connecting to Wi-Fi.

Stay Green for 30s: Connected to Wi-Fi.

Blinking Amber: Resetting.

Red: No Wi-Fi connection.

White: Lit up when the light is o to show the switch location in the dark.

Press to reboot the dimmer switch.

Press and hold for about 5 seconds until the LED blinks amber and

green to reset Wi-Fi connection while keeping previous settings.

Press and hold for about 10 seconds until the LED blinks amber

rapidly to factory reset the dimmer switch.

Decrease or increase the brightness of the light.

Built-In Motion Sensor & Ambient Light Sensor

Reset

Restart

Set Up Your Smart Dimmer Switch

Follow the steps below to set up your Smart Dimmer Switch via Kasa Smart app.

1. Download and install Kasa app

Go to App Store or Google Play or scan the

QR code below to download the Kasa Smart

app on your Android or iOS device.

2. Log in or sign up

Open the app. Use your TP-Link ID to log in.

If you don’t have a TP-Link ID, tap Create

Account and the Kasa app will guide you

through the rest.

3. Add Device

Tap the + button in the Kasa app, select Smart

Switches.

4. Install the Dimmer Switch

1. Turn o the circuit breaker rst. 2. Remove the old wallplate and expose the wiring.

4. Install the Dimmer Switch

3. Look for a bundle of white wires, and label one of it as Neutral. 4. Look for a green or copper wire, and label it as Ground.

4. Install the Dimmer Switch

5. Turn on power. 6. Use a voltage detector to nd the energized wire, this is the Line wire. The othe wire is

the Load wire. Then label the Line and Load wire.

4. Install the Dimmer Switch

7. Turn o power again. 8. Install the dimmer switch and then attach the wallplate.

Then connect the wires. Turn on power again.
