FEATURES ON NEW TOYOTA VEHICLE

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster and multi−information display overview 5. . . . . . . .

Indicator symbols on the instrument cluster and multi−information

display 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

Instrument panel overview

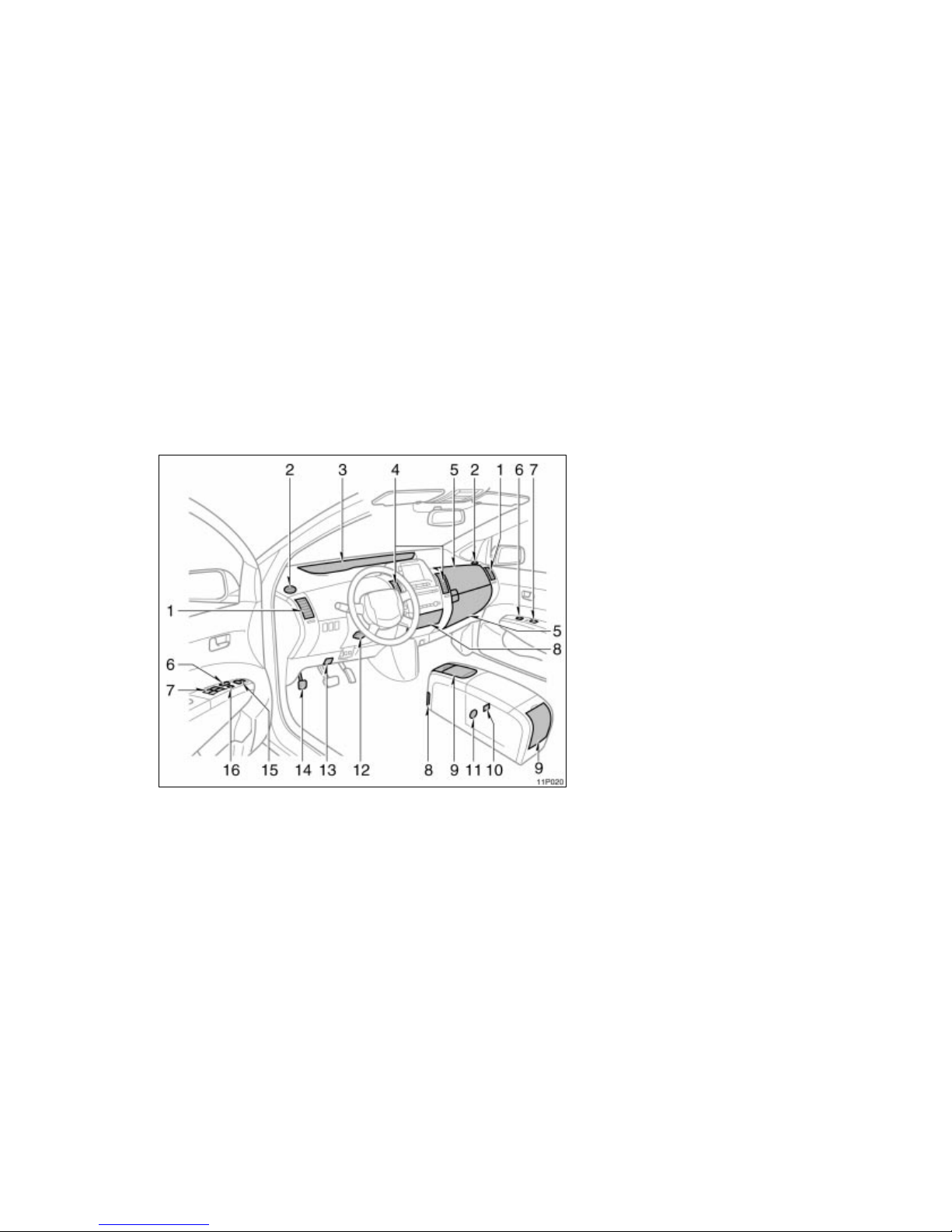

1. Side vent 299. . . . . . . . . . . . . . . . . . . . . . . .

2. Side defroster outlet

3. Instrument cluster 5. . . . . . . . . . . . . . . . . .

4. Center vents 299. . . . . . . . . . . . . . . . . . . . .

5. Glove box 308. . . . . . . . . . . . . . . . . . . . . . .

6. Power door lock switches 40. . . . . . . . .

7. Power window switches 43. . . . . . . . . . .

8. Auxiliary box 313. . . . . . . . . . . . . . . . . . . . .

9. Cup holders 314. . . . . . . . . . . . . . . . . . . . .

10. AUX adapter 278. . . . . . . . . . . . . . . . . . . . .

11. Power outlet 307. . . . . . . . . . . . . . . . . . . . .

12. Tilt steering lock release lever 104. . . .

13. Hood lock release lever 45. . . . . . . . . . .

14. Parking brake pedal 156. . . . . . . . . . . . . .

15. Power rear view mirror

control switches 105. . . . . . . . . . . . . . . . . .

16. Window lock switch 44. . . . . . . . . . . . . . .

11p020

WWW.MANUALS.WS

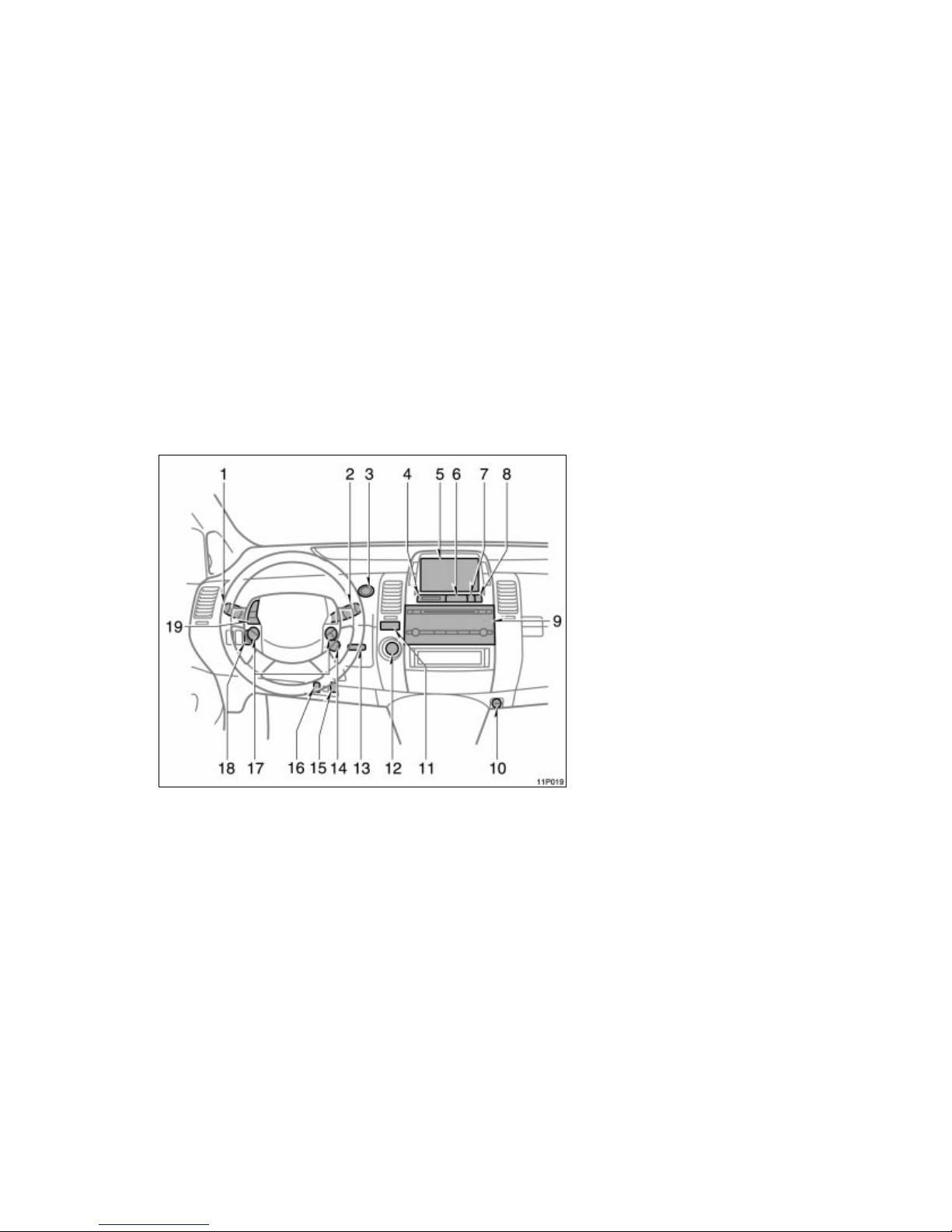

1. Headlight and turn signal

switches 110. . . . . . . . . . . . . . . . . . . . . . . . .

2. Wiper and washer switches 117. . . . . . .

3. “POWER” switch 139. . . . . . . . . . . . . . . . .

4. Clock 304. . . . . . . . . . . . . . . . . . . . . . . . . . . .

5. Multi−information display or

navigation system including

multi−information display

(For the navigation system,

see the separate “Navigation

System Owner’s Manual”.) 160. . . . . . . .

6. Emergency flasher switch 114. . . . . . . . .

7. Trip meter reset button 123. . . . . . . . . . .

8. Km/h or MPH button 124. . . . . . . . . . . . .

9. Audio system 242. . . . . . . . . . . . . . . . . . . .

10. Power outlet 307. . . . . . . . . . . . . . . . . . . . .

11. “P” position switch 144. . . . . . . . . . . . . . .

12. Electronic shift lever

(R, N, D, B) 144. . . . . . . . . . . . . . . . . . . . .

13. Key slot 138. . . . . . . . . . . . . . . . . . . . . . . . .

14. Cruise control switch 156. . . . . . . . . . . . .

15. Tire pressure warning

reset switch 150. . . . . . . . . . . . . . . . . . . . .

16. Smart entry and start system

cancel switch 34. . . . . . . . . . . . . . . . . . . . .

11p019

WWW.MANUALS.WS

17. Climate remote control

switches 299. . . . . . . . . . . . . . . . . . . . . . . . .

18. Instrument panel light control

dial 114. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19. Audio remote control switches 277. . . .

WWW.MANUALS.WS

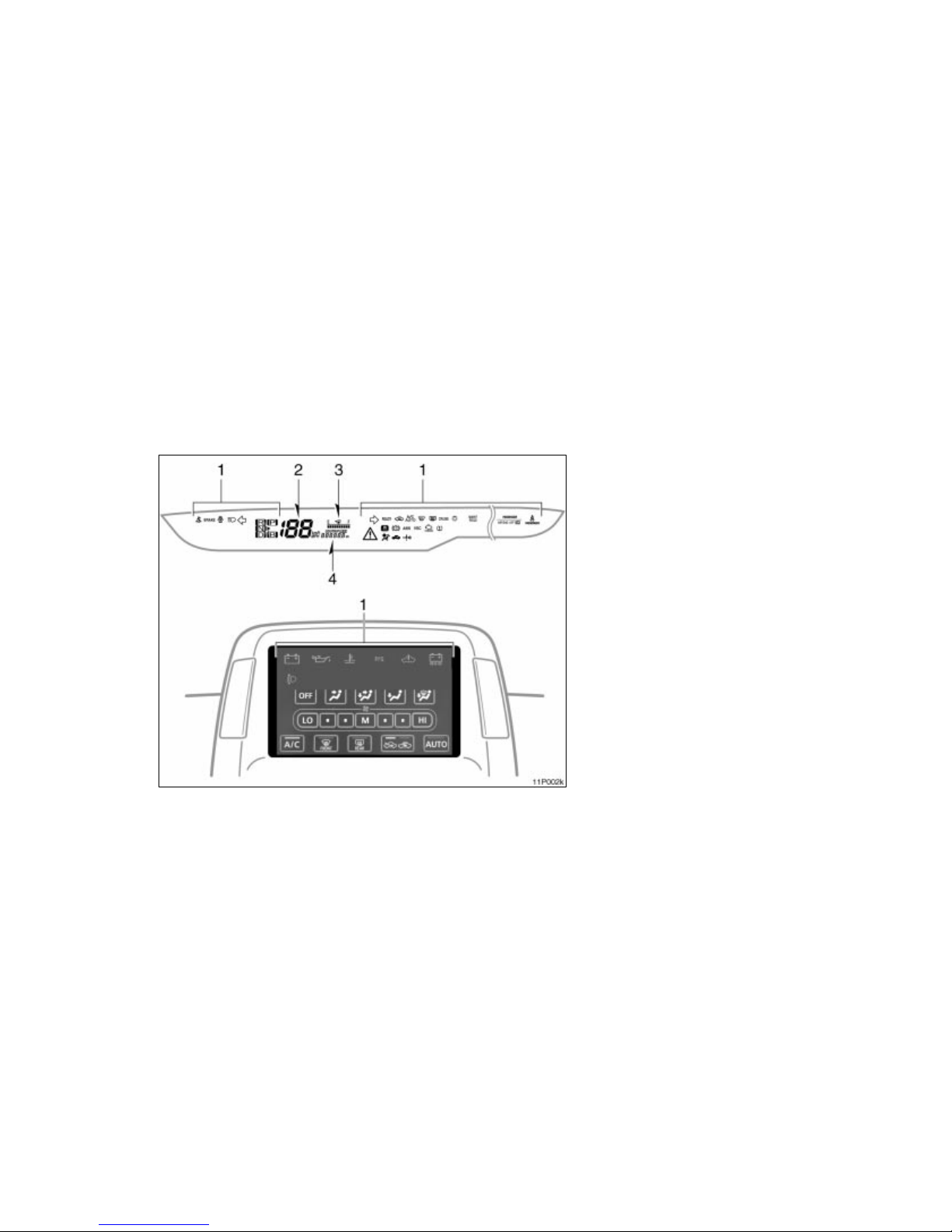

1. Service reminder indicators

and indicator lights 125, 133. . . . . . . . . .

2. Speedometer

3. Fuel gauge 122. . . . . . . . . . . . . . . . . . . . . .

4. Odometer and trip meter 123. . . . . . . . .

Instrument cluster and multi−information display overview

11p002k

WWW.MANUALS.WS

Indicator symbols on the instrument cluster and multi−information display

and

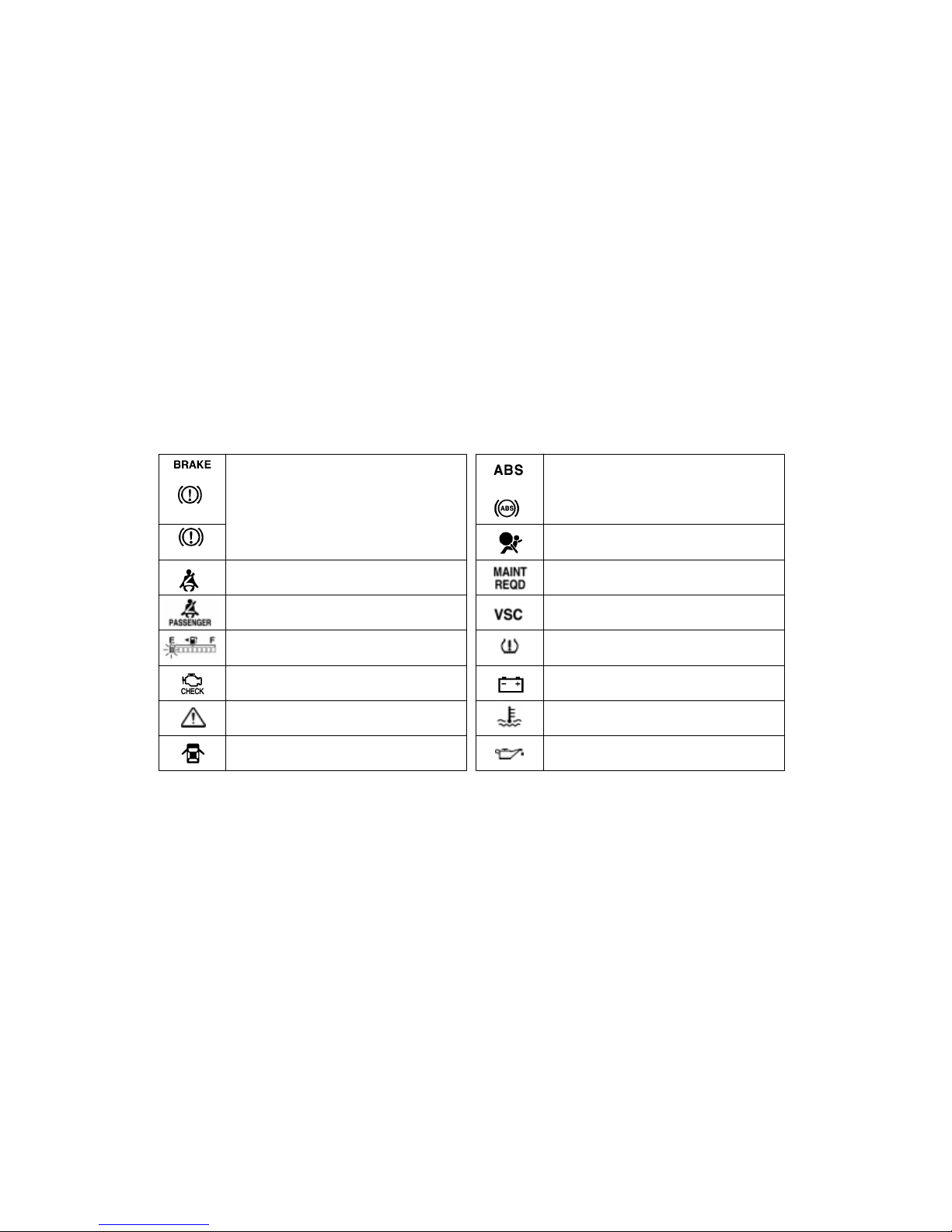

Brake system warning lights*1

Driver’s seat belt reminder light*1

Front passenger’s seat belt reminder light*1

Malfunction indicator lamp*1

Low fuel level indicator light*1

Open door warning light*1

Master warning light*1

Anti−lock brake system warning light*1

SRS warning light*1

Engine oil replacement reminder light*1

(for vehicles sold in the U.S.A.)

Vehicle stability control system warning light*1

Charging system warning light*2

High coolant temperature warning light*2

Low engine oil pressure warning light*2

(U.S.A.)

(Canada)

Tire pressure warning light*1

WWW.MANUALS.WS

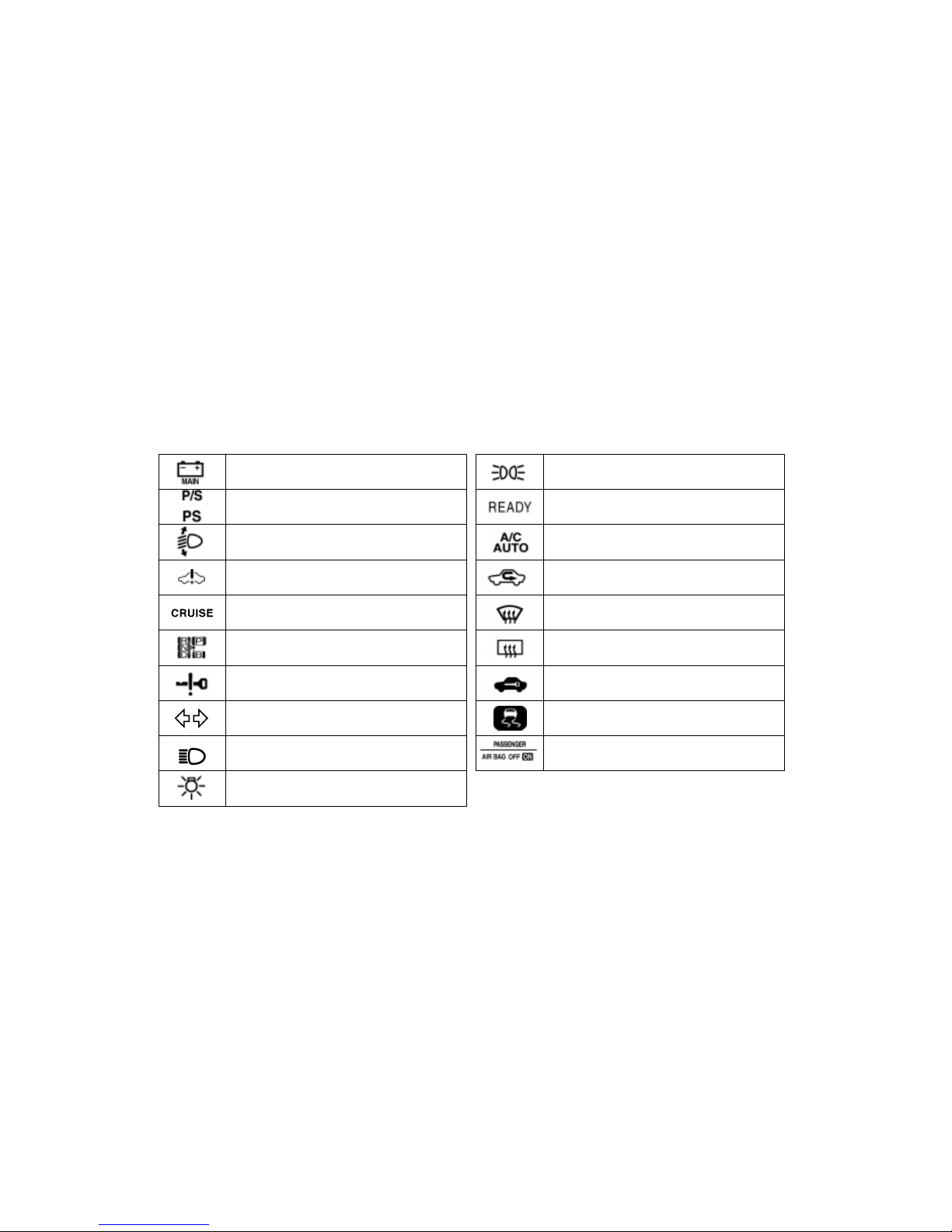

Hybrid vehicle immobilizer / Theft deterrent

system indicator light

Tail light indicator light

Shift position indicator light*4

Driving ready light

Automatic air conditioner indicator light

Recirculate mode indicator light

Smart entry and start system warning light*5

Windshield air flow indicator light

Slip indicator light

Headlight high beam indicator light

Headlight indicator light

Turn signal indicator lights

Cruise control indicator light*3

Hybrid system warning light*2

Automatic head light leveling system

warning light*2

Electric power steering system warning light*2

“AIRBAG ON” and “AIRBAG OFF”

indicator lights

Rear window and outside rear view mirror

defoggers indicator light

Hybrid battery warning light*2

WWW.MANUALS.WS

*1: For details, see “Service reminder indi-

cators and warning buzzers— —Instru-

ment cluster” on page 125.

*2: For details, see “Service reminder indi-

cators and warning buzzers— —Multi−

information display” on page 133.

*3: If this light flashes, see “Cruise con-

trol” on page 156.

*4: For details, see “Hybrid transaxle” on

page 144.

*5: For details, see “Smart entry and start

system” on page 24.

WWW.MANUALS.WS

FEATURES ON NEW TOYOTA VEHICLE

Toyota hybrid system

Toyota hybrid system 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Toyota hybrid system operating condition 10. . . . . . . . . . . . . . . . . . . . . .

Starting your vehicle 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For efficient use of your vehicle 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Precautions for use 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

Toyota hybrid system combines a gaso-

line engine and electric motor power to

improve the fuel economy and minimize

the emissions as well as to provide

better power performance than the ordi-

nary gasoline−powered vehicles.

Depending on the driving condition, the

vehicle runs on the best combination of;

Gasoline engine power

Electric motor power generated by

the gasoline engine

Electric motor power of the hybrid

battery

Furthermore, the energy is efficiently used

in the following ways:

When stopping the vehicle, the gaso-

line engine is automatically stopped.

When applying the brakes or decelerat-

ing, electricity is converted from the

turning force of the wheels and stored

in the hybrid battery. (This is called

regenerative brake.)

Since the battery is charged by the

gasoline engine as needed, it does not

require charging from an outside

source like an electric vehicle.

Basic operations are described below. Be-

sides, Toyota hybrid system performs vari-

ous controls depending on the operating

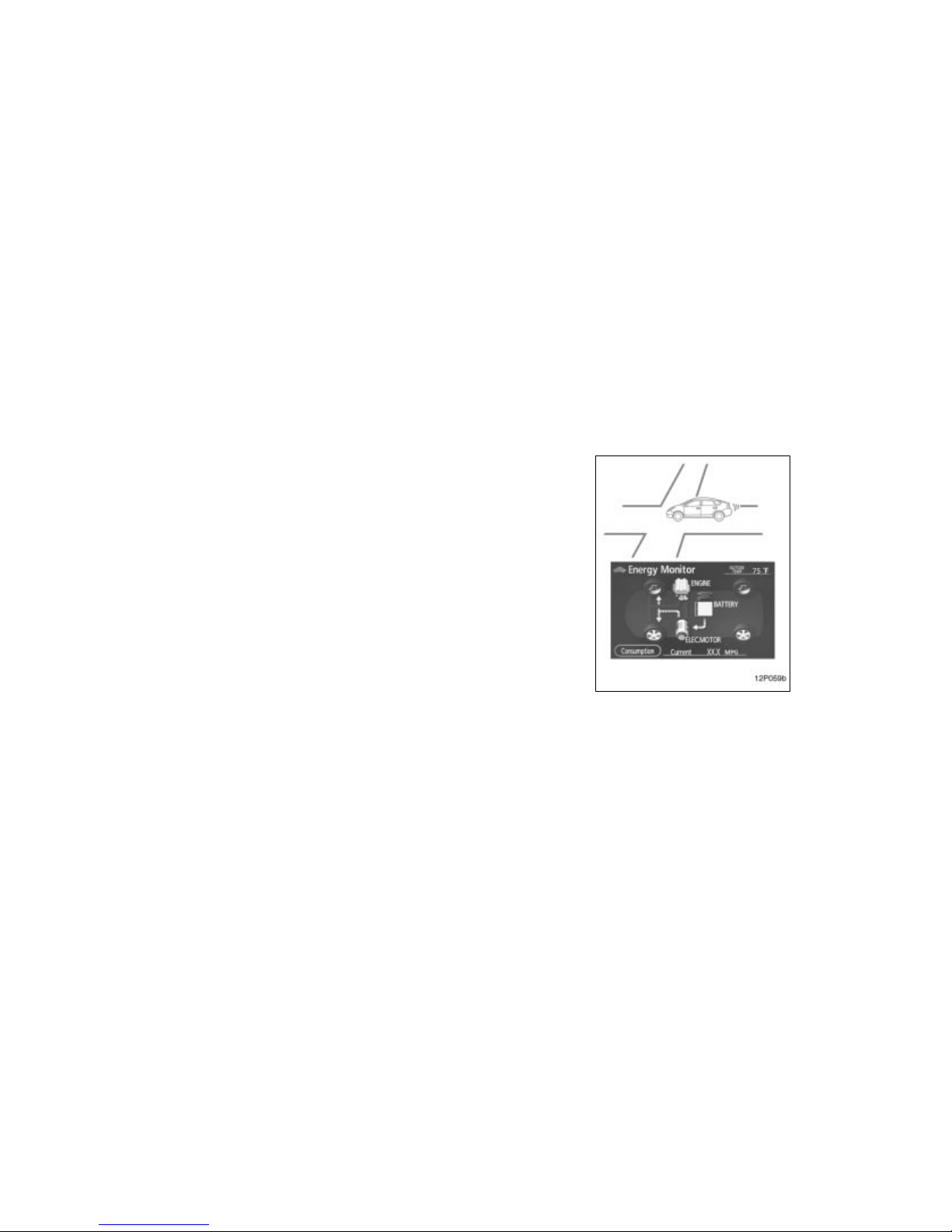

condition: The “Energy Monitor” screen

tells you which power is used currently.

12p059b

Electric power

in use

When starting or backing up, etc., the

vehicle runs on electric power from hybrid

battery, because the gasoline engine effi-

ciency is low.

Toyota hybrid system Toyota hybrid system

operating condition
