Toyota Hiace User manual

Finish

表１：豪州

read carefully and keep in the vehicle.

For your safety and comfort,

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

Foreword

Welcome to the growing group of value−conscious people who drive Toyotas. We

are proud of the advanced engineering and quality construction of each vehicle we

build.

This Owner’s Manual explains the operation of your new Toyota. Please read

it thoroughly and have all the occupants follow the instructions carefully.

Doing so will help you enjoy many years of safe and trouble−free motoring.

For important information about this manual and your Toyota, read the follow-

ing pages carefully.

When it comes to service, remember that your Toyota dealer knows your vehicle

very well and is interested in your complete satisfaction. He will provide quality

maintenance and any other assistance you may require.

Please leave this Owner’s Manual in this vehicle at the time of resale. The next

owner will need this information also.

All information and specifications in this manual are current at the time of printing.

However, because of Toyota’s policy of continual product improvement, we reserve

the right to make changes at any time without notice.

Please note that this manual applies to all models and explains all equipment,

including options. Therefore, you may find some explanations for equipment

not installed on your vehicle.

ã2004 TOYOTA MOTOR CORPORATION

part, without the written permission of Toyota Motor Corporation.

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

Important information about this manual

Safety and vehicle damage warnings

Throughout this manual, you will see safety and vehicle dam-

age warnings. You must follow these warnings carefully to

avoid possible injury or damage.

The types of warnings, what they look like, and how they are

used in this manual are explained as follows:

CAUTION

This is a warning against anything which may cause

injury to people if the warning is ignored. You are

informed about what you must or must not do in

order to reduce the risk of injury to yourself and

others.

NOTICE

This is a warning against anything which may cause

damage to the vehicle or its equipment if the warning

is ignored. You are informed about what you must or

must not do in order to avoid or reduce the risk of

damage to your vehicle and its equipment.

Safety symbol

When you see the safety symbol

shown above, it means: “Do not...”;

“Do not do this”; or “Do not let this

happen”.

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

iii

Important information about your Toyota

Accessories, spare parts and

modification of your Toyota

A wide variety of non−genuine spare parts and accessories

for Toyota vehicles are currently available in the market.

Using these spare parts and accessories which are not

genuine Toyota products may adversely affect the safety of

your vehicle, even though these parts may be approved by

certain authorities in your country. Toyota therefore cannot

accept any liability or guarantee spare parts and accesso-

ries which are not genuine Toyota products, nor for re-

placement or installation involving such parts.

This vehicle should not be modified with non−genuine

Toyota products. Modification with non−genuine Toyota

products could affect its performance, safety or durability,

and may even violate governmental regulations. In addi-

tion, damage or performance problems resulting from the

modification may not be covered under warranty.

Installation of a mobile

two−way radio system

As the installation of a mobile two−way radio system in

your vehicle could affect electronic systems such as multi-

port fuel injection system/sequential multiport fuel injection

system, anti−lock brake system and SRS airbag system,

be sure to check with your Toyota dealer for precautionary

measures or special instructions regarding installation.

Maintenance schedule

Please refer to the separate “Warranty and Service

Booklet”.

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

Scrapping of your Toyota

The SRS airbag device in your Toyota contains explosive

chemicals. If the vehicle is scrapped with the airbags left

as they are, this may cause an accident such as fire. Be

sure to have the SRS airbag system removed and dis-

posed of by a qualified service shop or by your Toyota

dealer before you dispose of your vehicle.

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

1 OPERATION OF INSTRUMENTS AND CONTROLS Page

1 Overview of instruments and controls 1............................

2 Keys and Doors 7.............................................

3 Seats, Seat belts, Steering wheel and Mirrors 19.....................

4 Lights, Wipers and Defogger 43..................................

5 Gauges, Meters and Service reminder indicators 51..................

6 Ignition switch, Transmission and Parking brake 61...................

7 Car audio system 69..........................................

8 Air conditioning system 77.....................................

9 Other equipment 87............................................

2 INFORMATION BEFORE DRIVING YOUR TOYOTA 93..............

3 STARTING AND DRIVING 105....................................

4 IN CASE OF AN EMERGENCY 119...............................

5 CORROSION PREVENTION AND APPEARANCE CARE 139........

6 MAINTENANCE REQUIREMENTS 145............................

7DO−IT−YOURSELF MAINTENANCE

1 Introduction 149...............................................

2 Engine and Chassis 157........................................

3 Electrical components 169......................................

8 SPECIFICATIONS 183...........................................

9 INDEX 191......................................................

Table of contents

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

Model code

Check the model code to see what type of model your vehicle is.

RZH103 −R

The model code appears on the manufacturer’s plate with the heading “MODEL”.

See “Your Toyota’s identification” in Section 2 for the manufacturer’s plate location.

Basic code

RZH103, RZH113, RZH125:

Models with 2RZ−E engine

LH162, LH172, LH184:

Models with 5L engine

Wheelbase

0, 6: Standard wheelbase

1, 7: Long wheelbase

2, 8: Super long wheelbase

Body type

R: Van

Z: Commuter

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2....................................

Instrument cluster overview 4...................................

Indicator symbols on the instrument panel 6......................

SECTION 1−1

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

1. Side vents

2. Front pillar assist grips

3. Side defroster outlets

4. Front interior light

5. Center vents

6. Instrument cluster

7. Power window switches

8. Window lock switch

9. Fuel filler door opener

10. Manual transmission gear shift lever or

automatic transmission selector lever

11. Parking brake lever

12. Glove box

Instrument panel overview

Not for Reproduction

Finish

HIACE_AE (L/O 0308)

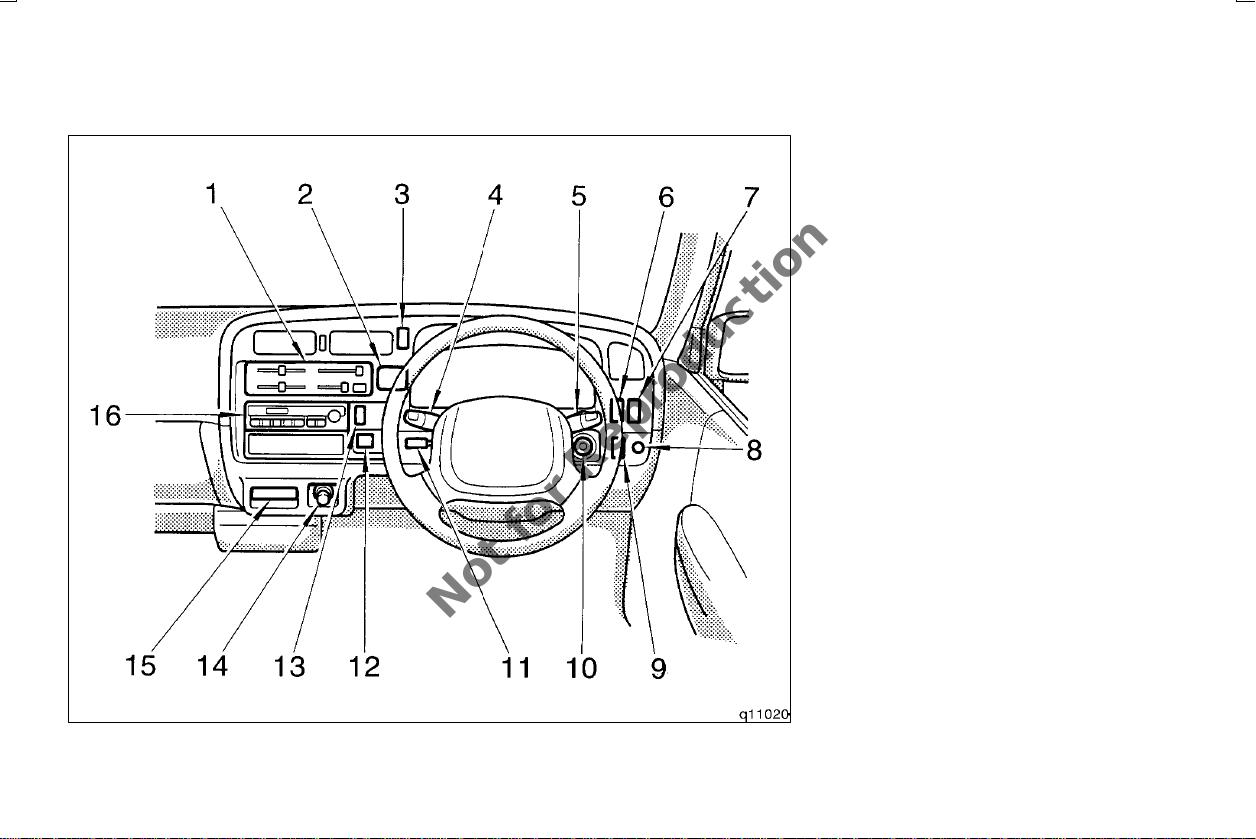

1. Air conditioning controls

2. Clock

3. Emergency flasher switch

4. Wiper and washer switches

5. Headlight and turn signal switches

6. Rear interior light switch

7. Power back door lock switch

8. Throttle knob

9. Instrument panel light control dial

10. Ignition switch

11. Tilt steering lock release lever

12. Power rear view mirror control switches

13. Rear window defogger switch

14. Cigarette lighter

15. Ashtray

16. Car audio

Not for Reproduction
