QUICK REFERENCE
GUIDE
4RUNNER
2010
413623M1.indd 1 9/8/09 11:18:59 AM
2010
4Runner
!Awordaboutsafevehicleoperations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in the vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of the vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new 4Runner.
This Quick Reference Guide is not a full description of
4Runner operations. Every 4Runner owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
25
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Doors-Child safety locks
Rear door
Sparetire&tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end through the opening in the bumper, and into
the lowering screw.
(3) Turn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Tool bag
Jack
(1)
(2)
(3)
Spare tire
1
Engine maintenance
8
Fuel tank door and cap 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1
6
Smart Key system17
Air Conditioning/Heating 18-19
Audio 20-21
Auto lock functions1,2
9
Automatic Transmission 9
Bluetooth
®
audio 23
Clock 14
Cruise control 17
Four-wheel drive 10
Garage door opener (HomeLink
®
)
3
19
iPod
®
/USB/AUX audio jack 21
Light control-Instrument panel
15
Lights1& turn signals 16
Moonroof114
Parking brake 9
Power outlets-12V DC 23
Power outlets-120V AC 22
Seat adjustments-Front 11
Seat adjustments-Second row seats 11
Seat heaters
18
Seats-Folding down second row seats 12
Seats-Head restraints 13
Seats-Returning third row seats 13
Seats-Stowing third row seats 13
Telephone controls (Bluetooth
®
)22
Tilt and telescopic steering wheel 10
VSC OFF button 15
Windows114
Window-Back window115
Windshield wipers & washers
17
Door locks
24
Doors-Child safety locks 25
Seat belts 24
Seat belts-Shoulder belt anchor 24
Sparetire&tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

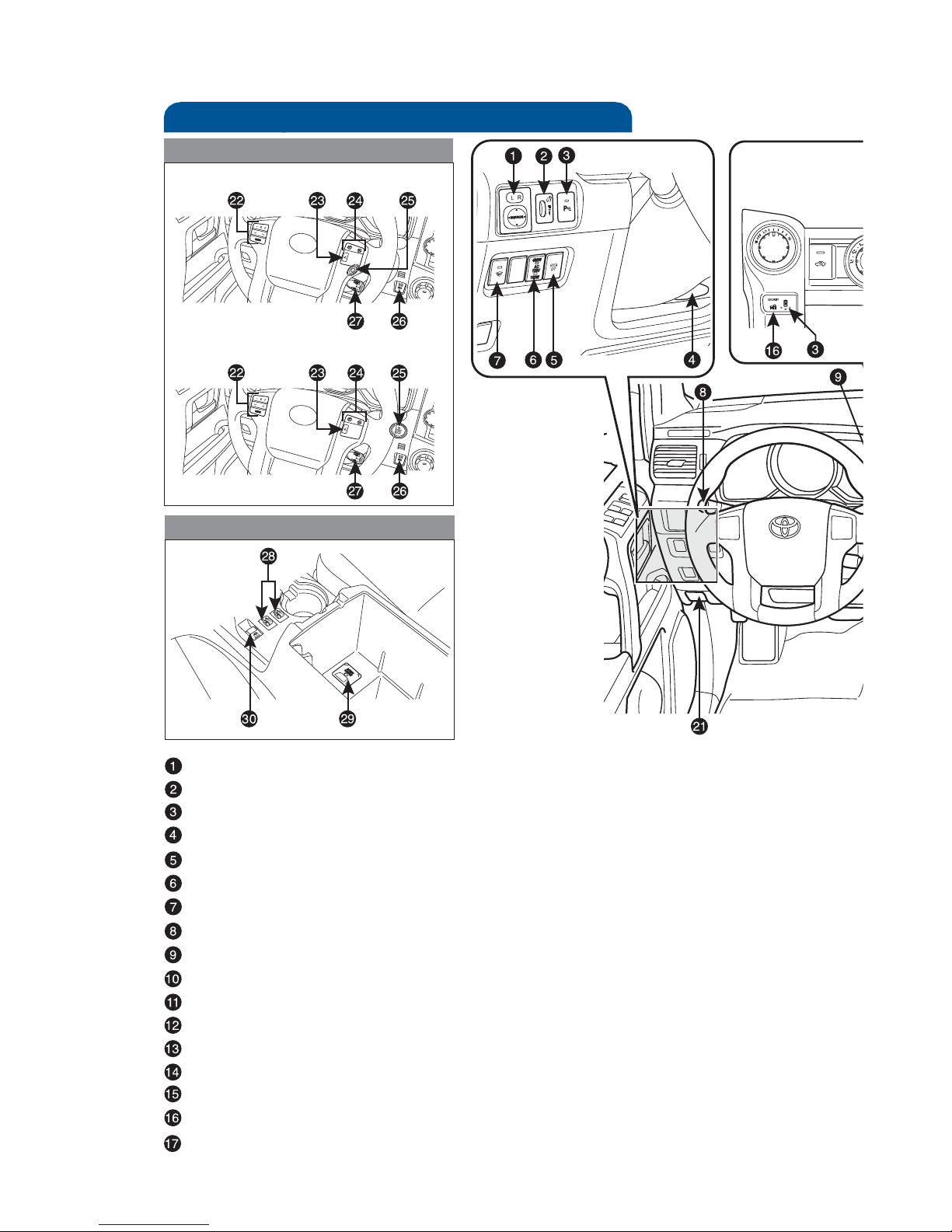

Power rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator1
Tilt and telescopic steering lock release
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch
120V AC Power outlet ON/OFF switch1
Windshield wiper de-icer switch1
Headlight, turn signal and front fog light1control
Wiper and washer controls
Accessory meter/Outside temperature display
Emergency flasher switch
Audio system1or navigation system2
Back window and outside rearview mirror defoggers switch
Front passenger seat belt reminder light
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator1
12V DC Power outlet
2
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Without Smart Key system
With Smart Key system
Manual Air
3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
USB adapter1
AUX adapter
Four-wheel drive selector1
Hood release
Steering wheel audio controls1,2
Voice command button1,2
Telephone switches1,2
Ignition switch (standard key)/“ENGINE START STOP” button (Smart Key)1
Party mode switch
Cruise control1
Seat heater switch1
120V AC Power outlet1
Power back window switch
1If equipped
2For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”
Conditioning Automatic Air Conditioning 2WD models
Part-time 4WD models
Full-time 4WD models
4
OVERVIEW
Low Tire Pressure Warning1
Open door warning1
Airbag SRS warning1
Tachometer
Speedometer
Display change button
Engine coolant temperature
Fuel gauge
Eco driving indicator zone display
Odometer, trip meter and average fuel consumption display
Shift position and shift range indicators
Voltmeter
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Optitron type meters
AIR BAG ON and AIR BAG OFF indicator
Turn signal indicator
Headlight low/high beam indicator
1For details, refer to “If a warning light turns on or a warning buzzer sounds...” Section 5-2,
2010 Owner’s Manual.
2For details, see “SRS airbags” Section 1-7, 2010 Owner’s Manual.
Low fuel level warning1
Non-Optitron type meters
5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Automatic Transmission fluid temperature warning1
Crawl Control indicator
Front fog light indicator
Four-wheel drive indicator3
Low speed four-wheel drive indicator3
Center differential lock indicator3
Slip indicator1
Vehicle Stability Control OFF indicator
Downhill Assist Control indicator
AUTO Limited Slip Differential indicator
Cruise control/Cruise control SET indicator4
Roll Sensing of Curtain shield Airbag OFF indicator2
Engine immobilizer/Theft deterrent system indicator
Anti-lock Brake System warning1
3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2010 Owner’s Manual.
4If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Multi-terrain select
Rear differential lock indicator
Active traction control indicator
Power steering system warning
1
Kinetic Dynamic Suspension System indicator1
Unengaged Park warning light
1
Smart Key system warning
Intuitive parking assist indicator
Eco driving indicator light
Traction Control OFF indicator
6
OVERVIEW
Fuel tank door and cap
Pull
Tu r n
NOTE: Tighten until one click is heard. If the cap is not properly sealed,
Check Engine “ ” indicator may illuminate.
Keyless entry
Locking
Unlocking
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Push ONCE: Driver door
TWICE: All doors
Push
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Unlock
Push
Lock
Locking Unlocking
Carry remote to unlock
Front door lock Front door unlock*
Grasp
Carry remote to lock/unlock/open
Back door lock/unlock/open
Carry remote to lock
To u c h
Open
Push
8
Windshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Hood release
Pull
Pull up latch and
raise hood
OVERVIEW
