This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for

the Owner’s Manual located in your vehicle’s glove box. We

strongly encourage you to review the Owner’s Manual and sup-

plementary manuals so you will have a better understanding of

your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor North

America, Inc. wish you many years of satised driving in your

new 86.

A word about safe vehicle operations

This Quick Reference Guide is not a full description of 86 operations. Every 86

owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout

the Owner’s Manual. Each box contains safe operating instructions to help you

avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing.

Toyota reserves the right to make changes at any time without notice.

6. Touch [PAIR] to begin the

pairing process. Once the

pairing process is completed, a

conrmation message is shown.

7. Touch [OK] on the message screen to complete the pairing process.

NOTE: A maximum of four devices can be paired.

The Multimedia System will automatically initiate the download of contacts, call

history and messages.

Refer to the Display Audio Owner’s Manual for more information.

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES

INDEX

Engine maintenance 9

Fuel tank door release & cap 7

Hood release 8

Indicator symbols 5

Instrument cluster 4

Instrument panel 2-3

Instrument panel light control 8

Keyless entry 6

Smart Key system 7

OVERVIEW

FEATURES & OPERATIONS

SAFETY & EMERGENCY FEATURES

Air conditioning/heating 22

Audio 20

Automatic transmission 10

Clock 19

Cruise control 12

Cup/bottle holders 23

Door locks 17

Driving mode select 11

Hill-start Assist Control (HAC) 12

Lights & turn signals 14

Manual transmission 10

Multi-Information Display (MID) 16

Parking brake 10

Power outlets-12V DC 21

Rear view monitor system 13

Seat adjustments-Front 15

Seat heaters 23

Seats-Folding rear 15

Seats-Head restraints 15

Steering lock release 18

Steering wheel switches 17

Tilt & telescopic steering wheel 18

Trunk release 19

USB media port 21

Vehicle Stability Control (VSC)

TRAC OFF switch 13

Windows-Power 17

Windshield wipers & washers 14

Floor mat installation 27

Seat belts 24

Spare tire & tools 25

Star Safety System™26-27

Tire Pressure Monitoring

(warning) System (TPMS) 24

Trunk-Internal release 24

PAIRING BLUETOOTH®PHONE FOR

THE FIRST TIME 28-29

Instrument panel

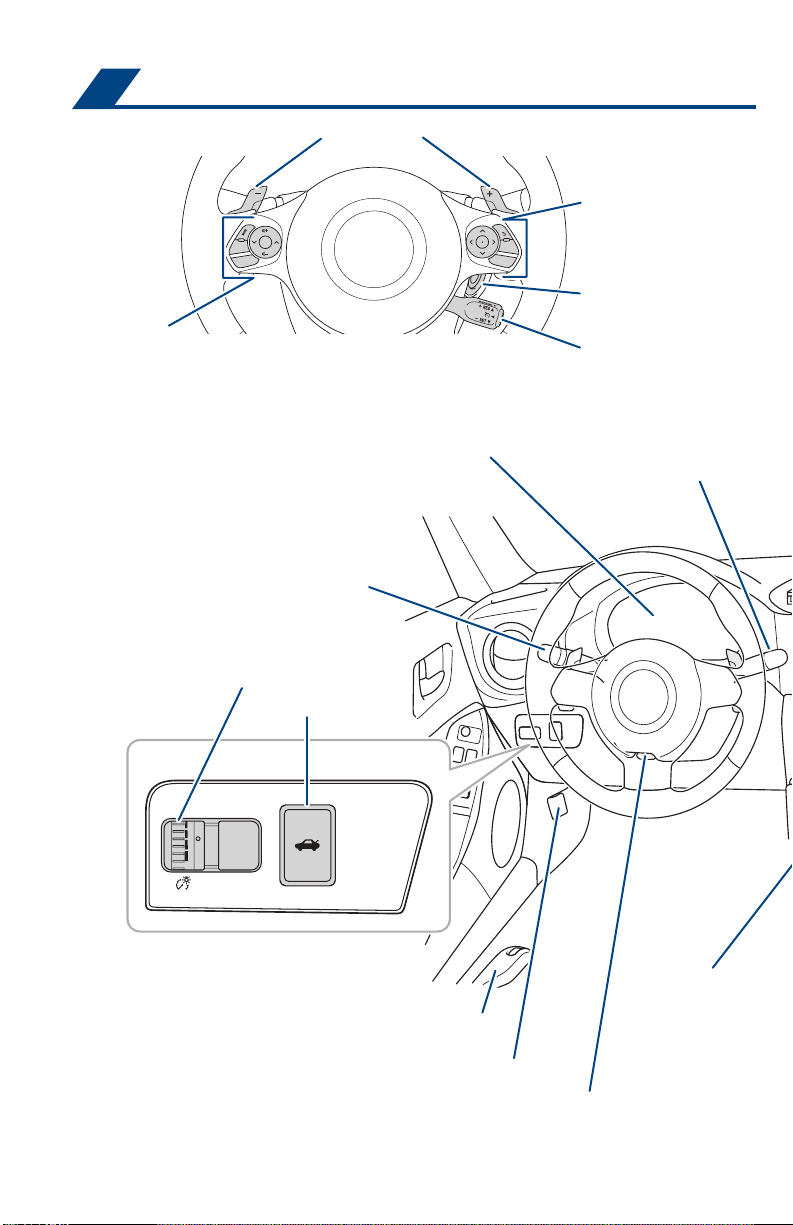

Steering wheel controls

OVERVIEW

Paddle shifters*

Audio control

switches

Ignition switch*

(behind the steering wheel)

Meter control switches*

Headlight, turn signal and

fog light* control

Windshield wiper and washer control

Meters/Multi-Information Display (MID)

Tilt and telescopic steering lock release lever

(below the steering wheel)

Hood lock release lever

Fuel tank door release lever

“ENGINE START

STOP” switch*

Trunk opener switch

Instrument panel light control

Cruise control switch

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES

Rear window and outside rear

view mirror defogger*/rear

window defogger* switch

SPORT or SNOW

mode switch*

Clock

Emergency flasher switch

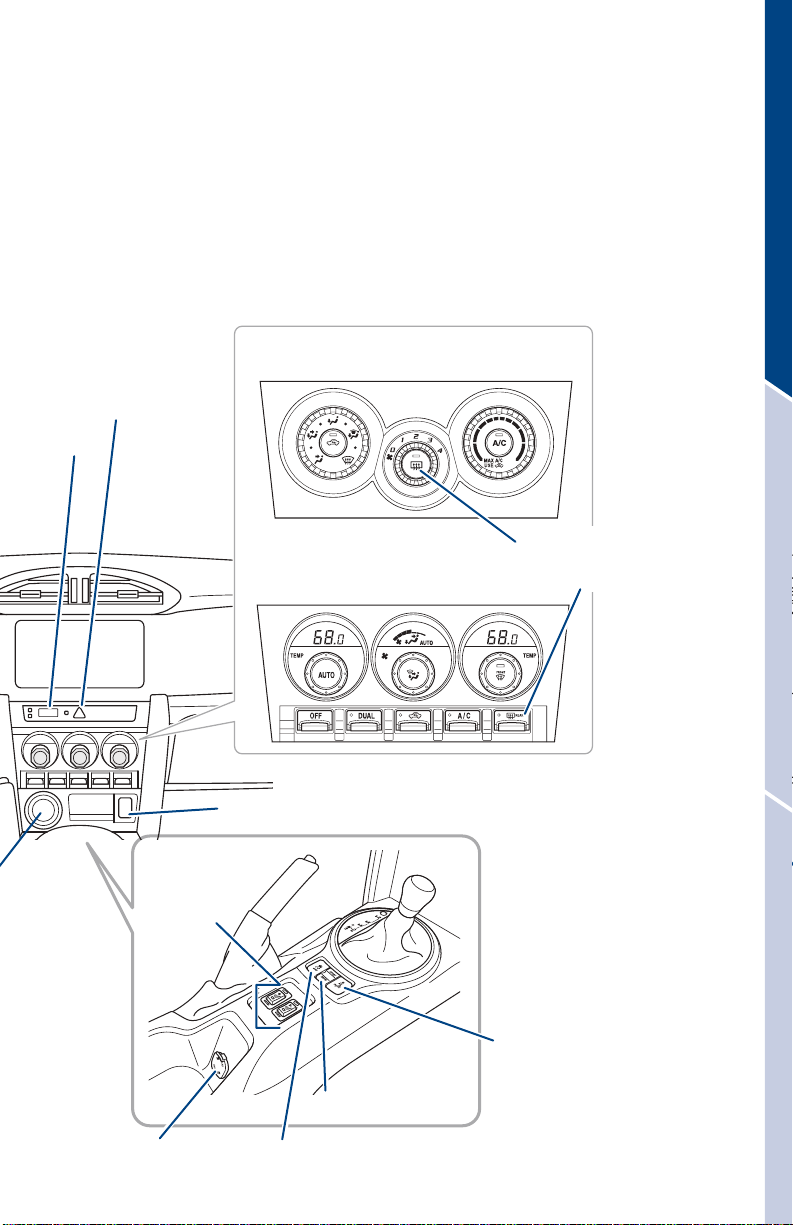

Air conditioning/heating controls

Manual air conditioning/heating controls

Automatic air conditioning/heating controls

Vehicle Stability Control (VSC)/TRAC OFF switch

TRACK mode switch

Seat heaters*

Power outlet

* If equipped

USB media/AUX port

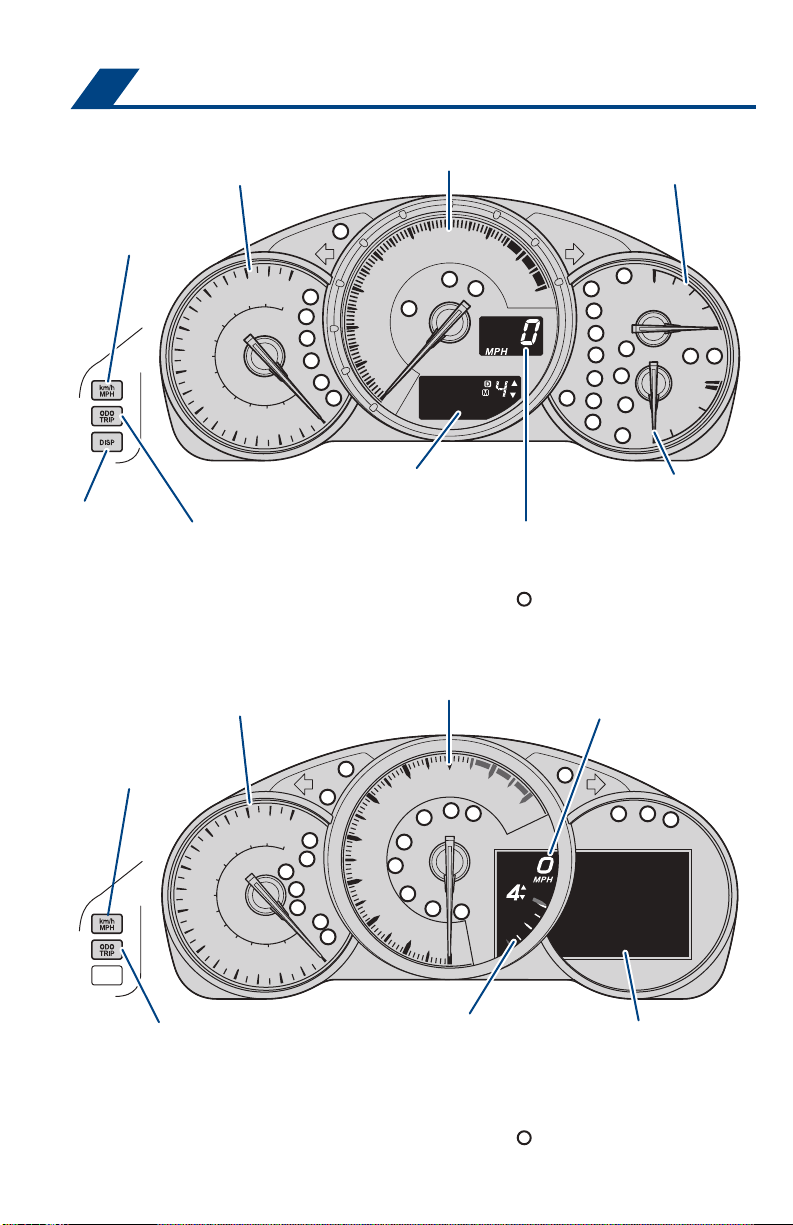

Instrument cluster

Display switch*

Monochrome display

Color display*

Analog speedometer

km/h MPH switch

Odometer/trip meter

display change switch

Odometer/trip meter

display change switch

Tachometer

Fuel gauge

Engine coolant temperature

gauge*

Digital speedometer

Odometer/Trip meter

/Multi-Information Display

Odometer/Trip meter

/Multi-Information Display

Service indicators and reminders

OVERVIEW

* If equipped

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES

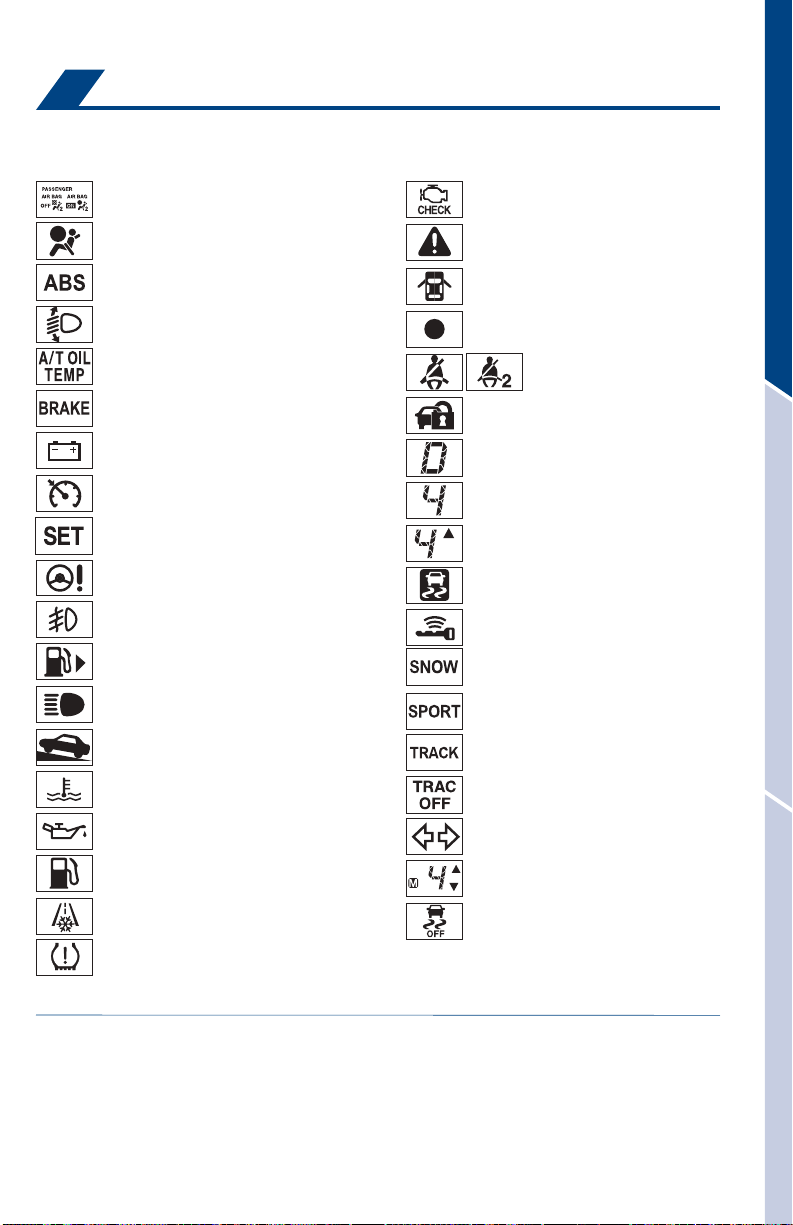

Brake system warning1

Charging system warning1

Automatic headlight leveling

system warning

For details, refer to “Indicators and warning lights,” Section 2-2, 2020 Owner’s

Manual.

Anti-lock Brake System (ABS) warning1

Airbag SRS warning1

Low fuel level warning1(yellow)

Cruise control indicator (green/yellow)

Cruise control SET indicator

Low Tire Pressure Warning1

Slip indicator1,3

Smart Key system indicator6

(green/yellow2)

Automatic Transmission fluid

temperature warning6

TRAC OFF indicator1

SNOW indicator4,6

REV (engine RPM) indicator (red)

Upshift/downshift indicator4,6

Shift position indicator5,6

Shift-up indicator5,6

Shift position and shift range

indicator4,6

Security indicator

SPORT indicator4,6

Turn signal indicator

TRACK mode indicator

Open door warning6

Master warning1,2,6

AIR BAG ON/OFF indicator

Seat belt reminder (alarm will

sound if speed is over 12 mph)

Malfunction/

Check Engine indicator1

Low engine oil pressure warning1

Low engine coolant temperature

indicator2,6 (blue/red)

Electric power steering system warning1

Fuel tank door position

Front fog light indicator6

Hill-start assist control ON indicator3

Headlight high beam indicator

Low outside temperature indicator6Vehicle Stability Control (VSC) OFF

indicator1

1If the indicator does not turn off within a few seconds of starting the engine, there may be a

malfunction. Have the vehicle inspected by your Toyota dealer.

2If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.

3If the indicator flashes, it indicates that the system is operating.

4Vehicle with an automatic transmission.

5Vehicle with a manual transmission.

6If equipped.

Indicator symbols

Keyless entry

LOCKING OPERATION

UNLOCKING OPERATION

TRUNK LID

PANIC BUTTON

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will

relock for safety.

All-door lock

Touch

Smart Key

Carry Smart

Key remote

Carry Smart

Key remote

Carry Smart

Key remote

Grasp

Driver door unlock*

Push

ONCE: Driver door

TWICE: All doors

Push

Push and hold

Push

* Driver door unlocking function can be programmed to unlock driver door only, or

all doors. Grasping passenger door handle will unlock all doors.

OVERVIEW

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES

Smart Key system (if equipped)

START FUNCTION

POWER (WITHOUT STARTING ENGINE)

On - All electrical components can be used.

Accessory – Some electrical components can be used.

Off - All systems OFF. Emergency flashers can be used.

NOTE: The Smart Key must be carried to enable the start function. With gear

shift lever in Park and the brake pedal depressed (automatic transmission)/

with the gear shift lever in N and the clutch pedal depressed (manual

transmission), push the “ENGINE START STOP” switch.

Without depressing the brake pedal (automatic transmission)/ the clutch pedal

(manual transmission), pressing the engine switch will change the operation mode

in succession from:

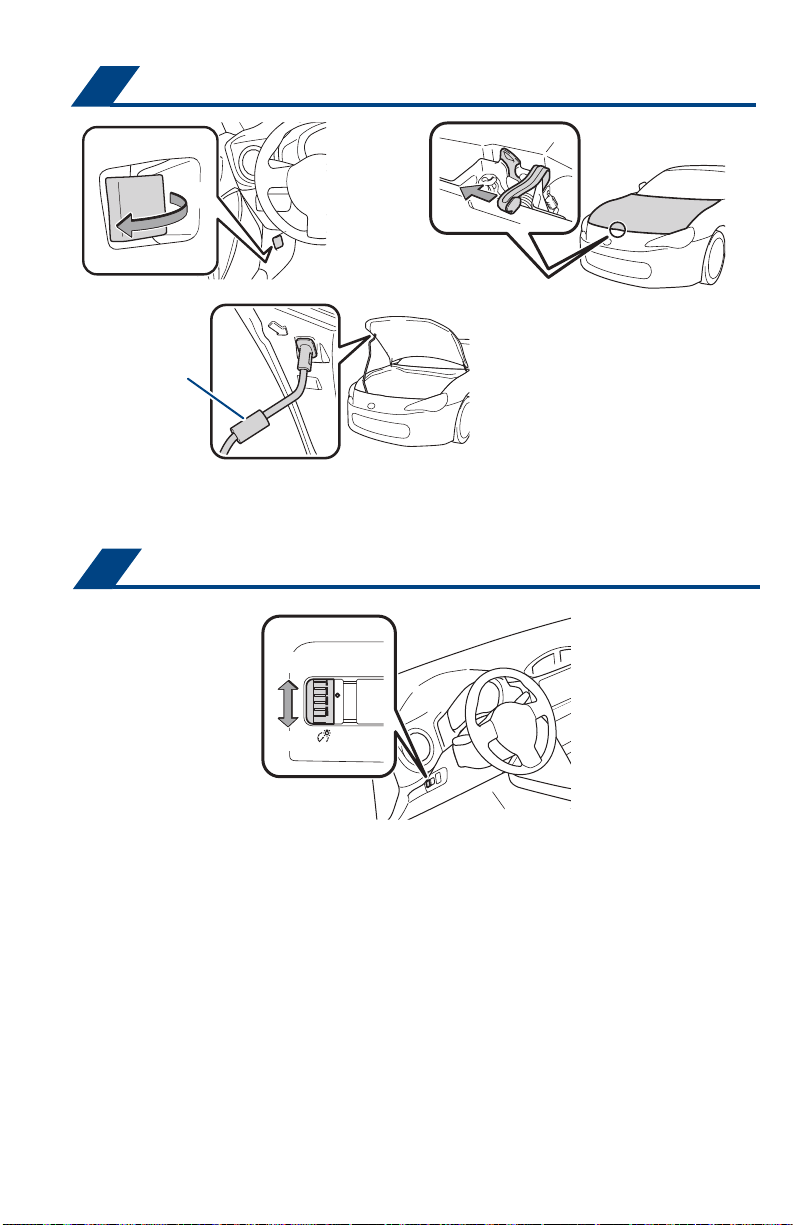

Fuel tank door release & cap

NOTE: Tighten until one click is heard. If the cap is not tightened enough,

Check Engine “ ” indicator may illuminate.

Pull up

Store

Turn to open

Hood release

Grip

Instrument panel light control

Brightness control

Brighter

Darker

When holding a supporting rod,

hold it by the grip portion.

Push latch to the left and

raise hood

Pull

OVERVIEW
