Totevision LCD-641V User manual

Model No.: LCD-641V

6.4” TFT -LCD Monitor

1319 Dexter Avenue N. #020

Seattle, WA 98109

Tel: 206-623-6000

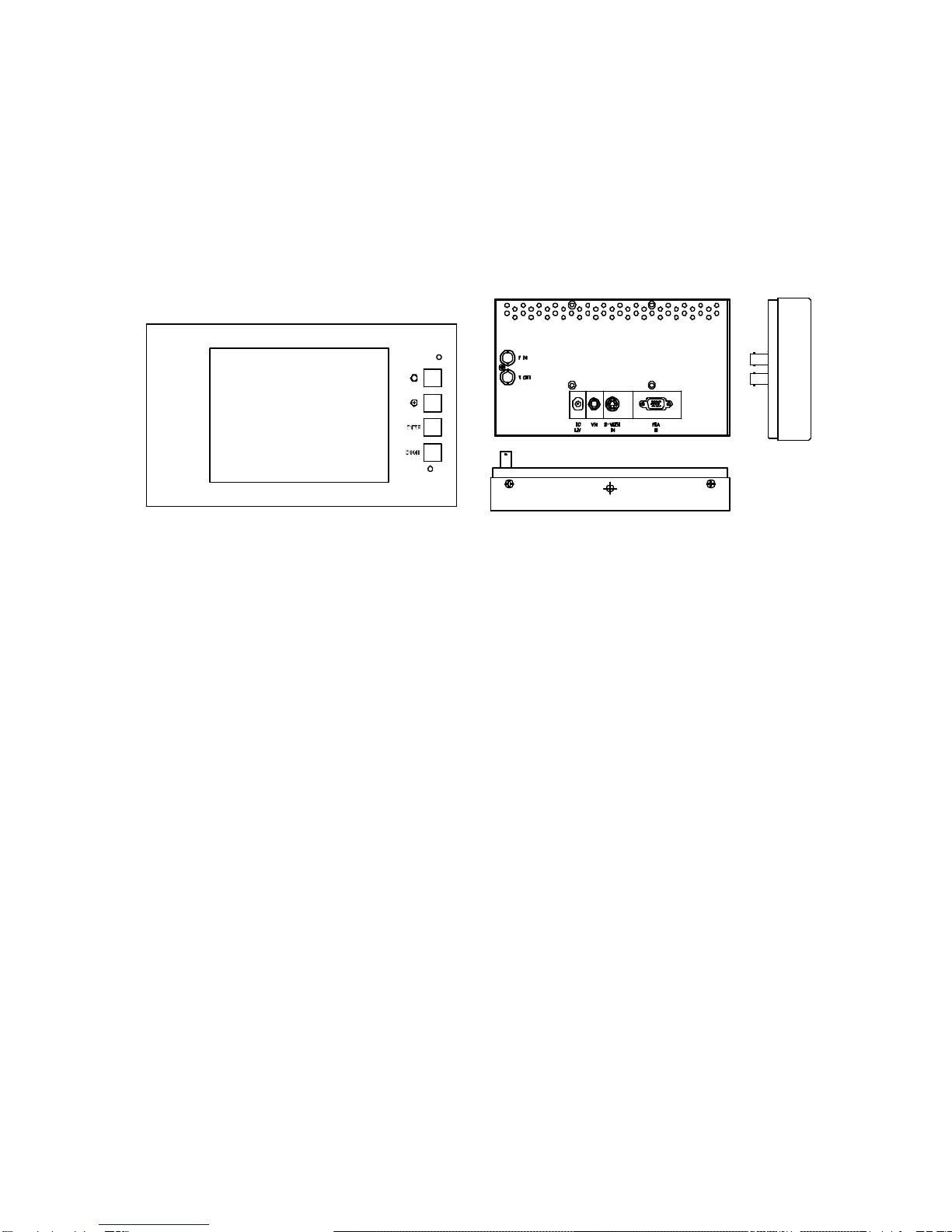

Key Define:

UP: Press this button to increase or decrease the value of the adjustment

functions.

DOWN: Press this button to increase or decrease the value of the adjustment

functions.

ENTER: Press this button for menu adjusting, selecting the menu you want with

“UP”or “DOWN”, then press this button again to enter the selected menu.

ON/OFF:Press this button to turn on the power.

Press and hold for more than 2 seconds to turn the power off.

Under power on condition, this button acts as input mode selector switch.

(VGA/ S-Video/Video).

VGA IN

S-VIDEO IN

VIDEO IN

DC 12V

BNC IN

BNC OUT

OnScreen Display for Video Input

Video Main OSD Menu Figure

--- Press “ENTER” button to activate theOSD main menu

as shown on as shown on the screen.

--- Press “UP” or“DOWN” button to select theOSD

menu.

1. Brightness

--- Press “ENTER” button to enter this mode.

--- Press “UP” or“DOWN”

button to select the desired

adjustment item.

*Brightness:Adjust the brightness of the panel.

*Contrast :Adjust the white color level of the image.

*Back Light :Adjust the back light level of the panel.

*Recall:When you run the function, the monitor will be

setting to last status of the saving value.

*Exit:Return to last menu.

2. Video Quality

--- Press“ENTER” button to enter this mode.

--- Press“UP” or“DOWN” buttonto select the desired

adjustment item.

* Brightness:Adjust the brightness of the panel

*Contrast:Adjust the white color level of the image.

*Gain: Adjust image to be the best.

*Saturation: Adjust the color saturation of the image.

*Hue:Adjust the color hue of the image.

*Sharpness:Adjust the image from weak to sharp.

*Recall: When you run the function, the monitor will be

setting to setting to last status of the saving value

*Exit: Return to last menu.

Brightness

Contrast

Back Light

Recall

Exit

Video Quality

Brightness

Contrast

Gain

Saturation

Hue

Sharpness

Recall

Exit

3. OSD Function

--- Press “ENTER”button to enter this mode.

--- Press “UP”or “DOWN”button to select the desired

adjustment item.

*H Position:Adjust the horizontal position of theOSD

menu.

*V Position: Adjust the vertical position of the OSD menu.

*Language: N/A

*Display Func.: The method of OSD display.

*Recall:When you run thefunction, the monitor will be

setting to last status of the saving value.

*Exit:Return to last menu.

4. Image

--- Press“ENTER” button to enter this mode.

--- Press“UP” or“DOWN” button to select the desired

adjustment item.

*Video System:NTSC /PAL /SECAM /NTSC 4.43 /Auto

*Dithering:N/A

*Select Input:Press to select inputs VGA/S-Video/Video

*UP/DOWN: Normal /Invert

*Right /Left: Normal /Reverse

*Exit : Return to last menu

5. Recall

--- Press“ENTER” button to enter this mode.

--- Press“UP” or“DOWN” button to select the desired

adjustment item.

*RecallAll:When you run the function, the monitor will be

setting to last status of thesaving value.

*Exit:Return to last menu.

6. Exit Menu

OSD Function

H Position

V Position

Language

Display Func

Recall

Exit


Video System

Dithering

Select Input

Up/Down

Right/Left

Exit

Recall

Recall All

Exit

Exit Menu

OnScreen Display for VGAInput

VGA Main OSD Menu Figure

--- Press “ENTER” buttonto activate theOSD main

menu as

shown on the screen.

--- Press“UP” or“DOWN” button again to select the OSD

menu.

1.Auto Config

--- Press“ENTER” button to enter this mode.

--- Press“UP” or“DOWN” button to select the desired ad

adjustment item.

*Auto Config:Select “YES” to make the monitor have the

best efficiency.

*Exit:Return to last menu.

2. Position

--- Press“ENTER” button to enter this mode

--- Press“UP” or“DOWN” button to select the desired

adjustment item.

*H Position:Adjust the horizontal position of the image.

*V Position:Adjust the vertical position of the image.

*Auto Position:Select “YES” to auto adjust the vertical

and horizontal position.

* Exit:Return to last menu.

3. Brightness

--- Press“ENTER” button to enter this mode.

--- Press “UP” or“DOWN” button to select the desired

Adjustment item.

*Brightness:Adjust the brightness of the panel.

*Contrast:Adjust the white color level of the image.

*Back Light: Adjust the back light blue intensity.

*Recall:When you run the function, the monitor will be

setting to last status of the saving value.

*Exit:Returnto last menu.

Auto Config

Exit

Position

H Position

V Position

Auto Position

Exit

Brightness

Contrast

Back Light

Recall

Exit

4. Clock

--- Press“ENTER” button to enter this mode

--- Press “UP” or“DOWN” button to select the desired

adjustment item.

*Clock:Adjust video sampling clock.

*Phase:Adjust the noise of the image.

*Recall:When you run the function, the monitor will be

setting to last status of the saving value.

*Exit:Return to last menu.

5. Color

--- Press“ENTER” button to enter this mode

--- Press“UP” or“DOWN” button to select the desired

adjustment item.

*Color 9300 °K:Setcolor temperature of the image to

9300 °K

*Color 5500 °K:Setcolor temperature of the image to

5500 °K

*Balance Color:Adjust the color balance.

*User Color:Setthe RGB color of the image by self

define.

*Auto Balance: Automatic adjustment of thebalance.

*Adjust Color:Press “ENTER” button to enter color

adjustment. Press “UP” or“DOWN” button to adjust

R/G/B Color level and off set.

6. OSD Function

--- Press“ENTER” button to enter this mode.

--- Press“UP” or“DOWN” button to select the desired

adjustment item.

*H Position:Adjust the horizontal position of theOSD menu.

*V Position:Adjust the vertical position of OSD menu.

*Language:N/A

*Display Func.: The method of OSD display.

*Recall:When you run the function, the monitor will be

setting to last status of the saving value.

*Exit:Return to last menu.

Clock

Phase

Recall

Exit

Color

Color 9300°K

Color 5500°K

Balance Color

User Color

Auto Balance

Adjust Color

OSD Function

H Position

V Position

Language

Display Func

Recall

Exit

Clock

Phase

Recall

Exit

7. Image

--- Press“ENTER” button to enter this mode.

--- Press“UP” or“DOWN” button to select the desired

adjustment item.

*Mode Select:Change DOS mode resolution

640 x 400or 720 x 350 or 720 x 400

*Dithering:N/A

*Select Input:Press to select inputs VGA / S-video /Video

*UP /DOWN: Normal /Invert

* Right /Left:Normal /Reverse

*Exit: Return to last menu.

8.Information

VGA Condition

Resolution and Frequency

9. Recall

--- Press“ENTER” buttonto enter this mode

--- Press“UP” or“DOWN” to select the desired

adjustment item

*RecallAll:Set default value to original setting

*Exit:Return to last menu

10. Exit Menu

Exit Menu

Information

Recall

Recall All

Exit


Mode Select

Dithering

Select Input

Up/Down

Right/Left

Exit

Specifications

Model No.: LCD-641V

Screen Size:6.4”(Diagonal)

Display Resolution: 640 (H) x 480 (V)

PixelPitch (mm): 0.203 (H) x 0.203 (V)

Active Area (mm):129.6 (H) x 97.44 (V)

LCD Aspect Ratio: 4:3

Color Configuration: R.G. B. Vertical Stripe

Brightness Rating:300 Nittyp.

Contrast ratio: 400

InputSignal:NTSC / PAL (DUAL.CAPABLITY) / SECAM /

NTSC4.43

Number ofPixels: 262,144 Dots

ViewingAngle (L/R/U/D): 55/55/10/30

PixelConfiguration:Stripe

Video Input Signal Level:1V p-p (Positive) / 75 ohm

Operating Temperature:0℃~+60℃

Storage Temperature: -20℃~+70℃

DC Power Supply:DC 12V In(From Switching Power Supply)

Power Consumption:<9 W

Connectors: DC-In, RCA Composite Video, S-Video, D-SUB,

BNC Composite Video IN /OUT

Response:30ms/Rising Time,50ms/Falling Time

Dimensions: 132.5 (H) X 224.6 (W) x 56.0 (D) mm

Net Weight: 1.3 kg
